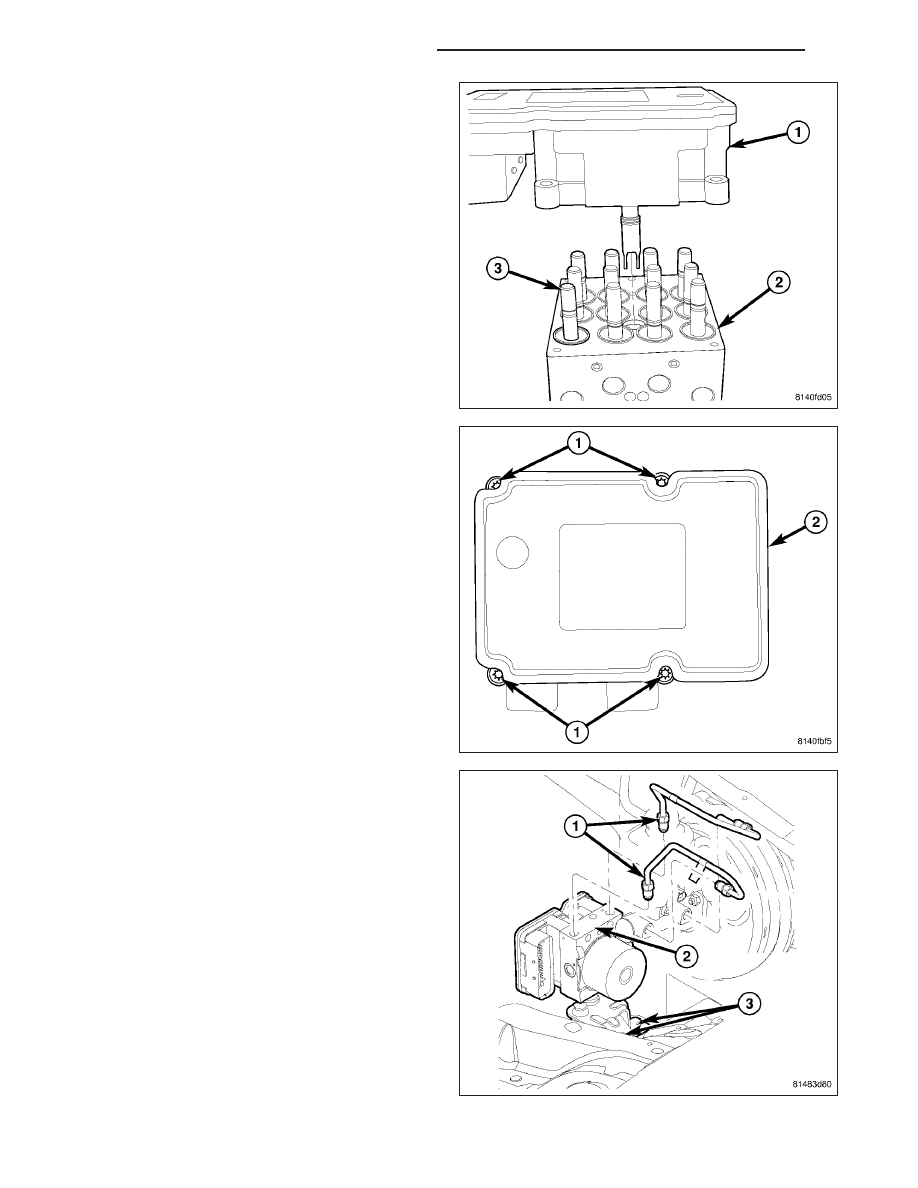

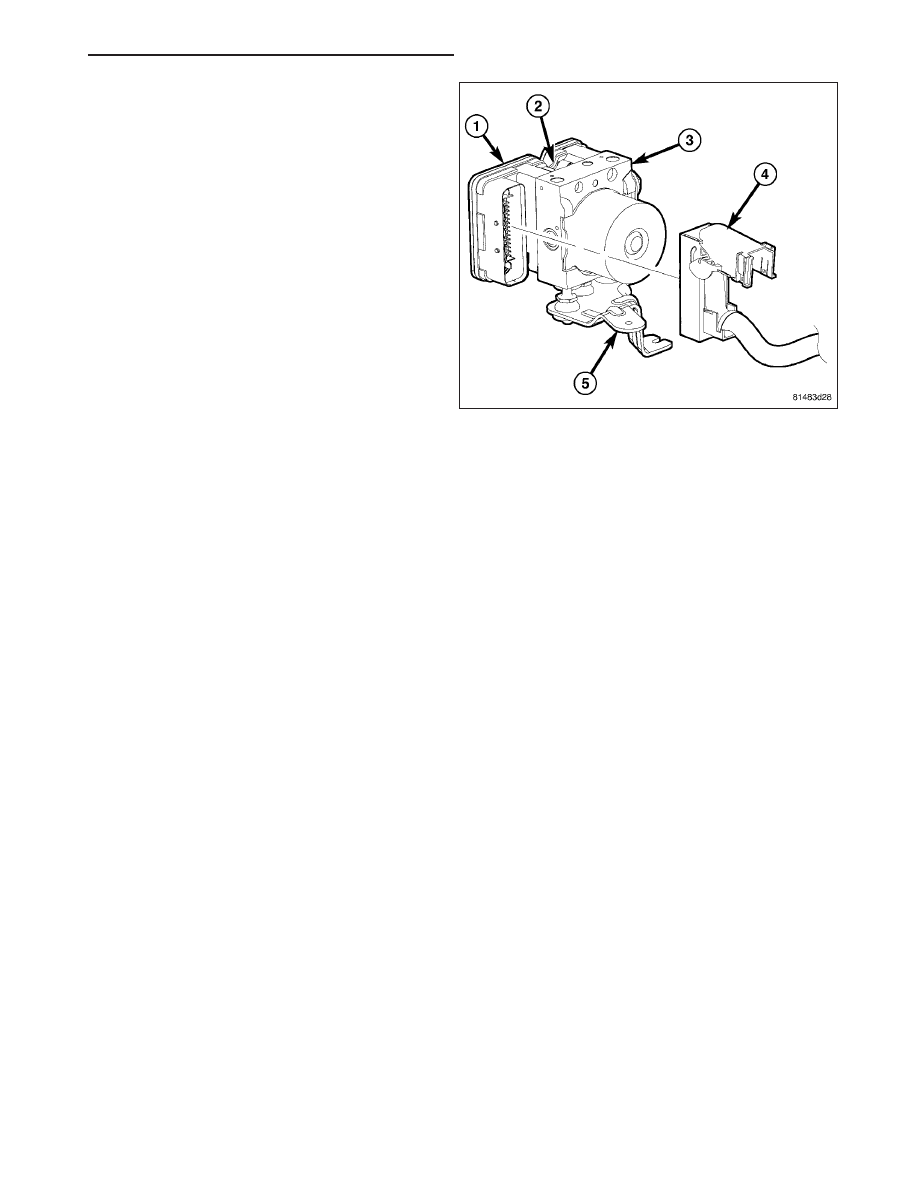

4. Align components and install the ABM module on the HCU. 5. Install the four screws attaching the ABM module to the HCU. Tighten the mounting screws to 2 N·m 6. If the mounting bracket needs to be installed, install the mounting pins in the HCU as necessary and 7. Install the HCU in the vehicle (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/HCU INSTALLATION NOTE: If the ABM module is being replaced with a 1. Install ABM (2) on the mounting studs (3). 2. Install mounting nuts. Tighten to 14.1 N·m (125 in. lbs.). 3. Install brake lines (1) to the ABM (2) and tighten to 20 N·m (180 in. lbs.) . 5 - 260 BRAKES - ABS SERVICE INFORMATION KJ |
