Jeep Liberty KJ. Manual - part 1056

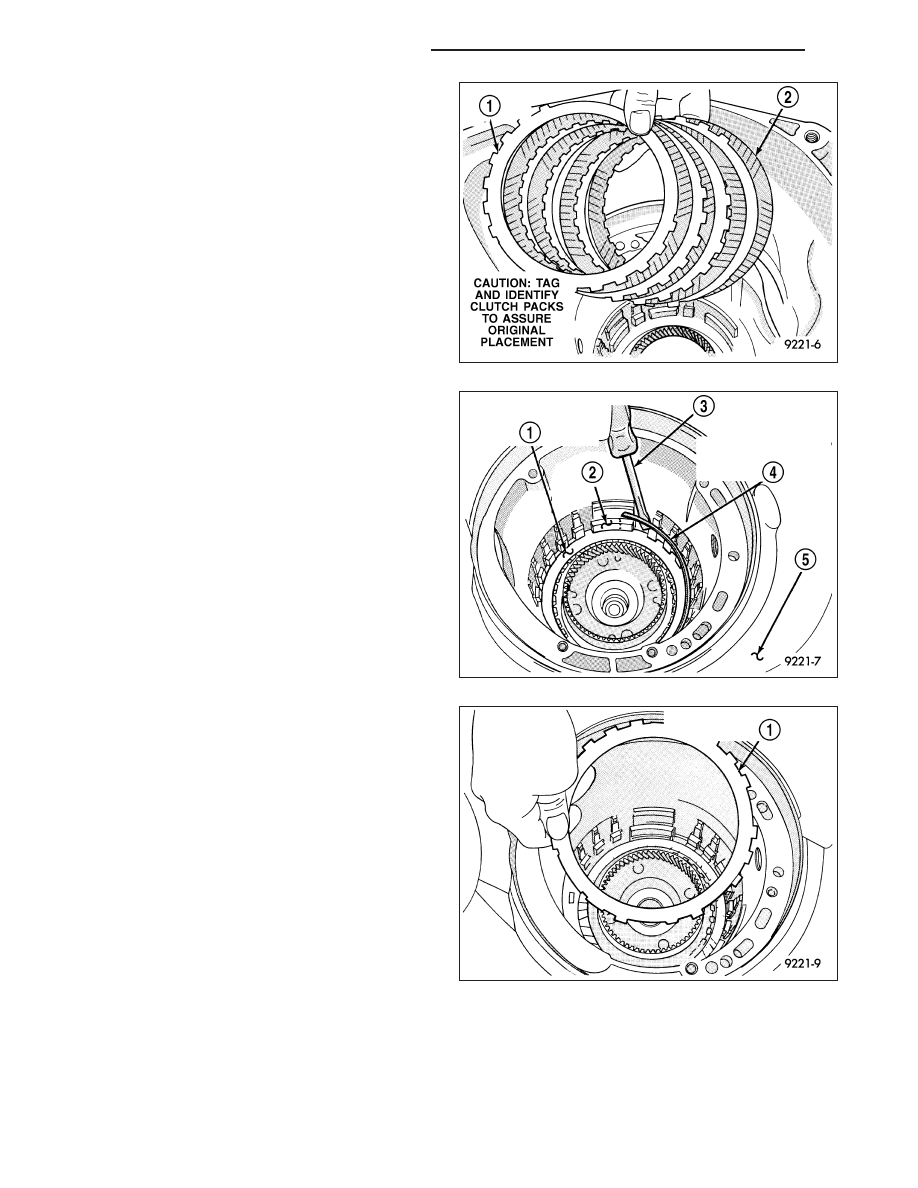

40. Remove the 2/4 clutch pack (1, 2).

41. Remove the tapered snap ring (4).

42. Remove the low/reverse reaction plate (1).

21 - 268

AUTOMATIC TRANSMISSION - 42RLE

KJ

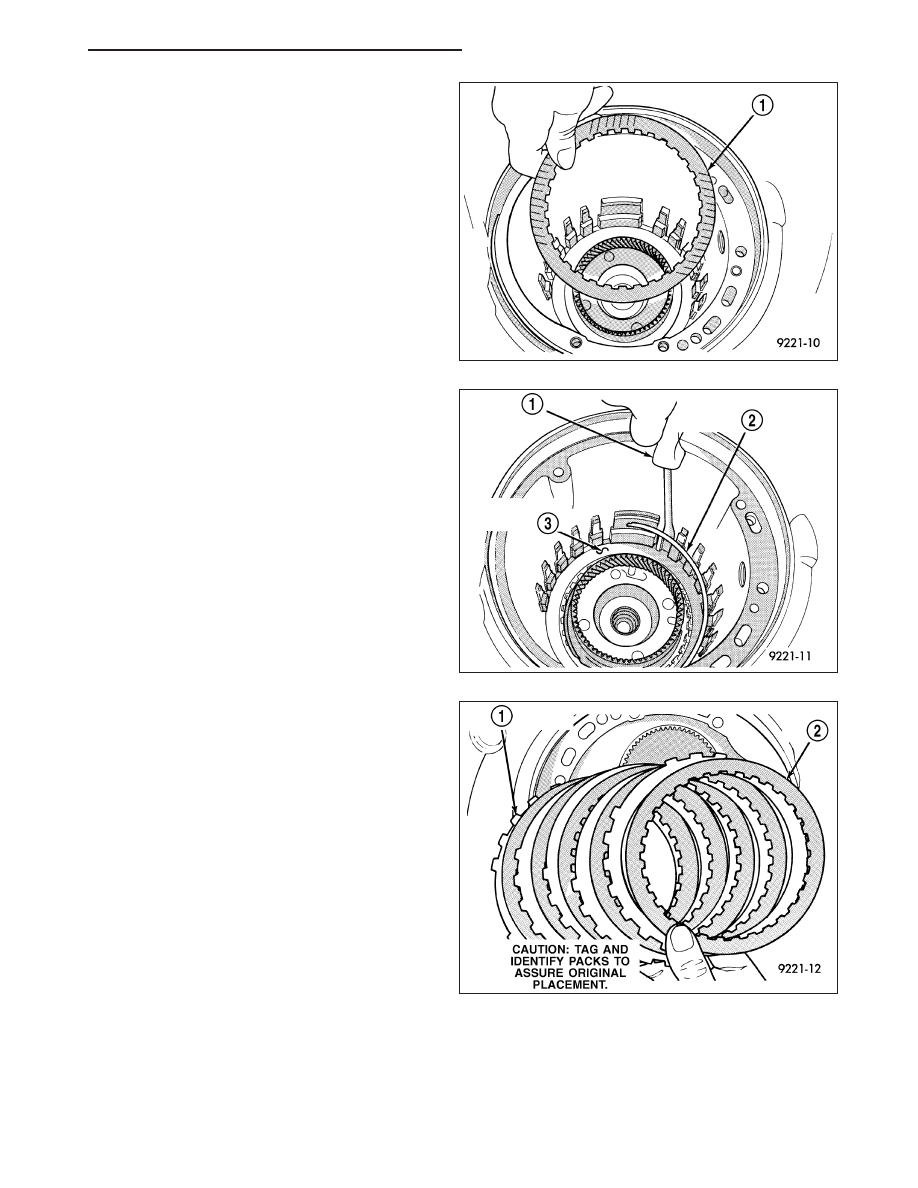

43. Remove one (1) low/reverse clutch disc to facili-

tate snap ring removal.

44. Remove the low/reverse reaction plate snap ring

(2).

45. Remove the low/reverse clutch pack (1, 2).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 269

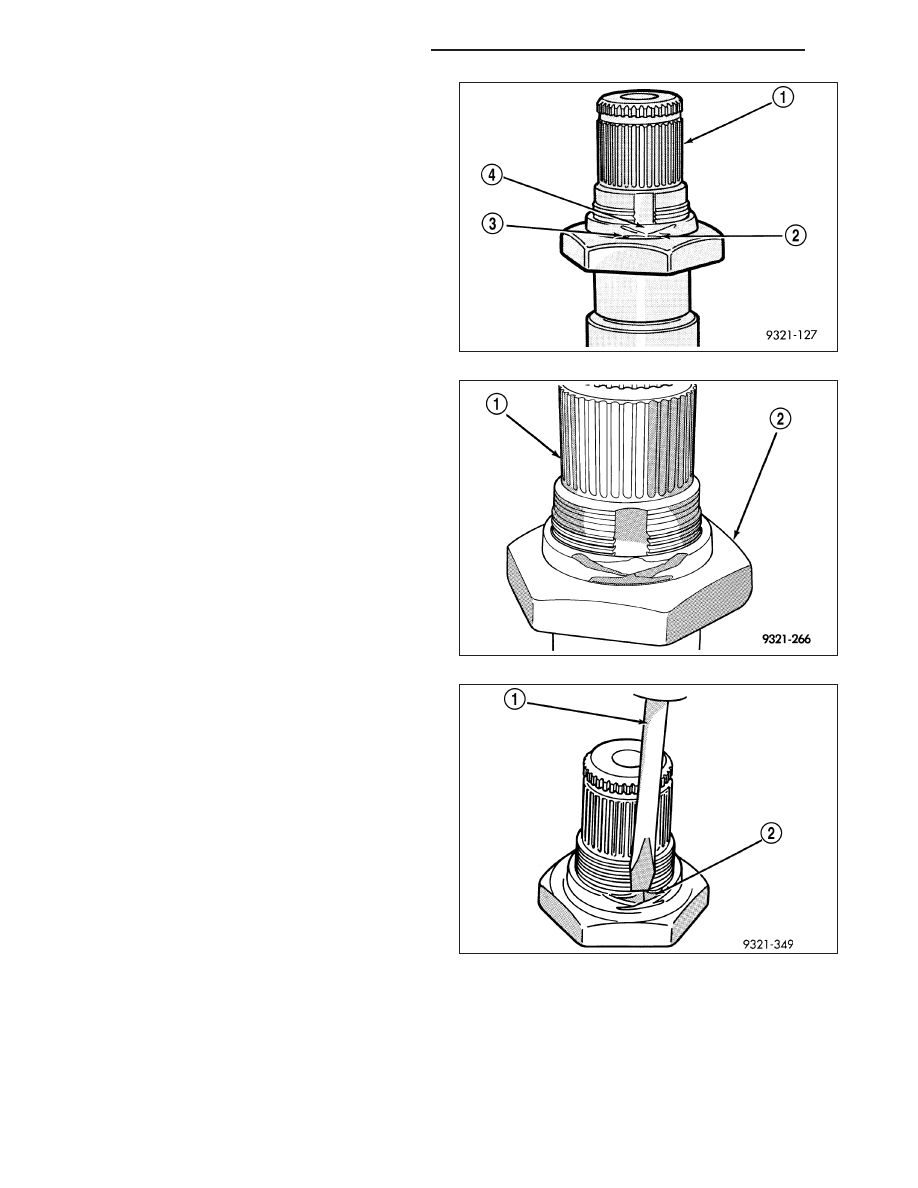

CAUTION: Failure to grind and open stakes (4) of
the output shaft nut will result in thread damage to
the shaft during nut removal.

WARNING: Wear safety goggles while grinding
stake nuts.

46. Using a die grinder or equivalent, grind the stakes

in the shoulder of the shaft nut (2) as shown. Do
not grind all the way through the nut and into the
shaft. There are two stakes on each nut.

47. Using a small chisel (1), carefully open the stakes

on nut (2).

21 - 270

AUTOMATIC TRANSMISSION - 42RLE

KJ

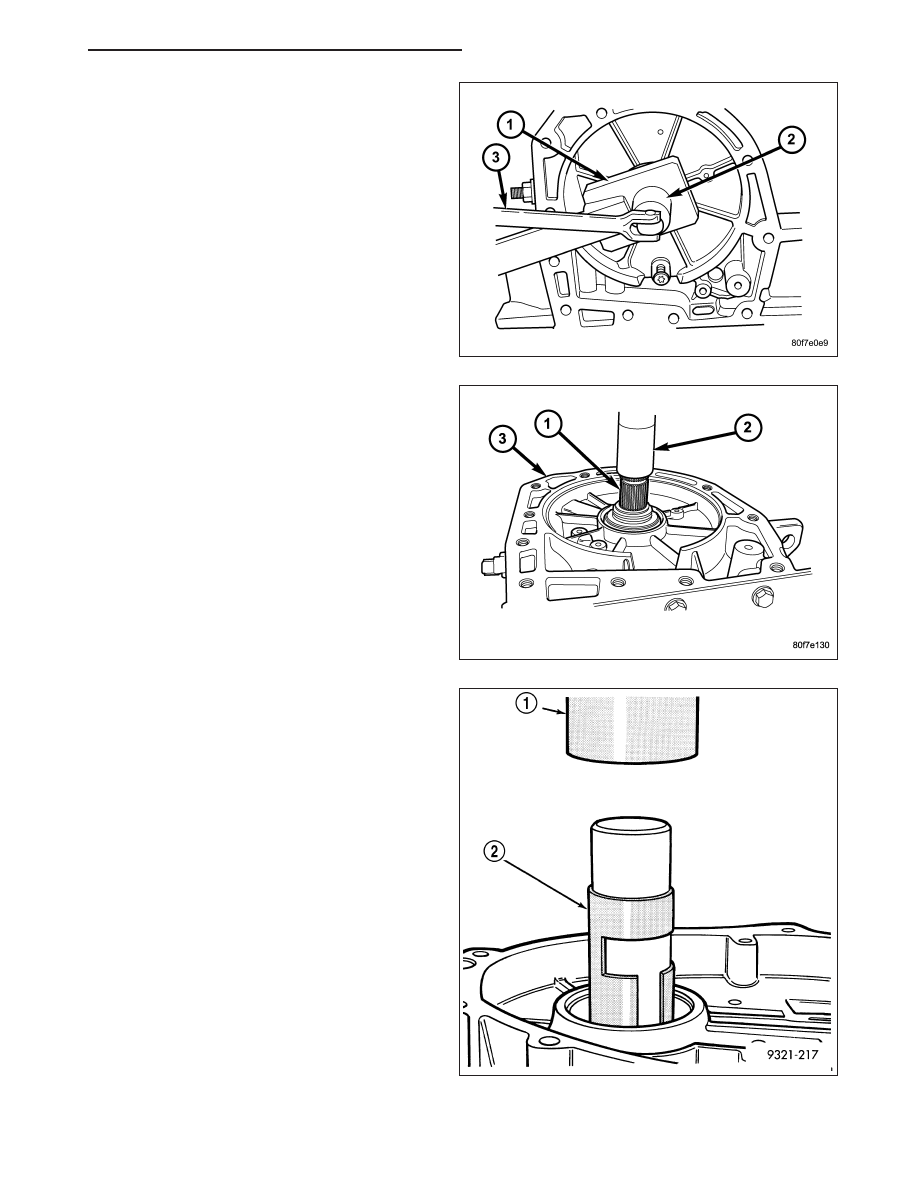

48. Use Wrench 6497 (1) and Wrench 6498A (2) to

remove the output shaft nut.

49. Remove the output shaft (1) from case (3) using a

shop press (2).

50. Use Remover 6596 (2) with a shop press (1) to

remove the front output shaft bearing cup.

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 271
