Jeep Liberty KJ. Manual - part 92





LAMPS/LIGHTING - EXTERIOR

TABLE OF CONTENTS

page

page

LAMPS/LIGHTING - EXTERIOR

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
WARNING

WARNINGS - LAMPS/LIGHTING -

EXTERIOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DIAGNOSIS AND TESTING

LAMPS/LIGHTING - EXTERIOR . . . . . . . . . . . . . . 34

SPECIFICATIONS

LAMPS/LIGHTING - EXTERIOR . . . . . . . . . . . . . . 43

BACKUP LAMP SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

BRAKE LAMP SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
DIAGNOSIS AND TESTING

BRAKE LAMP SWITCH . . . . . . . . . . . . . . . . . . . . . . 47

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

LAMP-HIGH MOUNTED STOP

REMOVAL

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

INSTALLATION

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

COMBINATION FLASHER

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

DAYTIME RUNNING LAMP RELAY

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

FOG LAMP RELAY

DESCRIPTION

FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
REAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

OPERATION

FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
REAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

FRONT FOG LAMP

REMOVAL

BULB - GRILLE MOUNTED . . . . . . . . . . . . . . . . . . 57
BULB - FASCIA MOUNTED . . . . . . . . . . . . . . . . . . 57
LAMP - GRILLE MOUNTED . . . . . . . . . . . . . . . . . . 59
LAMP - FASCIA MOUNTED . . . . . . . . . . . . . . . . . . 59

INSTALLATION

BULB - GRILLE MOUNTED . . . . . . . . . . . . . . . . . . 59
BULB - FASCIA MOUNTED . . . . . . . . . . . . . . . . . . 60

LAMP - GRILLE MOUNTED . . . . . . . . . . . . . . . . . . 62
LAMP - FASCIA MOUNTED . . . . . . . . . . . . . . . . . . 62

ADJUSTMENTS

FRONT FOG LAMP UNIT . . . . . . . . . . . . . . . . . . . . 62

FRONT POSITION LAMP

REMOVAL - BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
INSTALLATION - BULB . . . . . . . . . . . . . . . . . . . . . . . . 65

HAZARD SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

HEADLAMP HIGH BEAM RELAY

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

HEADLAMP LEVELING MOTOR

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

HEADLAMP LEVELING SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
DIAGNOSIS AND TESTING

HEADLAMP LEVELING SWITCH . . . . . . . . . . . . . 73

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

HEADLAMP LOW BEAM RELAY

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

HEADLAMP UNIT

REMOVAL

LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
BULB - NORTH AMERICA . . . . . . . . . . . . . . . . . . . 76
BULB - EXPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

INSTALLATION

LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
BULB - NORTH AMERICA . . . . . . . . . . . . . . . . . . . 78
BULB - EXPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

ADJUSTMENTS

HEADLAMP UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

LICENSE PLATE LAMP

REMOVAL

BULB - NORTH AMERICA . . . . . . . . . . . . . . . . . . . 83
BULB - EXPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
LAMP - NORTH AMERICA . . . . . . . . . . . . . . . . . . . 84
LAMP - EXPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

INSTALLATION

BULB - NORTH AMERICA . . . . . . . . . . . . . . . . . . . 84
BULB - EXPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
LAMP - NORTH AMERICA . . . . . . . . . . . . . . . . . . . 86

8L - 26

LAMPS/LIGHTING - EXTERIOR

KJ

LAMP - EXPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

LAMP BAR

REMOVAL

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
REINFORCEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . 89

INSTALLATION

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
REINFORCEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . 91

ADJUSTMENTS

LIGHT BAR LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

LAMP BAR SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

MARKER LAMP

REMOVAL

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

INSTALLATION

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

MULTI-FUNCTION SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
DIAGNOSIS AND TESTING

MULTI-FUNCTION SWITCH . . . . . . . . . . . . . . . . . 103

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

PARK BRAKE SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
DIAGNOSIS AND TESTING

PARK BRAKE SWITCH . . . . . . . . . . . . . . . . . . . . . 107

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

PARK LAMP RELAY

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

PARK/TURN SIGNAL LAMP

REMOVAL

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

INSTALLATION

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

REAR LAMP UNIT

REMOVAL

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

INSTALLATION

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

REPEATER LAMP

REMOVAL

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

INSTALLATION

BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

TRAILER TOW CONNECTOR

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

TRAILER TOW RELAY

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

TRAILER TOW WIRING

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

TURN SIGNAL CANCEL CAM

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

KJ

LAMPS/LIGHTING - EXTERIOR

8L - 27

LAMPS/LIGHTING - EXTERIOR

DESCRIPTION

8L - 28

LAMPS/LIGHTING - EXTERIOR

KJ

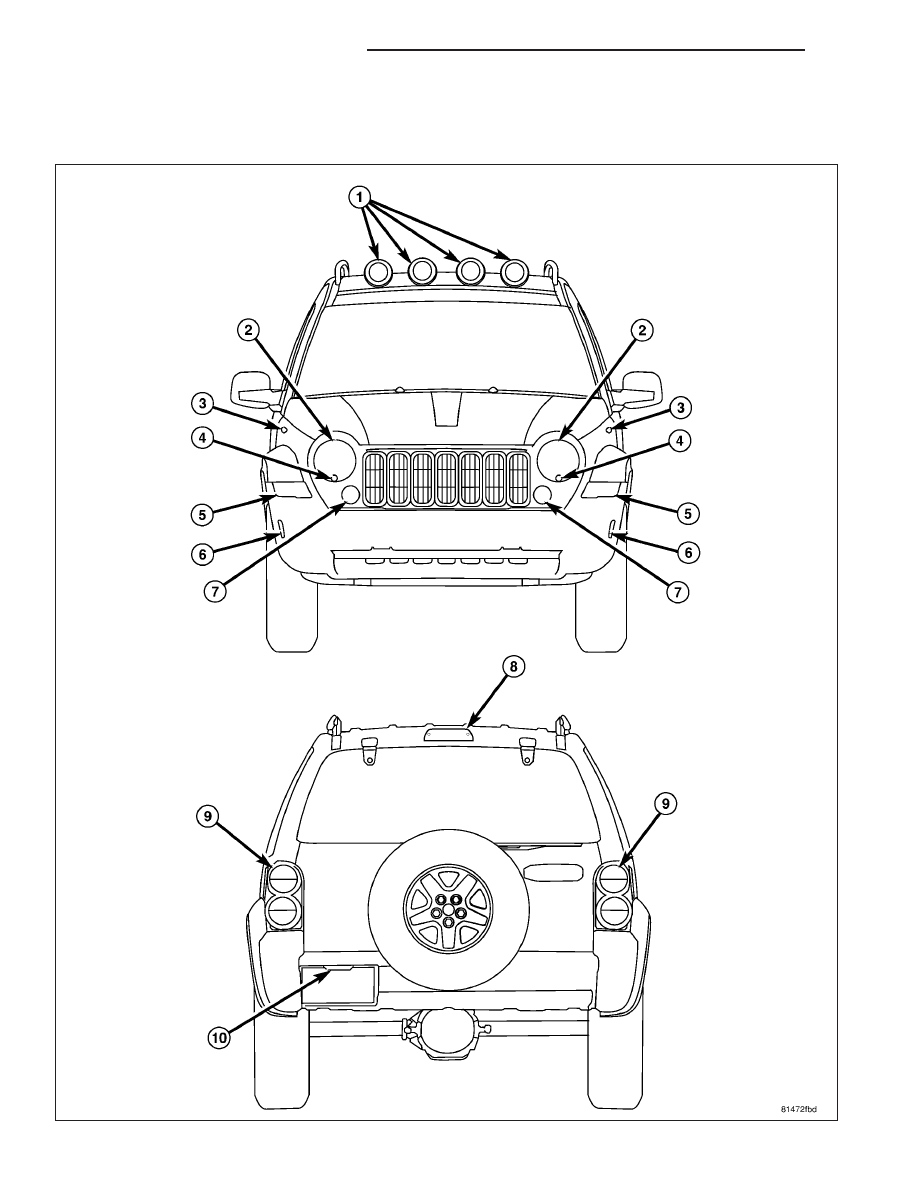

The exterior lighting system for this vehicle includes the following exterior lamp units:

Center High Mounted Stop Lamp (8) - A standard equipment Center High Mounted Stop Lamp (CHMSL) is
centered on the rear edge of the roof panel above the flip-up glass opening at the rear of the vehicle.

Front Fog Lamps (7) - Two optional front fog lamps are available on this vehicle, grille opening panel
mounted fog lamp units with an adjustable reflector that are secured behind a dedicated opening on each side
of the grille panel below and inboard of the headlamps; or, free standing fascia mounted lamps with an adjust-
able mounting bracket that are secured to the upper horizontal surface of the front fascia below and inboard of
the headlamps.

Front Park Lamps (5) - A standard equipment front park lamp unit is mounted high at each outboard end of
the front fascia.

Front Position Lamps (4) - A front position lamp is integral to each headlamp unit in certain markets where
they are required.

Front Side Marker Lamps/Reflectors (6) - A front side marker lamp unit is mounted low on each outward
facing outboard end of the front fascia. In certain markets where the side repeater lamp is required, the bulb
and socket is deleted from the front side marker lamp and only the lamp housing with its reflective lens is
used.

Headlamps (2) - Standard equipment round headlamp units with a fixed lens and an adjustable reflector are
secured to the grille opening panel at each side of the front grille. In certain markets where required, a head-
lamp leveling actuator motor and/or a front position lamp is/are integral to each headlamp.

License Plate Lamps (10) - Vehicles with a license plate tub integral to the left side of the rear fascia have
a single rear license plate lamp unit mounted to the underside of the upper horizontal wall of the fascia tub
formation. Vehicles with a license plate bracket secured to the spare tire carrier have two rear license plate
lamps mounted to the underside of the upper horizontal wall of the tub formation in the bracket.

Light Bar Lamps (1) - Vehicles equipped with this option have a light bar mounted to the roof panel just
rearward of the upper windshield opening header. Depending upon the market the vehicle is manufactured for,
the light bar incorporates either two or four individually adjustable, forward-facing, auxiliary lamp units.

Rear Lamp Units (9) - A standard equipment rear lamp unit is mounted to the rear of each quarter panel on
either side of the tailgate opening.

Side Repeater Lamps (3) - A side repeater lamp is mounted to each front fender just behind the front wheel
in certain markets where they are required.

Rear Reflectors - In certain markets where they are required, two rectangular, red reflectors are located on
the rear bumper fascia, one just inboard and below each rear lamp unit.

These exterior lighting lamp units and their controls are combined to provide the following exterior lighting features:

Auxiliary (Off-Road) Lamps - On vehicles equipped with the light bar lamp option, the auxiliary (off-road) light
bar lamps include the clear bulbs, reflectors and clear lenses of each of the two or four adjustable lamps
integral to the light bar.

Backup Lamps - The backup (or reverse) lamps include a clear bulb, reflector and clear lens that are integral
to each rear lamp unit.

Brake Lamps - The brake (or stop) lamps include the clear bulbs, reflectors and red lenses that are integral
to each rear lamp unit and the CHMSL.

Daytime Running Lamps - Vehicles manufactured for sale in Canada illuminate the high beam filament of
each headlamp bulb at a reduced intensity to serve as the Daytime Running Lamps (DRL).

Front Fog Lamps - Both optional front fog lamps include the bulb, reflector and lens of each adjustable front
fog lamp unit.

Hazard Warning Lamps - The hazard warning lamps include the bulbs, reflectors and lenses of each lamp in
the right and left, front and rear turn signal circuits.

Headlamps - The headlamps include a single, dual filament halogen bulb, an adjustable reflector and a clear
lens integral to each headlamp unit.

Headlamp Leveling - Headlamp leveling is available only in certain markets where it is required equipment. A
headlamp leveling actuator motor on each headlamp unit and a headlamp leveling switch mounted on the
instrument panel allow the vertical axis of the headlamp beam pattern to be adjusted by the vehicle operator
from the interior of the vehicle to compensate for passenger or cargo load.

Optical Horn - Also known as flash-to-pass, the beam selection function of the multi-function switch left (light-
ing) control stalk has a momentary intermediate position that allows the headlamp high beams to be flashed
momentarily, without changing the headlamp beam selection.

KJ

LAMPS/LIGHTING - EXTERIOR

8L - 29















Content   ..  90  91  92  93   ..
