Jeep Liberty KJ. Manual - part 89





4.

HIGH BEAM RELAY

Turn the ignition off.

Install a known good relay in place of the High Beam Relay.

Turn the High Beams On.

Do the High Beams operate normally?

Yes

>> Replace the High Beam Relay.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 5

5.

MULTIFUNCTION SWITCH

Turn the ignition off.

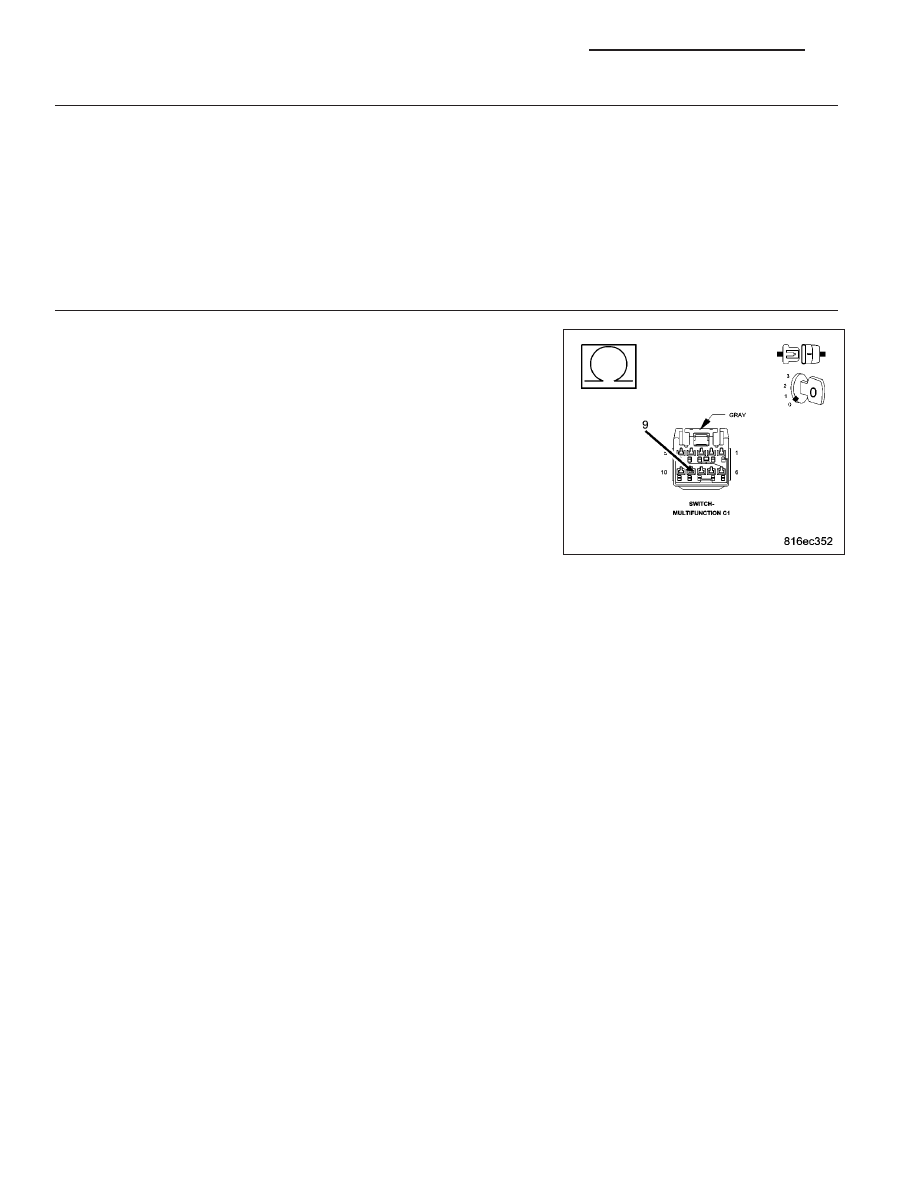

Disconnect the Multifunction Switch harness connector C1.

Disconnect the BCM C2 connector.

Measure the resistance of the High Beam Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Multifunction Switch.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Repair the High Beam Switch Sense circuit for an open

condition.

Perform BODY VERIFICATION TEST - VER 1.

8L - 14

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

KJ

*LOW BEAM HEADLAMPS INOPERATIVE

For a complete wiring diagram Refer to Section 8W

When Monitored:
Possible Causes

Set Condition:
Possible Causes

Possible Causes

LOW BEAM RELAY

OPEN FUSED B+ CIRCUIT

LOW BEAM RELAY CONTROL CIRCUIT

LOW BEAM RELAY

BODY CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the Low Beams on.

Do the Low Beam Headlamps operate properly?

Yes

>> The condition is not present at this time. Monitor Scan Tool parameters while wiggling the related wire

harness. Refer to any Technical Service Bulletins that may apply. Visually inspect the related wiring har-
ness and connector terminals.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 2

2.

LOW BEAM RELAY

Remove the Low Beam Relay from the Junction Block.

Install a known good relay in place of the Low Beam Relay.

With the Scan Tool, actuate the Low Beam Relay.

Do the Headlamps flash while actuating the Low Beam Relay?

Yes

>> Replace the Low Beam Relay.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 3

3.

OPEN FUSED B(+) CIRCUIT

Remove the Low Beam Relay from the Junction Block.

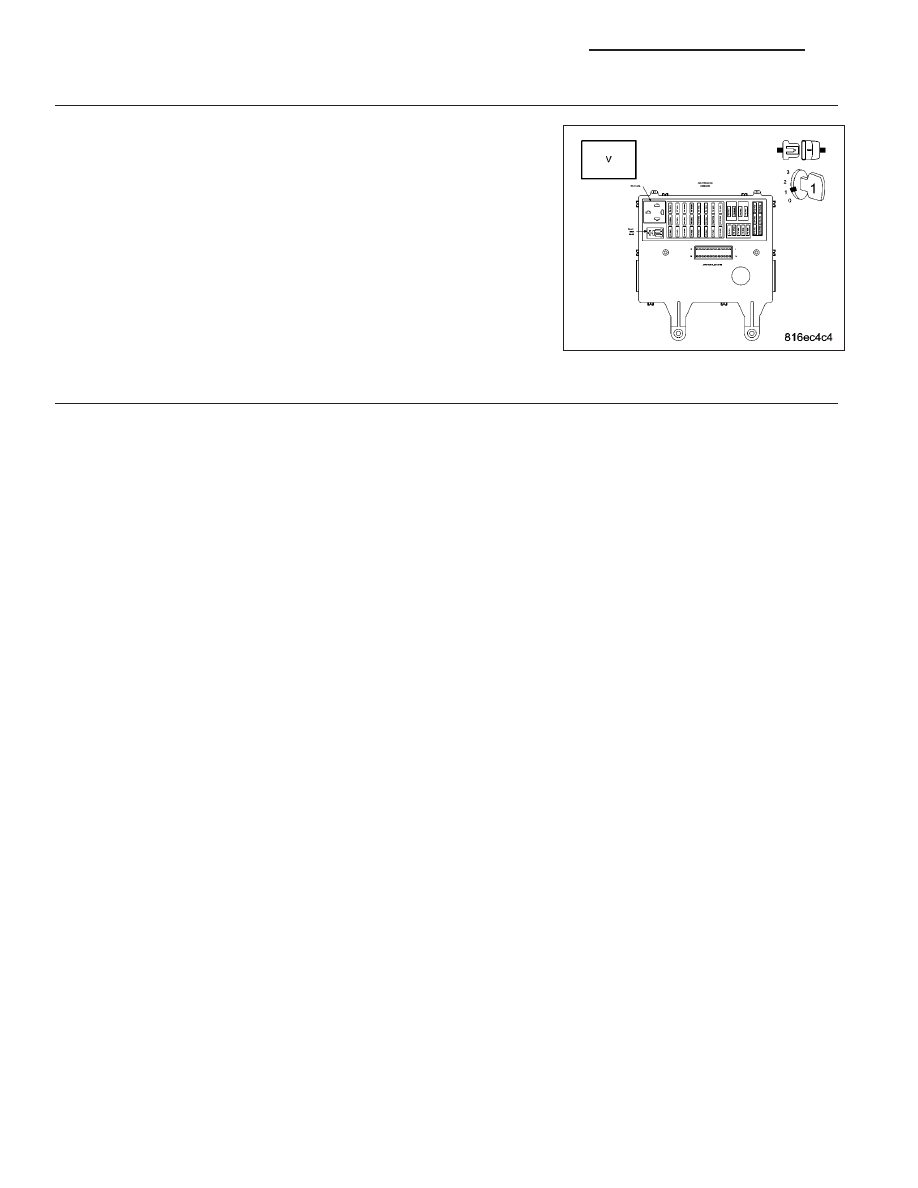

Measure the voltage of the Fused B(+) circuit at the Low Beam Relay
connector.

Is the voltage above 10.0 volts?

Yes

>> Go To 4

No

>> Repair the open fused B+ circuit.

Perform BODY VERIFICATION TEST - VER 1.

KJ

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 15

4.

LOW BEAM RELAY CONTROL CIRCUIT

Remove the BCM from the junction block.

Connect a jumper wire between the Fused B(+) circuit and the Low
Beam Relay Control circuit at the Low Beam Relay connector.

Measure the voltage of the Low Beam Relay Control circuit to the BCM
Junction Block connector.

Is the voltage above 10.0 volts?

Yes

>> Go To 5

No

>> Repair the Low Beam Relay Control circuit for an open con-

dition.

Perform BODY VERIFICATION TEST - VER 1.

5.

LOW BEAM HEADLAMP RELAY

Disconnect the jumper wire.

Reinstall the Low Beam Relay in the Junction Block.

Remove the BCM from the junction block.

Measure the voltage of the Low Beam Relay Control circuit to the BCM internal connector.

Is the voltage above 10.0 volts?

Yes

>> Replace the Body Control Module.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Low Beam Relay.

Perform BODY VERIFICATION TEST - VER 1.

8L - 16

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

KJ

LOW BEAM RELAY CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W

When Monitored:
With ignition on

Set Condition:
BCM detects battery on the Low Beam Relay when it is attempting to turn on the Low Beams for more than
5 seconds.

Possible Causes

MISSING RELAY

OPEN FUSE

LOW BEAM RELAY

BODY CONTROL MODULE

FUSED LOW BEAM RELAY OUTPUT CIRCUIT OPEN

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, clear all BCM DTC’s.

Turn the Low Beams on.

With the scan tool, read the DTC information.

Does the scan tool read: LOW BEAM RELAY CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition is not present at this time. Monitor scan tool parameters while wiggling the related wire

harness. Refer to any Technical Service Bulletins that may apply. Visually inspect the related wiring har-
ness and connector terminals.

Perform BODY VERIFICATION TEST - VER 1.

2.

MISSING RELAY

Turn the ignition off.

Check the Junction Block to make certain the Low Beam Relay is present.

Is the Low Beam Relay present?

Yes

>> Go To 3

No

>> Replace the missing Low Beam Relay.

Perform BODY VERIFICATION TEST - VER 1.

3.

OPEN FUSE

Turn the ignition off.

Check the Junction Block Low Beam fuses 4 and 5.

Are any of the fuses open?

Yes

>> Replace the open fuse.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 4

KJ

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 17
