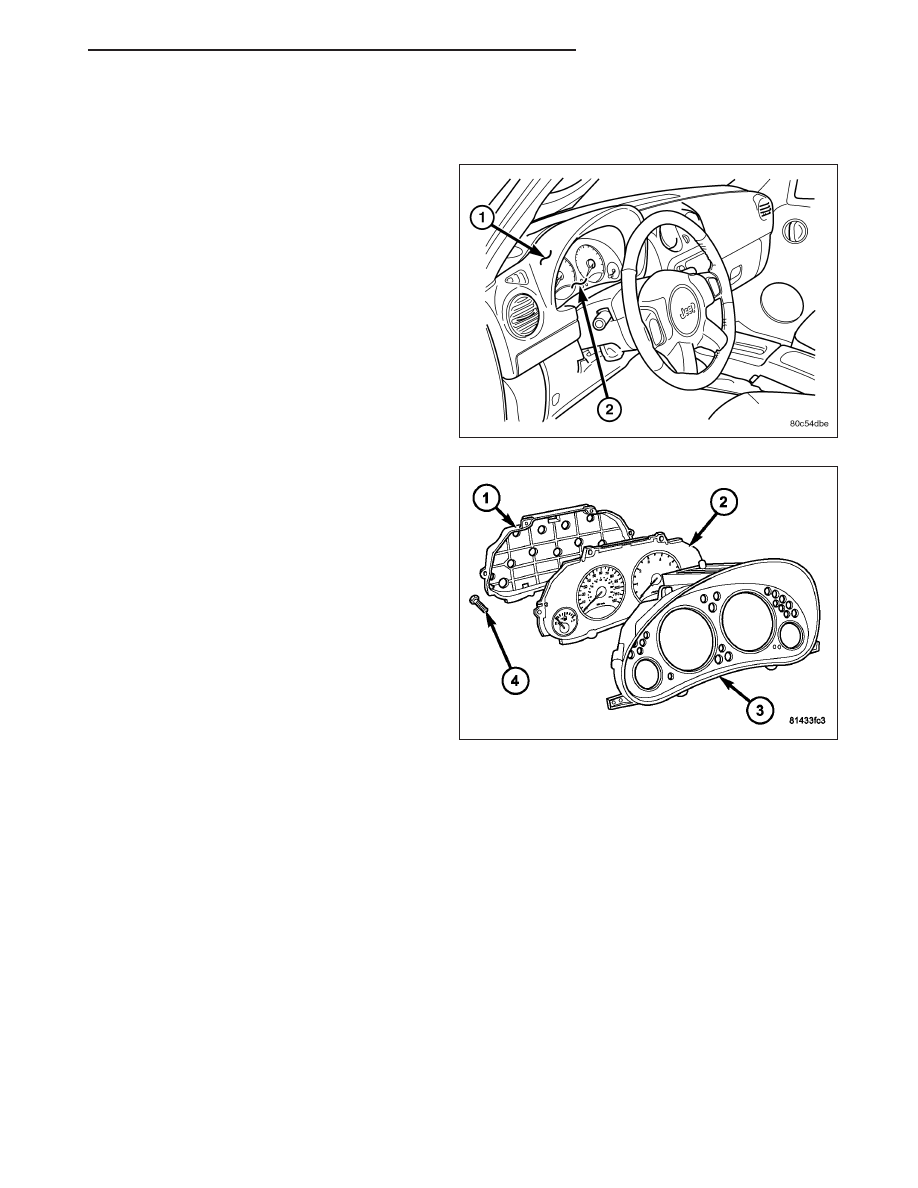

located in the instrument panel (1) above the steering
column opening, directly in front of the driver. The
remainder of the EMIC, including the mounts and the
electrical connections, are concealed within the instru-
ment panel behind the cluster bezel. Besides analog
gauges and indicators, the EMIC module incorporates
a blue-green digital Vacuum Fluorescent Display
(VFD) unit for displaying odometer/trip odometer infor-
mation, some warning or reminder indications and cer-
tain diagnostic information.

The EMIC gauges and indicators are visible through a
dedicated opening in the cluster bezel on the instru-
ment panel and are protected by a clear plastic cluster
lens that is integral to a cluster lens, hood and mask
unit (3). Just behind the cluster lens is the cluster
hood and an integral cluster mask, which are con-
structed of molded black plastic. Two cluster masks
are used; a base black version is used on base vehi-
cles, while a premium black version features a chrome
trim ring around the perimeter of each gauge opening
and is used on premium vehicles.

The cluster hood serves as a visor and shields the face of the cluster from ambient light and reflections to reduce
glare, while the cluster mask serves to separate and define the individual gauges and indicators of the EMIC. A
black plastic odometer/trip odometer switch button protrudes through dedicated holes in the cluster mask and the
cluster lens near the lower edge of the cluster just to the right of the tachometer. The molded plastic EMIC lens,
hood and mask unit has three integral mounting tabs, one on each of the lower outboard corners of the unit and
one on the upper surface of the hood near the center. These mounting tabs are used to secure the EMIC to the
molded plastic instrument panel cluster carrier with two screws at the top, and one screw at each outboard tab.

The rear of the cluster housing (2) and the EMIC electronic circuitry are protected by a molded plastic rear cover
(1), which is secured to the cluster lens, hood and mask unit with six screws (4). The rear cover includes clearance
holes for service access to each of the nine incandescent bulb and bulb holder units installed on the cluster circuit
board for general illumination lighting and for the cluster connector receptacle. The single connector receptacle on
the back of the cluster electronic circuit board connects the EMIC to the vehicle electrical system through a single
dedicated take out and connector of the instrument panel wire harness.

Sandwiched between the rear cover and the lens, hood and mask unit is the cluster housing. The molded plastic
cluster housing serves as the carrier for the cluster circuit board and circuitry, the cluster connector receptacle, the
gauges, a Light Emitting Diode (LED) for each cluster indicator, the VFD unit, an audible tone transducer, the cluster
overlay, the gauge pointers, the odometer/trip odometer switch and the switch button.

Behind the cluster lens, hood, and mask unit on the face of the cluster housing is the cluster overlay. The cluster
overlay is a laminated plastic unit. The dark, visible, outer surface of the overlay is marked with all of the gauge dial
faces and graduations, but this layer is also translucent. The darkness of this outer layer prevents the cluster from

INSTRUMENT CLUSTER

8J - 95

appearing cluttered or busy by concealing the cluster indicators that are not illuminated, while the translucence of
this layer allows those indicators and icons that are illuminated to be readily visible. The underlying layer of the
overlay is opaque and allows light from the various indicators and the incandescent illumination lamps behind it to
be visible through the outer layer of the overlay only through predetermined stencil-like cutouts. A rectangular open-
ing in the overlay at the base of the tachometer dial face has a smoked clear lens through which the illuminated
VFD unit can be viewed.

Numerous versions of the EMIC module are offered on this vehicle, in both base and premium trim. These versions
accommodate all of the variations of optional equipment and regulatory requirements for the various markets in
which the vehicle will be offered. The microprocessor-based EMIC utilizes integrated circuitry and information carried
on the Programmable Communication Interface (PCI) data bus along with several hard wired analog and multi-
plexed inputs to monitor sensors and switches throughout the vehicle. In response to those inputs, the internal cir-
cuitry and programming of the EMIC allow it to control and integrate many electronic functions and features of the
vehicle through both hard wired outputs and the transmission of electronic message outputs to other electronic mod-
ules in the vehicle over the PCI data bus. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/COM-
MUNICATION - DESCRIPTION - PCI BUS).

Besides typical instrument cluster gauge and indicator support, the electronic functions and features that the EMIC
supports or controls include the following:

•

Audible Warnings - The EMIC electronic circuit board is equipped with an audible tone transducer and pro-
gramming that allows it to provide various audible alerts to the vehicle operator, including chime tones and
beep tones. (Refer to 8 - ELECTRICAL/CHIME WARNING SYSTEM - DESCRIPTION).

•

Panel Lamps Dimming Control - The EMIC provides a hard wired 12-volt Pulse-Width Modulated (PWM)
output that synchronizes the dimming level of all panel lamps dimmer controlled lamps with that of the cluster
illumination lighting.

The EMIC houses four analog gauges, one odometer/trip odometer VFD unit and has provisions for up to twenty-
five indicators. Some of the EMIC indicators are automatically configured when the EMIC is connected to the vehicle
electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in
certain markets. While each EMIC may have provisions for indicators to support every available option, the config-
urable indicators will not be functional in a vehicle that does not have the equipment that an indicator supports.

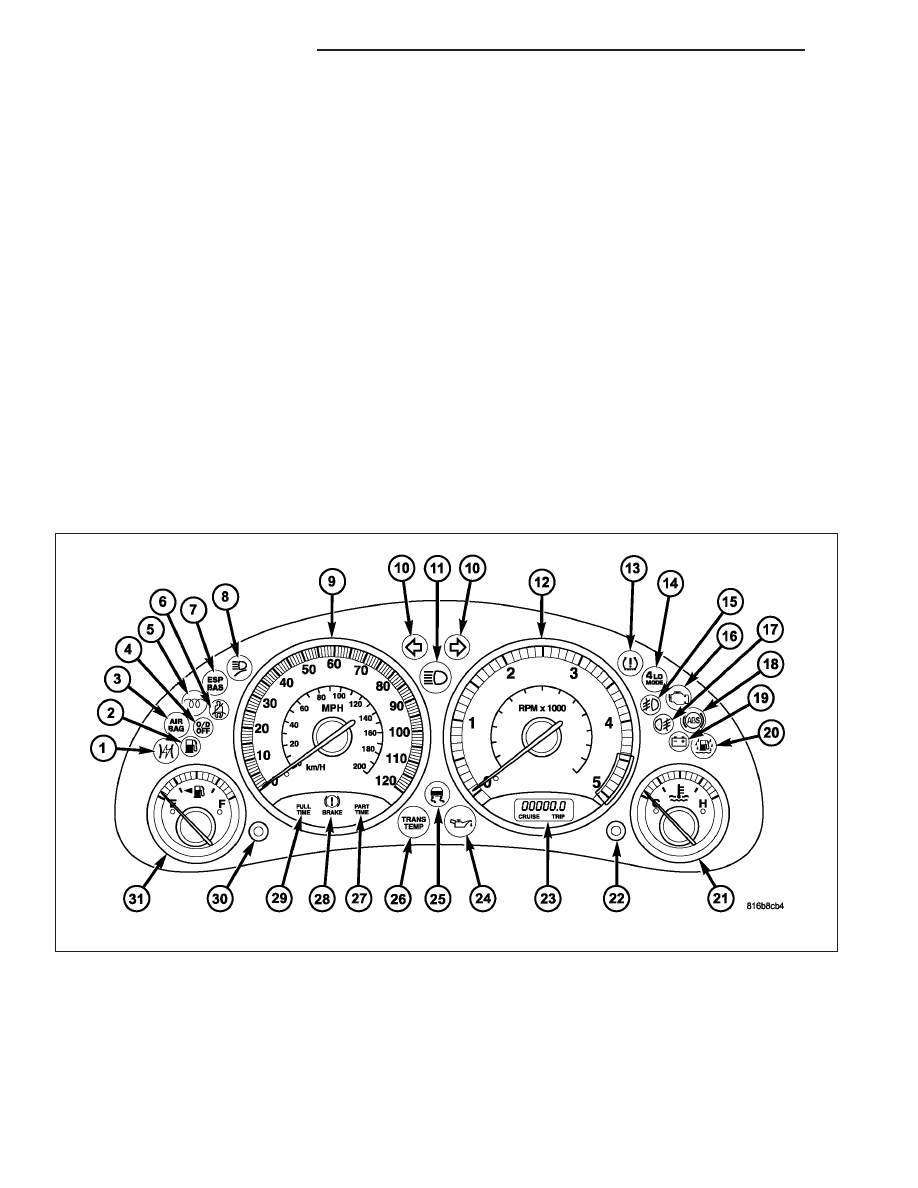

The EMIC includes the following analog gauges:

•

Engine Temperature Gauge (21)

•

Fuel Gauge (31)

•

Speedometer (9)

8J - 96

INSTRUMENT CLUSTER

•

Tachometer (12)

The EMIC includes the following VFD display units:

•

Odometer Display (23) - Includes ajar indicators (without Electronic Vehicle Information Center (EVIC) only),
cruise indicator, gas cap indicator (with gasoline engines only), low coolant indicator (with diesel engine only),
odometer, trip odometer, washer fluid indicator (without EVIC only).

•

Odometer/Trip Odometer Switch Button (22)

The EMIC includes provisions for the following indicators:

•

Airbag Indicator (3)

•

Ajar Indicators - textual messages in odometer VFD (23) for doors, tailgate and rear flip-up glass.

•

Antilock Brake System (ABS) Indicator (18)

•

Brake Indicator (28)

•

Charging Indicator (19)

•

Coolant Low Indicator (w/Diesel Engine only) - textual message in odometer VFD (23).

•

Cruise Indicator - in odometer VFD (23).

•

Electronic Stability Program (ESP)/Brake Assist System (BAS) Indicator (7)

•

Electronic Throttle Control (ETC) Indicator (1) - with diesel engine only.

•

Four-Wheel Drive Full Time Indicator (29) - with Selec-Trac transfer case only.

•

Four-Wheel Drive Low Mode Indicator (14) - with four-wheel drive only.

•

Four-Wheel Drive Part Time Indicator (27) - with four-wheel drive only.

•

Front Fog Lamp Indicator (15) - with front fog lamps only.

•

Gas Cap Indicator - with gasoline engine only in odometer VFD (23).

•

High Beam Indicator (11)

•

Light Bar Lamp Indicator (8) - with light bar lamps only.

•

Low Fuel Indicator (2)

•

Low Oil Pressure Indicator (24)

•

Malfunction Indicator Lamp (MIL) (16)

•

Overdrive Off Indicator (4) - with automatic transmission only.

•

Rear Fog Lamp Indicator (17) - with rear fog lamps only.

•

Seatbelt Indicator (6)

•

Security Indicator (30)

•

Tire Pressure Monitor Indicator (13)

•

Traction Control/Electronic Stability Program (ESP) Indicator (25)

•

Transmission Overtemp Indicator (26) - with automatic transmission only.

•

Turn Signal (Right and Left) Indicators (10)

•

Wait-To-Start Indicator (5) - with diesel engine only.

•

Washer Fluid Indicator - textual message in odometer VFD (23).

•

Water-In-Fuel Indicator (20) - with diesel engine only.

Each indicator in the EMIC, except the Cruise indicator located within the odometer/trip odometer VFD unit, is illu-
minated by a dedicated Light Emitting Diode (LED) that is soldered onto the EMIC electronic circuit board. The LED
units are not available for service replacement and, if damaged or ineffective, the entire EMIC must be replaced.
Cluster illumination is accomplished by dimmable incandescent back lighting, which illuminates the gauges for vis-
ibility when the exterior lighting is turned on. Each of the incandescent bulbs is secured by an integral bulb holder
to the electronic circuit board from the back of the cluster housing.

Hard wired circuitry connects the EMIC to the electrical system of the vehicle. These hard wired circuits are integral
to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These
circuits may be connected to each other, to the vehicle electrical system and to the EMIC through the use of a
combination of soldered splices, splice block connectors, and many different types of wire harness terminal con-
nectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams,
proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-
out and location views for the various wire harness connectors, splices and grounds.

The EMIC module for this vehicle is serviced only as a complete unit. The EMIC module cannot be adjusted or
repaired. If a gauge, an LED indicator, the VFD unit, the electronic circuit board, the circuit board hardware, the

INSTRUMENT CLUSTER

8J - 97
