Jeep Liberty KJ. Manual - part 63





Diagnostic Test

When Monitored:
With the Ignition on.

Set Condition:
The BCM detects a High condition on the Water In Fuel Sensor Signal Circuit.

Possible Causes

(K303) WATER IN FUEL SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(K303) WATER IN FUEL SENSOR SIGNAL CIRCUIT OPEN

(K300) SENSOR GROUND CIRCUIT OPEN

BCM

WATER IN FUEL SENSOR

Diagnostic Test

1.

WATER IN FUEL SENSOR

Turn the ignition off.

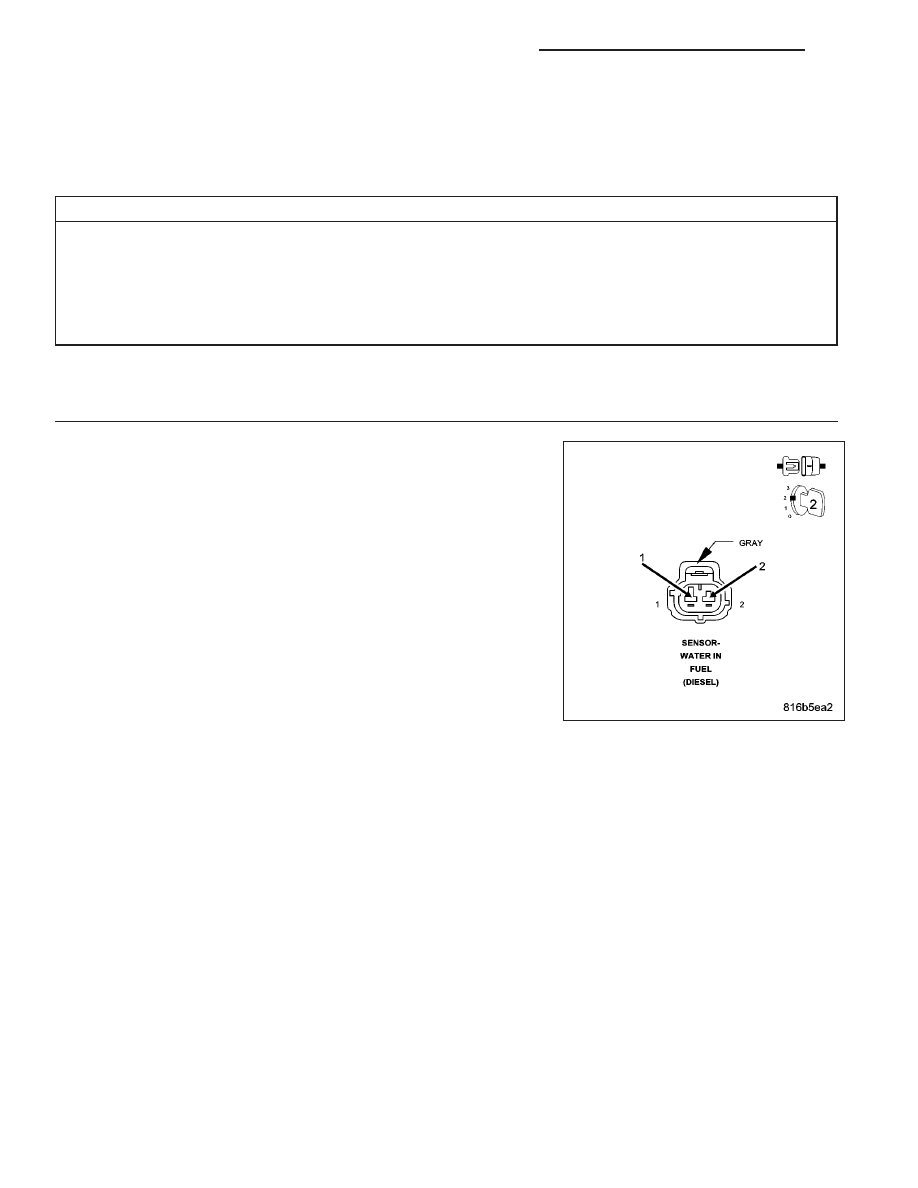

Disconnect the Water In Fuel Sensor harness connector.

Connect a jumper wire between the (K303) and (K300) circuits at the
Water In Fuel Sensor harness connector.

Turn the ignition on.

NOTE: Check connectors - Clean/repair as necessary.
With the scan tool, check DTCs.

Does the scan tool display: WATER IN FUEL SENSOR
FAULTED HIGH?

Yes

>> Replace the Water In Fuel Sensor.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 2

8J - 58

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

KJ

2.

(K303) WATER IN FUEL SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the BCM C2 harness connectors.

Ignition on, engine not running.

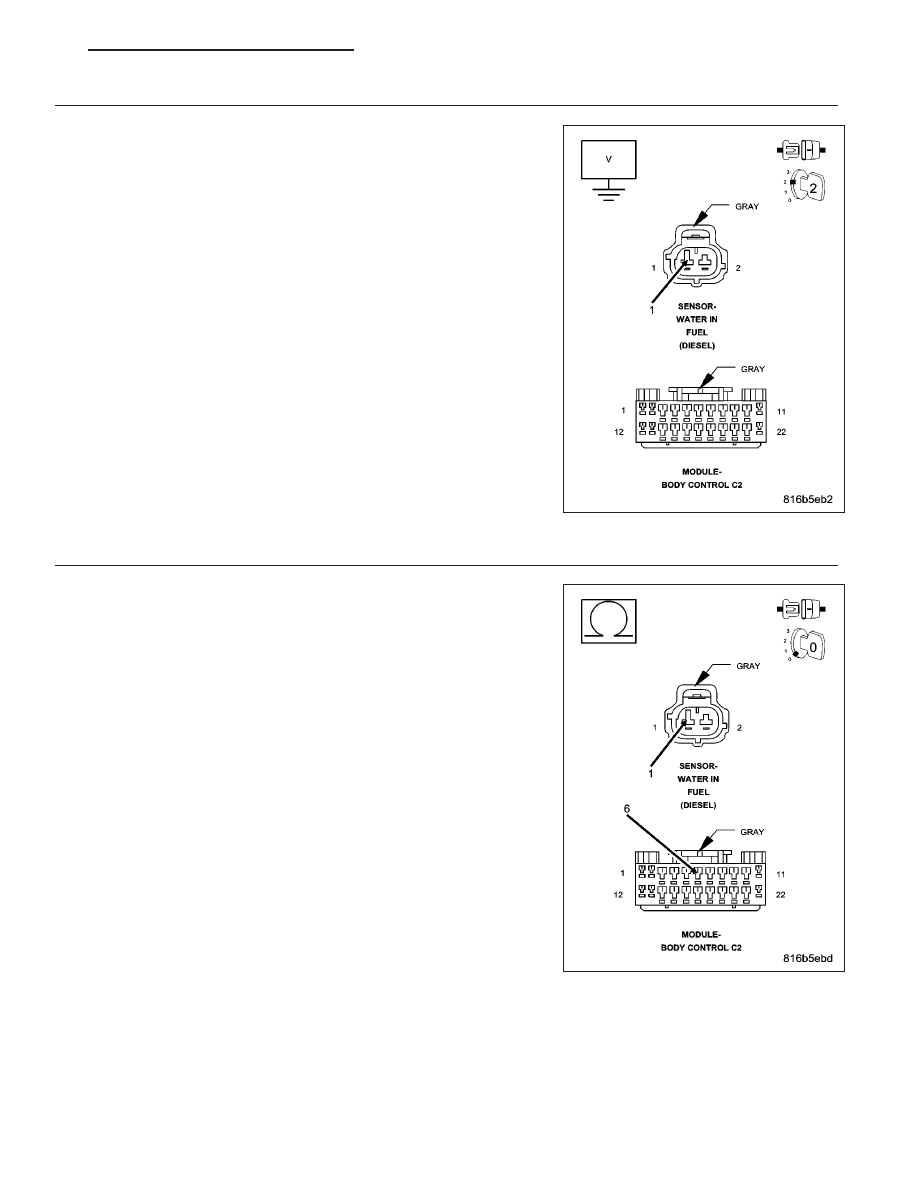

Measure the voltage on the (K303) Water In Fuel Sensor Signal circuit.

Is the voltage above 5.3 volts?

Yes

>> Repair the short to voltage in the (K303) Water In Fuel Sen-

sor Signal circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

3.

(K303) WATER IN FUEL SENSOR SIGNAL CIRCUIT OPEN

Turn the ignition off.

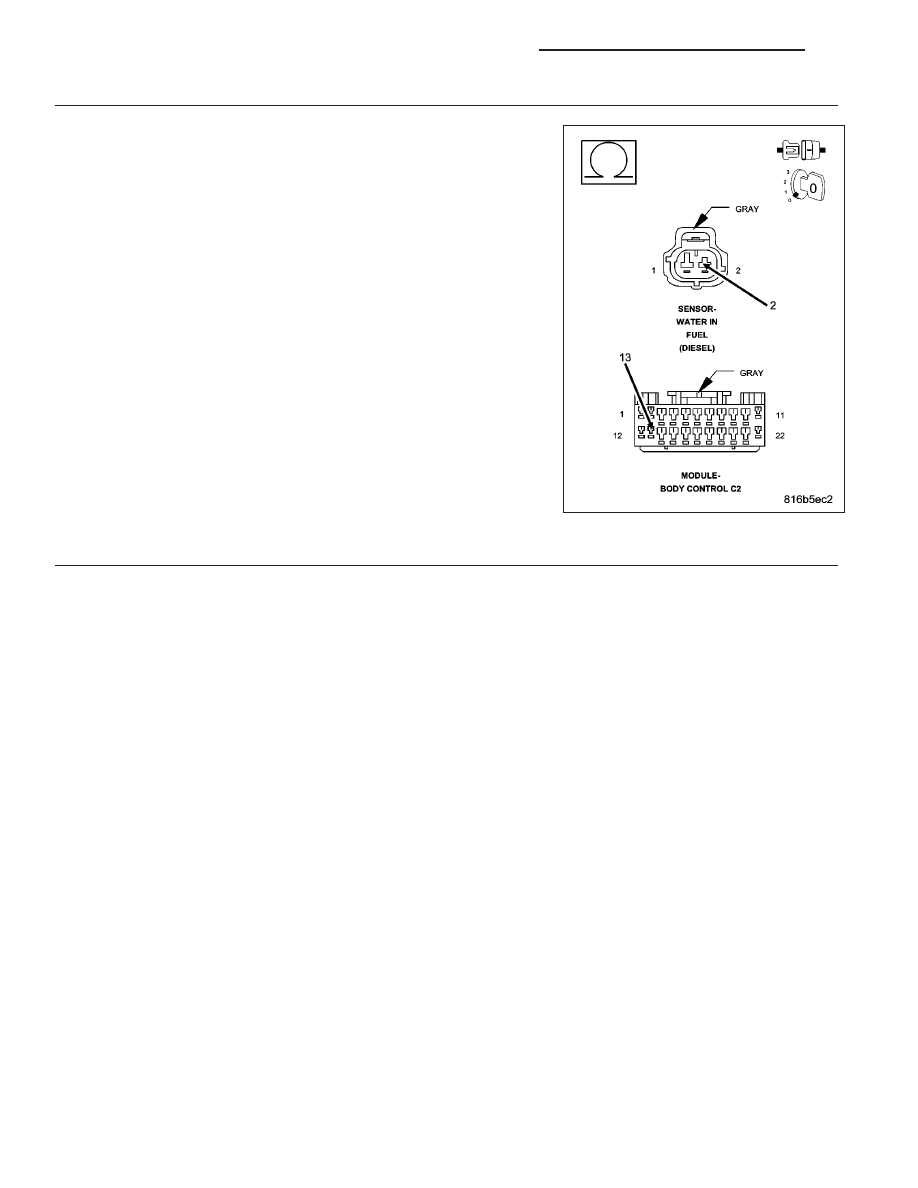

Measure the resistance of the (K303) Water In Fuel Sensor Signal cir-
cuit.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the open in the (K303) Water In Fuel Sensor Signal

circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

KJ

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 59

4.

(K300) SENSOR GROUND CIRCUIT OPEN

Measure the resistance of the (K300) Sensor ground circuit.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the open in the (K300) Sensor ground circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

5.

BCM

NOTE: Before continuing, check the BCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

If there are no possible causes remaining, view repair.

Repair

Replace and program the Powertrain Control Module per Service Information.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

8J - 60

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

KJ

WATER IN FUEL SENSOR FAULTED LOW (BCM)

For a complete wiring diagram Refer to Section 8W.
