Jeep Liberty KJ. Manual - part 23





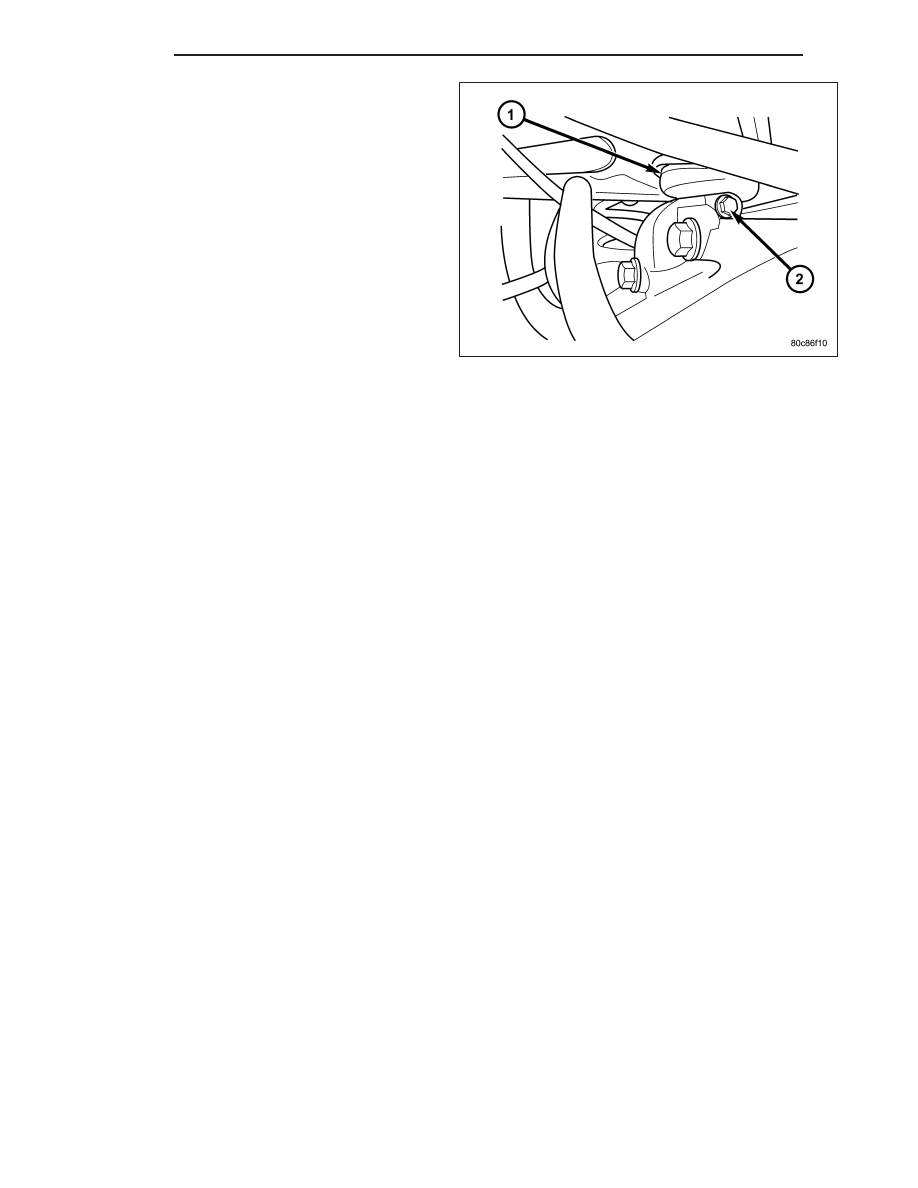

3. Remove the upper suspension arm from the vise.

4. Reinstall the upper suspension arm (Refer to 2 -

SUSPENSION/REAR/UPPER CONTROL ARM -
INSTALLATION).

5. Raise the rear axle with a hydraulic jack to align

the ball joint (1) with the differential housing
bracket.

6. Insert the ball joint (1) into the differential housing

bracket.

7. Install the ball joint pinch bolt (2) and tighten to 95

N·m (70 ft. lbs.)..

8. Remove the supports and lower the vehicle.

2 - 42

REAR

KJ

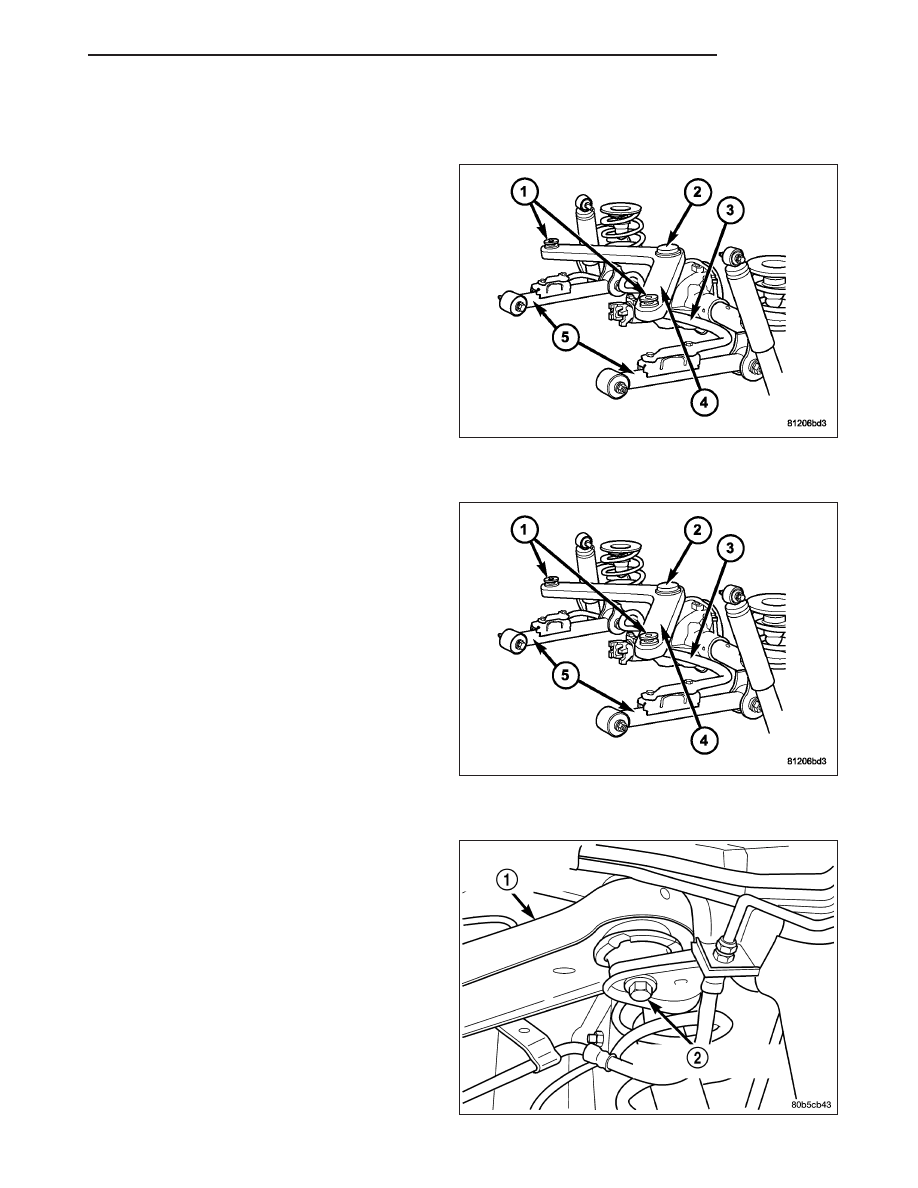

UPPER CONTROL ARM

DESCRIPTION - UPPER SUSPENSION ARM, BUSHINGS, AND BALL JOINT

The suspension arm uses vertical spool bushings to
isolate road noise. The suspension arm is bolted
through bushings (1) to cage nuts in the body and a
ball joint (2) to the top of the differential housing.

OPERATION - UPPER SUSPENSION ARM, BUSHINGS, AND BALL JOINT

The upper suspension arm (4) provides fore/aft and
lateral location of the rear axle. The suspension arm
travel is limited through the use of jounce bumpers in
compression and shock absorbers in rebound.

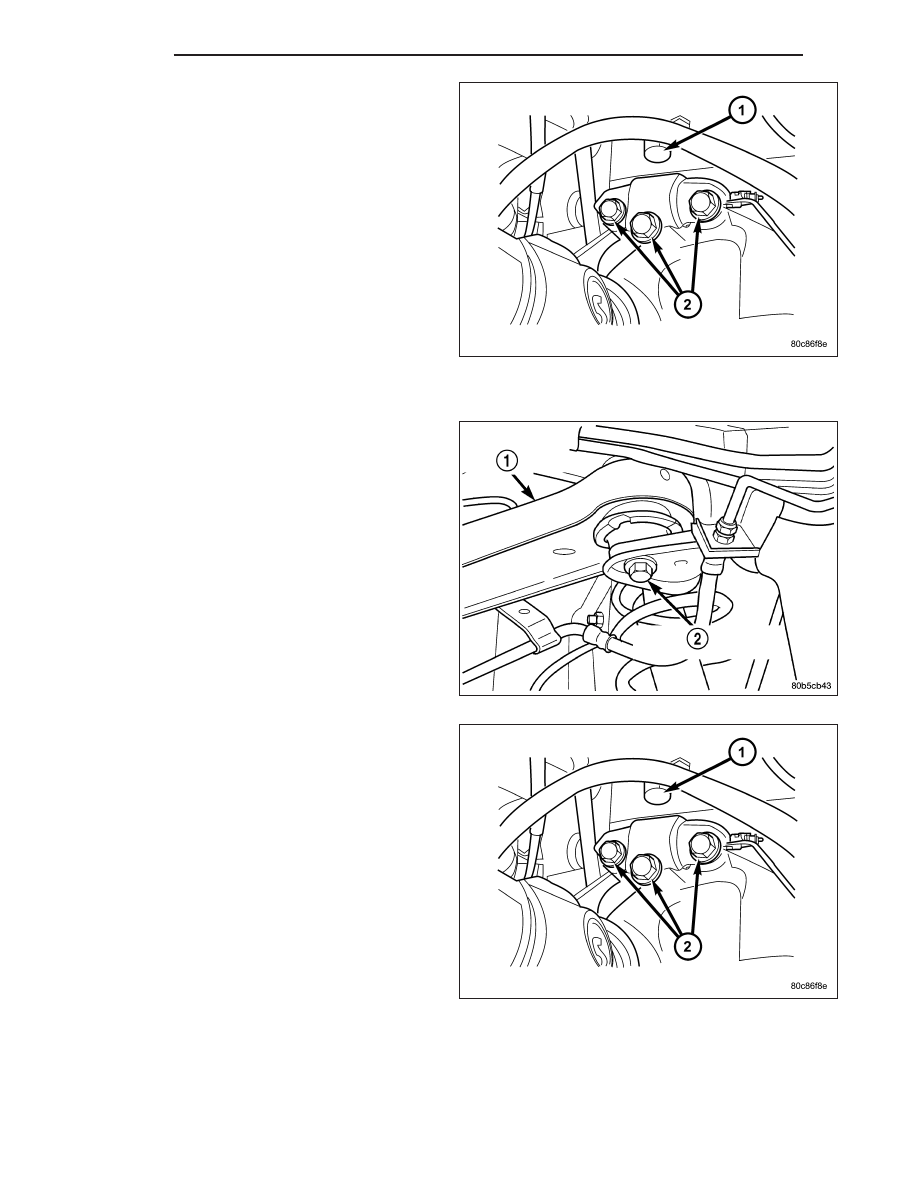

REMOVAL

1. Raise and support the vehicle.

2. Support the rear axle with a hydraulic jack.

3. Remove the ball joint pinch bolt from the top of the

differential housing bracket.

4. Remove partial nuts from the heat shield in order

to lower the shield down enough to get the proper
clearance to remove the right side bolt (2) from the
body.

5. Remove the upper suspension arm mounting bolts

(2) from the body and remove the arm (1).

KJ

REAR

2 - 43

6. Remove the support bracket mounting bolts (2) if

needed.

INSTALLATION

1. Position the upper suspension arm (1) in the frame

rail brackets.

2. Install the mounting bolts (2) and tighten to 100

N·m (74 ft. lbs.).

3. Retighten the heat shield back into place.

4. Install the support bracket and bolts (2) to the rear

differential (if removed).

5. Pull the arm down on the differential housing

bracket inserting the ball joint (1) into the support
bracket (2) and install the pinch bolt and nut.
Tighten the nut to 95 N·m (70 ft. lbs.).

6. Remove the supports and lower the vehicle.

2 - 44

REAR

KJ

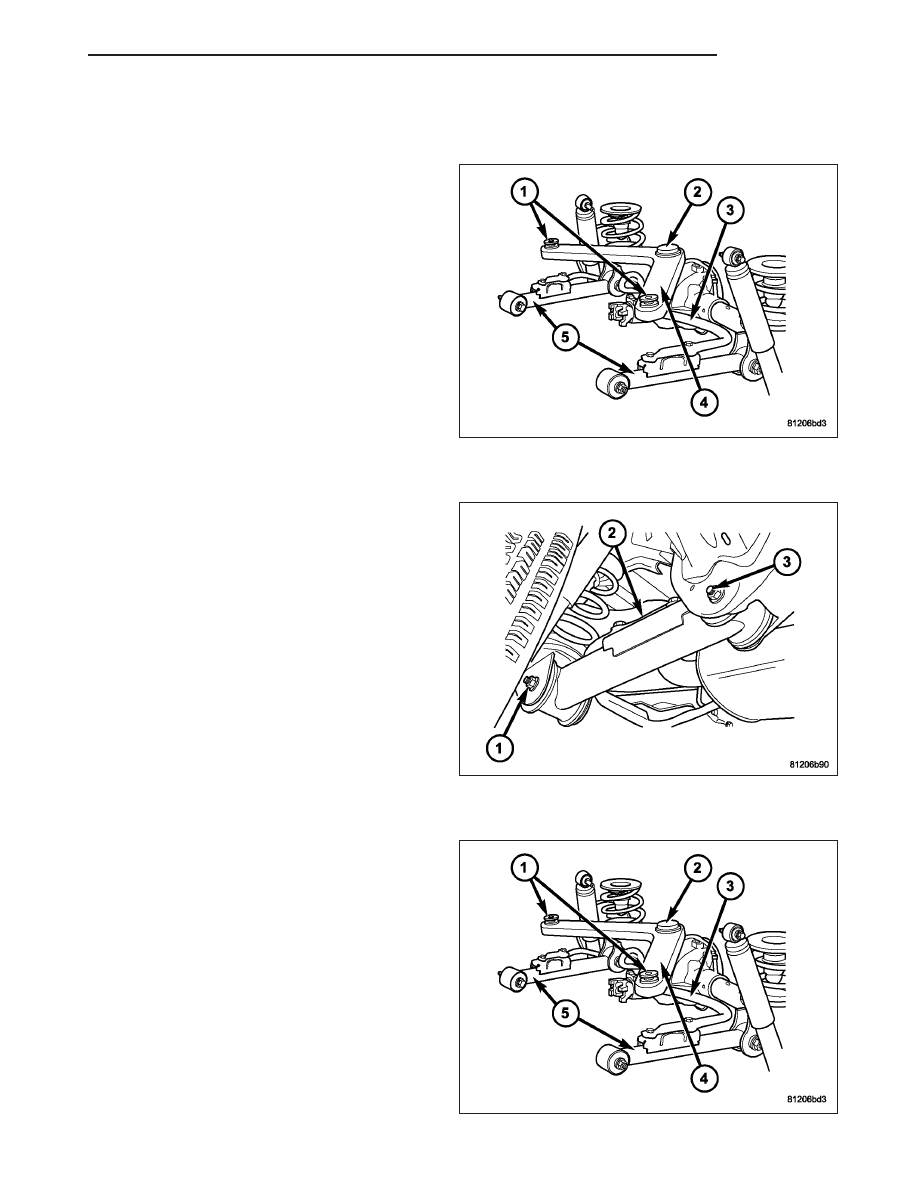

LOWER CONTROL ARM

DESCRIPTION

The lower suspension arms (5) are stamped steel and
welded and use voided round bushings at the axle
end and solid rubber at the body end of the arm.

OPERATION

The bushings provide isolation from the axle. The
arms (2) mount to the unibody frame rail bracket (3)
and the axle brackets (1). The arm (2) and bushings
provide location and react to loads.

REMOVAL

1. Raise the vehicle and support the rear axle.

2. Remove the stabilizer bar (3) retaining bolts from

the suspension arm (5).

KJ

REAR

2 - 45
