P0155-O2 SENSOR 2/1 HEATER PERFORMANCE (CONTINUED)

2.

O2 SENSOR HEATER ELEMENT

Turn the ignition off.

NOTE: Allow the O2 sensor to cool down to room temperature.
Disconnect the 2/1 O2 Sensor harness connector.

Measure the resistance of the O2 Heater Element across the O2 Sensor connector between the O2 Heater Control
terminal and the O2 Heater ground terminal.

NOTE: O2 Heater Element resistance values should be measured at 70°F (21.1°C). The resistance value will
vary with different temperature values.

Is the resistance of the O2 Sensor Heater Element between 2.0 and 30.0 ohms?

Yes

>> Go To 3

No

>> Replace the O2 Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

3.

(K199) O2 2/1 HEATER CONTROL CIRCUIT OPEN

Disconnect the C2 PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.

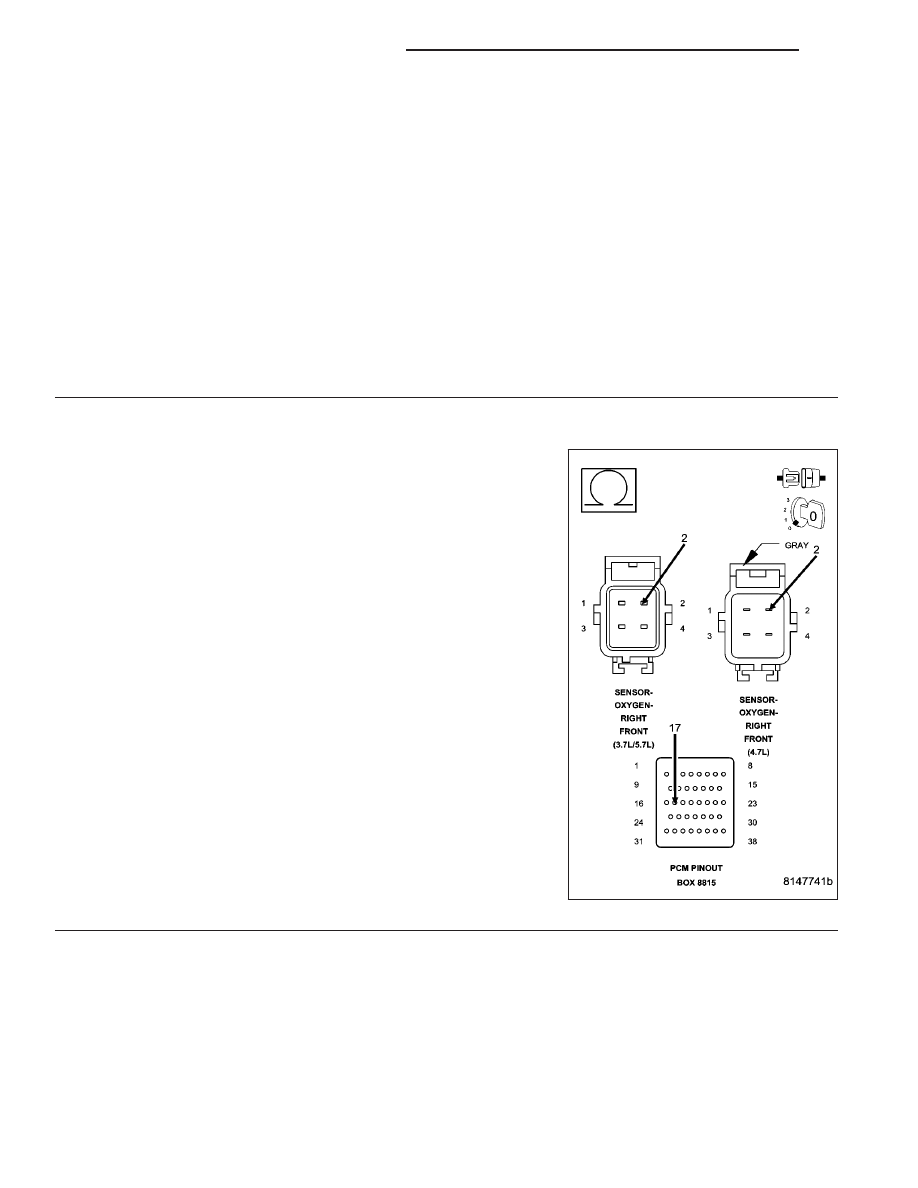

Measure the resistance of the (K199) O2 2/1 Heater Control circuit
from the O2 harness connector to the appropriate terminal of special
tool #8815.

Is the resistance below 0.5 of an ohm?

Yes

>> Go To 4

No

>> Repair the excessive resistance in the (K199) O2 2/1

Heater Control circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 204

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0155-O2 SENSOR 2/1 HEATER PERFORMANCE (CONTINUED)

4.

(Z42) O2 SENSOR HEATER GROUND CIRCUIT OPEN

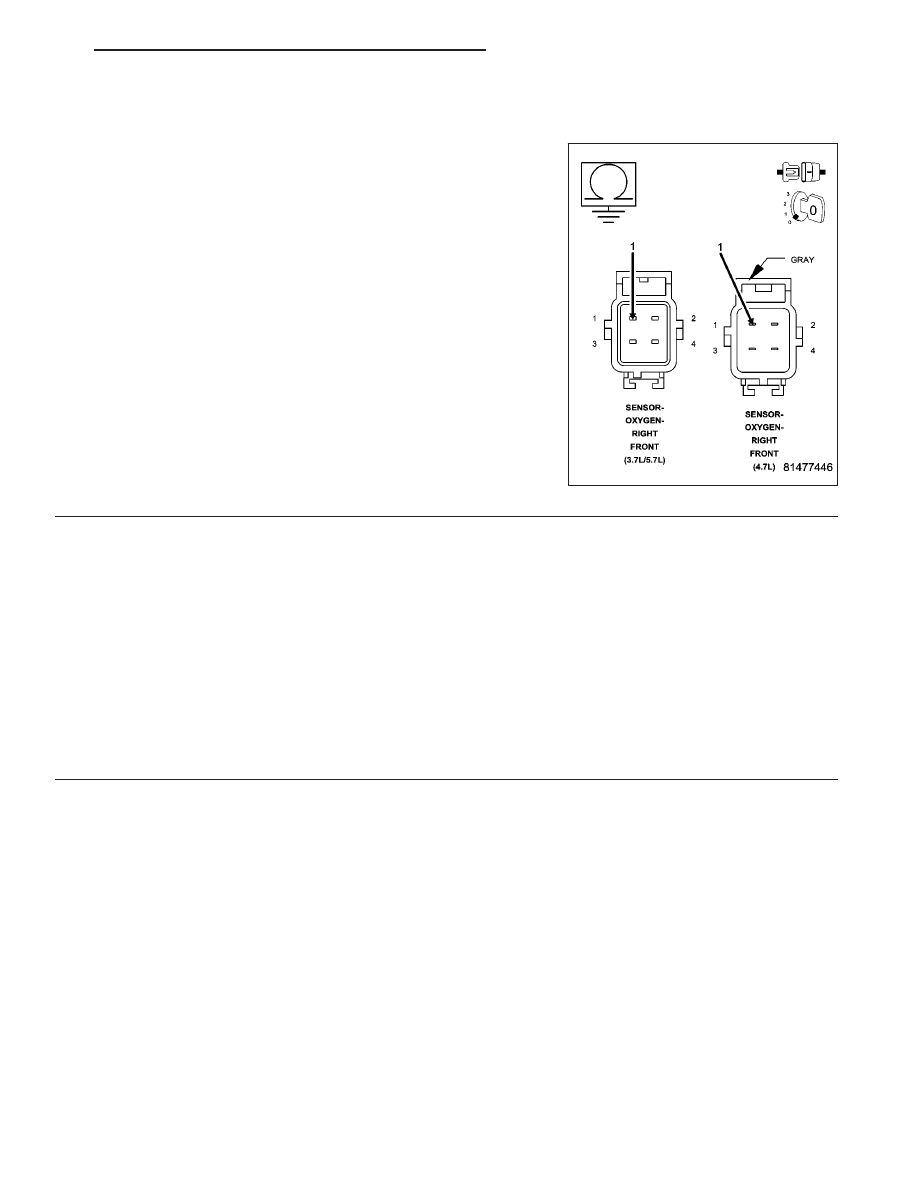

Measure the resistance between ground and the (Z42) O2 Heater
ground circuit in the O2 Sensor harness connector.

Is the resistance below 0.5 of an ohm?

Yes

>> Go To 5

No

>> Repair the excessive resistance in the (Z42) O2 Heater

ground circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

5.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 205

P0157-O2 SENSOR 2/2 CIRCUIT LOW

9 - 206

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0157-O2 SENSOR 2/2 CIRCUIT LOW (CONTINUED)

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Engine running for less than 30 seconds and the O2 Sensor Heater Temperature is less than 251°C (484°F)
with battery voltage greater 10.99 volts.

Set Condition:
The oxygen sensor signal voltage is below 2.5196 volts for 3 seconds after starting engine. One Trip Fault.
Three good trips to turn off the MIL.

Possible Causes

(K904) O2 RETURN DOWNSTREAM CIRCUIT SHORTED TO GROUND

(K243) O2 2/2 SIGNAL CIRCUIT SHORTED TO GROUND

(K243) O2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 RETURN DOWNSTREAM CIRCUIT

(K243) O2 SIGNAL CIRCUIT SHORTED TO THE (Z42) O2 2/2 HEATER GROUND CIRCUIT

O2 SENSOR

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

O2 SENSOR BELOW 2.52 VOLTS

Start the engine.

Allow the engine to reach normal operating temperature.

With a scan tool, read the 2/2 O2 Sensor voltage.

Is the voltage below 2.52 volts?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.

(K243) O2 2/2 SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the 2/2 O2 Sensor harness connector.

Ignition on, engine not running.

With a scan tool, monitor the 2/2 O2 Sensor voltage.

Is the O2 Sensor voltage above 4.8 volts?

Yes

>> Go To 3

No

>> Go To 5

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 207
