Jeep Grand Cherokee WK. Manual - part 883





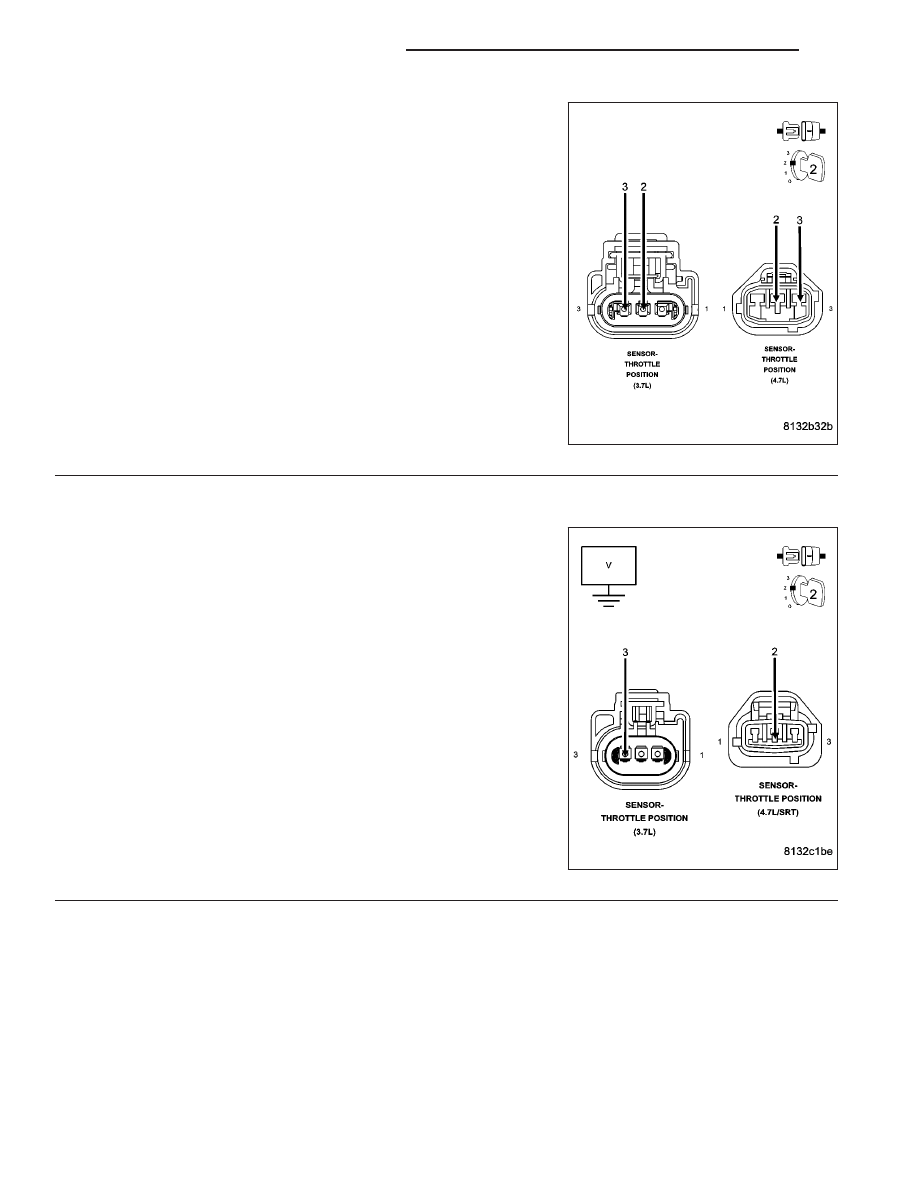

P0123-THROTTLE POSITION SENSOR 1 CIRCUIT HIGH (3.7L, 4.7L) (CONTINUED)

2.

THROTTLE POSITION SENSOR

Turn the ignition off.

Disconnect the TP Sensor harness connector.

Connect a jumper wire between the (K22) TP Sensor No.1 Signal cir-
cuit and the (K900) Sensor ground circuit in the Sensor harness con-
nector.

With a scan tool, monitor the TP Sensor voltage.

Ignition on, engine not running.

Is the voltage below 0.5 of a volt with the jumper wire installed?

Yes

>> Replace the Throttle Position Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 3

NOTE: Remove the jumper wire before continuing.

3.

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

Turn the ignition off.

Disconnect the C2 PCM harness connector.

Ignition on, engine not running.

Measure the voltage on the (K22) TP Sensor No.1 Signal circuit in the
TP Sensor harness connector.

Is the voltage above 0 volts?

Yes

>> Repair the short to battery voltage in the (K22) TP Sensor

No.1 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

9 - 128

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0123-THROTTLE POSITION SENSOR 1 CIRCUIT HIGH (3.7L, 4.7L) (CONTINUED)

4.

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT OPEN

Turn the ignition off.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.
Measure the resistance of the (K22) TP Sensor No.1 Signal circuit
from the TP Sensor harness connector to the appropriate terminal of
special tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the open in the (K22) TP Sensor No.1 Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

5.

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO THE (F855) 5-VOLT SUPPLY CIRCUIT

Measure the resistance between the (K22) TP Sensor No.1 Signal cir-
cuit and the (F855) 5-volt Supply circuit in the TP Sensor harness con-
nector.

Is the resistance below 100 ohms?

Yes

>> Repair the short between the (F855) 5-volt Supply circuit

and the (K22) TP Sensor No.1 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 129

P0123-THROTTLE POSITION SENSOR 1 CIRCUIT HIGH (3.7L, 4.7L) (CONTINUED)

6.

(K900) SENSOR GROUND CIRCUIT OPEN

Measure the resistance of the (K900) Sensor ground circuit from the
TP Sensor harness connector to the appropriate terminal of special
tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 7

No

>> Repair the open in the (K900) Sensor ground circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

7.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

8.

THROTTLE POSITION SENSOR SWEEP

With a scan tool, monitor the Throttle Position Sensor voltage.

Slowly open the throttle from the idle position to the wide open throttle position.

Does voltage start at approximately 0.8 of a volt and go above 3.5 volts with a smooth transition?

Yes

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace the Throttle Position Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 130

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0123-THROTTLE POSITION SENSOR 1 CIRCUIT HIGH (5.7L)
