STANDARD PROCEDURE - TESTING FOR CONTINUITY

1. Remove the fuse (1) for the circuit being checked

or, disconnect the battery.

2. Connect one lead of the ohmmeter to one side of

the circuit being tested

3. Connect the other lead to the other end of the cir-

cuit being tested. Low or no resistance means
good continuity.

STANDARD PROCEDURE - TESTING FOR A SHORT TO GROUND

1. Remove the fuse and disconnect all items involved with the fuse.

2. Connect a test light or a voltmeter across the terminals of the fuse.

3. Starting at the fuse block, wiggle the wiring harness about six to eight inches apart and watch the voltmeter/test

lamp.

4.

If the voltmeter registers voltage or the test lamp glows, there is a short to ground in that general area of the

wiring harness.

STANDARD PROCEDURE - TESTING FOR A SHORT TO GROUND ON FUSES
POWERING SEVERAL LOADS

1. Refer to the wiring diagrams and disconnect or isolate all items on the suspected fused circuits.

2. Replace the blown fuse.

3. Supply power to the fuse by turning ON the ignition switch or re-connecting the battery.

4. Start connecting or energizing the items in the fuse circuit one at a time. When the fuse blows the circuit with the

short to ground has been isolated.

8W - 01 - 10

8W-01 WIRING DIAGRAM INFORMATION

WK

STANDARD PROCEDURE - TESTING FOR A VOLTAGE DROP

1. Connect the positive lead of the voltmeter to the

side of the circuit closest to the battery.

2. Connect the other lead of the voltmeter to the other

side of the switch, component or circuit.

3. Operate the item.

4. The voltmeter will show the difference in voltage

between the two points.

WK

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 11

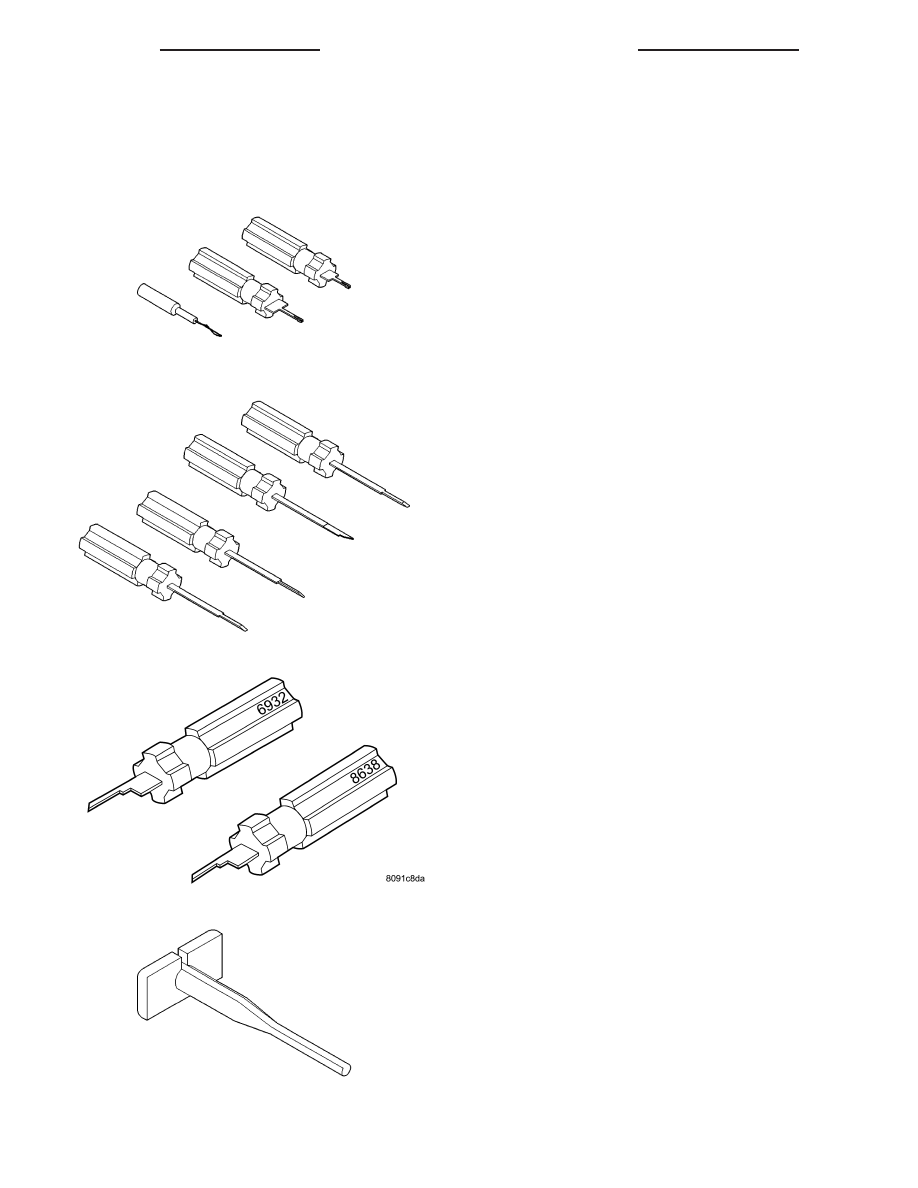

SPECIAL TOOLS

WIRING/TERMINAL

8W - 01 - 12

8W-01 WIRING DIAGRAM INFORMATION

WK

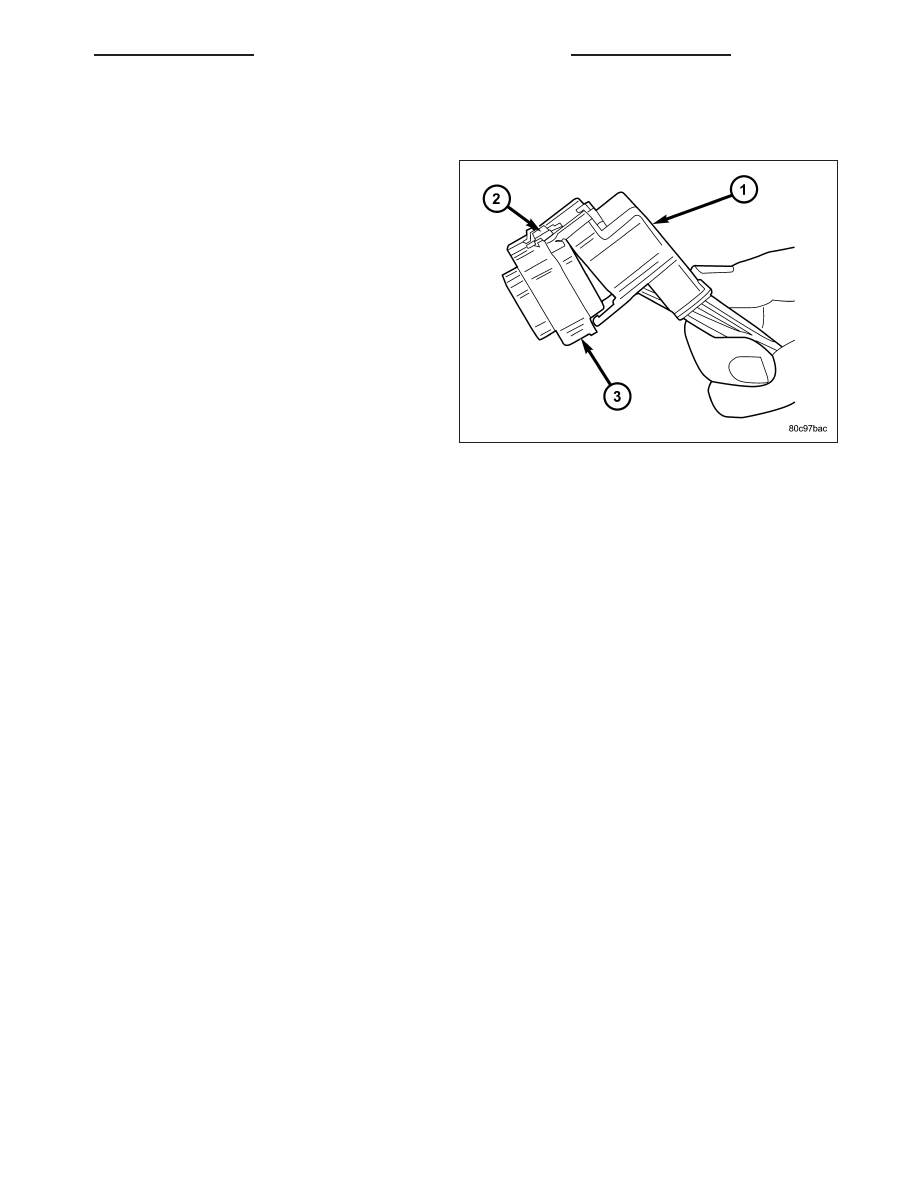

CONNECTOR

REMOVAL

1. Disconnect battery.

2. Release Connector Lock (2).

3. Disconnect the connector (3) being repaired from

its mating half/component.

4. Remove the dress cover (if applicable) (1).

WK

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 13
