B1411-HFM LEFT AUDIO OUTPUT CIRCUIT LOW (CONTINUED)

4.

(X795) COMMON AUDIO OUTPUT CIRCUIT OPEN

Measure the resistance of the (X795) Common Audio Output circuit
between the HFM connector and the radio connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the (X795) Common Audio Output circuit for an

open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

5.

(X703) LEFT AUDIO OUTPUT CIRCUIT SHORT TO (X795) COMMON AUDIO OUTPUT CIRCUIT

Measure the resistance between the (X703) Left Audio Output circuit
and the (X795) Common Audio Output circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (X703) Left Audio Output circuit for a short to

the (X795) Common Audio Output circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace and program the Hands Free Mod-
ule in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

8T - 6

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

WK

B1412-HFM LEFT AUDIO OUTPUT CIRCUIT HIGH

WK

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 7

B1412-HFM LEFT AUDIO OUTPUT CIRCUIT HIGH (CONTINUED)

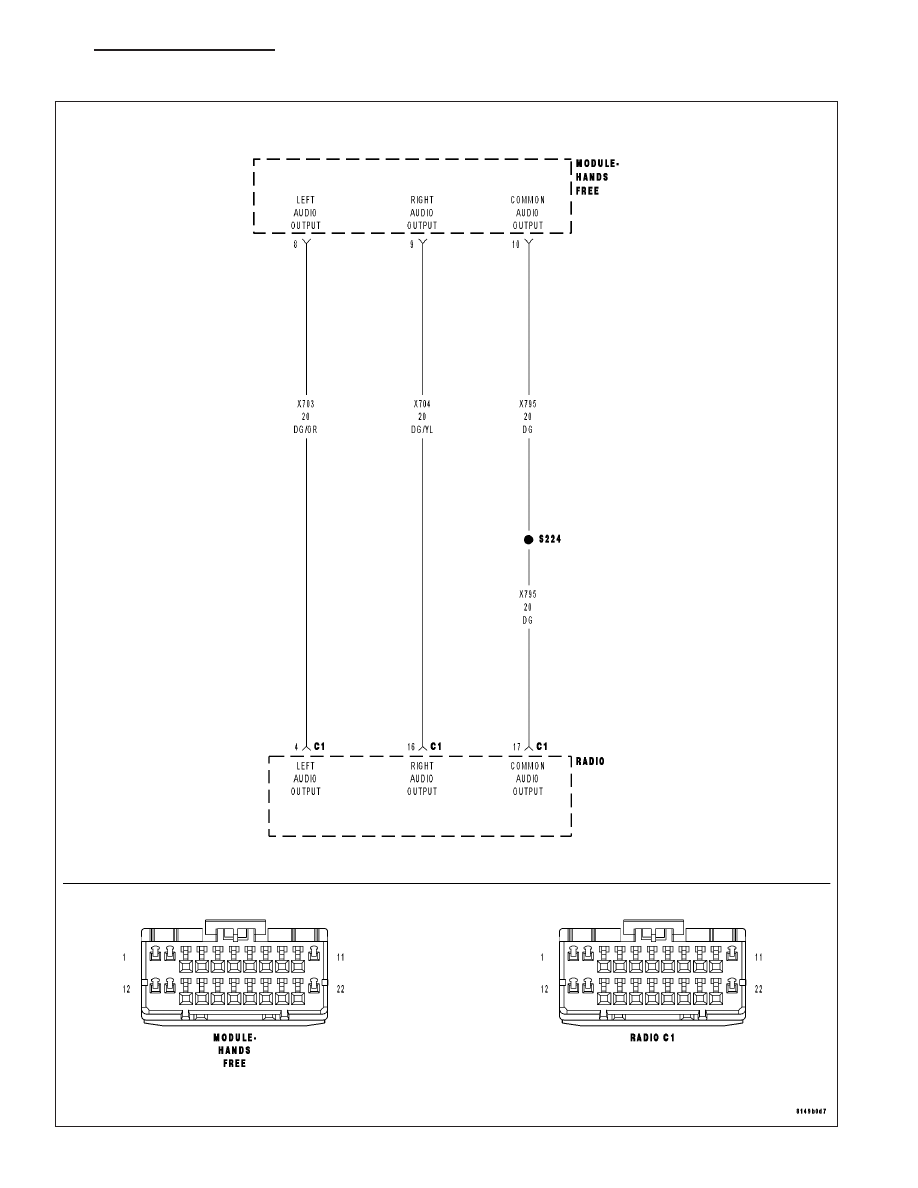

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects high voltage on the (X703) Left Audio Output circuit.

Possible Causes

(X703) LEFT AUDIO OUTPUT CIRCUIT OPEN

(X795) COMMON AUDIO OUTPUT CIRCUIT OPEN

(X703) LEFT AUDIO OUTPUT CIRCUIT SHORT TO VOLTAGE

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

8T - 8

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

WK

B1412-HFM LEFT AUDIO OUTPUT CIRCUIT HIGH (CONTINUED)

2.

(X703) LEFT AUDIO OUTPUT CIRCUIT OPEN

Turn the ignition off.

Disconnect the Hands Free Module harness connector.

Disconnect the Radio C1 harness connector.

Measure the resistance of the (X703) Left Audio Output circuit
between the HFM connector and the radio connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (X703) Left Audio Output circuit for an open

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

3.

(X795) COMMON AUDIO OUTPUT CIRCUIT OPEN

Measure the resistance of the (X795) Common Audio Output circuit
between the HFM connector and the radio connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (X795) Common Audio Output circuit for an

open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 9
