INSTALLATION

NOTE: Be certain that the rear wiper motor is in the park position before attempting to install the rear wiper
arm. Turn the ignition switch to the On position and move the rear wiper switch to its Off position. If the
wiper motor output shaft moves, wait until it stops moving, then turn the ignition switch back to the Off
position. The wiper motor is now in its park position.

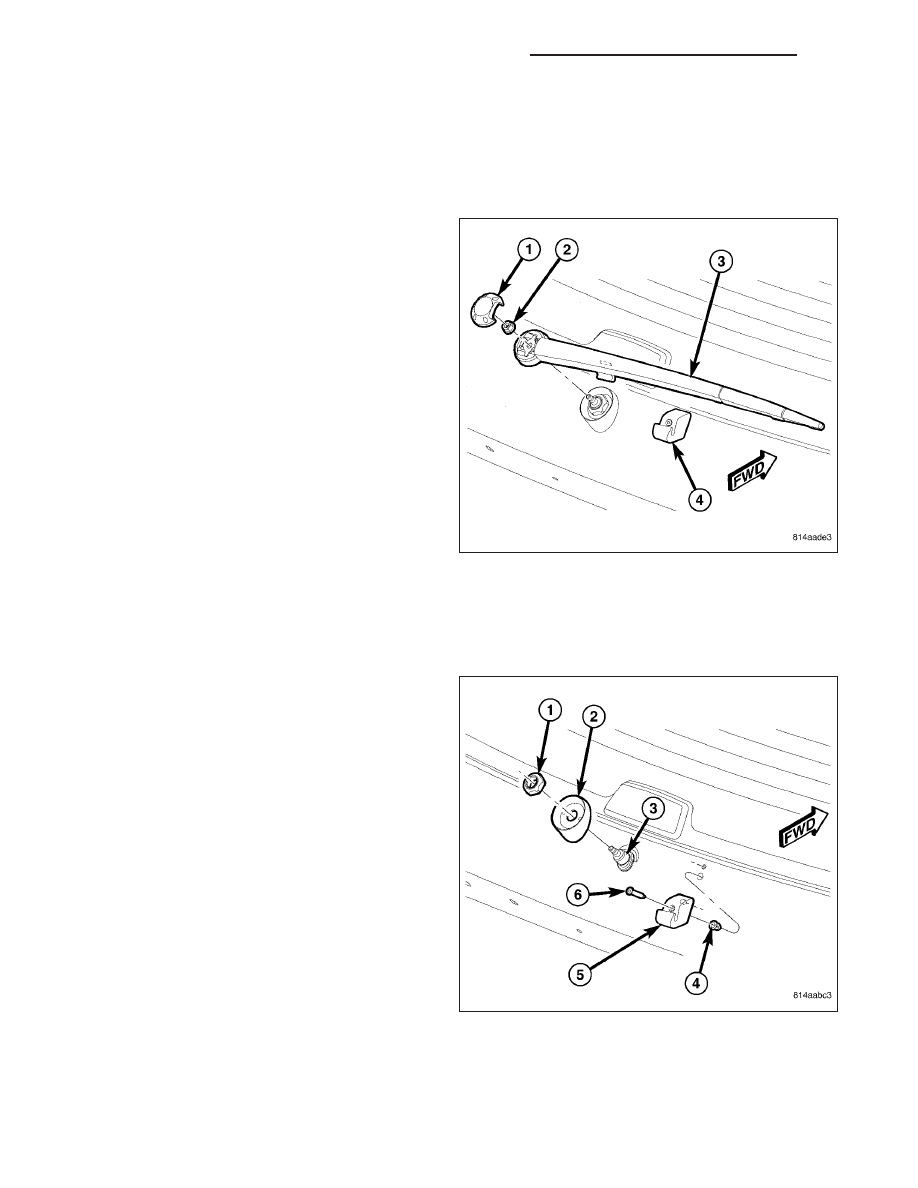

1. Index the rear wiper arm (3) to the rear wiper

motor output shaft with the rear wiper motor in its
Park position and with the rear wiper arm seated in
the molded rubber rear wiper arm park ramp (4).

2. With the rear wiper arm properly indexed, push the

tapered mounting hole on the pivot end of the
wiper arm down over the output shaft.

3. Install the nut (2) that secures the rear wiper arm

to the rear wiper motor output shaft. Tighten the
nut to 9 N·m (80 in. lbs.).

4. Wet the liftgate glass and operate the rear wiper

system. Then turn the rear wiper switch to the Off
position and check for correct wiper arm position.
Adjust as required.

5. Install the plastic cap (1) onto the pivot end of the

rear wiper arm.

WIPER ARM PARK RAMP

REMOVAL

1. Disengage the rear wiper arm from the wiper arm

park ramp (5) located on the right side of the lift-
gate just below the liftgate flip-up glass.

2. Lift the rear wiper arm and blade away from the lift-

gate until the wiper arm hinge is in its over-center
position.

3. Remove the screw (6) that secures the wiper arm

park ramp to the liftgate outer panel.

4. Remove the wiper arm park ramp from the liftgate

outer panel.

8R - 70

REAR WIPERS/WASHERS - SERVICE INFORMATION

WK

INSTALLATION

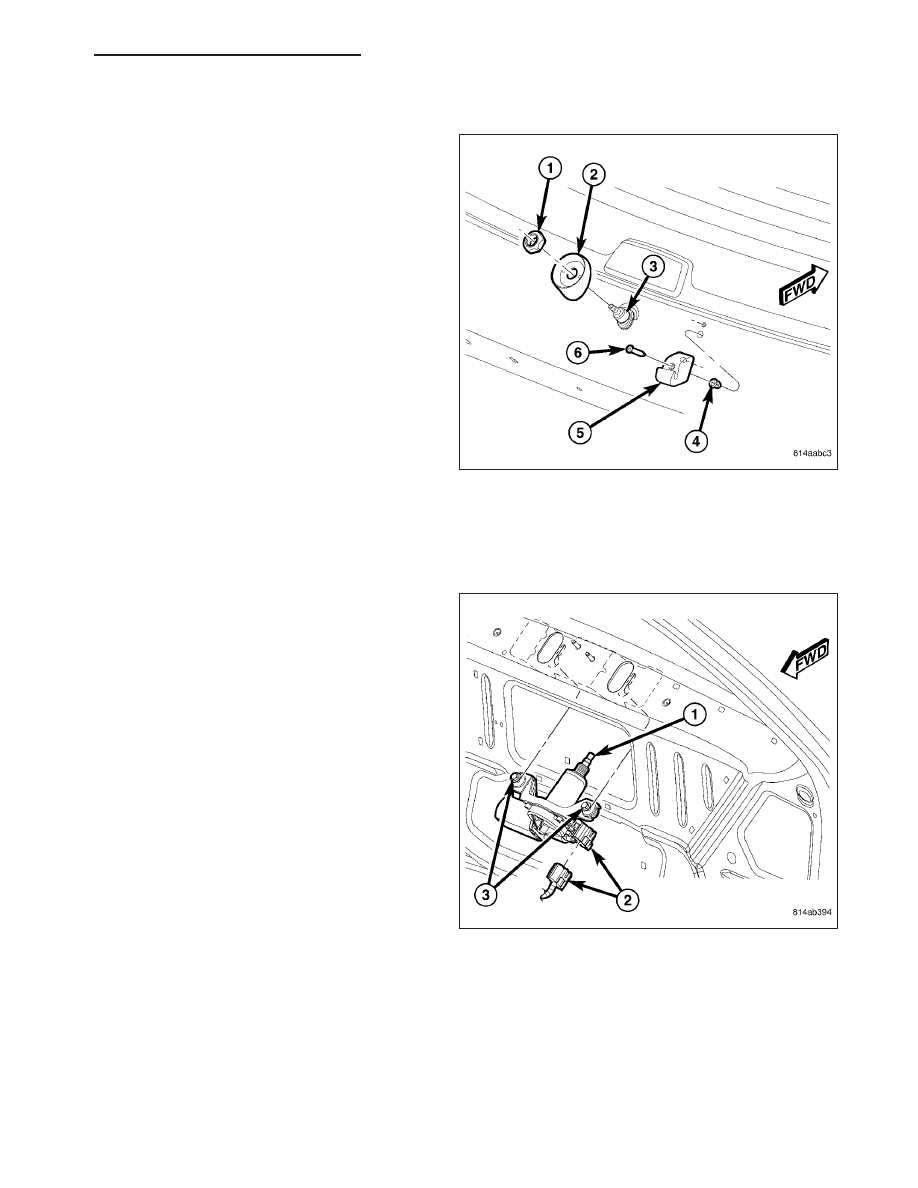

1. Position the rear wiper arm park ramp (5) onto the

liftgate outer panel.

2. Install the screw (6) that secures the wiper arm

park ramp to the liftgate outer panel. Tighten the
screw to 5.6 N·m (50 in. lbs.).

3. Position the rear wiper arm and blade into the

wiper arm park ramp.

MOTOR-REAR WINDOW WIPER

DESCRIPTION

The rear wiper motor is concealed within the liftgate,
below the liftgate glass and behind the liftgate inner
trim panel. The end of the motor output shaft (1) that
extends through the liftgate outer panel to drive the
rear wiper arm and blade is the only visible compo-
nent of the rear wiper motor. A rubber bezel and grom-
met is engaged within the output shaft hole of the
liftgate outer panel and seals the output shaft where it
passes through the panel. An integral connector
receptacle (2) connect the rear wiper motor to the
vehicle electrical system through a dedicated take out
and connector of the liftgate wire harness. The rear
wiper motor consists of the following major compo-
nents:

Bracket - The rear wiper motor bracket consists
of a mounting plate for the wiper motor that is
secured with two bolts and rubber isolators (3) to
the liftgate inner panel.

Motor - The single-speed permanent magnet
rear wiper motor is secured to the rear wiper
motor bracket. The wiper motor includes an integral transmission, motor output shaft, automatic resetting cir-
cuit breaker and the rear wiper motor park switch.

OPERATION

Rear wiper motor operation is controlled by the rear wiper relay, which controls battery current flow to the rear wiper
motor based upon control outputs from the front control module (FCM). The FCM uses internal programming, hard
wired outputs from the rear wiper motor park switch, and electronic messages received over the controller area
network (CAN) data bus from the steering control module (SCM).

WK

REAR WIPERS/WASHERS - SERVICE INFORMATION

8R - 71

The rear wiper motor park switch is a single pole, single throw, momentary switch within the wiper motor that is
mechanically actuated by the wiper motor transmission components. The park switch alternately closes and opens
a path to ground for the rear wiper motor control circuit input to the FCM, depending upon the position of the rear
wiper blade on the liftgate glass. This feature allows the FCM to monitor the number of rear wiper motor cycles, as
well as to keep the rear wiper relay energized long enough for the motor to complete its current wipe cycle after the
wiper system or the ignition has been turned Off, and to park the wiper blade.

The rear wiper motor is grounded at all times through a take out with an eyelet terminal connector in the body wire
harness that is secured to a ground location in the passenger compartment. The automatic resetting circuit breaker
protects the motor from overloads. The rear wiper motor transmission converts the rotary output of the wiper motor
to the back and forth wiping motion of the rear wiper arm and blade on the liftgate glass.

The hard wired inputs and outputs of the rear wiper motor may be diagnosed using conventional diagnostic tools
and methods. Refer to the appropriate wiring information. However, conventional diagnostic methods may not prove
conclusive in the diagnosis of the SCM, FCM, CAN data bus or the electronic message inputs used to control rear
wiper motor operation. The most reliable, efficient, and accurate means to diagnose the SCM, FCM, CAN data bus
and the electronic message inputs and outputs that control rear wiper motor operation requires the use of a diag-
nostic scan tool. Refer to the appropriate diagnostic information.

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Remove the rear wiper arm (Refer to 8 - ELECTRI-

CAL/REAR

WIPERS/WASHERS/REAR

WIPER

ARM - REMOVAL).

3. Remove nut (1) and the bezel (2) from the rear

wiper motor output shaft (3).

8R - 72

REAR WIPERS/WASHERS - SERVICE INFORMATION

WK

4. Remove the trim panel from the liftgate inner panel

(Refer to 23 - BODY/DECKLID/HATCH/LIFTGATE/
TAILGATE/TRIM PANEL - REMOVAL).

5. Disconnect the wire harness connector from the

rear wiper motor connector (3).

6. Loosen the two bolts (3) that secure the motor

mounting bracket to the liftgate inner panel.

7. Pull the rear wiper motor (1) forward to disengage

the two bolts from the liftgate and remove the rear
wiper motor.

INSTALLATION

1. Position the rear wiper motor (1) and mounting

bracket bolts (3) into the liftgate as an assembly.

2. Tighten the two bolts that secure the mounting

bracket to the liftgate. Tighten the bolts to 8 N·m
(72 in. lbs.).

3. Connect the wire harness connector to the motor

connector receptacle (2).

4. Install the trim panel onto the liftgate inner panel

(Refer to 23 - BODY/DECKLID/HATCH/LIFTGATE/
TAILGATE/TRIM PANEL - INSTALLATION).

WK

REAR WIPERS/WASHERS - SERVICE INFORMATION

8R - 73
