but chatter, lift, or do not clear the glass, clean and inspect the wiper and washer system components as required.
(Refer to 8 - ELECTRICAL/FRONT WIPERS/WASHERS - CLEANING) and (Refer to 8 - ELECTRICAL/FRONT WIP-
ERS/WASHERS - INSPECTION).

The hard wired rear wiper and washer system circuits and components may be diagnosed and tested using con-
ventional diagnostic tools and procedures. Refer to the appropriate wiring information. The wiring information
includes wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention,
connector pin-out information and location views for the various wire harness connectors, splices and grounds.

However, conventional diagnostic methods may not prove conclusive in the diagnosis of the steering control module
(SCM), front control module (FCM), integrated power module (IPM), power distribution center (PDC), controller area
network (CAN) data bus, or the electronic message inputs or outputs used to provide wiper and washer system
service or many of the electronic features of the front wiper and washer system. The most reliable, efficient, and
accurate means to diagnose the SCM, FCM, IPM, PDC, CAN data bus and the electronic message inputs and
outputs for the front wiper and washer system requires the use of a diagnostic scan tool. Refer to the appropriate
diagnostic information.

CLEANING - WIPER & WASHER SYSTEM

WIPER SYSTEM

CAUTION: Protect the rubber squeegees of the wiper blades from any petroleum-based cleaners, solvents,
or contaminants. These products can rapidly deteriorate the rubber squeegees.

The squeegees of wiper blades exposed to the elements for a long time tend to lose their wiping effectiveness.
Periodic cleaning of the squeegees is suggested to remove any deposits of salt or road film. The wiper blades,
arms, and windshield glass should only be cleaned using a sponge or soft cloth and windshield washer fluid, a mild
detergent, or a non-abrasive cleaner. If the wiper blades continue to leave streaks, smears, hazing, or beading on
the glass after thorough cleaning of the squeegees and the glass, the entire wiper blade assembly must be
replaced.

WASHER SYSTEM

CAUTION: Never introduce petroleum-based cleaners, solvents, or contaminants into the washer system.
These products can rapidly deteriorate the rubber seals and hoses of the washer system, as well as the
rubber squeegees of the wiper blades.

CAUTION: Never use compressed air to flush the washer system plumbing. Compressed air pressures are
too great for the washer system plumbing components and will result in further system damage. Never use
sharp instruments to clear a plugged washer nozzle or damage to the nozzle orifice and improper nozzle
spray patterns will result.

If the washer system is contaminated with foreign material, drain the washer reservoir by removing the windshield
washer pump from the reservoir. Clean foreign material from the inside of the washer pump inlet filter screen and
the washer reservoir using clean washer fluid, a mild detergent, or a non-abrasive cleaner. Flush foreign material
from the washer system plumbing by first disconnecting the washer hoses from the washer nozzles, then running
the washer pump to run clean washer fluid or water through the system. Plugged or restricted washer nozzles
should be carefully back-flushed using compressed air. If the washer nozzle obstruction cannot be cleared, replace
the washer nozzle.

8R - 34

FRONT WIPERS/WASHERS - SERVICE INFORMATION

WK

INSPECTION - FRONT WIPER & WASHER SYSTEM

WIPER SYSTEM

The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance prob-
lems are experienced. This inspection should include
the following points:

1. Carefully inspect the wiper blades for any indica-

tions of worn or uneven edges (1), foreign material
deposits (2), hardening or cracking (3), deformation
or fatigue (4), or splitting (5). Inspect the wiper
blade support components and the wiper arms for
damage (6) or corrosion. If the wiper arms and
blades are contaminated with any foreign material,
clean them and the glass as required. (Refer to 8 -
ELECTRICAL/FRONT

WIPERS/WASHERS

-

CLEANING). If a wiper blade or arm is damaged,
or if corrosion is evident, replace the affected wiper
arm or blade with a new unit. Do not attempt to
repair a wiper arm or blade that is damaged or cor-
roded.

2. Carefully lift the wiper blade off of the glass. Note

the action of the wiper arm hinge. The wiper arm
should pivot freely at the hinge, but with no lateral
looseness evident. If there is any binding evident in
the wiper arm hinge, or there is evident lateral play
in the wiper arm hinge, replace the wiper arm.

CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or
the glass may be damaged.

3. Once proper hinge action of the wiper arm is confirmed, check the hinge for proper spring tension. Remove the

wiper blade from the wiper arm. Either place a small postal scale between the blade end of the wiper arm and
the glass, or carefully lift the blade end of the arm away from the glass using a small fish scale. Compare the
scale readings between the right and left wiper arms. Replace a wiper arm if it has comparatively lower spring
tension, as evidenced by a lower scale reading.

4. After cleaning and inspecting the wiper components and the glass, if the wiper blade still fails to clear the glass

without smearing, streaking, chattering, hazing, or beading, replace the wiper blade.

WASHER SYSTEM

The washer system components should be inspected periodically, not just when washer performance problems are
experienced. This inspection should include the following points:

1. Check for ice or other foreign material in the washer reservoir. If contaminated, clean and flush the washer sys-

tem. (Refer to 8 - ELECTRICAL/FRONT WIPERS/WASHERS - CLEANING).

2. Inspect the washer plumbing for pinched, leaking, deteriorated, or incorrectly routed hoses and damaged or dis-

connected hose fittings. Replace damaged or deteriorated hoses and hose fittings. Leaking washer hoses can
sometimes be repaired by cutting the hose at the leak and splicing it back together using an in-line connector
fitting. Similarly, sections of deteriorated hose can be cut out and replaced by splicing in new sections of hose
using in-line connector fittings. Whenever routing a washer hose or a wire harness containing a washer hose, it
must be routed away from hot, sharp, or moving parts. Also, sharp bends that might pinch the washer hose must
be avoided.

WK

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 35

HOSE-WINDSHIELD WASHER

DESCRIPTION

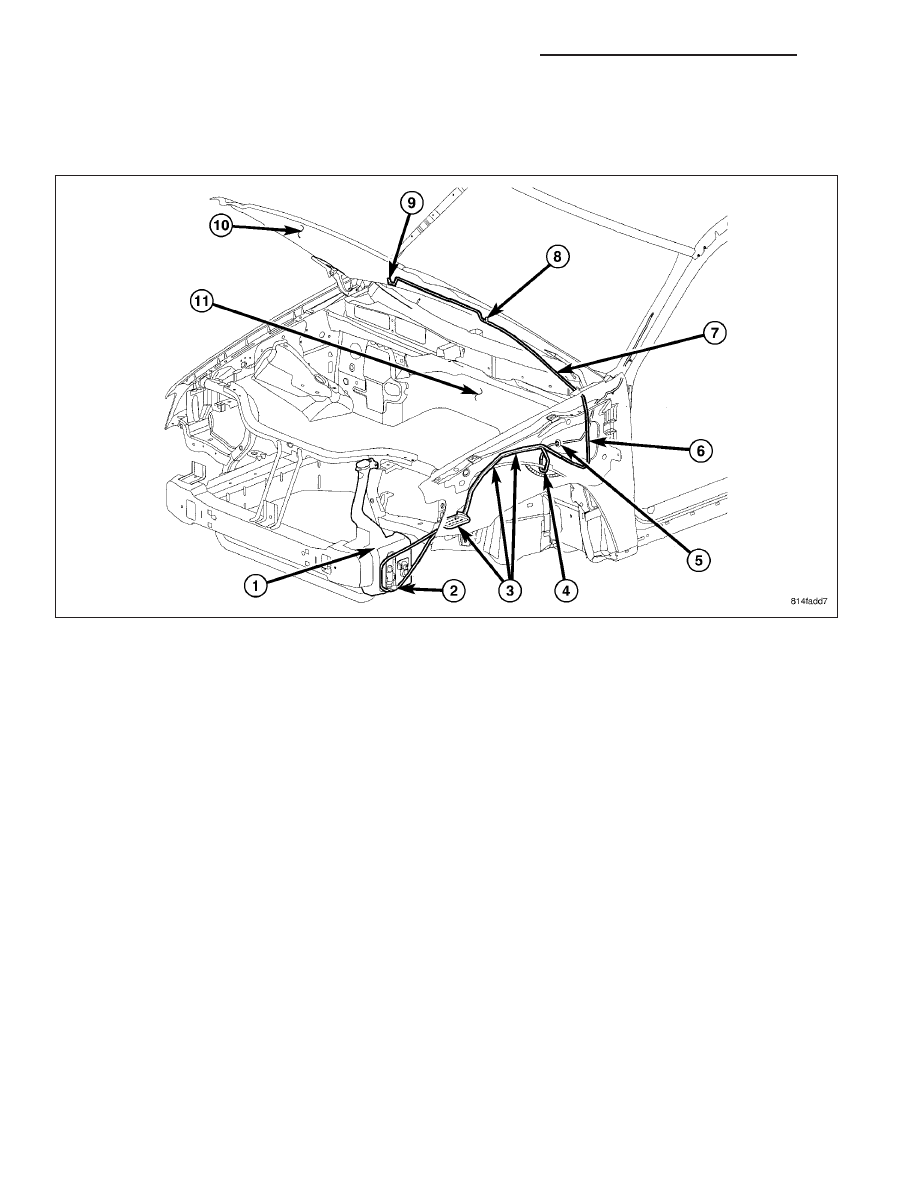

The front washer plumbing consists of a small diameter rubber hose (6) that is routed along with the rear washer
hose (4) from the washer reservoir (1) located at the left front corner of the engine compartment. Both hoses are
attached to their respective front or rear outlet nipple of the windshield washer pump (2) located near the bottom of
the reservoir. The hoses are then secured to the body by three plastic push-pin type retainers (3) before entering
the engine compartment near the left side of the dash panel (11).

In the engine compartment, the two washer hoses are routed separately. The front hose is routed up toward the
hood (10), while the rear hose is routed through a grommet and a hole (5) in the dash panel into the passenger
compartment.

The front hose is then secured to the underside of the hood panel reinforcement at the left side of the hood by a
plastic push-pin type retainer (7). Two plastic in-line fittings and a molded rubber tee (8) provide the take out for the
left washer nozzles, and a plastic in-line fitting with a rubber elbow (9) terminate and connect the front hose at the
right washer nozzle.

Washer hose is available for service only as roll stock, which must then be cut to length. The molded plastic washer
hose fittings cannot be repaired. If these fittings are faulty or damaged, they must be replaced.

OPERATION

Washer fluid in the washer reservoir is pressurized and fed by the windshield washer pump through the front washer
system plumbing and fittings to the two front washer nozzles. Whenever routing the washer hose or a wire harness
containing a washer hose, it must be routed away from hot, sharp, or moving parts; and, sharp bends that might
pinch the hose must be avoided.

8R - 36

FRONT WIPERS/WASHERS - SERVICE INFORMATION

WK

FRONT WASHER NOZZLE

DESCRIPTION

The two front washer nozzles (1) have integral snap
features (4) that secure them in dedicated holes
located in the hood near the base of the windshield.
The domed upper surface (2) of the washer nozzles is
visible on the top of the hood, and the nozzle orifices
(3) are oriented towards the windshield glass. The
washer plumbing fittings (5) for the washer nozzles
are concealed beneath the inner hood panel. These
fluidic washer nozzles are constructed of molded plas-
tic.

The washer nozzles cannot be adjusted or repaired
and, if faulty or damaged, they must be replaced.

OPERATION

The two front washer nozzles are designed to dispense washer fluid into the wiper pattern area on the outside of
the windshield glass. Pressurized washer fluid is fed to each nozzle from the washer reservoir by the windshield
washer pump through a single hose, which is attached to a barbed nipple on each front washer nozzle below the
inner hood panel. A fluidic matrix within the washer nozzle causes the pressurized washer fluid to be emitted from
the nozzle orifice as an oscillating stream to more effectively cover a larger area of the glass to be cleaned.

REMOVAL

1. From the underside of the hood (4), disconnect the

washer nozzle hose (1) from the barbed nipple of
the front washer nozzles (2 and 3) as required.

WK

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 37
