B2305-WIPER PARK SWITCH INPUT CIRCUIT HIGH (CONTINUED)

For the Rear Wipers/Washers circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The FCM detects an open condition.

Possible Causes

(W7) FRONT WIPER PARK SWITCH SENSE CIRCUIT SHORT TO VOLTAGE

FRONT CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Turn the Front Wipers on.

With the Scan Tool, read the Front Wiper DTC’s.

Does the Scan Tool read: B2305-WIPER PARK SWITCH INPUT CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

(W7) FRONT WIPER PARK SWITCH SENSE CIRCUIT SHORT
TO VOLTAGE

Turn the ignition off.

Disconnect the Front Wiper Motor harness connector.

Disconnect the IPM C1 harness connector.

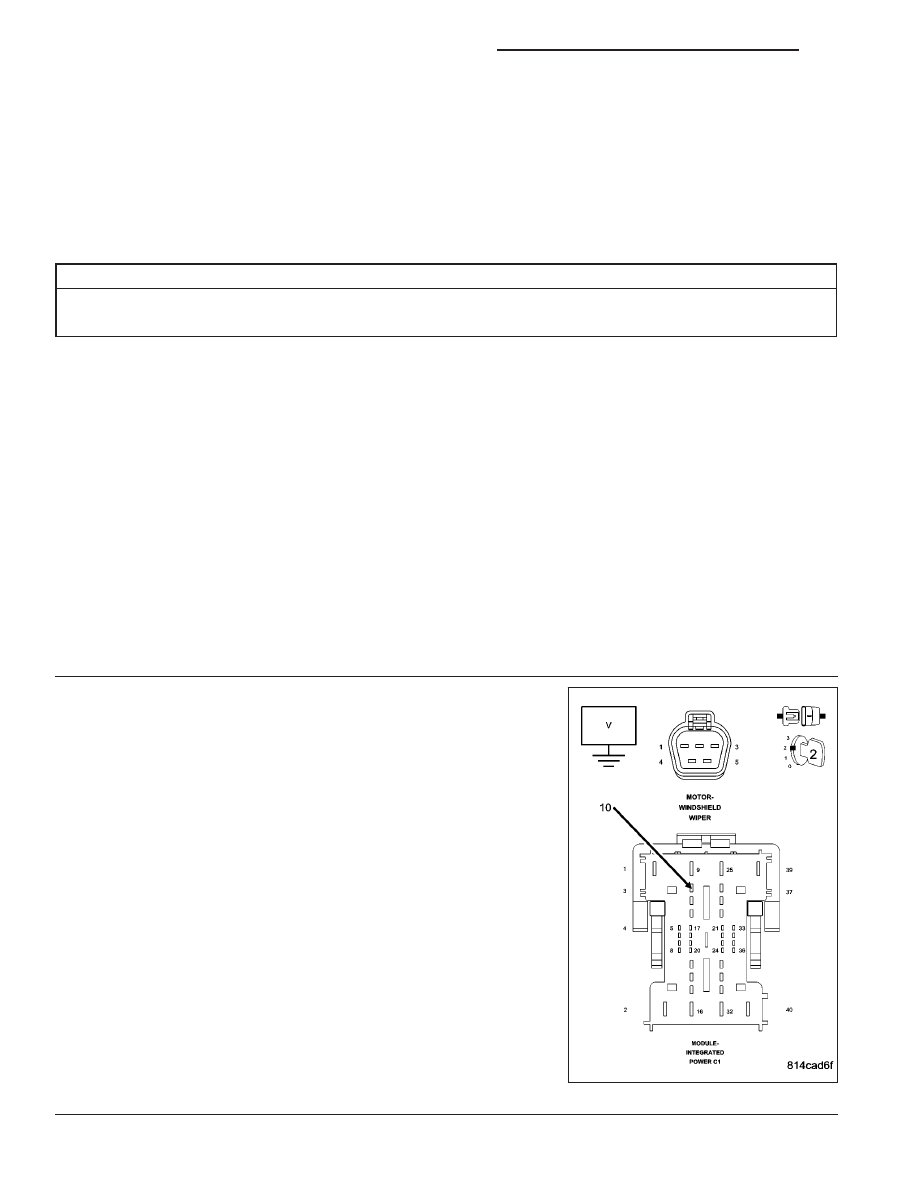

Measure the voltage on the (W7) Front Wiper Park Switch Sense cir-
cuit.

Is the voltage above 5.0 volts?

Yes

>> Repair the (W7) Front Wiper Park Switch Sense circuit for

a short to voltage.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Replace the FCM in accordance with the service informa-

tion.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

8R - 6

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

WK

B2313-WIPER ON/OFF CONTROL CIRCUIT LOW

For the Wiper/Washer system circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:

With the ignition on.

Set Condition:

When the FCM detects a short/low condition.

Possible Causes

INTEGRATED POWER MODULE

Diagnostic Test

1.

INTEGRATED POWER MODULE

Turn the ignition off.

Replace the Wiper ON/OFF relay with and known good relay.

With the Scan Tool, clear all FCM DTC’s.

Turn the Wipers ON then OFF.

With the Scan Tool, read the Wiper DTC’s.

Does the Scan Tool read: B2313-WIPER ON/OFF CONTROL CIRCUIT LOW?

Yes

>> Replace the Integrated Power Module in accordance with the service information.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

No

>> Test complete.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

WK

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 7

B2314-WIPER ON/OFF CONTROL CIRCUIT HIGH

For the Wiper/Washer system circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:

With the ignition on.

Set Condition:

When the FCM detects a short/HIGH condition.

Possible Causes

INTEGRATED POWER MODULE

Diagnostic Test

1.

INTEGRATED POWER MODULE

Turn the ignition off.

Replace the Wiper ON/OFF relay with and known good relay.

With the Scan Tool, clear all FCM DTC’s.

Turn the Wipers ON then OFF.

With the Scan Tool, read the Wiper DTC’s.

Does the Scan Tool read: B2314-WIPER ON/OFF CONTROL CIRCUIT HIGH?

Yes

>> Replace the Integrated Power Module in accordance with the service information.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

No

>> Test complete.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

8R - 8

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

WK

B2315-WIPER ON/OFF CONTROL CIRCUIT OPEN

For the Wiper/Washer system circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:

With the ignition on.

Set Condition:

When the FCM detects a short/low condition.

Possible Causes

INTEGRATED POWER MODULE

Diagnostic Test

1.

INTEGRATED POWER MODULE

Turn the ignition off.

Replace the Wiper ON/OFF relay with and known good relay.

With the Scan Tool, clear all FCM DTC’s.

Turn the Wipers ON then OFF.

With the Scan Tool, read the Wiper DTC’s.

Does the Scan Tool read: B2315-WIPER ON/OFF CONTROL CIRCUIT OPEN?

Yes

>> Replace the Integrated Power Module in accordance with the service information.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

No

>> Test complete.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

WK

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 9
