Jeep Grand Cherokee WK. Manual - part 695





B2304-WIPER PARK SWITCH INPUT CIRCUIT LOW

8R - 2

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

WK

B2304-WIPER PARK SWITCH INPUT CIRCUIT LOW (CONTINUED)

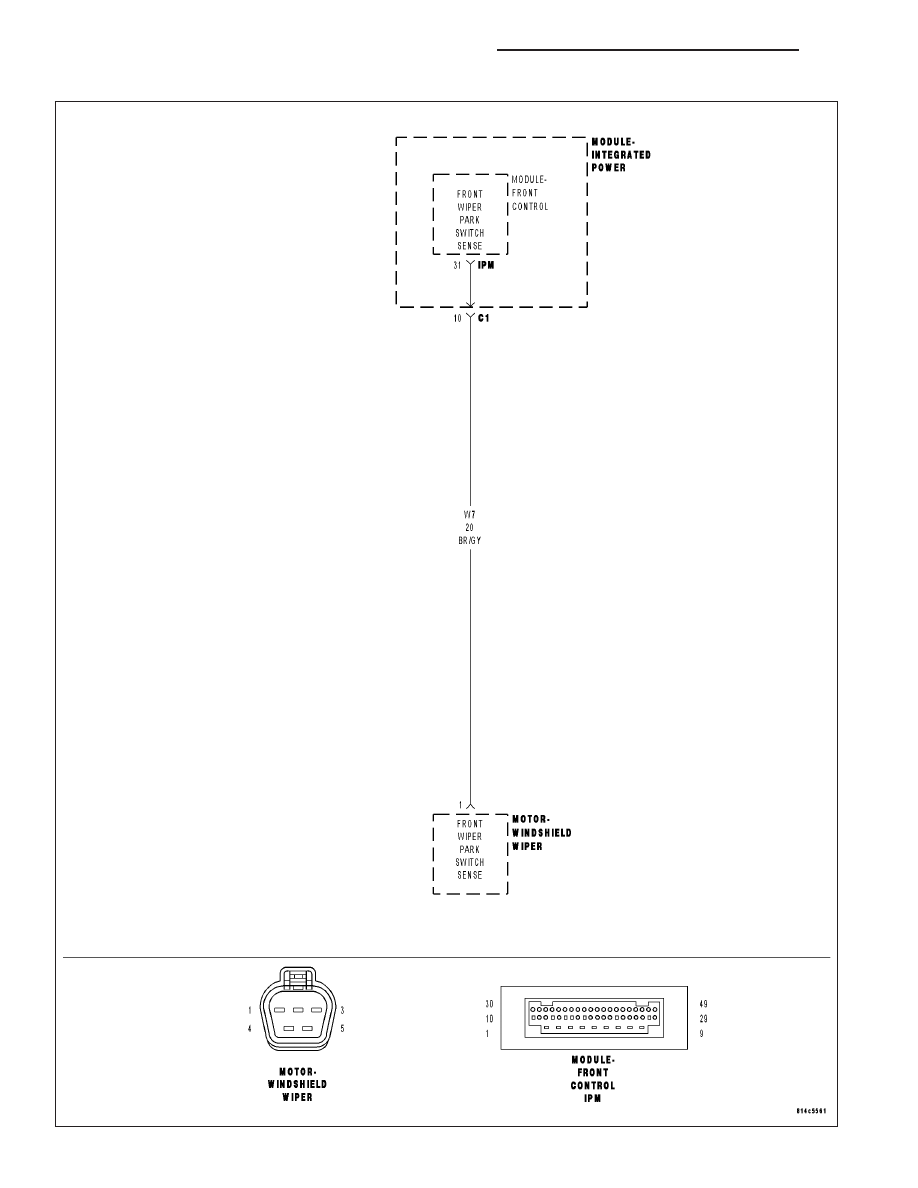

For the Front/Rear Wipers/Washers circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS
AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The FCM detects a short to ground condition.

Possible Causes

FRONT WIPER MOTOR

(W7) FRONT WIPER PARK SWITCH SENSE CIRCUIT SHORT TO GROUND

FRONT CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Turn the Wipers on.

With the Scan Tool, read the Wiper DTC’s.

Does the Scan Tool read: B2304-WIPER PARK SWITCH INPUT CIRCUIT LOW?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

WIPER MOTOR

With the scan tool, erase DTCs.

Turn the ignition off.

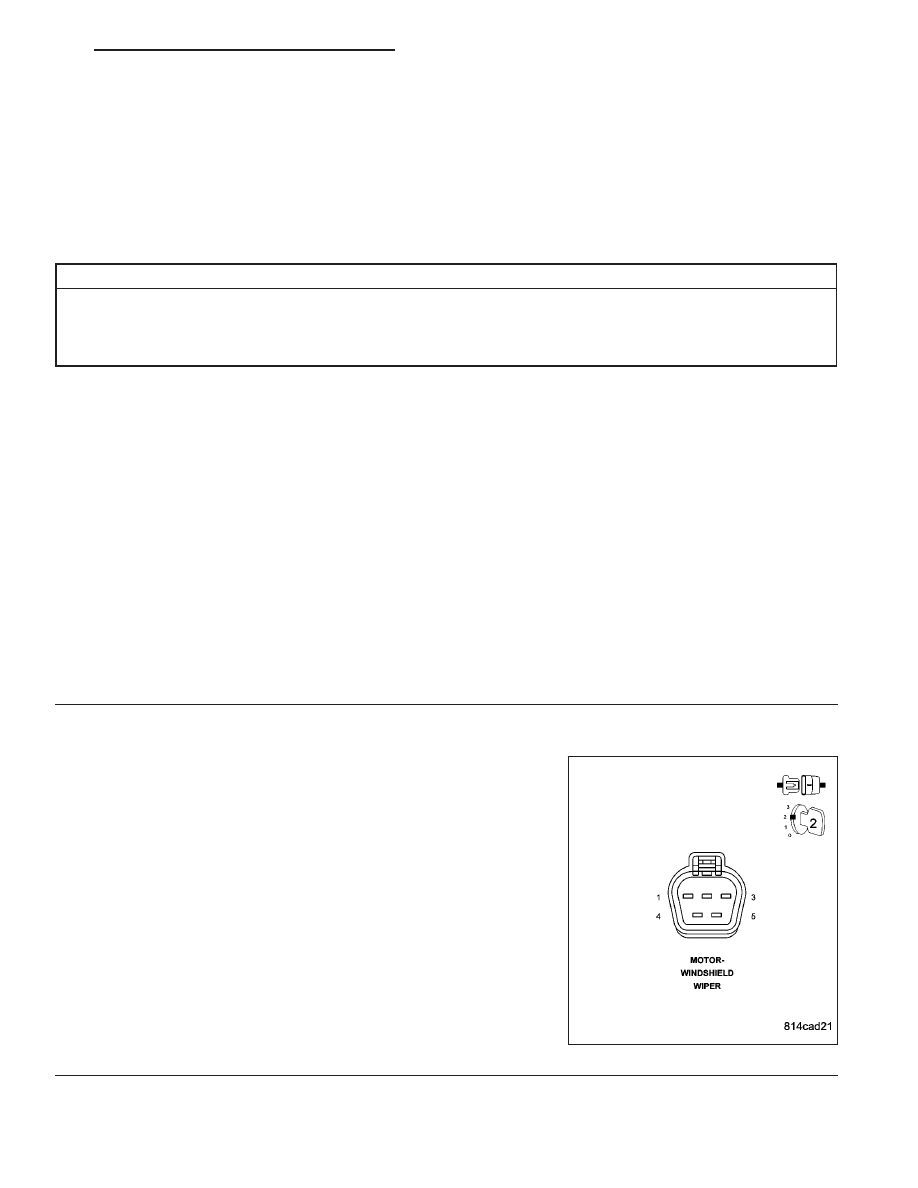

Disconnect the Front Wiper Motor harness connector.

Turn the ignition on.

Wait 30 seconds

With the scan tool, read DTCs.

Does the Scan Tool read: B2305-WIPER PARK SWITCH INPUT
CIRCUIT HIGH?

Yes

>> Replace the Front Wiper Motor in accordance with the ser-

vice information.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Go To 3

WK

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 3

B2304-WIPER PARK SWITCH INPUT CIRCUIT LOW (CONTINUED)

3.

(W7) FRONT WIPER MOTOR PARK SWITCH SENSE CIRCUIT SHORT TO GROUND

Turn the ignition off.

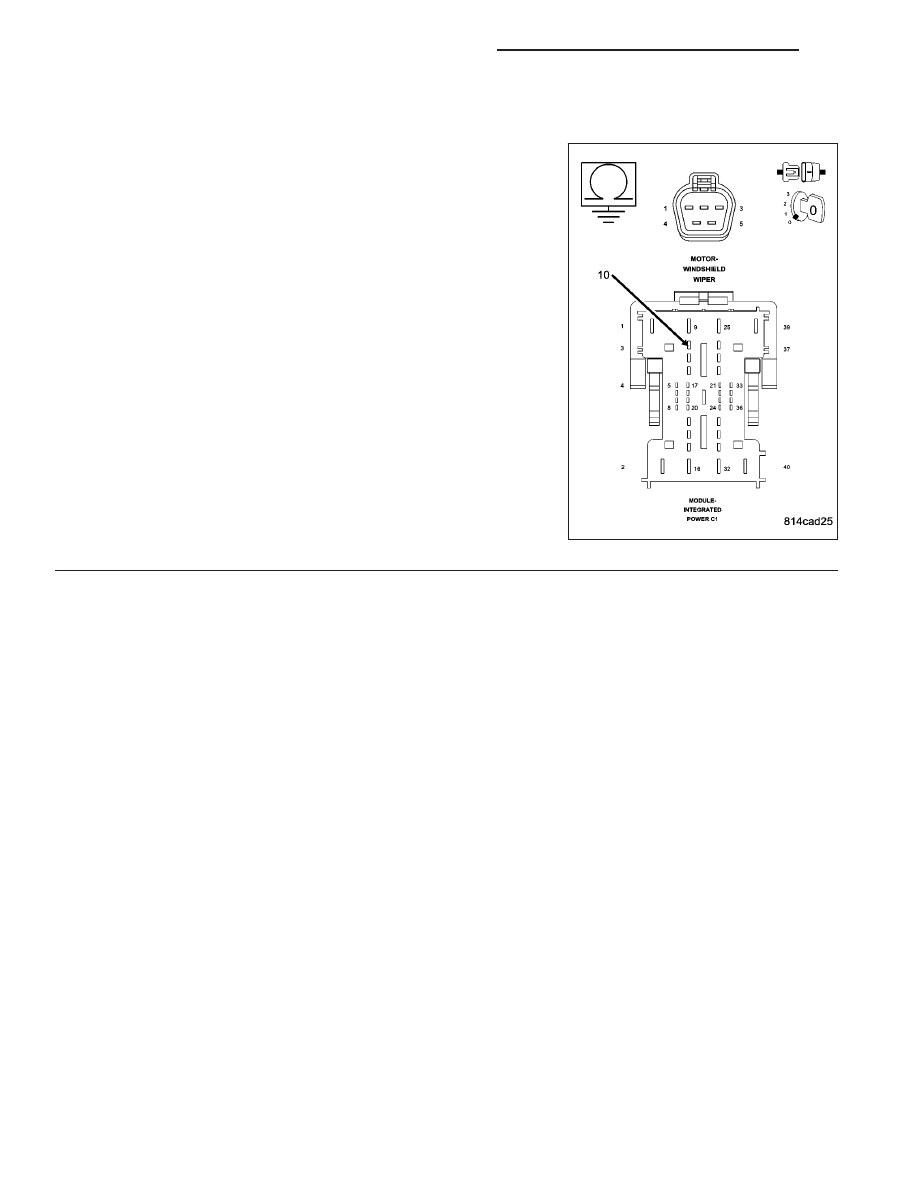

Disconnect the IPM C1 harness connector.

Measure the resistance between ground and the (W7) Front Wiper
Park Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (W7) Front Wiper Park Switch Sense circuit for

a short to ground condition.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Replace the Front Control Module in accordance with the

service information.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

8R - 4

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

WK

B2305-WIPER PARK SWITCH INPUT CIRCUIT HIGH

WK

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 5
