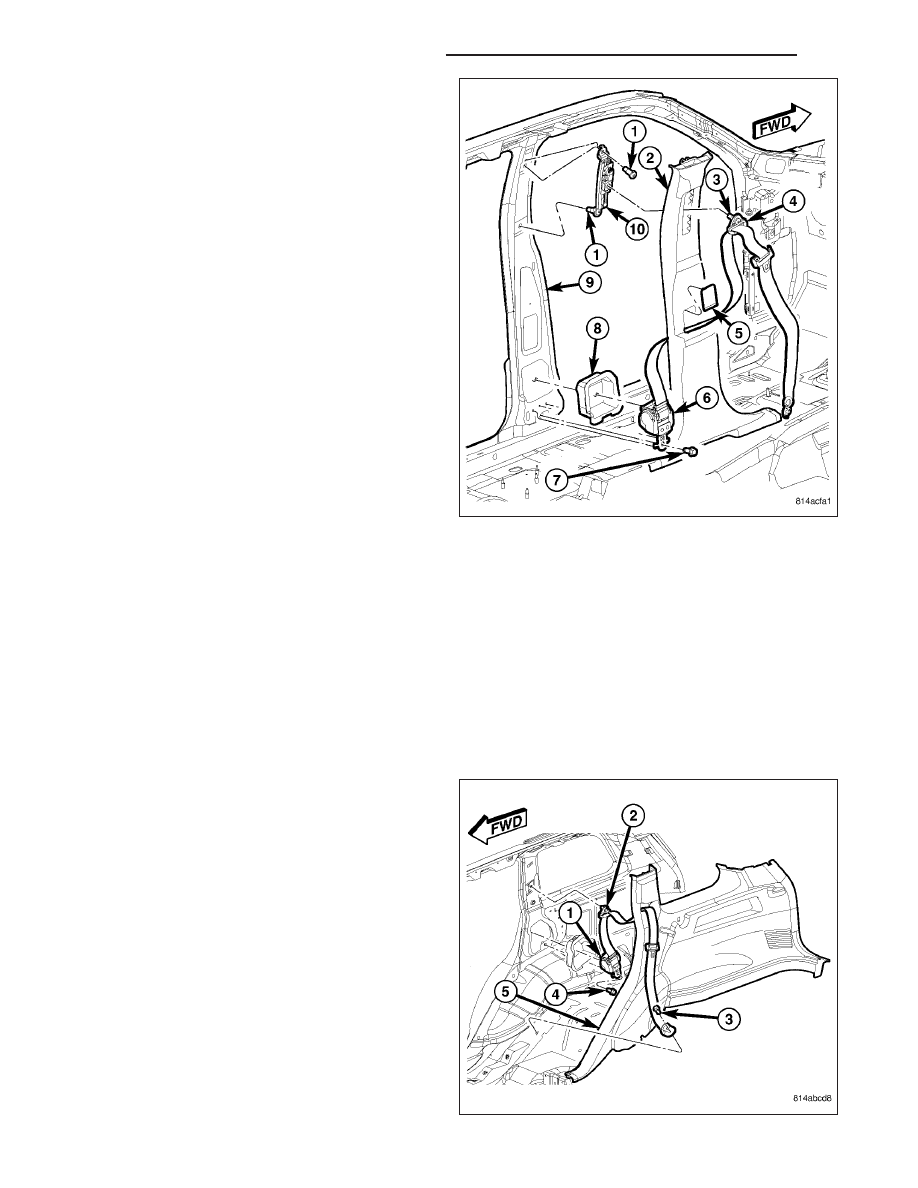

5. Remove the screw (3) that secures the seat belt

turning loop (4) to the height adjuster (10).

6. Remove the seat belt turning loop from the height

adjuster.

7. Remove the upper trim from the inside of the B-pil-

lar (9). (Refer to 23 - BODY/INTERIOR/B-PILLAR
UPPER TRIM - REMOVAL).

8. Unsnap and remove the cover (5) from above the

seat belt opening in the B-pillar trim (2).

9. Remove the trim from the lower B-pillar. (Refer to

23 - BODY/INTERIOR/B-PILLAR LOWER TRIM -
REMOVAL).

10. Pull the front seat belt turning loop and lower

anchor through the seat belt opening in the lower
B-pillar trim.

11. Remove the screw (7) that secures the retractor

(6) lower bracket to the base of the inner B-pillar.

12. Remove the front seat belt and retractor from the

vehicle as a unit.

REAR OUTBOARD

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

1. Remove the rear seat cushion from the vehicle.

(Refer to 23 - BODY/SEATS/REAR SEAT CUSH-
ION - REMOVAL).

2. Loosen the screw (3) that secures the rear out-

board seat belt lower anchor and the rear seat
back bracket to the rear floor panel.

3. Disengage the lower anchor from the loosened

screw.

4. Remove the upper trim from the inside of the C-pil-

lar. (Refer to 23 - BODY/INTERIOR/C-PILLAR
TRIM - REMOVAL).

5. Disengage the seat belt lower anchor from the seat

belt opening in the upper C-pillar trim.

6. Remove the trim (5) from the quarter inner panel.

(Refer to 23 - BODY/INTERIOR/QUARTER TRIM
PANEL - REMOVAL).

7. Remove the screw (2) that secures the seat belt

turning loop to the upper C-pillar.

8O - 478

RESTRAINTS - SERVICE INFORMATION

8. Remove the seat belt turning loop from the upper C-pillar.

9. Remove the screw (4) that secures the retractor (1) to the lower C-pillar.

10. Disengage the retractor locator tab from the slot in the lower C-pillar.

11. Remove the rear outboard seat belt and retractor from the lower C-pillar as a unit.

REAR CENTER

WARNING: During and following any seat belt or child restraint anchor service, carefully inspect all seat
belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation,
or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any
loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt
that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to
which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child
restraint component. Always replace damaged or faulty seat belt and child restraint components with the
correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

1. Remove the left rear seat back panel (4) from the

vehicle. (Refer to 23 - BODY/SEATS/REAR SEAT
BACK - REMOVAL).

2. Remove the trim from the left rear seat back.

(Refer to 23 - BODY/SEATS/REAR SEAT BACK
COVER - REMOVAL).

3. Disengage the seat belt lower anchor through the

web guide loop integral to the top of the seat back
panel.

4. Disengage the retractor lock cable (2) end fitting

from the seat back latch mechanism (3) on the
upper outboard corner of the seat back panel.

5. Disengage the lock cable from the back panel

between the latch and the retractor (1).

6. Remove the screw (2) from the back of the seat

back panel (1) that secures the retractor.

7. Remove the rear center seat belt and retractor unit

from the front of the left seat back panel.

RESTRAINTS - SERVICE INFORMATION

8O - 479

INSTALLATION

FRONT

1. Be certain that the retractor shield (8) is properly

installed in the inner B-pillar (9) and in good condi-
tion before installing the retractor.

2. Position the retractor (6) into the vehicle as a unit.

3. Install and tighten the screw (7) that secures the

retractor lower bracket to the base of the inner
B-pillar. Tighten the screw to 39 N·m (29 ft. lbs.).

4. Route the front seat belt turning loop (4) and lower

anchor through the seat belt opening in the lower
B-pillar trim (2).

5. Reinstall the lower trim onto the B-pillar. (Refer to

23 - BODY/INTERIOR/B-PILLAR LOWER TRIM -
INSTALLATION).

6. Reinstall the cover (5) into the upper seat belt

opening in the B-pillar trim.

7. Reinstall the upper trim onto the inside of the B-pil-

lar. (Refer to 23 - BODY/INTERIOR/B-PILLAR
UPPER TRIM - INSTALLATION).

8. Position the seat belt turning loop onto the height

adjuster (10) on the upper B-pillar. Be certain that
the seat belt webbing between the retractor and
the turning loop is not twisted.

9. Install and tighten the screw (5) that secures the

turning loop to the height adjuster. Tighten the screw to 39 N·m (29 ft. lbs.).

8O - 480

RESTRAINTS - SERVICE INFORMATION

10. Insert the upper tabs of the turning loop trim cover

into the slots of the height adjuster on the upper
B-pillar, then lower the bottom of the cover and
use hand pressure to press firmly and evenly on
the cover until it snaps into place.

11. Position the seat belt lower anchor to the mount-

ing hole on the outboard side of the front seat
cushion frame. Be certain that the seat belt web-
bing between the turning loop and the lower
anchor is not twisted.

12. Install and tighten the screw (2) that secures the

lower anchor to the seat. Tighten the screw to 39
N·m (29 ft. lbs.).

13. Reinstall the lower anchor cover (1) onto the front

seat cushion outboard side shield.

REAR OUTBOARD
