B2101-IGNITION RUN/START INPUT CIRCUIT LOW (CONTINUED)

3.

INSPECT AIRBAG RUN-START FUSE (IPM #29)

Turn the ignition off.

Remove the Airbag Run-Start Fuse #29 from the IPM and inspect the fuse.

NOTE: Check connectors - Clean and repair as necessary.

Is the Run/Start fuse open?

Yes

>> Go To 4

No

>> Go To 8

4.

CHECK (F20) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE

Measure the resistance of the (F20) Fused Ignition Switch Output
(Run-Start) circuit between ground and the Airbag Run-Start fuse ter-
minal (output side).

Is the resistance below 100.0 ohms?

Yes

>> Go To 5

No

>> Using the wiring diagram/schematic as a guide, inspect

the related wiring and connectors. Look for chaffed,
pierced, pinched, or partially broken wires and broken,
bent, pushed out, spread, corroded, or contaminated ter-
minals.

Replace Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1.

8O - 318

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B2101-IGNITION RUN/START INPUT CIRCUIT LOW (CONTINUED)

5.

CHECK (F20) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE WITH ORC
CONNECTORS DISCONNECTED

WARNING: If the Occupant Restraint Controller is dropped at any
time, it must be replaced. Failure to take the proper precautions
can result in accidental airbag deployment and personal injury or
death.

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the both ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.
Connect the Load Tool ORC 8443–24 Adaptor to the ORC C2 connec-
tor.

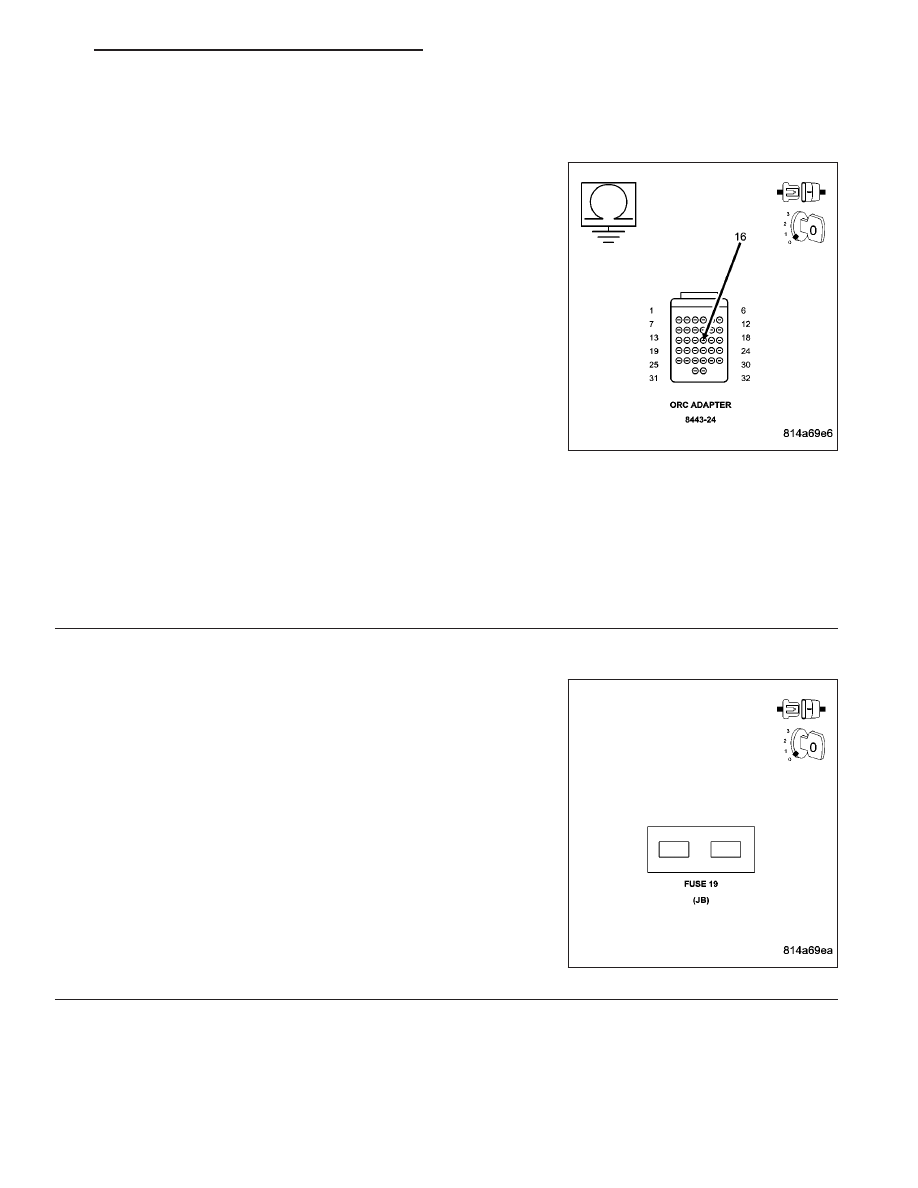

Measure the resistance of the (F20) Fused Ignition Switch Output
(Run-Start) circuit between 8443–24 adaptor and ground).

Is the resistance below 100.0 ohms?

Yes

>> Repair the (F20) Fused Ignition Switch Output (Run-Start)

circuit for a short to ground.

Replace the Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

No

>> Replace the ORC in accordance with the Service Information.

Replace the Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

6.

INSPECT AIRBAG RUN-START FUSE (JB #19)

Turn the ignition off.

Remove the Airbag Run-Start Fuse #19 from the Junction Block and
inspect the fuse.

NOTE: Check connectors - Clean and repair as necessary.

Is the Run/Start fuse open?

Yes

>> Go To 7

No

>> Go To 10

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 319

B2101-IGNITION RUN/START INPUT CIRCUIT LOW (CONTINUED)

7.

CHECK (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE WITH OCM C1
CONNECTOR DISCONNECTED

WARNING: If the Occupant Classification Module is dropped at
any time, it must be replaced. Failure to take the proper precau-
tions can result in accidental airbag deployment and personal
injury or death.
Disconnect the OCM C1 connector.

Measure the resistance of the (F200) Fused Ignition Switch Output
(Run-Start) circuit between ground and the Occupant Classification
Module C1 connector.

Is the resistance below 100.0 ohms?

Yes

>> Repair the (F200) Fused Ignition Switch Output (Run-

Start) circuit for a short to ground.

Replace the Airbag Run-Start Fuse.

Perform OCS VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

No

>> Replace the OCM in accordance with the Service Information.

Replace the Airbag Run-Start Fuse.

Perform OCS VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

8.

CHECK (F944) IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

Turn the ignition on.

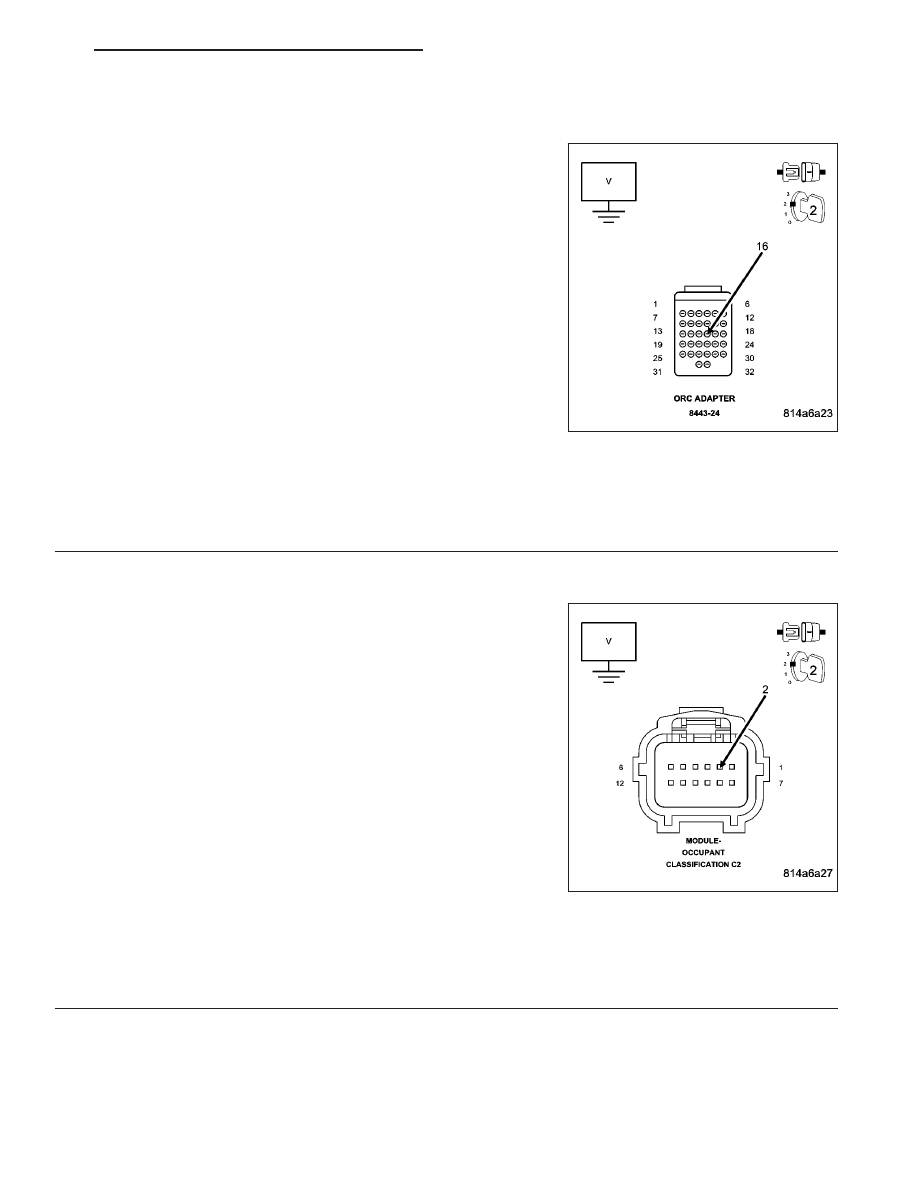

Measure the voltage of the (F944) Ignition Switch Output (Run-Start)
circuit at the Airbag Run-Start fuse terminal (supply side).

Is the voltage above 6.0 volts?

Yes

>> Go To 9

No

>> Repair the open (F944) Ignition Switch Output (Run-Start)

circuit.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

8O - 320

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B2101-IGNITION RUN/START INPUT CIRCUIT LOW (CONTINUED)

9.

CHECK (F20) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Reinstall the Airbag Run-Start Fuse.

Disconnect the both ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.
Install the Airbag Load tool ORC 8443–24 adaptor to the ORC C2 con-
nector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
Measure the voltage of the (F20) Fused Ignition Switch Output (Run-
Start) Circuit between the 8443–24 connector and ground.

Is the voltage above 6.0 volts?

Yes

>> Replace the ORC in accordance with the Service Informa-

tion.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)

No

>> Repair the open (F20) Fused Ignition Switch Output (Run-Start) circuit.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

10.

CHECK (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Reinstall the JB #19 Airbag Run-Start Fuse.

Disconnect both Occupant Classification Module (OCM) connectors.

NOTE: Check connectors - Clean and repair as necessary.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
Measure the voltage of the (F200) Fused Ignition Switch Output (Run-
Start) Circuit between the OCM connector and ground.

Is the voltage above 6.0 volts?

Yes

>> Replace the Occupant Classification Module (OCM) in

accordance with the Service Information.

Perform OCS VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

No

>> Repair the open (F200) Fused Ignition Switch Output (Run-Start) circuit between the OCM and the

splice.

Perform OCS VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)
