Jeep Grand Cherokee WK. Manual - part 617





B1BA7-OCCUPANT CLASSIFICATION SYSTEM VERIFICATION REQUIRED (CONTINUED)

When Monitored:
With the CAN ignition status as IGN_RUN, the module tries to detect potentially damaging events and moni-
tors the CAN Bus for the X Impact messages (crash event causing one or more airbag or pretensioner to
deploy) or upon detecting an Offset Event (if equipped).

Set Condition:
This DTC will set if the module detects a potentially damaging event or the X Impact messages from the CAN
Bus input.

Possible Causes

B1BA7-OCS VERIFICATION REQUIRED DTC ACTIVE

Diagnostic Test

1.

CHECK FOR OCCUPANT CLASSIFICATION MODULE (OCM) ACTIVE DTCs:

ACTIVE INTERNAL FAULTS

IGNITION FAULTS

BATTERY FAULT

SEAT WEIGHT SENSOR DTCs

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on, then off, and then on again.

With the scan tool, read Occupant Classification Module (OCM) DTCs.

Does the scan tool display any active DTCs listed above?

Yes

>> Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of

symptoms.

No

>> Go To 2

2.

VERIFY THAT DTC B1BA7–OCCUPANT CLASSIFICATION SYSTEM VERIFICATION REQUIRED IS ACTIVE

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1BA7–OCCUPANT CLASSIFICATION SYSTEM VERIFICATION
REQUIRED?

Yes

>> Go To 3

No

>> Go To 4

8O - 290

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1BA7-OCCUPANT CLASSIFICATION SYSTEM VERIFICATION REQUIRED (CONTINUED)

3.

PERFORM OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST

Verify that the passenger seat is empty.

Verify that all of the Seat Weight Sensor mounting screws are torqued to specification. Refer to 23 - BODY/SEATS.

NOTE: Failure to follow the test instructions or aborting the test will cause faults to set when performing
the Occupant Classification Module System Verification Test. To prevent faults due to process errors: Verify
That All Tests Steps That Led You Here Were Performed As Directed; Verify That The Ignition Is In Run; Wait
30 Seconds After Changing The Seat Weight Before Proceeding To Allow The System To Stabilize; Only
Press Scan Tool Buttons When Directed To Do So; & Perform The Occupant Classification Module System
Verification Test To Completion.
With the scan tool in OCM, select More Options, select System Tests, and select Occupant Classification Module
System Verification Test. Run the test by following the instructions displayed on the scan tool. When the test is
complete, proceed as follows.

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1BA7–OCCUPANT CLASSIFICATION SYSTEM VERIFICATION
REQUIRED?

Yes

>> Perform the *Diagnosis/Checkout Procedure For Seat Weight Sensors.

Perform OCS VERIFICATION TEST - VER 1.

No, But Other DTCs Present

Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of
symptoms.

No Active DTCs Present

Perform OCS VERIFICATION TEST - VER 1.

4.

CHECK FOR ACTIVE DTC B1BA8–OCM SYSTEM OUT OF CALIBRATION/NOT CALIBRATED

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1BA8–OCM SYSTEM OUT OF CALIBRATION/NOT CALIBRATED?

Yes

>> Diagnose and repair the DTC. Refer to the Table of Contents in this Section for a complete list of symp-

toms.

No

>> Perform OCS VERIFICATION TEST - VER 1.

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 291

B1BA8-OCM SYSTEM OUT OF CALIBRATION/NOT CALIBRATED

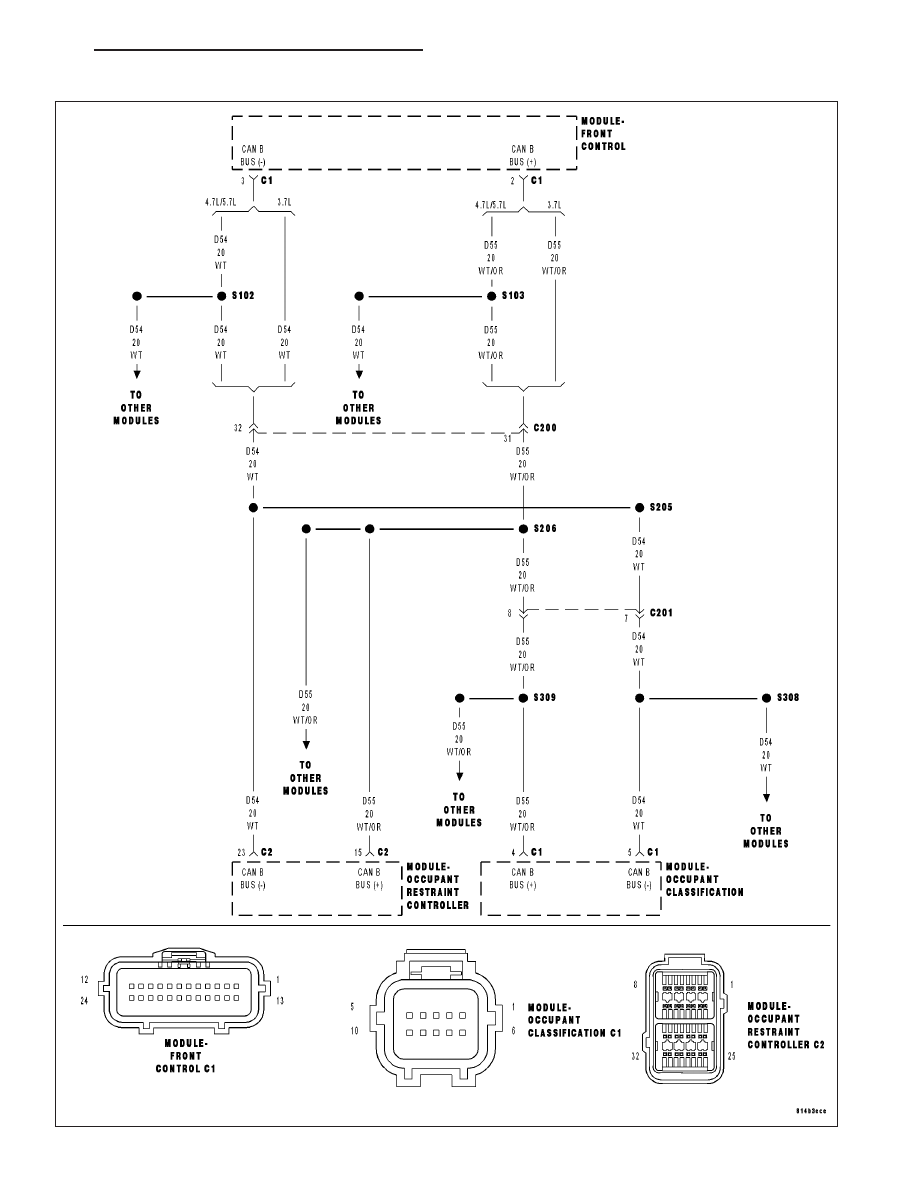

For a complete wiring diagram Refer to Section 8W.

When Monitored:
While the CAN bus ignition status is IGN_RUN or SNA.

Set Condition:
This DTC will set if the module has initiated a rezero and did not successfully complete the system verification,
a system verification routine has been aborted or a update option table from flash routine has been completed.

Diagnostic Test

1.

PERFORM OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST

Verify that the passenger seat is empty.

Verify that all of the Seat Weight Sensor mounting screws are torqued to specification. Refer to 23 - BODY/SEATS.

NOTE: Failure to follow the test instructions or aborting the test will cause faults to set when performing
the Occupant Classification Module System Verification Test. To prevent faults due to process errors: Verify
That All Tests Steps That Led You Here Were Performed As Directed; Verify That The Ignition Is In Run; Wait
30 Seconds After Changing The Seat Weight Before Proceeding To Allow The System To Stabilize; Only
Press Scan Tool Buttons When Directed To Do So; & Perform The Occupant Classification Module System
Verification Test To Completion.
With the scan tool in OCM, select More Options, select System Tests, and select Occupant Classification Module
System Verification Test. Run the test by following the instructions displayed on the scan tool. When the test is
complete, proceed as follows.

With the scan tool, read OCM DTCs.

Does the scan tool display any active DTCs?

Yes - B1BA8 DTC Returned

Perform the *Diagnosis/Checkout Procedure For Seat Weight Sensors.

Yes - But Other DTCs Present

Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of
symptoms.

No - Active DTCs Present

Perform OCS VERIFICATION TEST - VER 1.

8O - 292

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 293
