Jeep Grand Cherokee WK. Manual - part 607





B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH (CONTINUED)

For the Occupant Classification System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS
AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
While the CAN bus ignition status is in IGN_RUN, the module checks the sensor input ranges.

Set Condition:
If the module detects that the sensor input is greater than 96 ± 0.6% of the (R701) Seat Weight Sensor 5 Volt
circuit voltage.

Possible Causes

PASSENGER SEAT HARNESS IMPROPERLY ROUTED

PASSENGER SEAT HARNESS WIRES CHAFFED, PIERCED, PINCHED, PARTIALLY BROKEN

PASSENGER SEAT HARNESS CONNECTOR TERMINALS BROKEN, BENT PUSHED OUT, SPREAD,
CORRODED, CONTAMINATED

(R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT SHORTED TO (R701) SEAT WEIGHT SENSOR 5
VOLT CIRCUIT

(R728) SEAT WEIGHT SENSOR GROUND CIRCUIT OPEN

RIGHT-REAR SEAT WEIGHT SENSOR

OCCUPANT CLASSIFICATION MODULE (OCM)

Diagnostic Test

1.

CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, & BATTERY FAULTS IN THE OCCUPANT
CLASSIFICATION MODULE (OCM)

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on, then off, and then on again.

With the scan tool, read Occupant Classification Module (OCM) DTCs.

Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes

>> Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of

symptoms.

No

>> Go To 2

2.

VERIFY THAT DTC B1B89–PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH
IS ACTIVE

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1B89–PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT
CIRCUIT HIGH?

Yes

>> Go To 3

No

>> Go To 9

8O - 250

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH (CONTINUED)

3.

INSPECT PASSENGER SEAT HARNESS WIRES & CONNECTORS

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the Passenger Seat Harness wiring and connectors. Look
for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contam-
inated terminals.

Are any of these conditions present?

Yes

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or
testing for is present in the Seat Harness.

Replace the Passenger Seat Harness in accordance with the Service Information.

Perform OCS VERIFICATION TEST - VER 1 (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

No

>> Go To 4

4.

VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY

Verify that the Passenger Seat Harness is routed correctly.

Is the Passenger Seat Harness routed correctly?

Yes

>> Go To 5

No

>> Reroute the Passenger Seat Harness as necessary.

Perform OCS VERIFICATION TEST - VER 1 (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

5.

CHECK IF MORE THAN ONE PASSENGER SEAT WEIGHT SENSOR DTC IS ACTIVE

Verify that all of the Seat Weight Sensor mounting screws are torqued to specification. Refer to 23 - BODY/SEATS.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.

NOTE: Failure to follow test instructions or aborting the test will cause faults to set when performing the
Occupant Classification Module System Verification Test. To prevent faults due to process errors: Verify
That All Tests Steps That Led You Here Were Performed As Directed; Verify That The Ignition Is In Run; Wait
30 Seconds After Changing The Seat Weight Before Proceeding To Allow The System To Stabilize; Only
Press Scan Tool Buttons When Directed To Do So; & Perform The Occupant Classification Module System
Verification Test To Completion.
With the scan tool in OCM, select More Options, select System Tests, and select Occupant Classification Module
System Verification Test. Run the test by following the instructions displayed on the scan tool. When the test is
complete, wait two minutes, and then proceed as follows.

With the scan tool, read OCM DTCs.

Does the scan tool display any active PASSENGER SEAT WEIGHT SENSOR DTCs?

Yes

>> More Than One PASSENGER SEAT WEIGHT SENSOR DTC Is Active?Perform the *Diagnosis/Check-

out Procedure For Seat Weight Sensors

Yes

>> Only DTC B1B89 Is Active

Go To 6

No

>> Other DTCs Present? Diagnose and repair the DTCs.

Refer to the Table of Contents in this Section for a complete list of symptoms.

No

>> Perform OCS VERIFICATION TEST - VER 1

(Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 251

B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH (CONTINUED)

6.

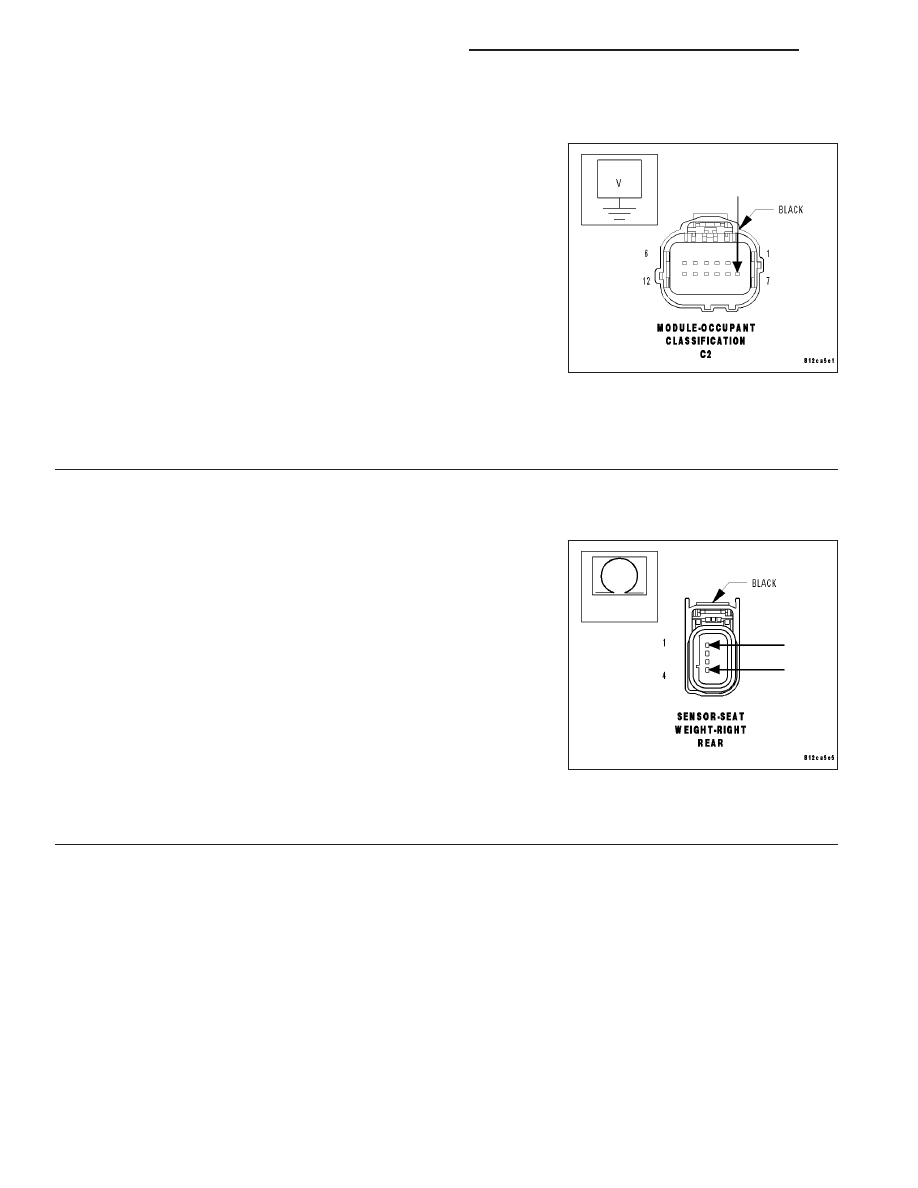

CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the OCM C2 connector.

Measure the voltage of the (R706) RT-RR Seat Weight Sensor Signal
circuit.

Is the voltage above 0.2 volts?

Yes

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the
Seat Harness if the condition inspecting or testing for is present
in the Seat Harness.

Replace the Passenger Seat Harness in accordance with
the Service Information.

Perform OCS VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

No

>> Go To 7

7.

CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO (R701) SEAT WEIGHT
SENSOR 5 VOLT CIRCUIT

Disconnect the Right-Rear Seat Weight Sensor connector.

Measure the resistance between the (R706) RT-RR Seat Weight Sen-
sor Signal circuit and the (R701) Seat Weight Sensor 5 Volt circuit.

Is the resistance below 10K ohms?

Yes

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the
Seat Harness if the condition inspecting or testing for is present
in the Seat Harness.

Replace the Passenger Seat Harness in accordance with
the Service Information.

Perform OCS VERIFICATION TEST - VER 1 (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

No

>> Go To 8

8O - 252

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH (CONTINUED)

8.

CHECK (R728) SEAT WEIGHT SENSOR GROUND CIRCUIT FOR AN OPEN

Measure the resistance of the (R728) Seat Weight Sensor Ground cir-
cuit between the OCM C2 connector and the Right-Rear Seat Weight
Sensor connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the OCM in accordance with the Service Informa-

tion.

Perform OCS VERIFICATION TEST - VER 1 (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

No

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the
Seat Harness if the condition inspecting or testing for is present
in the Seat Harness.

Replace the Passenger Seat Harness in accordance with
the Service Information.

Perform OCS VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

9.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase all DTCs from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return, continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the active DTC in ques-
tion.

Does the scan tool display any ACTIVE DTCs?

Yes

>> Select appropriate symptom from Symptom List.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 253
