B1B20-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT LOW

8O - 118

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B20-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT LOW (CONTINUED)

For the Air Bag System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIA-
GRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on, the Occupant Restraint Controller (ORC) monitors the resistance of the Right Curtain
Squib 1 circuits.

Set Condition:
The ORC has detected low resistance on the Right Curtain Squib 1 circuits.

Possible Causes

(R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT OR (R2) RIGHT CURTAIN SQUIB 1 LINE 2 CIRCUIT
SHORTED TO GROUND

RIGHT SIDE CURTAIN AIRBAG

ORC

Diagnostic Test

1.

DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following
test.

NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.
Select Active or Stored DTC.

Is the DTC active or stored?

ORC - ACTIVE DTC

Go To 2

ORC - STORED DTC

Go To 5

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 119

B1B20-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT LOW (CONTINUED)

2.

CHECK FOR SHORTED SQUIB CIRCUITS IN RIGHT SIDE CURTAIN AIRBAG

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Right Side Curtain Airbag connector.

WARNING: To avoid personal injury or death, do not place an
intact undeployed curtain airbag face down on a hard surface, the
airbag will propel into the air if accidentally deployed.

NOTE: Check connectors - Clean and repair as necessary.

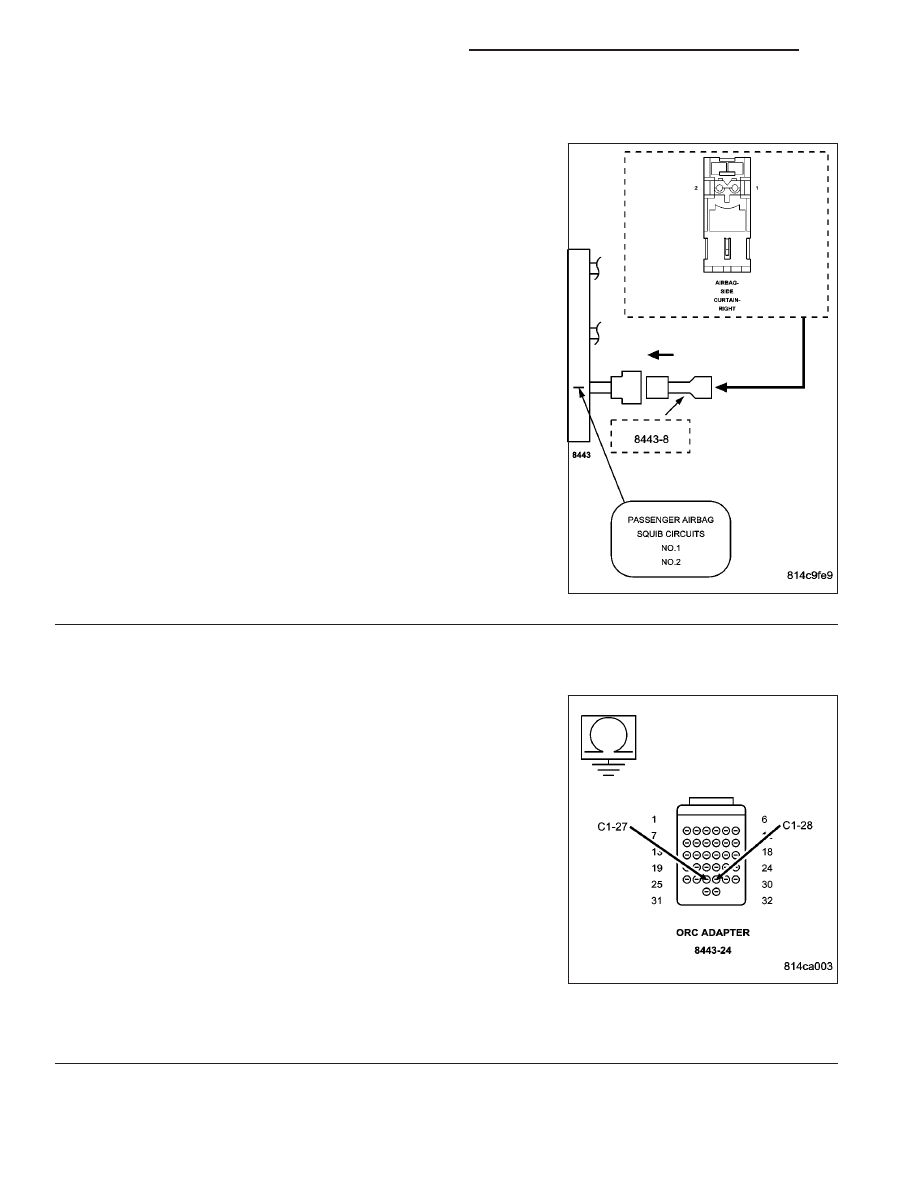

Connect the 8443 Load Tool and appropriate Jumper to the Right Side
Curtain Airbag connector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
With the scan tool, read the active ORC DTC’s.

Does the scan tool display: B1B20 RIGHT SIDE CURTAIN
SQUIB 1 CIRCUIT LOW?

Yes

>> Go To 3

No

>> Replace the Right Side Curtain Airbag in accordance with

the Service Information.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

3.

CHECK (R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT AND (R2) RIGHT CURTAIN SQUIB 1 LINE 2
CIRCUIT FOR A SHORT TO GROUND

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool and Jumper from the Right Side Cur-
tain Airbag connector.

Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool ORC Adaptor to the ORC C1 connector.

Measure the resistance of the (R4) Right Curtain Squib 1 Line 1 circuit
between ground and the ORC adaptor.

Measure the resistance of the (R2) Right Curtain Squib 1 Line 2 circuit
between ground and the ORC adaptor.

Is the resistance below 10K ohms on either circuit?

Yes

>> Repair the Right Curtain Squib 1 circuit(s) for a short to

ground.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)

No

>> Go to 4

8O - 120

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B20-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT LOW (CONTINUED)

4.

REPLACE THE ORC

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to
take the proper precautions can result in accidental airbag deployment and personal injury or death.

NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.

Repair

Replace the ORC in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

5.

STORED ORC DTC

With the scan tool, record and erase all DTC’s from all Airbag System Modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTC’s present?

Yes

>> Select the appropriate diagnostic procedure from the Table of Contents in this section.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.
