Jeep Grand Cherokee WK. Manual - part 487





B1D0F, B1D18–MIRROR HORIZONTAL POSITION SENSOR INPUT CIRCUIT LOW – MEMORY MIRROR MOD-
ULE (CONTINUED)

4.

CHECK THE (P65) DRIVER MIRROR HORIZONTAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE
(Z911) GROUND CIRCUIT OR THE (P68) PASSENGER MIRROR HORIZONTAL POSITION SIGNAL
CIRCUIT FOR A SHORT TO THE (Z908) GROUND CIRCUIT

For the Driver Memory Mirror System, proceed as follows:

Measure the resistance between the (P65) Driver Mirror Horizon-
tal Position Signal circuit and the (Z911) Ground circuit in the
Driver Memory Mirror Module C1 connector.

For the Passenger Memory Mirror System, proceed as follows:

Measure the resistance between the (P68) Passenger Mirror Hor-
izontal Position Signal circuit and the (Z908) Ground circuit in the
Passenger Memory Mirror Module connector.

Is the resistance below 10000.0 ohms?

Yes, Driver MMM

Repair the (P65) Driver Mirror Horizontal Position Signal
circuit for a short to the (Z911) Ground circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

Yes, Passenger MMM

Repair the (P68) Passenger Mirror Horizontal Position Sig-
nal circuit for a short to the (Z908) Ground circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 5

8N - 108

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

WK

B1D0F, B1D18–MIRROR HORIZONTAL POSITION SENSOR INPUT CIRCUIT LOW – MEMORY MIRROR MOD-
ULE (CONTINUED)

5.

CHECK THE (P65) DRIVER MIRROR HORIZONTAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE
(P69) DRIVER MIRROR SENSOR GROUND CIRCUIT OR THE (P68) PASSENGER MIRROR HORIZONTAL
POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (P66) PASSENGER MIRROR SENSOR GROUND
CIRCUIT

For the Driver Memory Mirror System, proceed as follows:

Measure the resistance between the (P65) Driver Mirror Horizon-
tal Position Signal circuit and the (P69) Driver Mirror Sensor
Ground circuit in the Driver Memory Mirror Module C1 connector.

For the Passenger Memory Mirror System, proceed as follows:

Measure the resistance between the (P68) Passenger Mirror Hor-
izontal Position Signal circuit and the (P66) Passenger Mirror
Sensor Ground circuit in the Passenger Memory Mirror Module
connector.

Is the resistance below 10000.0 ohms?

Yes, Driver MMM

Repair the (P65) Driver Mirror Horizontal Position Signal
circuit for a short to the (P69) Driver Mirror Sensor Ground
circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

Yes, Passenger MMM

Repair the (P68) Passenger Mirror Horizontal Position Sig-
nal circuit for a short to the (P66) Passenger Mirror Sensor
Ground circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 6

WK

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 109

B1D0F, B1D18–MIRROR HORIZONTAL POSITION SENSOR INPUT CIRCUIT LOW – MEMORY MIRROR MOD-
ULE (CONTINUED)

6.

CHECK THE (P65) DRIVER MIRROR HORIZONTAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE
(C910) DRIVER MIRROR HEATER GROUND CIRCUIT OR THE (P68) PASSENGER MIRROR HORIZONTAL
POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (C917) PASSENGER MIRROR HEATER GROUND
CIRCUIT

For the Driver Memory Mirror System, proceed as follows:

Measure the resistance between the (P65) Driver Mirror Horizon-
tal Position Signal circuit and the (C910) Driver Mirror Heater
Ground circuit in the Driver Memory Mirror Module C1 connector.

For the Passenger Memory Mirror System, proceed as follows:

Measure the resistance between the (P68) Passenger Mirror Hor-
izontal Position Signal circuit and the (C917) Passenger Mirror
Heater Ground circuit in the Passenger Memory Mirror Module
connector.

Is the resistance below 10000.0 ohms?

Yes, Driver MMM

Repair the (P65) Driver Mirror Horizontal Position Signal
circuit for a short to the (C910) Driver Mirror Heater
Ground circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

Yes, Passenger MMM

Repair the (P68) Passenger Mirror Horizontal Position Sig-
nal circuit for a short to the (C917) Passenger Mirror
Heater Ground circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No, Driver MMM

Replace the Driver Memory Mirror Module in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No, Passenger MMM

Replace the Passenger Memory Mirror Module in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

8N - 110

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

WK

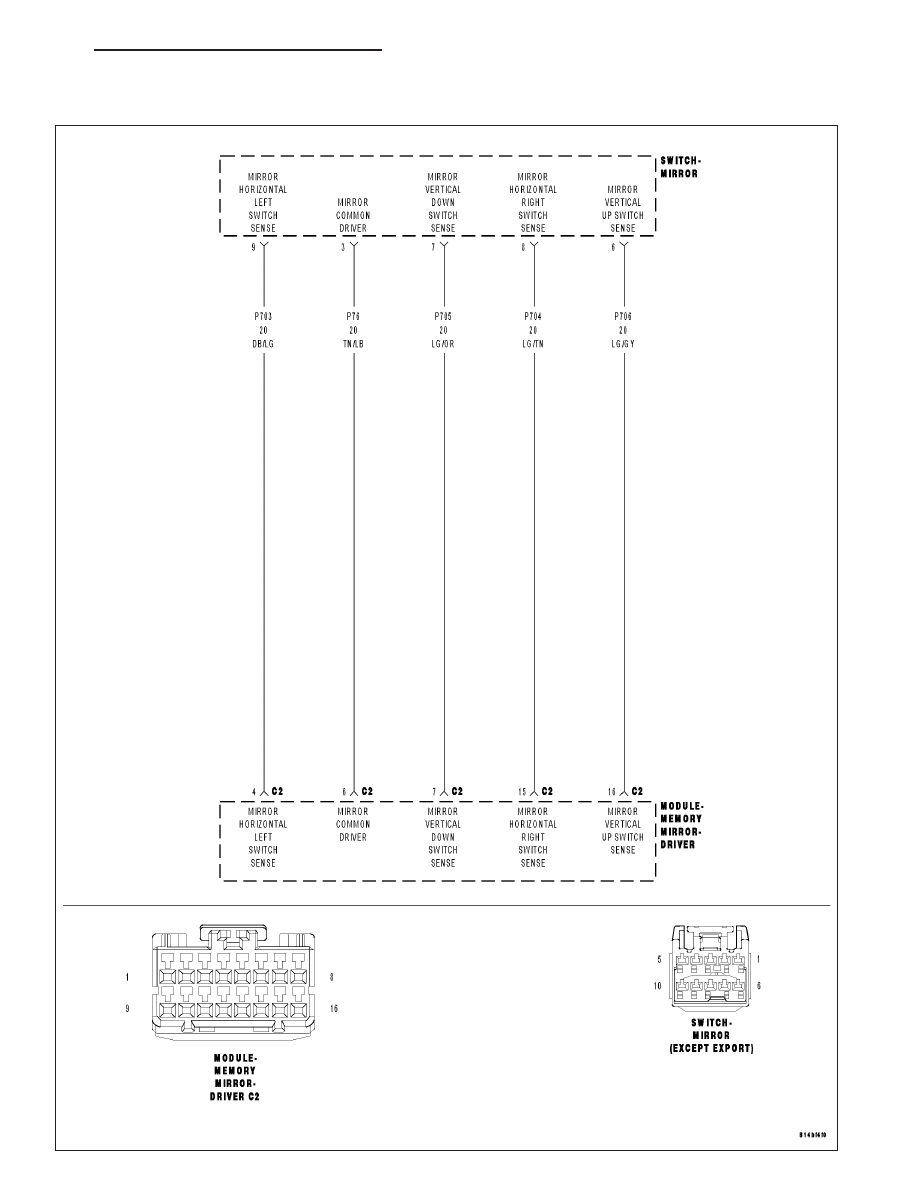

B1D04–MIRROR ADJUST SWITCH INPUT CIRCUIT/PERFORMANCE – DRIVER
MEMORY MIRROR MODULE

WK
