Jeep Grand Cherokee WK. Manual - part 456





OVERHEAD CONSOLE - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

OVERHEAD CONSOLE - SERVICE

INFORMATION
DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

ELECTRONIC VEHICLE INFORMATION

CENTER
DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 17

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DIAGNOSIS AND TESTING

ELECTRONIC VEHICLE INFORMATION

CENTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

STANDARD PROCEDURE

COMPASS CALIBRATION

. . . . . . . . . . . . . . . 20

COMPASS DEMAGNETIZING

. . . . . . . . . . . . 21

COMPASS VARIATION ADJUSTMENT

. . . . . . 23

UNIVERSAL TRANSMITTER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 24

DIAGNOSIS AND TESTING

UNIVERSAL TRANSMITTER

. . . . . . . . . . . . . 24

STANDARD PROCEDURE

PROGRAMMING TRANSMITER CODES

. . . . 25

ERASING TRANSMITTER CODES

. . . . . . . . . 26

REPROGAMMING TRANSMITTER CODES

. . 26

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 27

SENSOR-AMBIENT AIR TEMPERATURE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 28

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DIAGNOSIS AND TESTING

AMBIENT TEMPERATURE SENSOR

. . . . . . . 28

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 29

OVERHEAD CONSOLE - SERVICE INFORMATION

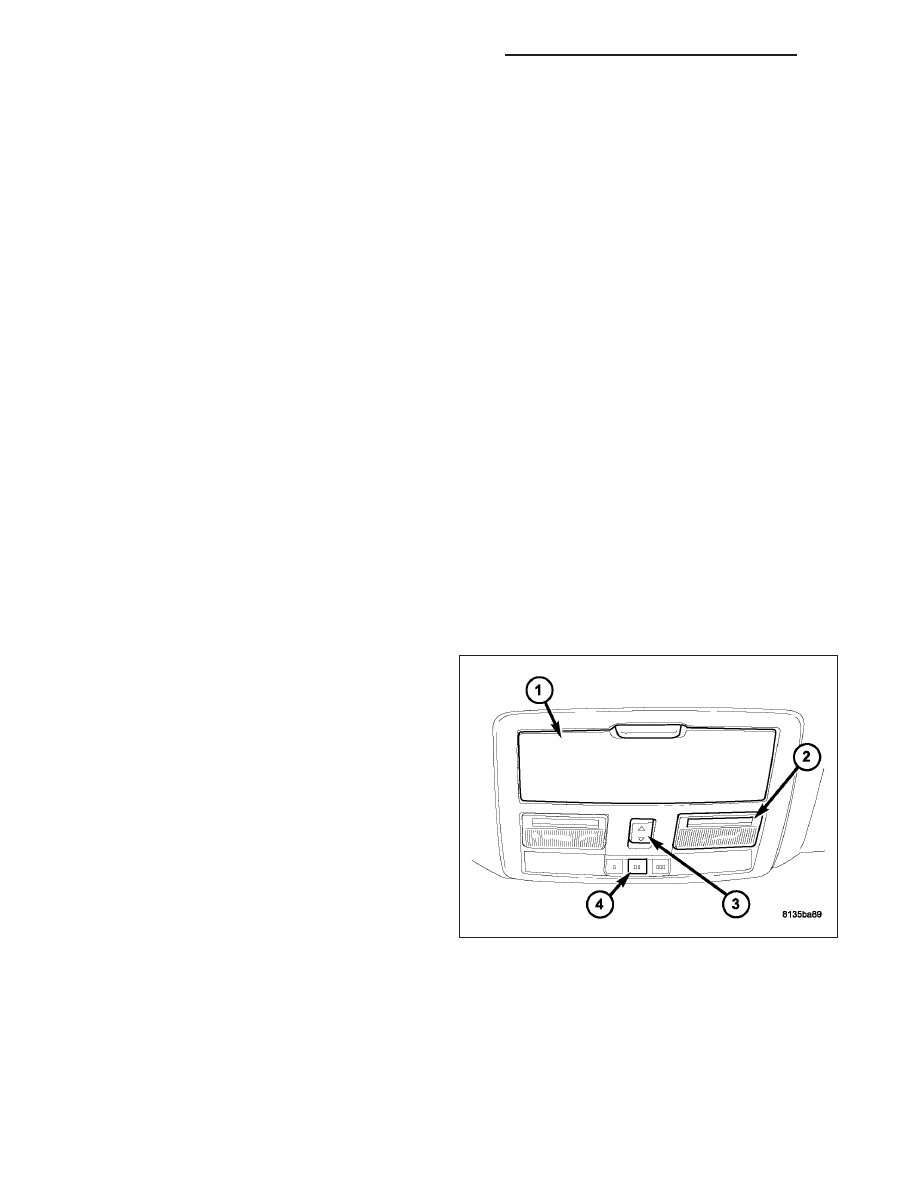

DESCRIPTION

An overhead console is standard on this vehicle and
includes the following components:

Overhead storage compartment (1)

Front map/reading lamps (2)

Power sunroof switch (3) - if equipped

Universal transmitter (4) - if equipped

Electronic Overhead Module - if equipped

8M - 14

OVERHEAD CONSOLE - SERVICE INFORMATION

WK

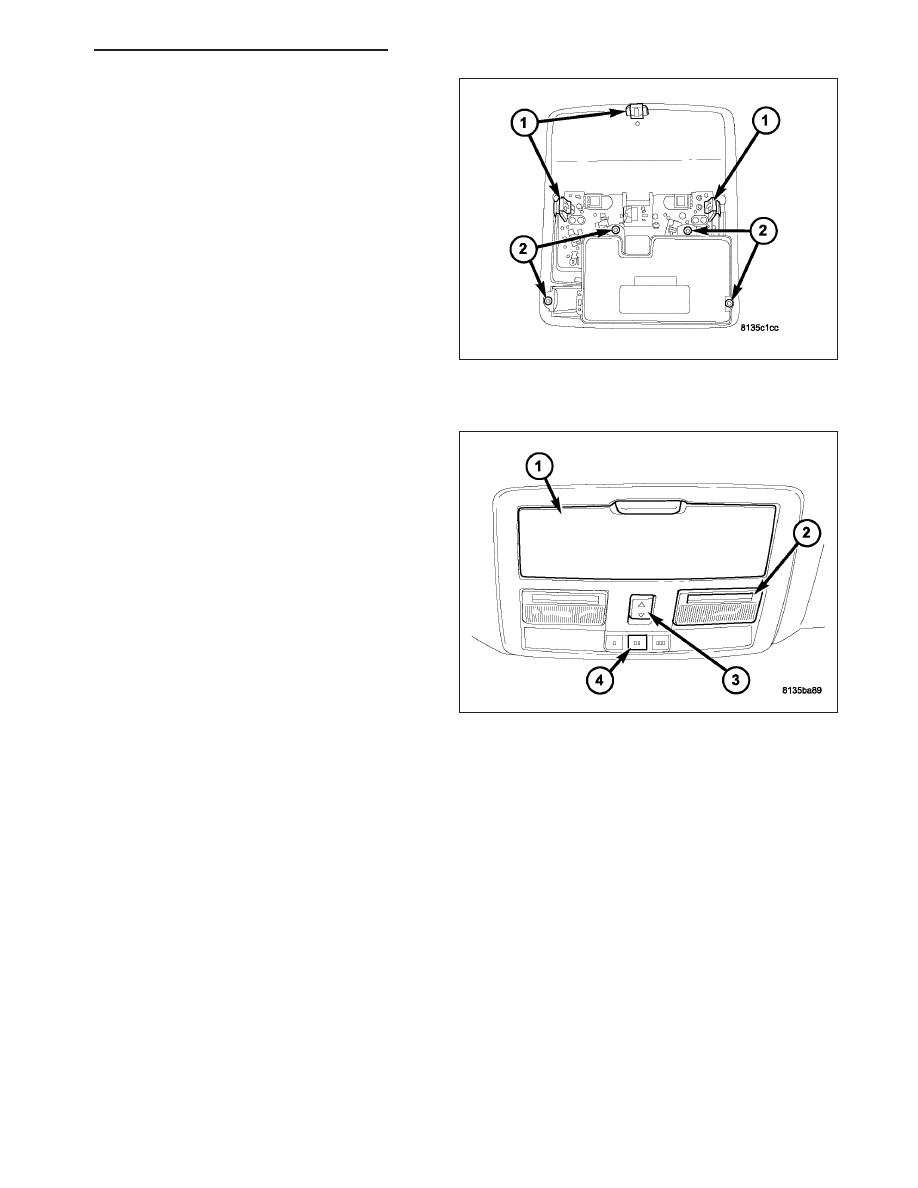

The overhead console assembly is mounted by three
snap clips (1) securing it to a molded plastic retainer
bracket located above the headliner. The Electronic
Overhead Module is secured to the overhead console
with screws (2).

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Pull downward on the sides of the overhead con-

sole housing firmly and evenly to disengage the
snap clips from the overhead console bracket.

WK

OVERHEAD CONSOLE - SERVICE INFORMATION

8M - 15

3. Lower the overhead console from the headliner far

enough to access the wire harness connectors (2).

4. Disconnect the roof wire harness connectors (2)

from the overhead console wire harness connector.

5. Remove the overhead console from the headliner.

INSTALLATION

1. Position the overhead console near the mounting

location on the headliner.

2. Reconnect the roof wire harness connectors (2) to

the overhead console.

3. Align the snap clips on the overhead console hous-

ing with their receptacles (1) in the overhead con-
sole bracket.

4. Push upward firmly and evenly on the sides of the

overhead console housing over the snap clip loca-
tions until the snap clip is fully engaged with its
receptacle in the overhead console bracket.

5. Reconnect the battery negative cable.

8M - 16

OVERHEAD CONSOLE - SERVICE INFORMATION

WK

ELECTRONIC VEHICLE INFORMATION CENTER

DESCRIPTION

The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display (2). The display is
located in the lower part of the tachometer (1) on the
right side of the instrument cluster (3). This system
conveniently allows the driver to select a variety of
useful information by pressing the switches mounted
on the center stack of the instrument panel. The EVIC
displays information related to the following:

System Status

Vehicle information warning message displays

Tire Pressure Monitor System — If Equipped

Personal Settings (customer programmable fea-
tures)

Compass display

Outside temperature display

Trip computer functions

The EVIC system is comprised of several different components. Those components are:

Instrument Cluster

Upper instrument panel switch pod

Ambient Temperature Sensor

Electronic Overhead Module

Controller Area Network (CAN) Data Bus

The EVIC display is part of the Instrument Cluster assembly and is not serviced as a separate component. If the
display is inoperative the complete Instrument Cluster assembly must be replaced, (Refer to 8 - ELECTRICAL/IN-
STRUMENT CLUSTER - REMOVAL). If the EVIC switches in the upper instrument panel switch pod are inoperative
and require replacement, Refer to ELECTRICAL/INSTRUMENT CLUSTER/INSTRUMENT PANEL SWITCH POD -
REMOVAL for the appropriate procedure. If the compass position sensor (Electronic Overhead Module) is inopera-
tive and requires replacement, (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE/UNIVERSAL TRANSMITTER -
REMOVAL) for the appropriate procedure.

OPERATION

The Electronic Vehicle Information Center (EVIC) uses both non-switched and ignition switched sources of battery
current so that some of its features remain operational at any time, while others may only operate with the ignition
switch in the On position. When the ignition switch is turned to the On position, the EVIC display will return to the
last function being displayed before the ignition was turned to the Off position.

The EVIC system is comprised of several different components that communicate over the Controller Area Network
(CAN) Data Bus. If the system is inoperative a scan tool and the appropriate diagnostic information must be used
to diagnose the system.

WK

OVERHEAD CONSOLE - SERVICE INFORMATION

8M - 17
