Jeep Grand Cherokee WK. Manual - part 421





ASSEMBLY

WARNING: On vehicles equipped with airbags, disable the supplemental restraint system before attempting
any steering wheel, steering column, driver airbag, passenger airbag, seat belt tensioner, side curtain air-
bag, front impact sensor, side impact sensor, or instrument panel component diagnosis or service. Discon-
nect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to
discharge before performing further diagnosis or service. This is the only sure way to disable the supple-
mental restraint system. Failure to take the proper precautions could result in accidental airbag deployment
and possible personal injury.

WARNING: On vehicles equipped with the premium instrument cluster, the cluster circuitry provides an
alternating current to supply power to the electro-luminescent illumination lamp through a pigtail wire and
connector that is accessible at the back of the cluster housing. Use proper precautions when handling this
unit during diagnosis or service to avoid electrical shock and possible personal injury.

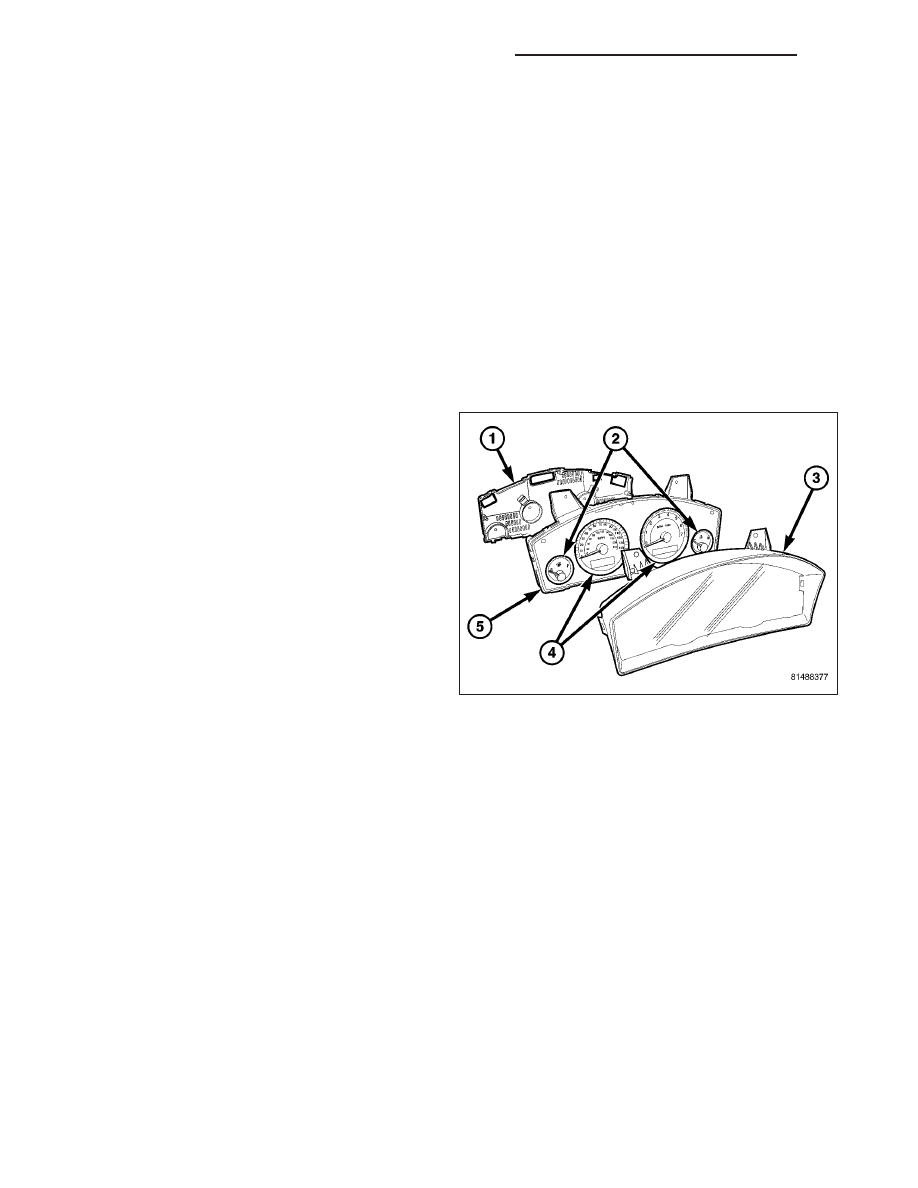

CLUSTER LENS, HOUSING, AND REAR COVER

1. Position the cluster lens over the face of the instru-

ment cluster.

2. Press firmly and evenly on the cluster lens to install

it onto the cluster housing.

3. Position the cluster rear cover over the rear of the

instrument cluster.

4. Press firmly and evenly on the cluster back cover

to install it onto the cluster housing.

5. Reinstall the instrument cluster into the instrument

panel. (Refer to 8 - ELECTRICAL/INSTRUMENT
CLUSTER - INSTALLATION).

6. Reconnect the battery negative cable.

INSTALLATION

WARNING: On vehicles equipped with airbags, disable the supplemental restraint system before attempting
any steering wheel, steering column, driver airbag, passenger airbag, seat belt tensioner, side curtain air-
bag, front impact sensor, side impact sensor, or instrument panel component diagnosis or service. Discon-
nect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to
discharge before performing further diagnosis or service. This is the only sure way to disable the supple-
mental restraint system. Failure to take the proper precautions could result in accidental airbag deployment
and possible personal injury.

WARNING: On vehicles equipped with the premium instrument cluster, the cluster circuitry provides an
alternating current to supply power to the electro-luminescent illumination lamp through a pigtail wire and
connector that is accessible at the back of the cluster housing. Use proper precautions when handling this
unit during diagnosis or service to avoid electrical shock and possible personal injury.

8J - 58

INSTRUMENT CLUSTER - SERVICE INFORMATION

WK

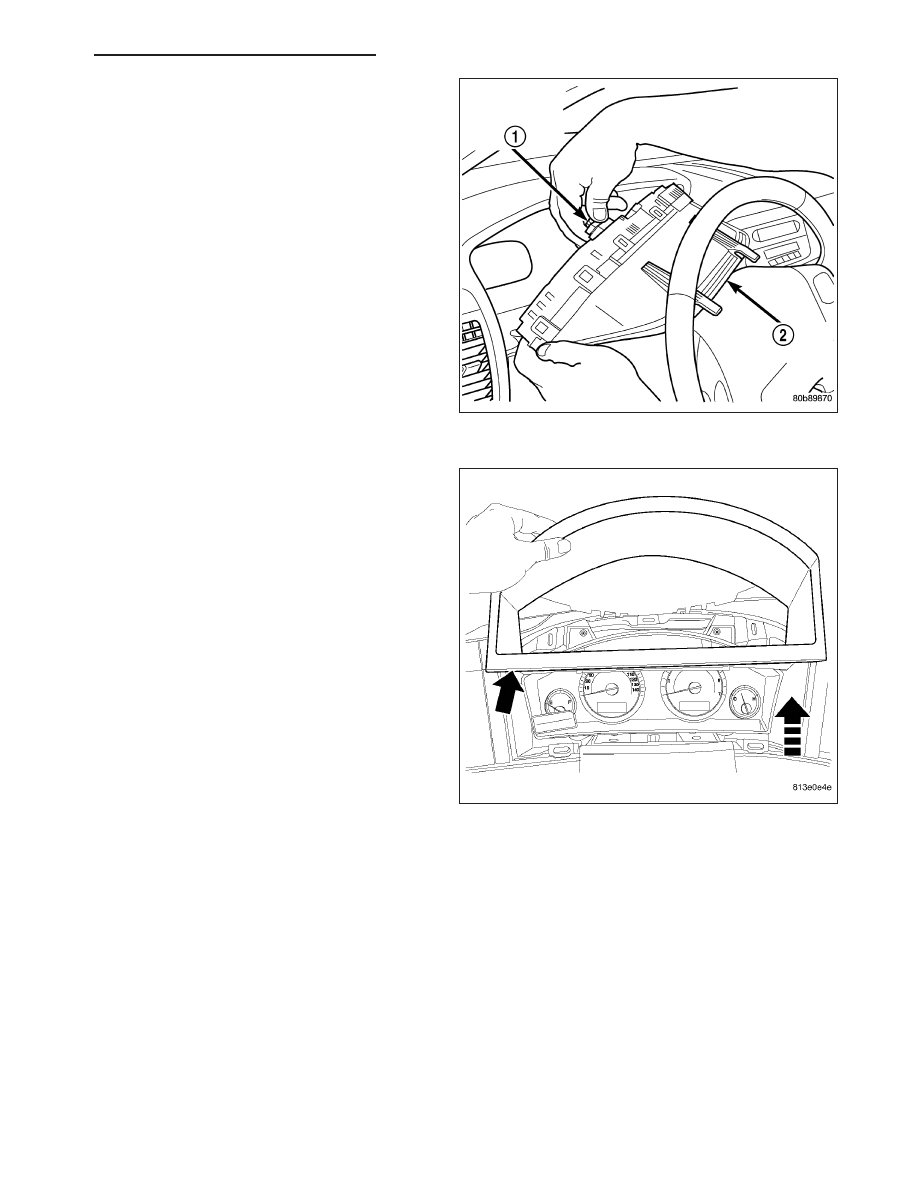

1. Position the instrument cluster to the instrument

panel.

2. Reconnect the instrument panel wire harness con-

nector for the instrument cluster to the connector
receptacle on the back of the instrument cluster
housing.

3. Position the instrument cluster in the instrument

panel opening, then tilt the top of the instrument
cluster forward until the upper mounting tabs are
positioned to the mounting holes.

4. Install and tighten the two screws that secure the

upper mounting tabs of the instrument cluster.
Tighten the screws to 2.2 N·m (20 in. lbs.).

5. Reinstall the cluster bezel onto the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
CLUSTER BEZEL - INSTALLATION).

6. Reconnect the battery negative cable.

SWITCH-BANK-LOWER

DESCRIPTION

The Lower Instrument Panel Switch Pod on this model is available in six different configurations. They vary from a
single switch configuration to a six switch configuration. The lower switch pod is located just below the HVAC control
unit in the instrument panel center stack, Refer to each individual area of the service/diagnostic information for
Description, Operation, Diagnosis, and Testing of the effected switch (I.E. Adjustable Pedals Switch - Brakes).

WK

INSTRUMENT CLUSTER - SERVICE INFORMATION

8J - 59

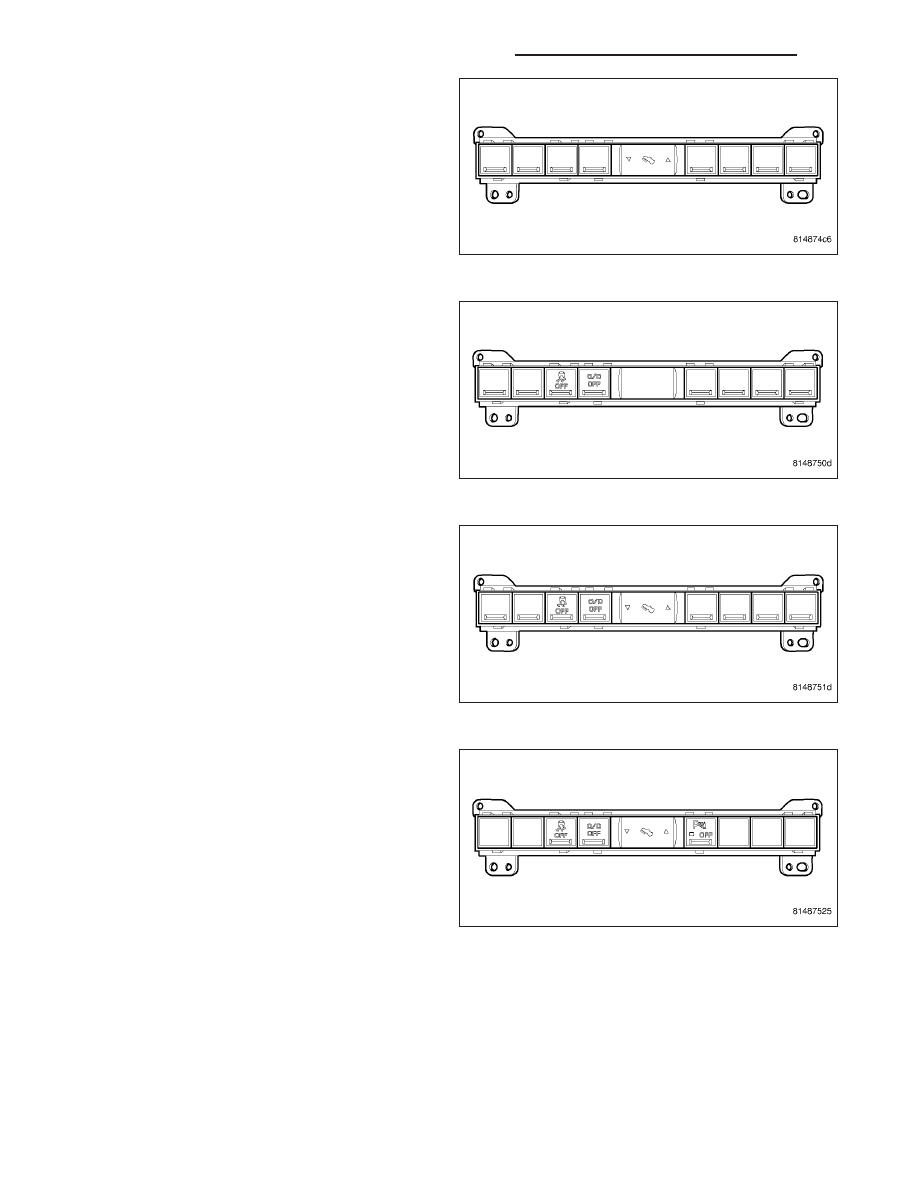

The one button switch configuration will include:

Adjustable Pedals Switch - (Refer to 5 -
BRAKES/ELECTRICAL/ADJUSTABLE

PEDAL

SWITCH - DESCRIPTION).

The two button switch configuration will include:

Adjustable Pedals Switch - (Refer to 5 -
BRAKES/ELECTRICAL/ADJUSTABLE

PEDAL

SWITCH - DESCRIPTION).

Traction Control OFF Switch

The three button switch configuration will include:

Adjustable Pedals Switch - (Refer to 5 -
BRAKES/ELECTRICAL/ADJUSTABLE

PEDAL

SWITCH - DESCRIPTION).

Traction Control OFF Switch

Tow/Haul - Overdrive OFF Switch - (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC
-

45RFE/545RFE/OVERDRIVE

SWITCH

-

DESCRIPTION).

The four button switch configuration will include:

Adjustable Pedals Switch - (Refer to 5 -
BRAKES/ELECTRICAL/ADJUSTABLE

PEDAL

SWITCH - DESCRIPTION).

Traction Control OFF Switch

Tow/Haul - Overdrive OFF Switch - (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC
-

45RFE/545RFE/OVERDRIVE

SWITCH

-

DESCRIPTION).

Park Assist OFF Switch - (Refer to 8 - ELEC-
TRICAL/CHIME/BUZZER - DESCRIPTION).

8J - 60

INSTRUMENT CLUSTER - SERVICE INFORMATION

WK

The four button switch configuration will include:

Adjustable Pedals Switch - (Refer to 5 -
BRAKES/ELECTRICAL/ADJUSTABLE

PEDAL

SWITCH - DESCRIPTION).

Tow/Haul - Overdrive OFF Switch - (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC
-

45RFE/545RFE/OVERDRIVE

SWITCH

-

DESCRIPTION).

Park Assist OFF Switch - (Refer to 8 - ELEC-
TRICAL/CHIME/BUZZER - DESCRIPTION).

Heated Seat ON/OFF Switches - (Refer to 8 - ELECTRICAL/HEATED SEATS/SEAT SWITCH -
DESCRIPTION).

The four button switch configuration will include:

Adjustable Pedals Switch - (Refer to 5 -
BRAKES/ELECTRICAL/ADJUSTABLE

PEDAL

SWITCH - DESCRIPTION).

Traction Control OFF Switch

Tow/Haul - Overdrive OFF Switch - (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC
-

45RFE/545RFE/OVERDRIVE

SWITCH

-

DESCRIPTION).

Park Assist OFF Switch - (Refer to 8 - ELEC-
TRICAL/CHIME/BUZZER - DESCRIPTION).

Heated Seat ON/OFF Switches (2) - (Refer to 8 - ELECTRICAL/HEATED SEATS/SEAT SWITCH -
DESCRIPTION).

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the instrument panel center bezel (1)

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT

PANEL

CENTER

BEZEL

-

REMOVAL).

3. Remove the four lower instrument panel switch pod

fasteners front the center bezel (1).

WK

INSTRUMENT CLUSTER - SERVICE INFORMATION

8J - 61
