SCHEMATICS AND DIAGRAMS

HORN

SYSTEM

8H - 16

HORN - ELECTRICAL DIAGNOSTICS

WK

HORN SYSTEM - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

HORN SYSTEM - SERVICE INFORMATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 17

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DIAGNOSIS AND TESTING - HORN SYSTEM

. . 17

HORN

DIAGNOSIS AND TESTING

HORN

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 19

SWITCH-HORN

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 19

DIAGNOSIS AND TESTING

HORN SWITCH

. . . . . . . . . . . . . . . . . . . . . . . 19

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 20

HORN SYSTEM - SERVICE INFORMATION

DESCRIPTION

The dual-note horn system features dual electromag-
netic horn units. The horn system includes the follow-
ing major components:

Horn - The two horns are located on the right
side of the vehicle behind the fascia.

Horn Switch - The horn switch is located in the
driver airbag trim cover.

OPERATION

The horn system operates on battery current received through a fuse in the Integrated Power Module (IPM). The
horn system circuit is designed so that the system will remain operational, regardless of the ignition switch position.

DIAGNOSIS AND TESTING - HORN SYSTEM

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

Refer to the appropriate wiring information.

In most cases, any problem involving continually sounding horns can be quickly alleviated by removing the horn
fuse from the Integrated Power Module (IPM).

WK

HORN SYSTEM - SERVICE INFORMATION

8H - 17

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

HORN

DIAGNOSIS AND TESTING

HORN

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

Refer to the appropriate wiring information.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

REMOVAL

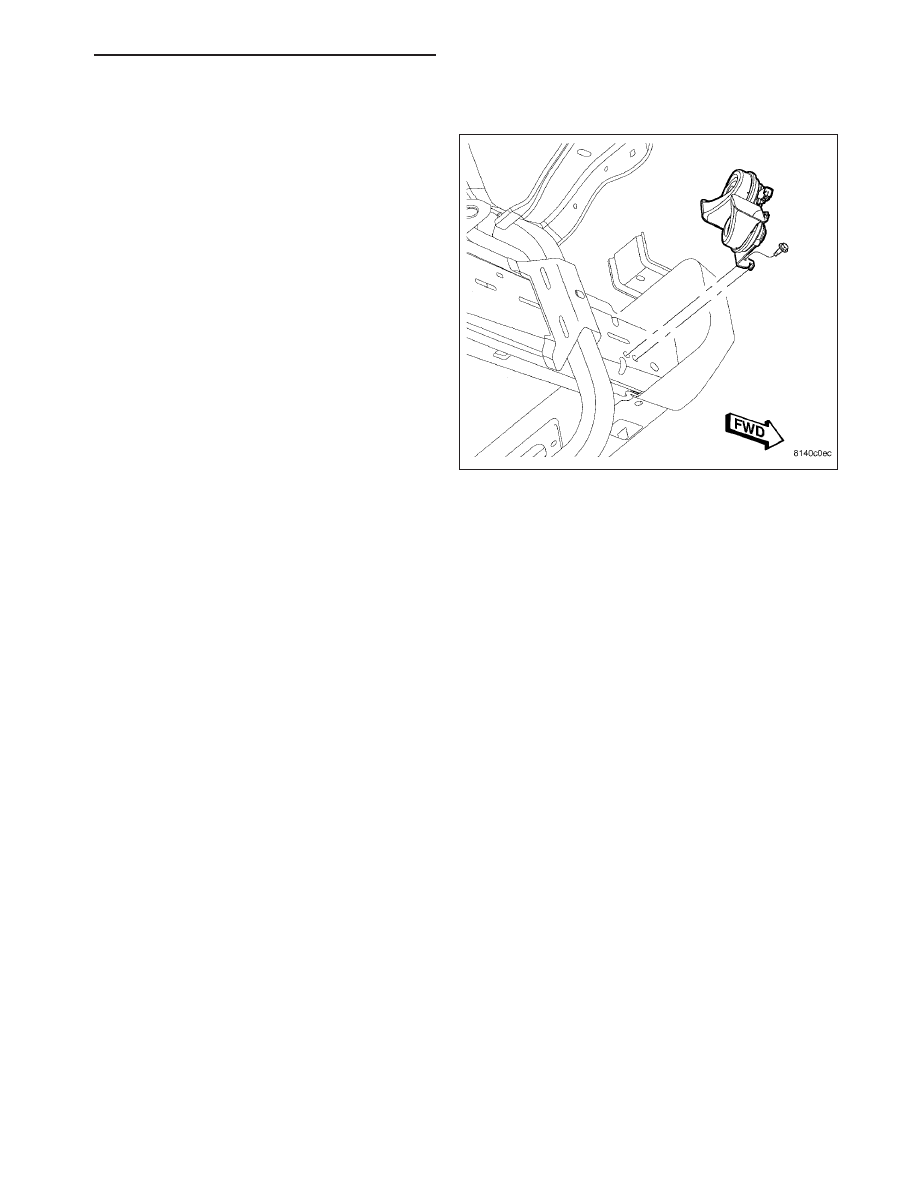

1. Disconnect and isolate the battery negative cable.

2. Raise and support the vehicle.

3. Remove the lower front half of the inner liner from

the right front fender wheel house.

4. Disconnect the electrical harness connectors.

5. Remove the mounting fastener.

6. Remove both horns and the mounting bracket as a

unit.

8H - 18

HORN SYSTEM - SERVICE INFORMATION

WK

INSTALLATION

1. Position both horns and the mounting bracket.

2. Install and tighten the mounting fastener.

3. Connect the electrical harness connectors.

4. Install the lower front half of the inner liner to the

right front fender wheel house.

5. Lower the vehicle.

6. Connect the battery negative cable.

SWITCH-HORN

DESCRIPTION

A center-blow, normally open, resistive membrane-type horn switch is secured in a plastic tray that is inserted in a
pocket sewn on the front of the driver side airbag retainer strap. The horn switch is concealed behind the driver side
airbag module trim cover.

The steering wheel and steering column must be properly grounded in order for the horn switch to function properly.
The horn switch and plastic tray are serviced as a unit. If the horn switch is damaged or inoperative, or if the driver
side airbag is deployed, the horn switch and tray must be replaced as a unit.

DIAGNOSIS AND TESTING

HORN SWITCH

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

For complete circuit diagrams, refer to the appropriate wiring information.

WK

HORN SYSTEM - SERVICE INFORMATION

8H - 19
