Jeep Grand Cherokee WK. Manual - part 332





*NO RESPONSE FROM ESM (SHIFT LEVER ASSEMBLY) - NAG1/DIESEL (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(Z907) GROUND CIRCUIT OPEN

(F1) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

(D65) CAN C BUS (+) CIRCUIT OPEN

(D64) CAN C BUS (-) CIRCUIT OPEN

SHIFT LEVER ASSEMBLY

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active
on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the FCM for any active CAN C hardware and any ignition related DTCs, perform DTCs before
proceeding.

Does the scan tool display a red X next to the module?

Yes

>> Go To 2

No

>> The no response condition is not present at this time. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent , pushed out, and corroded terminals.

2.

(Z907) GROUND CIRCUIT OPEN

Turn the ignition off.

Disconnect the Shift Lever Assembly harness connector.

Using a 12-volt test light connected to 12-volts, check the (Z907)
ground circuit.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the (Z907) ground circuit for an open.

Perform NAG1/Diesel TRANSMISSION VERIFICATION
TEST - VER 1.

8E - 174

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

WK

*NO RESPONSE FROM ESM (SHIFT LEVER ASSEMBLY) - NAG1/DIESEL (CONTINUED)

3.

(F1) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

Turn the ignition on.

Using a 12-volt test light connected to ground, check the (F1) Fused
Ignition Switch Output circuit.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Repair the (F1) Fused Ignition Switch Output circuit for an

open or short.

Perform NAG1/Diesel TRANSMISSION VERIFICATION
TEST - VER 1.

4.

(D65) CAN C BUS (+) CIRCUIT OPEN

Turn the ignition off.

Disconnect the FCM C1 harness connector.

Measure the resistance of the (D65) CAN C Bus (+) circuit between
the FCM connector and the Shift Lever Assembly connector.

Is resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the (D65) CAN C Bus (+) circuit for an open.

Perform NAG1/Diesel TRANSMISSION VERIFICATION
TEST - VER 1.

WK

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 175

*NO RESPONSE FROM ESM (SHIFT LEVER ASSEMBLY) - NAG1/DIESEL (CONTINUED)

5.

(D64) CAN C BUS (-) CIRCUIT OPEN

Measure the resistance of the (D64) CAN C Bus (-) circuit between
the FCM connector and the Shift Lever Assembly connector.

Is resistance below 5.0 ohms?

Yes

>> Replace the Shift Lever Assembly in accordance with the

service information.

Perform NAG1/Diesel TRANSMISSION VERIFICATION
TEST - VER 1.

No

>> Repair the (D64) CAN C Bus (-) circuit for an open.

Perform NAG1/Diesel TRANSMISSION VERIFICATION
TEST - VER 1.

8E - 176

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

WK

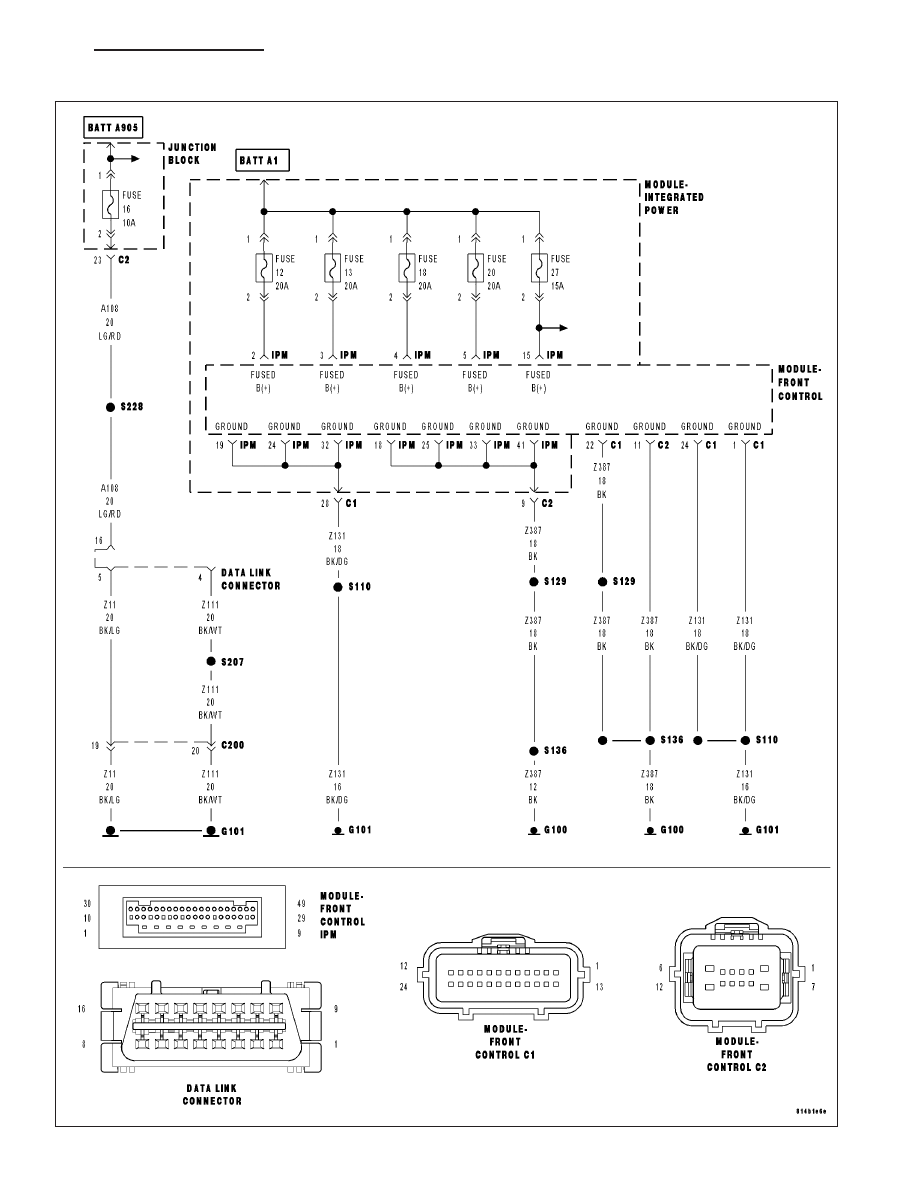

*NO RESPONSE FROM FCM (FRONT CONTROL MODULE)

WK

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 177
