EXPORT

1. Install antenna cable to the roof panel by pressing

retaining clips into position.

2. Connect antenna cable to the antenna module.

3. Connect antenna cable to the instrument panel

antenna cable.

4. Raise headliner into position.

5. Install A-pillar trim.

6. Install the right side sunvisor.

7. Install the assist handles.

8. Connect the battery negative cable.

ANTENNA CABLE - INSTRUMENT PANEL

REMOVAL

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

8A - 172

AUDIO/VIDEO - SERVICE INFORMATION

WK

DOMESTIC

1. Disconnect and isolate the battery negative cable.

2. Remove radio (Refer to 8 - ELECTRICAL/AUDIO/

RADIO - REMOVAL).

CAUTION: Pulling the antenna cable straight out
of the radio without pulling on the locking antenna
connector could damage the cable or radio.

3. Disconnect the antenna cable by pulling the locking

antenna connector (2) away from the radio (1).

4. Remove the glove box.

5. Remove instrument panel side panel.

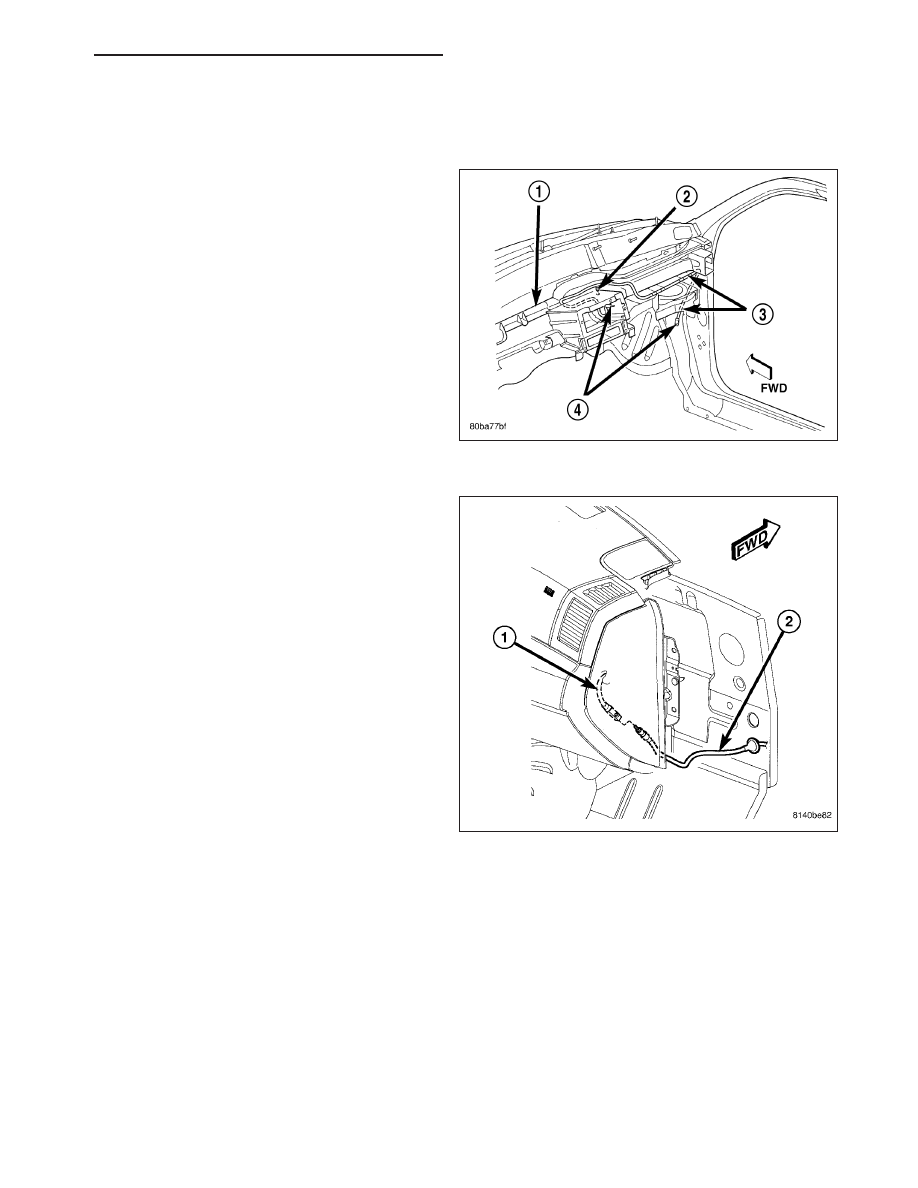

6. Disconnect

instrument

panel

cable

(1)

from

antenna body and cable (2).

7. Remove the antenna retaining straps and remove

antenna cable (4).

WK

AUDIO/VIDEO - SERVICE INFORMATION

8A - 173

EXPORT

WARNING:

DISABLE

THE

AIRBAG

SYSTEM

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING COLUMN, SEAT BELT TENSIONER,
SIDE AIRBAG, OR INSTRUMENT PANEL COMPO-
NENT DIAGNOSIS OR SERVICE. DISCONNECT
AND

ISOLATE

THE

BATTERY

NEGATIVE

(GROUND) CABLE, THEN WAIT TWO MINUTES
FOR THE AIRBAG SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate the battery negative cable.

2. Remove the instrument panel (Refer to 23 - BODY/

INSTRUMENT

PANEL/INSTRUMENT

PANEL

ASSEMBLY - REMOVAL).

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna con-
nector could damage the cable or radio.

3. Disconnect the antenna cable by pulling the locking antenna connector (2) away from the radio (1).

4. Disengage each of the retainers that secure the

cable (2) to the instrument panel and remove
cable.

8A - 174

AUDIO/VIDEO - SERVICE INFORMATION

WK

INSTALLATION

DOMESTIC

1. Install cable (3) to instrument panel and secure into

place.

2. Connect instrument panel cable (1) to antenna

body and cable (2).

3. Install instrument panel side panel.

4. Install glove box.

WK

AUDIO/VIDEO - SERVICE INFORMATION

8A - 175
