Jeep Grand Cherokee WK. Manual - part 250





B147C-CHANNEL 6 AUDIO SPEAKER OUTPUT CIRCUIT OPEN

8A - 136

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B147C-CHANNEL 6 AUDIO SPEAKER OUTPUT CIRCUIT OPEN (CONTINUED)

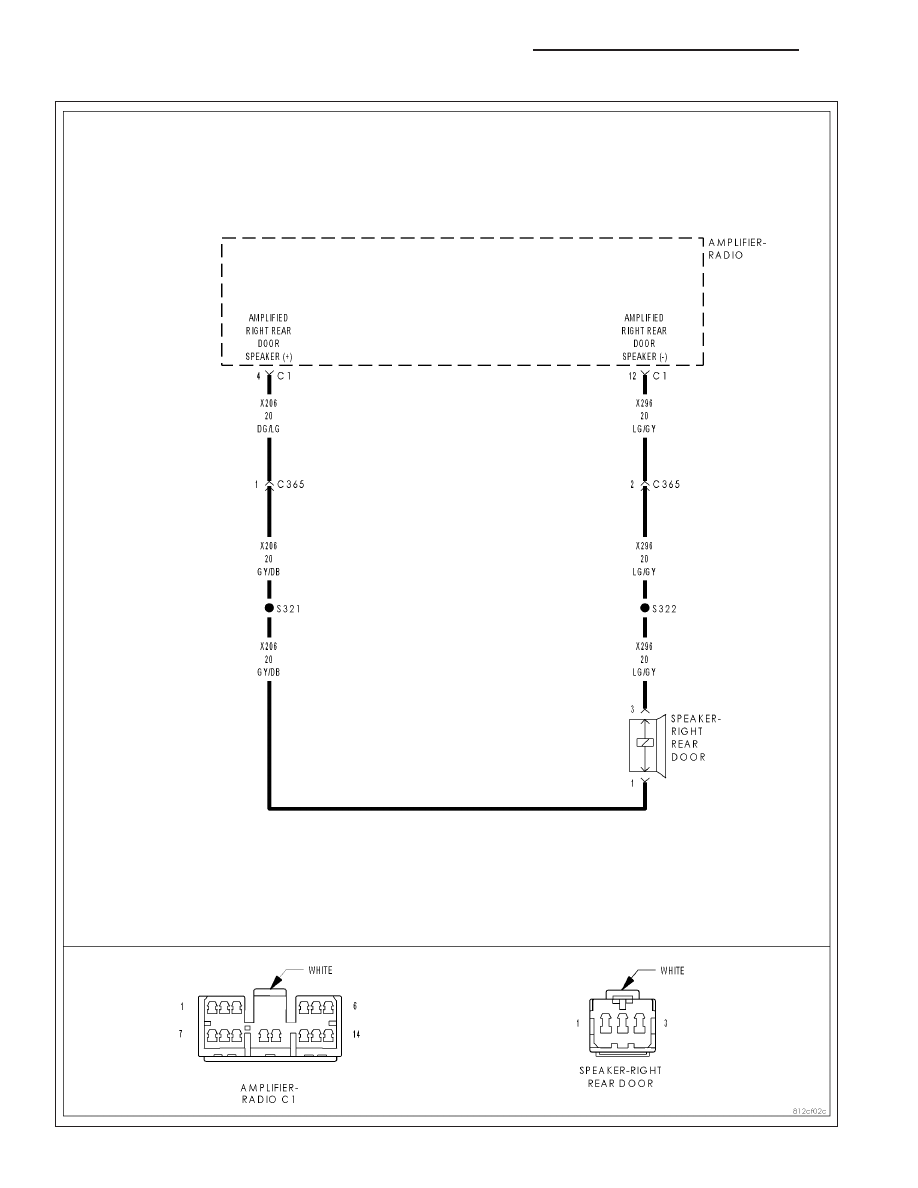

For the Amplifier circuit diagram (Refer to 8 - ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Amplifier Bus wake-up. Amplifier reset with scan tool.

Set Condition:
The Amplifier detects an open condition on the speaker output circuit.

Possible Causes

(X206) AMPLIFIED RIGHT REAR DOOR SPEAKER (+) CIRCUIT OPEN

(X296) AMPLIFIED RIGHT REAR DOOR SPEAKER (-) CIRCUIT OPEN

RIGHT REAR DOOR SPEAKER

AMPLIFIER

Diagnostic Test

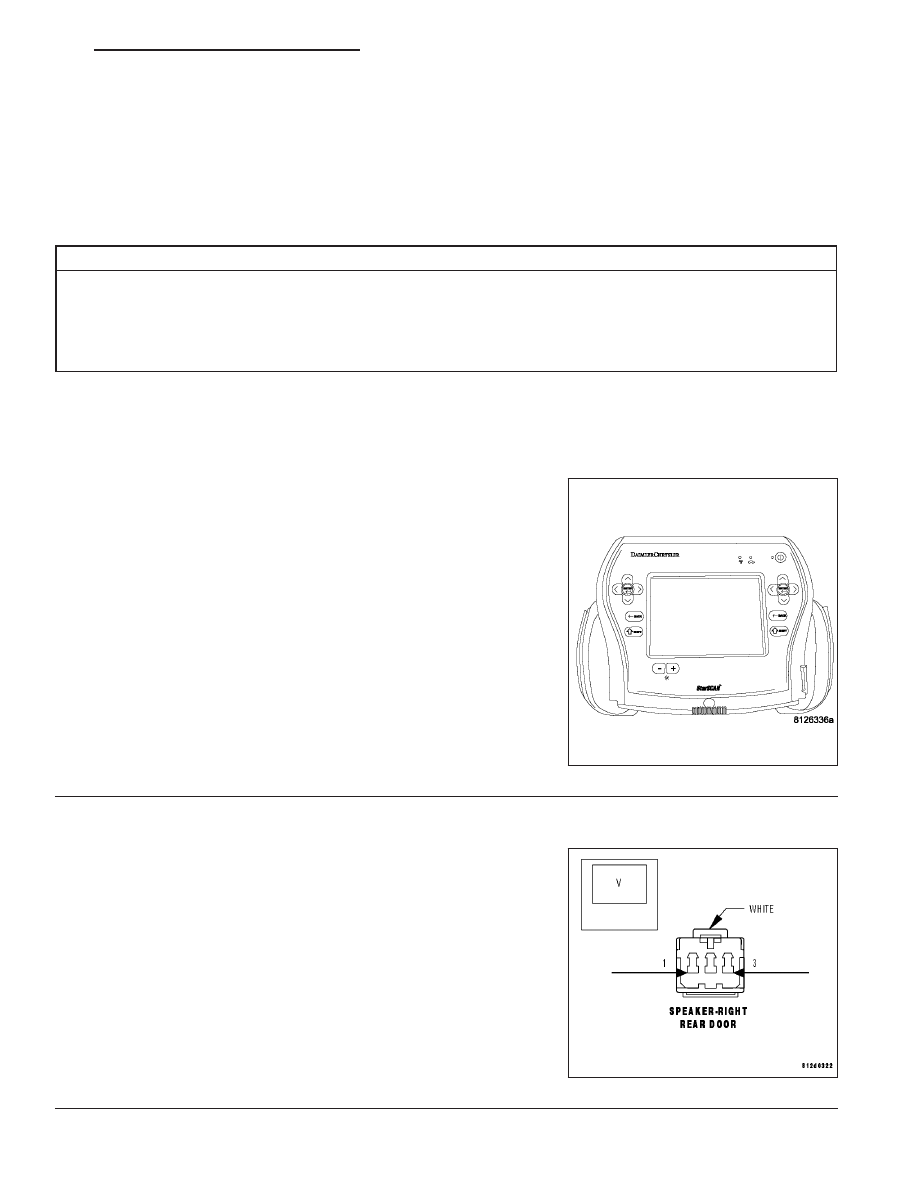

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on.

Turn the radio on.

With the scan tool, erase Amplifier DTCs.

With the scan tool, reset the amplifier.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B147C-CHANNEL 6 AUDIO
SPEAKER OUTPUT CIRCUIT OPEN?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK THE OPERATION OF THE RIGHT REAR DOOR SPEAKER

Disconnect the Right Rear Door Speaker harness connector.

Turn the radio on and turn the volume to mid level.

With a voltmeter set to read in A/C voltage, measure the voltage of the
Amplified Right Rear Door Speaker circuits in the Amplified Right Rear
Door Speaker harness connector.

Is the voltage present greater than 1 volt?

Yes

>> Replace the Amplified Right Rear Door Speaker in accor-

dance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 137

B147C-CHANNEL 6 AUDIO SPEAKER OUTPUT CIRCUIT OPEN (CONTINUED)

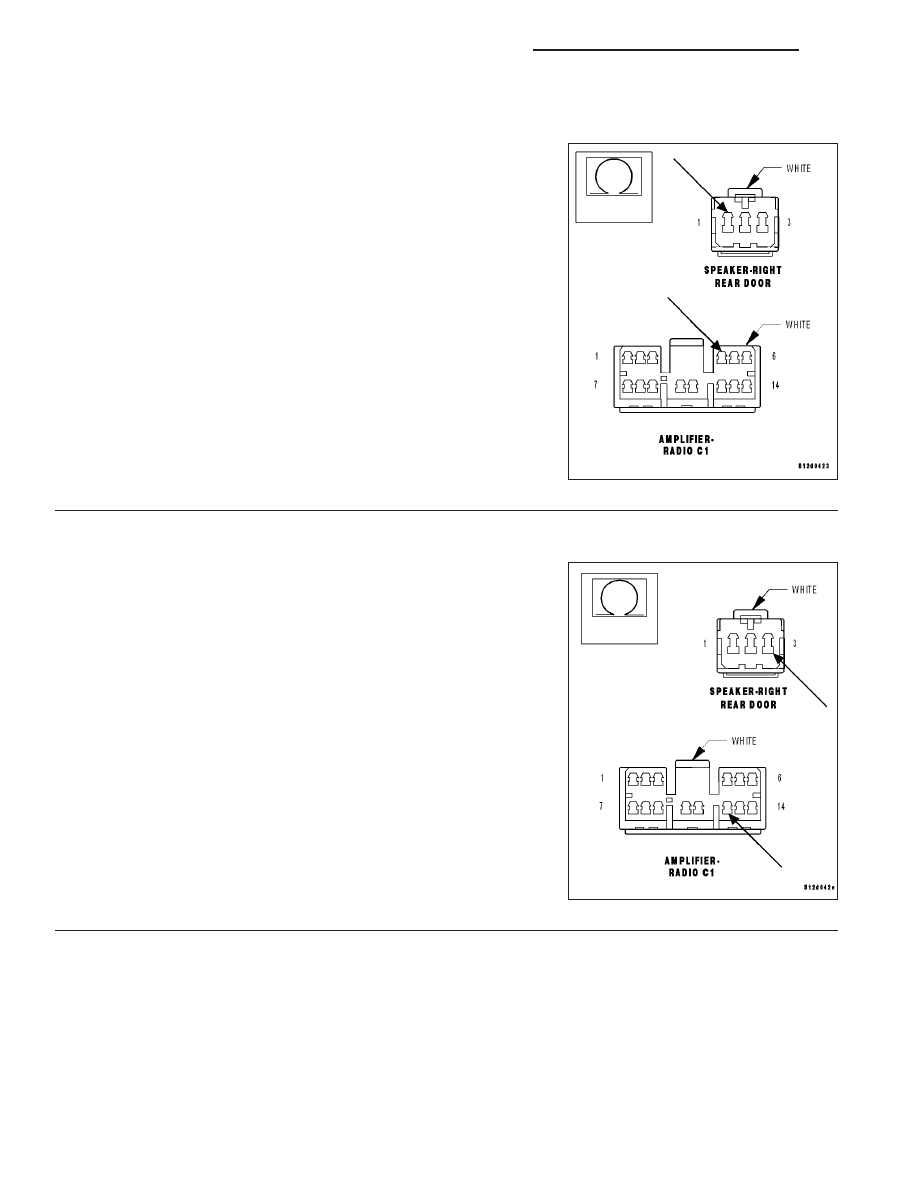

3.

CHECK THE (X206) AMPLIFIED RIGHT REAR DOOR SPEAKER (+) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Measure the resistance of the (X206) Amplified Right Rear Door
Speaker (+) circuit between the Amplifier C1 harness connector and
the Amplified Right Rear Door Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (X206) Amplified Right Rear Door Speaker (+)

circuit for an open.

Perform BODY VERIFICATION TEST VER-1.

4.

CHECK THE (X296) AMPLIFIED RIGHT REAR DOOR SPEAKER (-) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Measure the resistance of the (X296) Amplified Right Rear Door
Speaker (-) circuit between the Amplifier C1 harness connector and
the Amplified Right Rear Door Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

No

>> Repair the (X296) Amplified Right Rear Door Speaker (-)

circuit for an open.

Perform BODY VERIFICATION TEST VER-1.

8A - 138

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B147D-CHANNEL 6 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 139
