Jeep Grand Cherokee WK. Manual - part 235





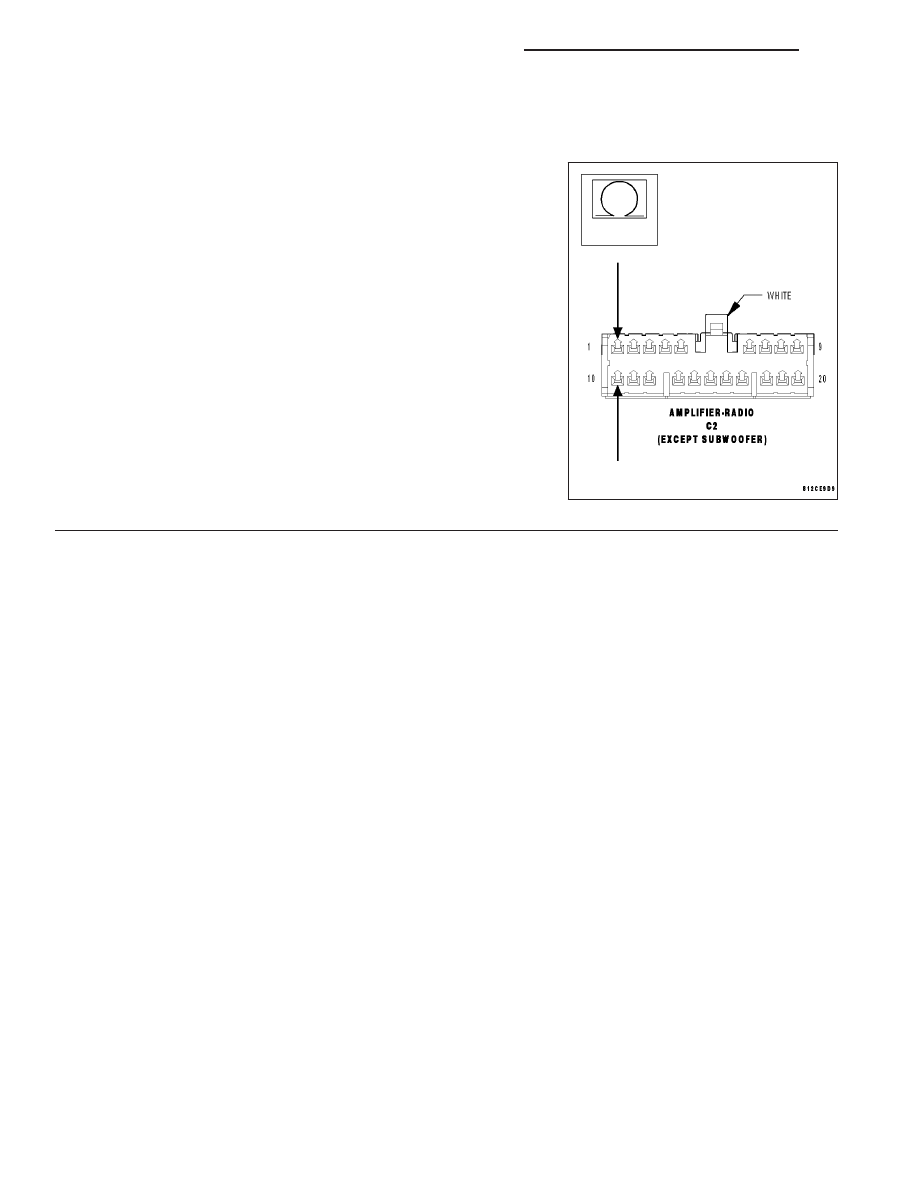

B1464-CHANNEL 1 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER (CONTINUED)

3.

CHECK THE (X209) AMPLIFIED LEFT I/P SPEAKER (+) CIRCUIT, AND THE (X299) AMPLIFIED LEFT I/P
SPEAKER (-) CIRCUITS FOR A SHORT TOGETHER

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Measure the resistance between the (X209) Amplified Left I/P Speaker
(+) circuit, and the (X299) Amplified Left I/P Speaker (-) circuit.

Is the resistance below 10K ohms?

Yes

>> Repair the (X209) Amplified Left I/P Speaker (+) circuit,

and the (X299) Amplified Left I/P Speaker (-) circuit for a
short together.

Perform BODY VERIFICATION TEST VER-1.

No

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

8A - 76

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B1465-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
This DTC will set if a DC offset occurs on the output channel, the amplifier shall set a DTC after a matu-
rity rate of 5 ±1 sec.

Possible Causes

AMPLIFIER

Diagnostic Test

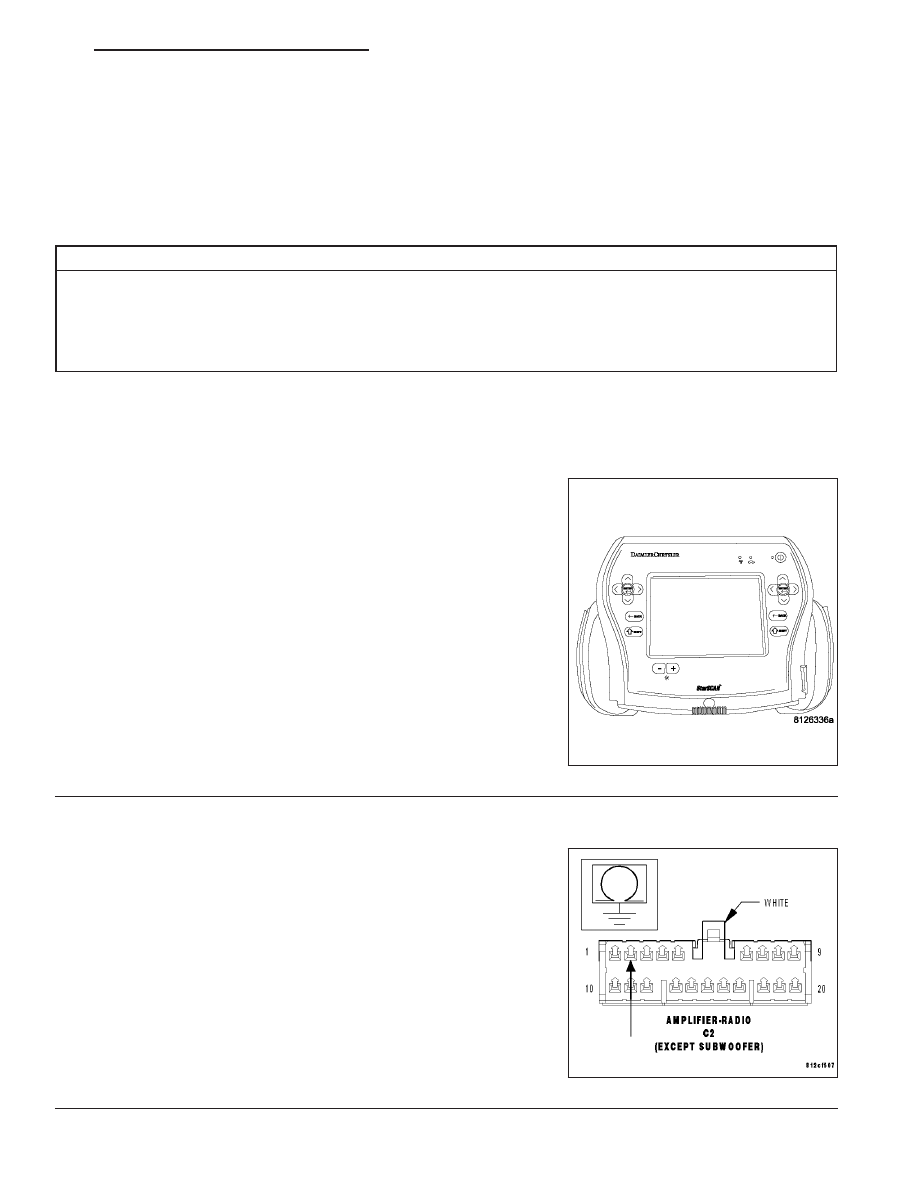

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1465-CHANNEL 2 AUDIO
SPEAKER OUTPUT CIRCUIT PERFORMANCE?

Yes

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 77

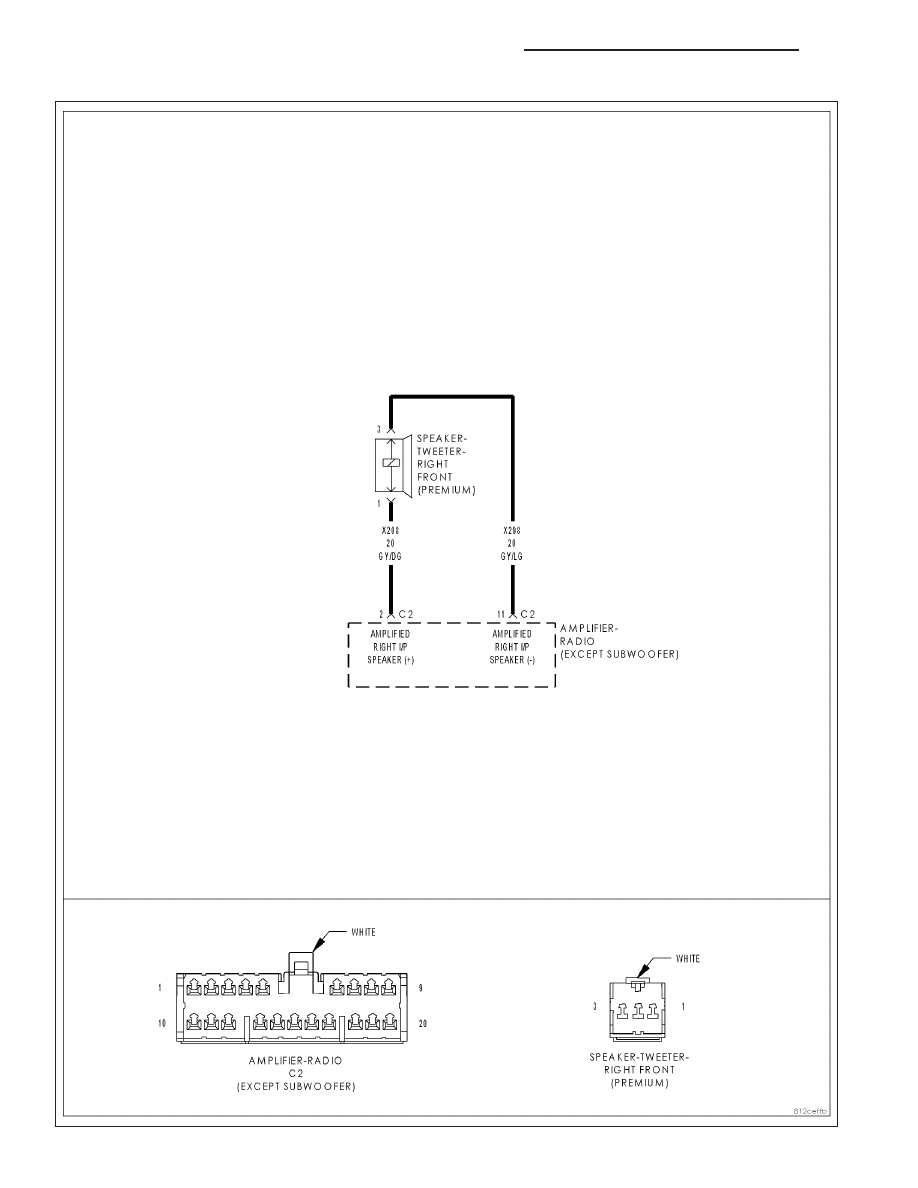

B1466-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT LOW

8A - 78

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B1466-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT LOW (CONTINUED)

For the Amplifier circuit diagram (Refer to 8 - ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Amplifier detects a shorted to ground condition on the speaker output circuit.

Possible Causes

(X208) AMPLIFIED RIGHT FRONT I/P SPEAKER (+) CIRCUIT SHORTED TO GROUND

(X298) AMPLIFIED RIGHT FRONT I/P SPEAKER (-) CIRCUIT SHORTED TO GROUND

RIGHT FRONT I/P SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1466-CHANNEL 2 AUDIO
SPEAKER OUTPUT CIRCUIT LOW?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK THE (X208) AMPLIFIED RIGHT FRONT I/P SPEAKER (+) CIRCUIT FOR A SHORT TO GROUND

Disconnect the Amplifier C2 harness connector.

Measure the resistance between ground and the (X208) Amplified
Right Front I/P Speaker (+) circuit.

Is the resistance below 10K ohms?

Yes

>> Repair the (X208) Amplified Right Front I/P Speaker (+)

circuit for a short to ground.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 79
