Jeep Grand Cherokee WK. Manual - part 231





B210E-BATTERY VOLTAGE HIGH

For the Amplifier circuit diagram (Refer to 8 - ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the module detects that the battery voltage is greater 16.5 volts for 1 second.

Possible Causes

VEHICLE CHARGING SYSTEM

AMPLIFIER

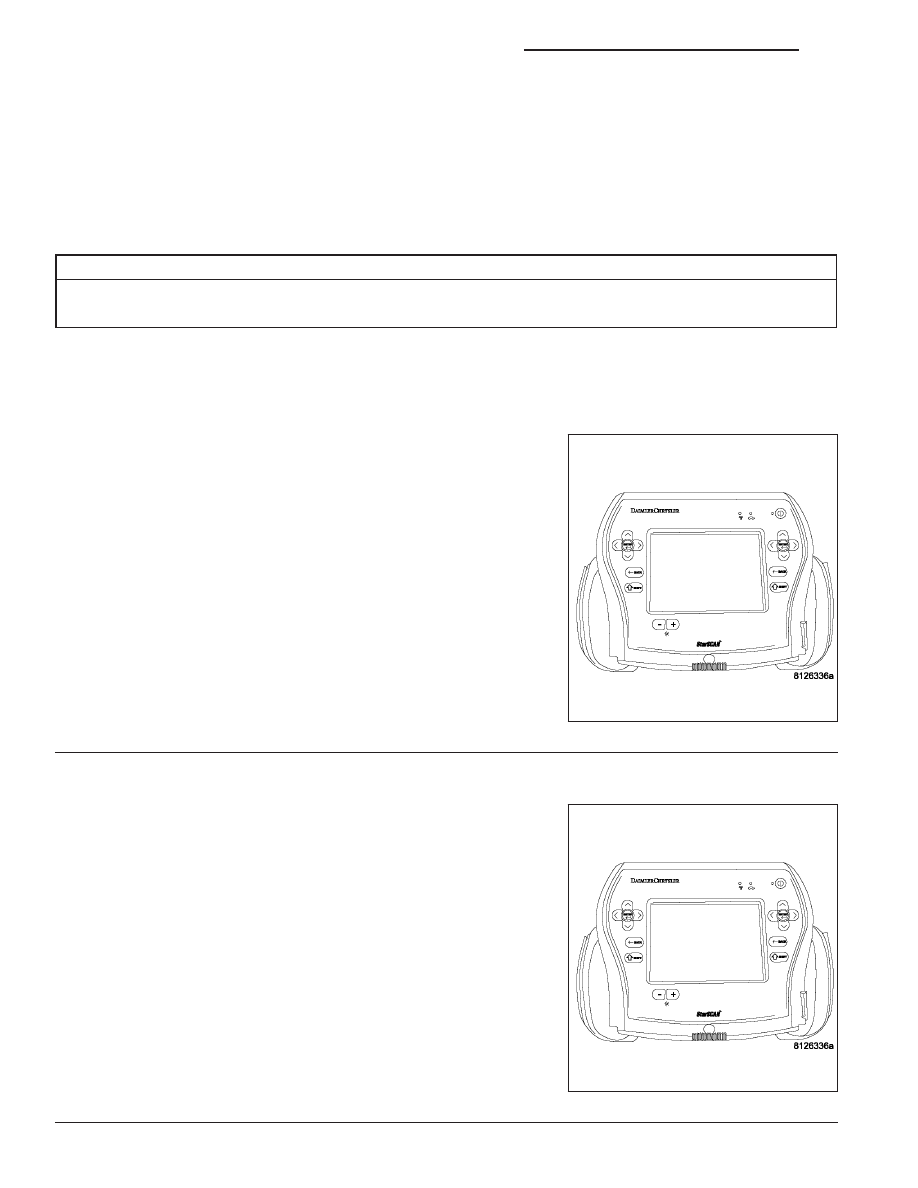

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B210E-BATTERY VOLTAGE
HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK THE BATTERY VOLTAGE TO THE AMPLIFIER

With the scan tool in Data Display, read Amplifier battery voltage.

Is the battery voltage greater than 16.5 volts?

Yes

>> Go To 3

No

>> Replace the Amplifier in accordance with the Service Infor-

mation.

Perform OCS VERIFICATION TEST - VER 1.

8A - 60

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B210E-BATTERY VOLTAGE HIGH (CONTINUED)

3.

CHECK FOR CHARGING SYSTEM RELATED DTCs IN THE POWERTRAIN CONTROL MODULE (PCM)

With the scan tool in ECU View, select PCM and check for any Charg-
ing System related DTCs.

Does the scan tool display any Charging System related DTCs?

Yes

>> Diagnose and repair the DTCs. Refer to (Refer to 9 -

ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace the Amplifier in accordance with the Service Infor-

mation.

Perform OCS VERIFICATION TEST - VER 1.

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 61

B1488–CABIN EQ MISMATCH PERFORMANCE

For the Amplifier circuit diagram (Refer to 8 - ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the cabin EQ message is incompatible with the EQ’s stored in the amplifier for 10 consecutive cycles,
then the amplifier will set this DTC.

POSSIBLE CAUSES

NO COMMUNICATION WITH FRONT CONTROL MODULE

ACTIVE FCM DTCs

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on.

Turn the radio on.

With the scan tool, erase Amplifier DTCs.

With the scan tool, reset the amplifier.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1488–CABIN EQ MISMATCH
PERFORMANCE?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK AMPLIFIER BUSSED INPUTS/OUTPUTS

With the scan tool in Amplifier Data Display, read the Cabin EQ# settings in the Bussed Inputs and Bussed Outputs
Sections.

NOTE: The Cabin EQ# settings in the Inputs/Outputs section should match one another. The Cabin EQ# in
the Inputs section is the information that is received form the FCM. The Cabin EQ# in the Outputs section
is the information that is Stored in the Amplifier’s memory.
The Cabin EQ# settings are as follows:

• •

$51: HB Premium 1 (w/o Subwoofer)

• •

$52: HB Premium 2 (with Subwoofer)

Do the Cabin EQ# settings match one another?

Yes

>> Replace the Amplifier in accordance to the service information.

Perform the BODY VERIFICATION TEST-VER 1.

No

>> Go To 3

8A - 62

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B1488–CABIN EQ MISMATCH PERFORMANCE (CONTINUED)

3.

VERIFY COMMUNICATION WITH FRONT CONTROL MODULE

With the scan tool in ECU VIEW, read active modules on the bus.

Does the scan tool show the Front Control Module active on the bus?

Yes

>> Go To 4

No

>> Refer to the Communication category for the related symptoms.

Perform the BODY VERIFICATION TEST VER 1.

4.

CHECK FRONT CONTROL MODULE FOR ACTIVE DTCs

With the scan tool, erase FCM DTCs.

Turn the ignition off. Wait approximately 10 seconds.

Turn the ignition on.

With the scan tool, read FCM DTCs.

Are any active DTCs present?

Yes

>> Refer to symptom list for problems related to the Front Control Module.

Perform the BODY VERIFICATION TEST VER 1.

No

>> Replace the Front Control Module in accordance with the Service Information.

Perform the BODY VERIFICATION TEST-VER.1

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 63
