B2222-SATELLITE RADIO RECEIVER INTERNAL

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Satellite Radio Receiver detects a software checksum test failure.

Possible Causes

SATELLITE RADIO RECEIVER

Diagnostic Test

1.

REPLACE THE SATELLITE RADIO RECEIVER

When this code is set, the Satellite Radio must be replaced.

Repair

Replace the Satellite Radio Receiver in accordance with the Service Information.

Perform the BODY VERIFICATION TEST-VER 1.

8A - 48

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B1428-REMOTE RADIO SWITCH INPUT CIRCUIT STUCK

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 49

B1428-REMOTE RADIO SWITCH INPUT CIRCUIT STUCK (CONTINUED)

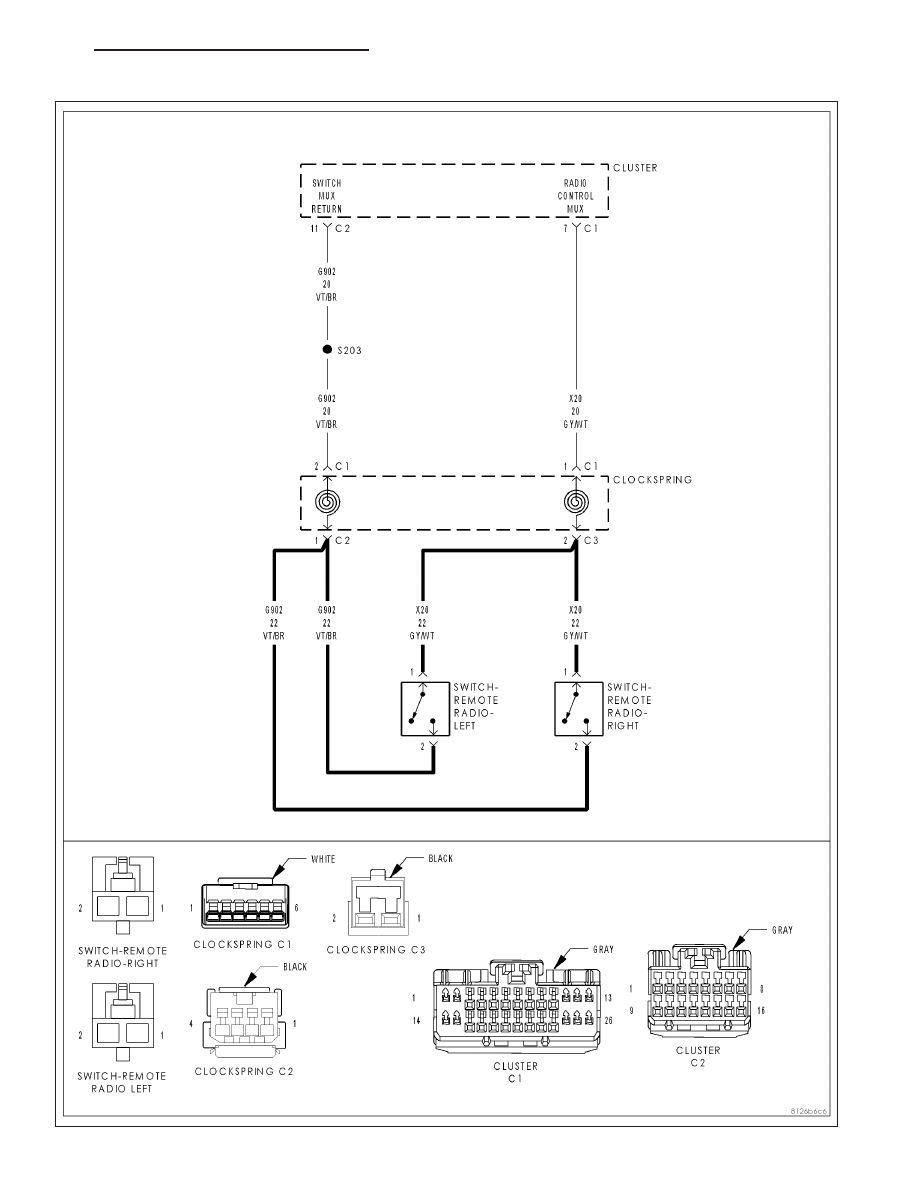

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition in any position except off.

Set Condition:
The Instrument Cluster detects a stuck switch state on the (X20) Radio Control MUX circuit for more than
30 seconds.

Possible Causes

(X20) REMOTE CONTROL MUX CIRCUIT SHORT TO GROUND

(X20) REMOTE CONTROL MUX CIRCUIT SHORT TO (G902) SWITCH MUX RETURN CIRCUIT

LEFT REMOTE RADIO SWITCH

RIGHT REMOTE RADIO SWITCH

CLOCKSPRING

INSTRUMENT CLUSTER (CCN)

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

LEFT REMOTE RADIO SWITCH

Turn the ignition off.

Disconnect the Left Remote Radio Switch harness connector.

Turn the ignition on.

With the scan tool monitor the Remote Radio Control Switch voltage.

Is the voltage approximately 5.0 volts?

Yes

>> Replace the Left Remote Radio Switch in accordance with

the service information.

Perform BODY VERIFICATION TEST – VER 1.

No

>> Go To 3

8A - 50

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B1428-REMOTE RADIO SWITCH INPUT CIRCUIT STUCK (CONTINUED)

3.

RIGHT REMOTE RADIO SWITCH

Turn the ignition off.

Disconnect the Right Remote Radio Switch harness connector.

Turn the ignition on.

With the scan tool monitor the Remote Radio Control Switch voltage.

Is the voltage approximately 5.0 volts?

Yes

>> Replace the Right Remote Radio Switch in accordance

with the service information.

Perform BODY VERIFICATION TEST – VER 1.

No

>> Go To 4

4.

CLOCKSPRING

Turn the ignition off.

Disconnect the Clockspring C1 harness connector.

Turn the ignition on.

With the scan tool monitor the Remote Radio Control Switch voltage.

Is the voltage approximately 5.0 volts?

Yes

>> Check the (X20) Radio Control MUX circuit for a short

between the clockspring and the remote radio switches. If
ok, replace the Clockspring in accordance with the service
information.

Perform BODY VERIFICATION TEST – VER 1.

No

>> Go To 5
