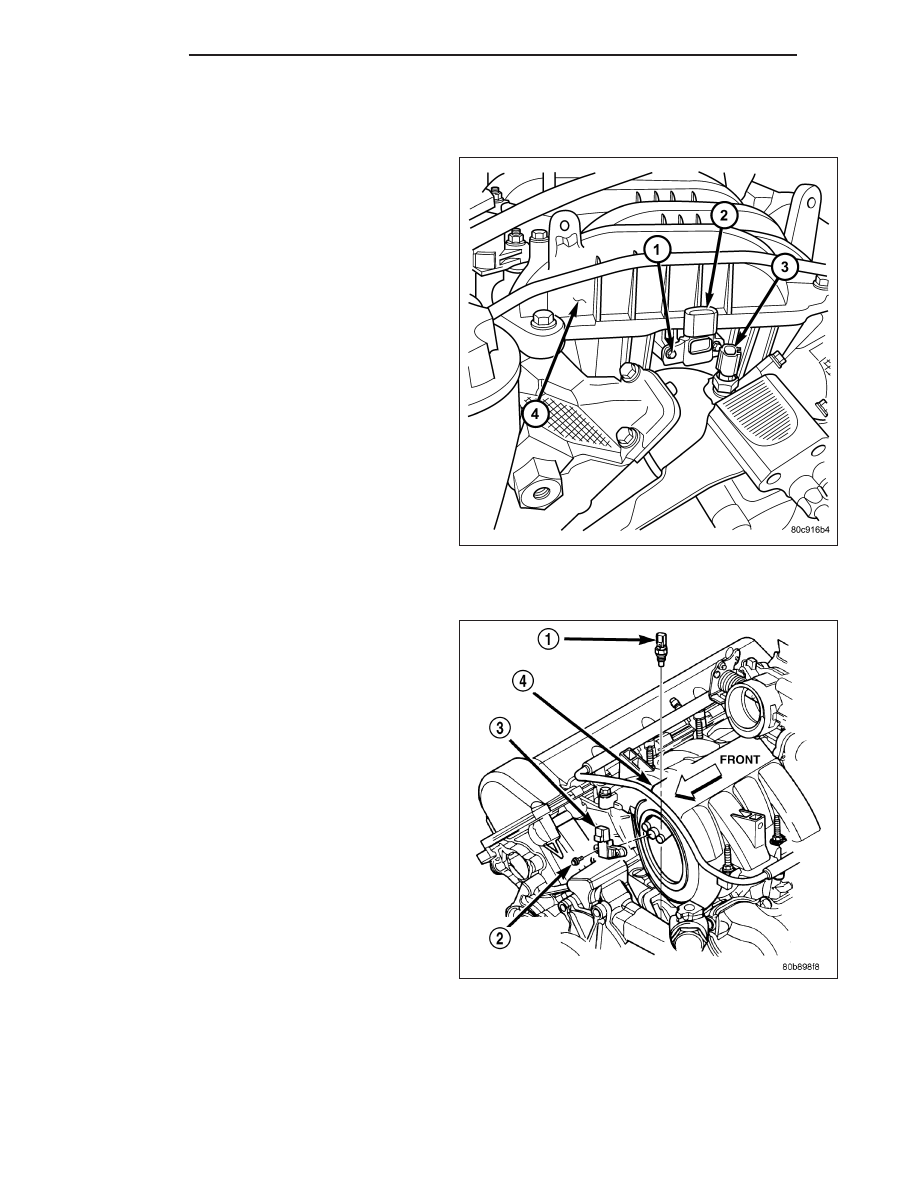

INSTALLATION

3.7L V-6

1. Apply thread sealant to sensor threads.

2. Install sensor to engine.

3. Tighten sensor to 11 N·m (8 ft. lbs.) torque.

4. Connect electrical connector to sensor.

5. Replace any lost engine coolant. (Refer to 7 -

COOLING - STANDARD PROCEDURE).

4.7L ENGINE

1. Install sensor.

2. Tighten to 11 N·m (8 ft. lbs.) torque.

3. Connect electrical connector to sensor.

4. Replace any lost engine coolant. (Refer to 7 -

COOLING - STANDARD PROCEDURE).

7 - 46

ENGINE

WK

5.7L ENGINE

1. Apply thread sealant to sensor threads.

2. Install sensor into engine.

3. Tighten sensor to 11 N·m (8 ft. lbs.) torque.

4. Connect electrical connector to sensor.

5. Carefully bolt air conditioning compressoronto the

front of engine. Refer to Heating and Air Condition-
ing section for information.

6. Install accessory drive belt (Refer to 7 - COOLING/

ACCESSORY DRIVE/DRIVE BELTS - INSTALLA-
TION).

7. Replace any lost engine coolant. (Refer to 7 -

COOLING - STANDARD PROCEDURE).

THERMOSTAT-ENGINE COOLANT

DESCRIPTION

CAUTION: Do not operate an engine without a
thermostat, except for servicing or testing.

A pellet-type thermostat controls the operating temper-
ature of the engine by controlling the amount of cool-
ant flow to the radiator. On all engines the thermostat
is closed below 195°F (90°C). Above this temperature,
coolant is allowed to flow to the radiator. This provides
quick engine warm up and overall temperature control.

The same thermostat is used for winter and summer
seasons. An engine should not be operated without a
thermostat, except for servicing or testing. Operating
without a thermostat causes other problems. These
are: longer engine warmup time, unreliable warmup
performance, increased exhaust emissions and crank-
case condensation. This condensation can result in
sludge formation.

WK

ENGINE

7 - 47

OPERATION

The wax pellet is located in a sealed container at the spring end of the thermostat. When heated, the pellet
expands, overcoming closing spring tension and water pump pressure to force the valve to open.

DIAGNOSIS AND TESTING - THERMOSTAT

ON-BOARD DIAGNOSTICS

All models are equipped with On-Board Diagnostics for certain cooling system components.If the powertrain control
module (PCM) detects low engine coolant temperature, it will record a Diagnostic Trouble Code (DTC). For other
DTC numbers, (Refer to 25 - EMISSIONS CONTROL - DESCRIPTION).

The DTC can also be accessed through the DRB scan tool.

REMOVAL

3.7L/4.7L ENGINE

WARNING: DO NOT LOOSEN RADIATOR DRAINCOCK WITH SYSTEM HOT AND PRESSURIZED. SERIOUS
BURNS FROM COOLANT CAN OCCUR.

Do not waste reusable coolant. If solution is clean, drain coolant into a clean container for reuse.

If thermostat is being replaced, be sure that replacement is specified thermostat for vehicle model and engine type.

1. Disconnect negative battery cable at battery.

2. Drain cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE).

3. Raise vehicle on hoist.

4. Remove splash shield.

5. Remove lower radiator hose clamp and lower radiator hose at thermostat housing.

6. Remove thermostat housing mounting bolts, thermostat housing and thermostat.

7 - 48

ENGINE

WK

5.7L ENGINE

WARNING: DO NOT LOOSEN THE RADIATOR
DRAINCOCK WITH THE COOLING SYSTEM HOT
AND PRESSURIZED. SERIOUS BURNS FROM THE
COOLANT CAN OCCUR.

Do not waste reusable coolant. If the solution is clean,
drain the coolant into a clean container for reuse.

If the thermostat is being replaced, be sure that the
replacement is the specified thermostat for the vehicle
model and engine type.

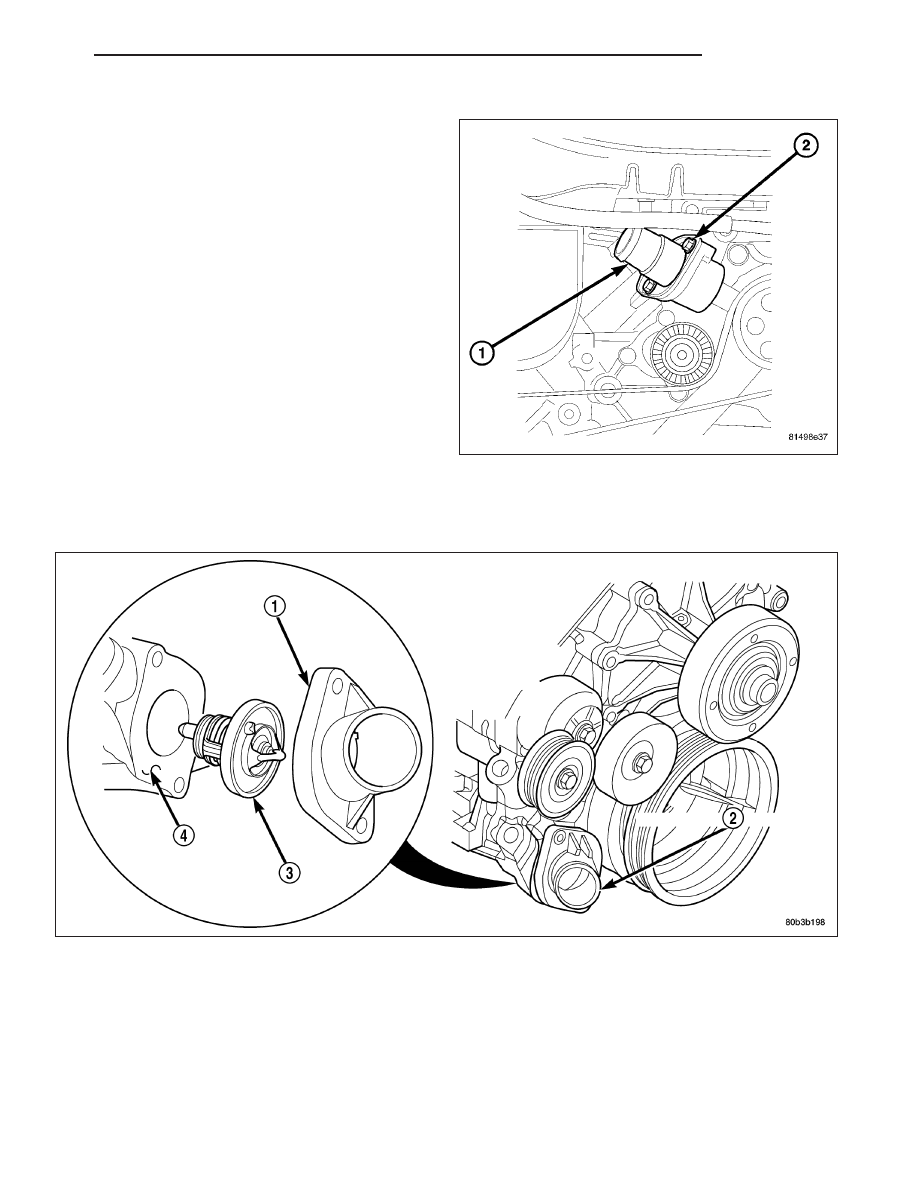

1. Disconnect the negative battery cable.

2. Drain the cooling system

3. Remove the radiator hose clamp and radiator hose

at the thermostat housing (1).

4. Remove the thermostat housing mounting bolts (2),

thermostat housing (1) and thermostat.

INSTALLATION

3.7L/4.7L ENGINE

1. Clean mating areas of timing chain cover and thermostat housing.

2. Install thermostat (spring side down) into recessed machined groove on timing chain cover.

3. Position thermostat housing on timing chain cover.

4. Install two housing-to-timing chain cover bolts. Tighten bolts to 13 N·m (115 in. lbs.) torque.

CAUTION: Housing must be tightened evenly and thermostat must be centered into recessed groove in tim-
ing chain cover. If not, it may result in a cracked housing, damaged timing chain cover threads or coolant
leaks.

5. Install lower radiator hose on thermostat housing.

WK

ENGINE

7 - 49
