U0114-LOST COMMUNICATION WITH FINAL DRIVE MODULE

5 - 378

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

U0114-LOST COMMUNICATION WITH FINAL DRIVE MODULE (CONTINUED)

For the Engine circuit diagram (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/ENGINE CON-
TROL MODULE - SCHEMATIC - ELECTRICAL)

For a complete wiring diagram Refer to Section 8W.

When Monitored:

With the ignition on

Battery voltage between 10 and 16 volts

IOD fuse installed

FCM is configured correctly

Set Condition:
Bus messages not received from the Front Control Module for approximately 2 to 5 seconds.

Possible Causes

CAN B BUS CIRCUITS OPEN OR SHORTED

DTCS RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES

FDCM NOT CONFIGURED CORRECTLY

FINAL DRIVE CONTROL MODULE

FINAL DRIVE CONTROL MODULE POWER AND GROUND

MODULE THAT SET THIS DTC

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.
With the scan tool, read active DTCs.

Is this DTC active?

Yes

>> Go To 2

No

>> Refer to the Stored Lost Communication test procedure. Refer to the table of contents in this section.

Perform BODY VERIFICATION TEST – VER 1.

2.

CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS

With the scan tool, read all active DTCs from all modules.

NOTE: Check for FDCM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or
ignition related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

>> Diagnose and repair the DTC. Refer to the Table of Contents for a complete list of the symptoms.

Perform BODY VERIFICATION TEST – VER 1.

No

>> Go To 3

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 379

U0114-LOST COMMUNICATION WITH FINAL DRIVE MODULE (CONTINUED)

3.

VERIFY THAT THE FDCM IS ACTIVE ON THE BUS

Turn the ignition on.

With the scan tool, select Network Diagnostics.

Verify that the FDCM is active on the bus.

Is the FCM active on the bus?

Yes

>> Go To 4

No

>> Refer to the Table of Contents located in this section for a no response test procedure.

Perform BODY VERIFICATION TEST – VER 1.

4.

CHECK FOR ADDITIONAL COMMUNICATION RELATED DTCS

With the scan tool, select Network Diagnostics.

Is there more than one module with active DTCs “Logged Against” the FDCM?

Yes

>> Replace/update the Final DriveControl Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1.

No

>> Replace/update the module that set this DTC in accordance with the service information

Perform BODY VERIFICATION TEST – VER 1.

5 - 380

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

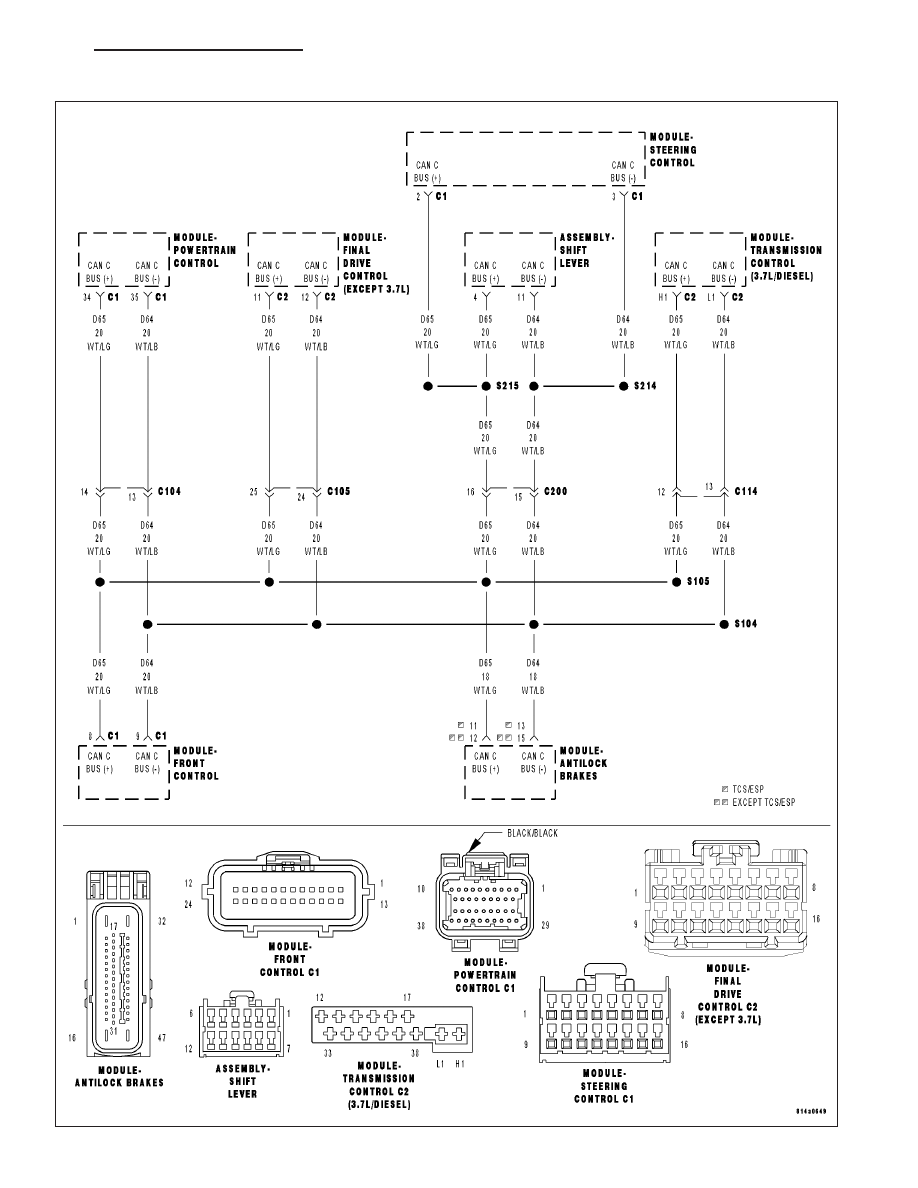

U0126-LOST COMMUNICATION WITH STEERING ANGLE SENSOR

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 381
