PANEL/DEFROST/DEMIST/FLOOR

1. Disconnect and isolate the negative battery cable.

2. Remove the instrument panel silencer from the

driver side of the instrument panel (Refer to 23 -
BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL SILENCER - REMOVAL).

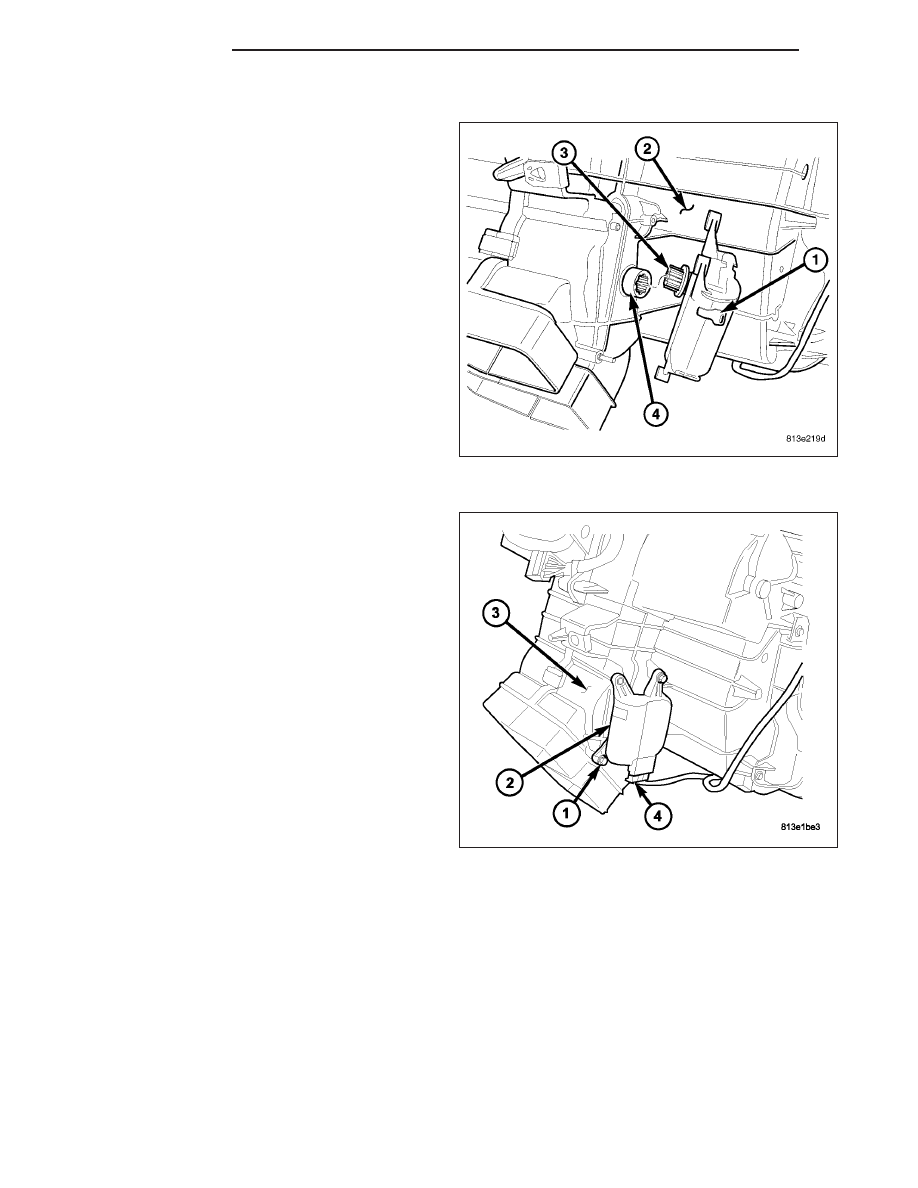

3. Remove the three screws (1) that secure the mode

door actuator (2) to the driver side of the HVAC air
distribution housing (3).

4. Remove the mode door actuator from the air distri-

bution housing and disconnect the HVAC wire har-
ness connector (4) from the actuator.

5. Remove the mode door actuator from the vehicle.

REAR FLOOR/CONSOLE

1. Disconnect and isolate the negative battery cable.

2. Remove the instrument panel from the vehicle

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT PANEL ASSEMBLY - REMOVAL).

3. Remove the two screws (1) that secure the mode

door actuator (2) to the rear of the HVAC air distri-
bution housing (3).

4. Remove the mode door actuator from the air distri-

bution housing and disconnect the HVAC wire har-
ness connector (4) from the actuator.

5. Remove the mode door actuator from the vehicle.

24 - 384

CONTROLS

WK

INSTALLATION

PANEL/DEFROST/DEMIST/FLOOR

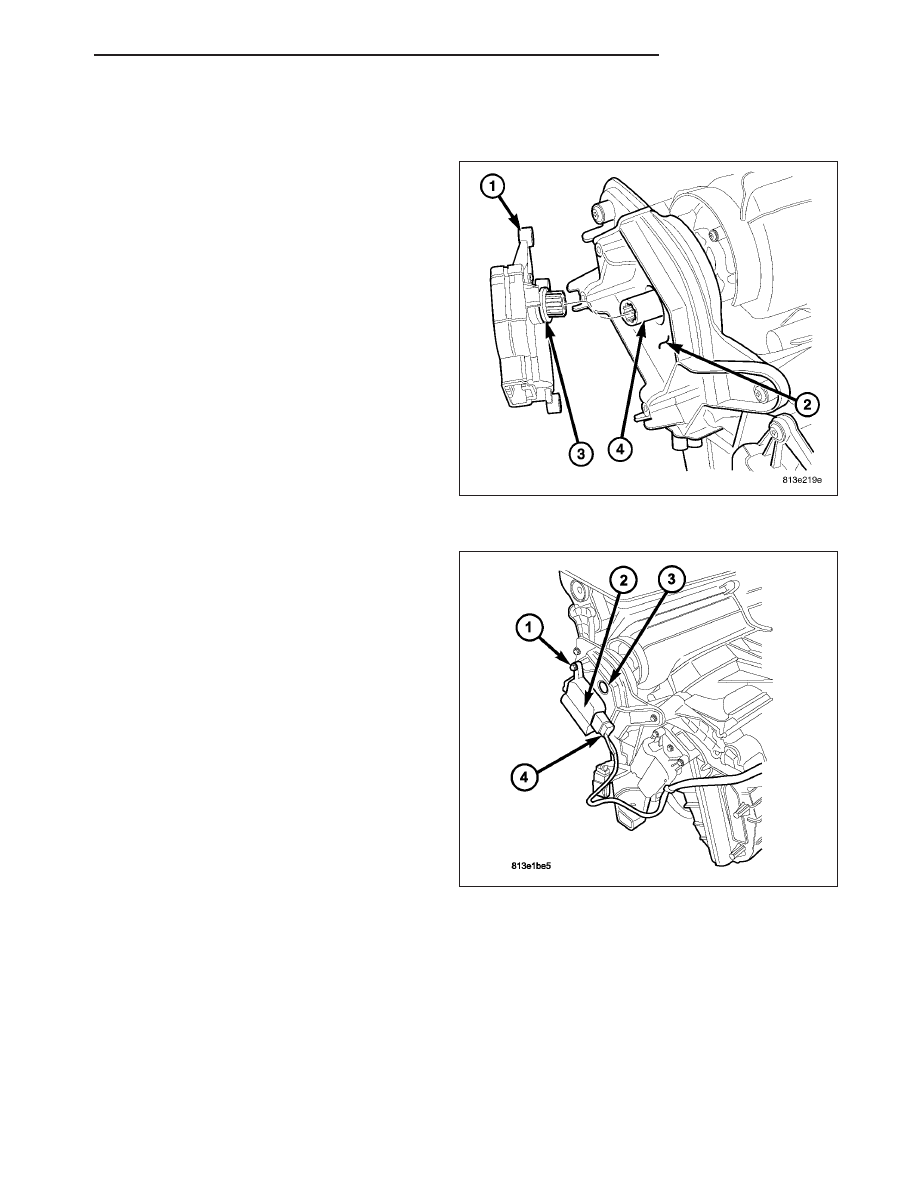

1. Position the mode door actuator (1) into the vehi-

cle.

2. Install the mode door actuator onto the driver side

of the HVAC air distribution housing (2). If neces-
sary, rotate the actuator slightly to align the splines
on the actuator output shaft (3) with those on the
mode door cam (4).

3. Install the screws (1) that secure the mode door

actuator (2) to the driver side of the air distribution
housing (3). Tighten the screws to 2 N·m (17 in.
lbs.).

4. Connect the HVAC wire harness connector (4) to

the mode door actuator.

5. Install the instrument panel silencer onto the driver

side of the instrument panel (Refer to 23 - BODY/
INSTRUMENT

PANEL/INSTRUMENT

PANEL

SILENCER - INSTALLATION).

6. Reconnect the negative battery cable.

WK

CONTROLS

24 - 385

REAR FLOOR/CONSOLE

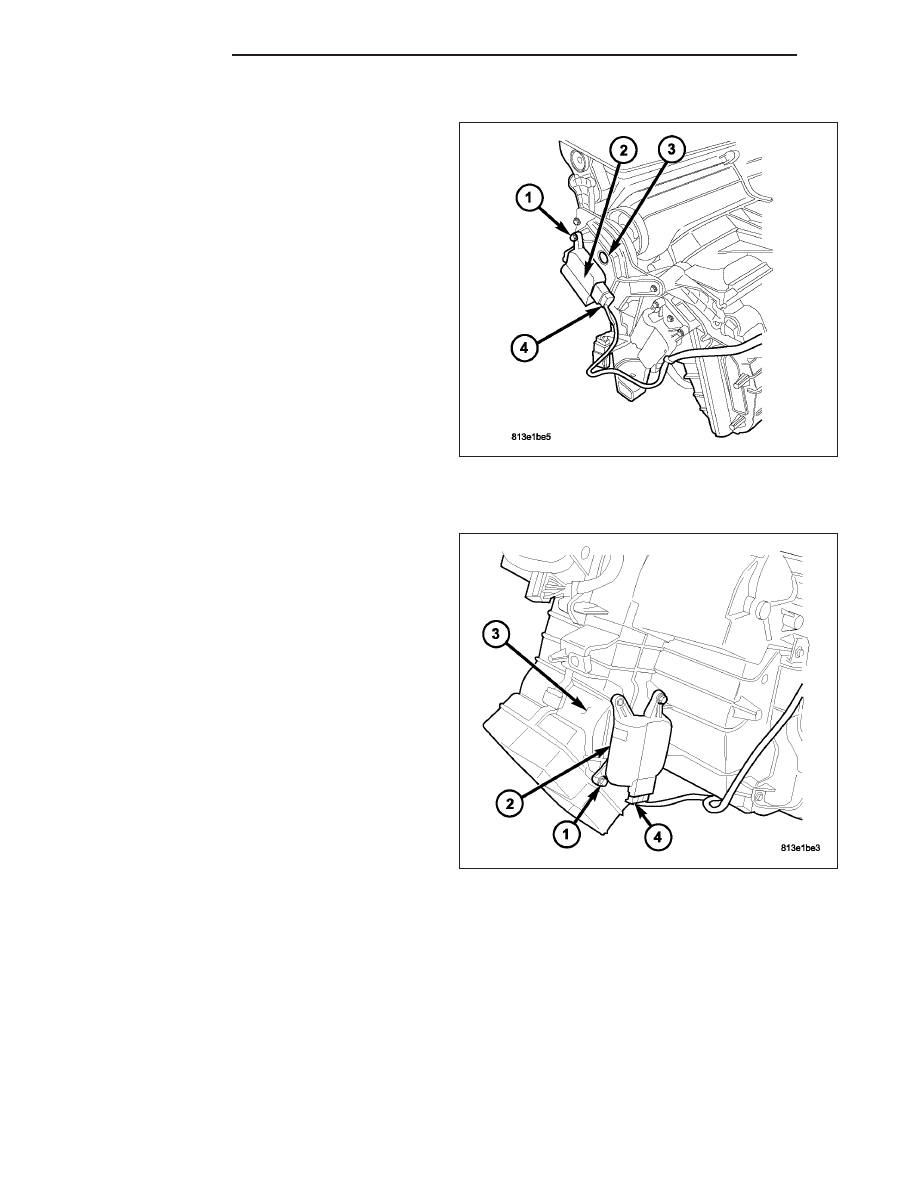

1. Position the mode door actuator (1) into the vehi-

cle.

2. Install the mode door actuator onto the rear of the

HVAC air distribution housing (2). If necessary,
rotate the actuator slightly to align the splines on
the actuator output shaft (3) with those on the pivot
shaft of the rear floor/console air door (4).

3. Install the two screws (1) that secure the mode

door actuator (2) to the rear of the air distribution
housing (3). Tighten the screws to 2 N·m (17 in.
lbs.).

4. Connect the HVAC wire harness connector (4) to

the mode door actuator.

5. Install the instrument panel (Refer to 23 - BODY/

INSTRUMENT

PANEL/INSTRUMENT

PANEL

ASSEMBLY - INSTALLATION).

6. Reconnect the negative battery cable.

24 - 386

CONTROLS

WK

ACTUATOR-RECIRCULATION DOOR

DESCRIPTION

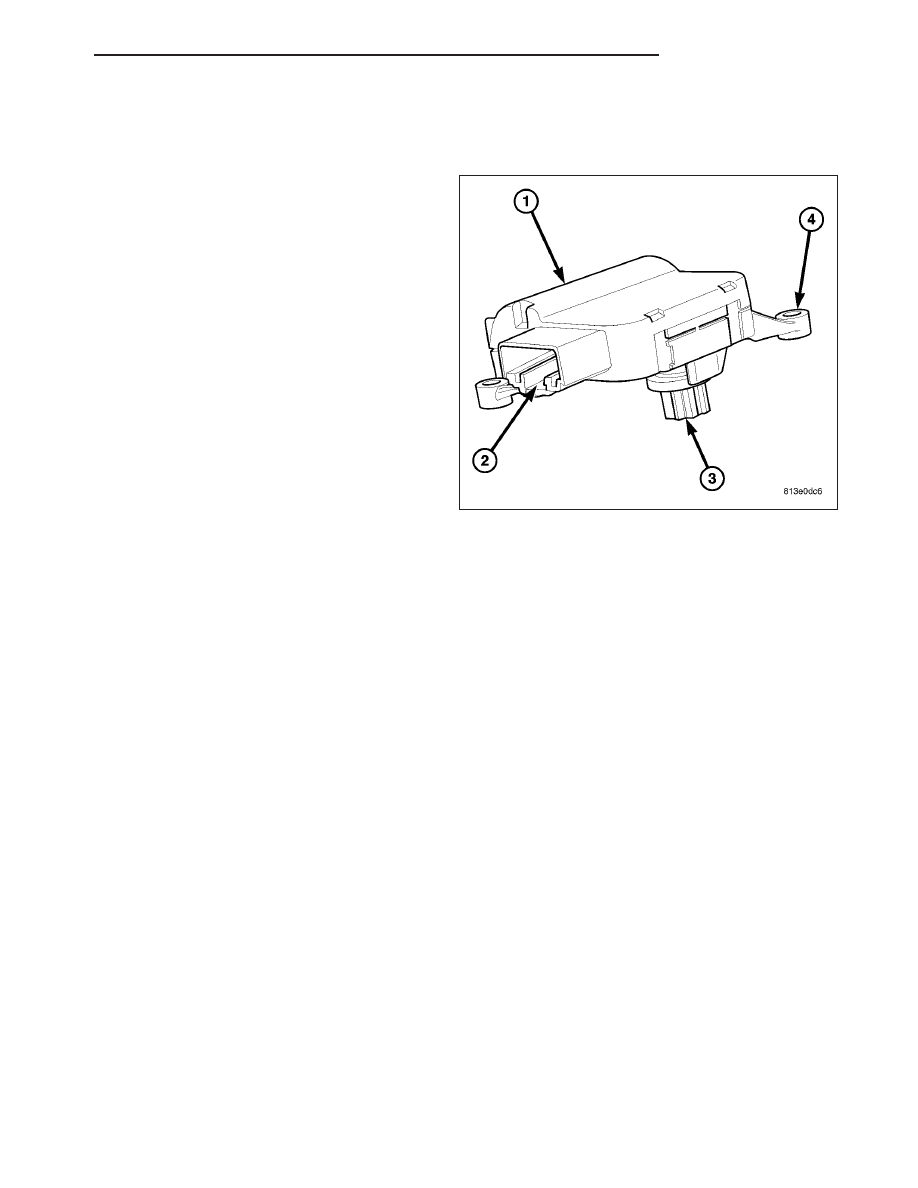

The recirculation door actuator (1) is a reversible, 12
volt direct current (DC), servo motor. The recirculation
door actuator is located on the left side of the HVAC
air inlet housing and is directly connected to the pivot
shaft of the recirculation-air door.

The recirculation door actuator is interchangeable with
the actuators for the blend-air door(s) and the mode-
air doors. Each actuator is contained within an identi-
cal black molded plastic housing with an integral wire
connector receptacle (2). Each actuator also has an
identical output shaft with splines (3) that connects it
to its door linkage and three integral mounting tabs (4)
that allow the actuator to be secured to the air inlet
housing. The recirculation door actuator does not
require mechanical indexing to the recirculation-air
door, as it is electronically calibrated by the A/C-heater
control.

OPERATION

The recirculation door actuator is connected to the A/C-heater control through the vehicle electrical system by a
dedicated two-wire lead and connector of the HVAC wire harness. The recirculation door actuator can move the
recirculation-air door in two directions. When the A/C-heater control pulls the voltage on one side of the motor con-
nection high and the other connection low, the recirculation-air door will move in one direction. When the A/C-heater
control reverses the polarity of the voltage to the motor, the recirculation-air door moves in the opposite direction.

When the A/C-heater control makes the voltage to both connections high or both connections low, the recirculation-
air door stops and will not move. The A/C-heater control uses a pulse-count positioning system to monitor the oper-
ation and relative position of the recirculation door actuator and the recirculation-air door. The A/C-heater control
learns the recirculation-air door stop positions during the calibration procedure and will store a diagnostic trouble
code (DTC) for any problems it detects in the recirculation door actuator circuits.

Refer to 24 - HEATING & AIR CONDITIONING - DIAGNOSIS AND TESTING - HEATING AND A/C SYSTEMS and
to 24 - HVAC Electrical Diagnostics for more information.

The recirculation door actuator cannot be adjusted or repaired and, if faulty or damaged, it must be replaced.

REMOVAL

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering
wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the
negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before
performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to
take the proper precautions could result in accidental airbag deployment and possible personal injury or
death.

WK

CONTROLS

24 - 387
