B1605–RIGHT SOLAR SENSOR CIRCUIT HIGH (ATC) (CONTINUED)

4.

CHECK (G939) SUN SENSOR RETURN CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

Measure the resistance of the (G939) Sun Sensor Return circuit
between the Sun Sensor harness connector and the A/C Heater Con-
trol C1 harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the A/C Heater Control in accordance with the

Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair the (G939) Sun Sensor Return circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

5.

CHECK (G139) SUN SENSOR NO. 2 SIGNAL CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

Measure the resistance of the (G139) Sun Sensor No. 2 Signal circuit
between the Sun Sensor harness connector and the A/C Heater Con-
trol C1 harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the A/C Heater Control in accordance with the

Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair the (G139) Sun Sensor No. 2 Signal circuit for an

open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

24 - 336

HVAC - ELECTRICAL DIAGNOSTICS

WK

B2214–(HVAC) CLIMATE CONTROL INTERNAL (ATC)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the A/C Heater Control has an internal fault.

Possible Causes

A/C HEATER CONTROL

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (ATC) for stored DTC test procedures.

Diagnostic Test

1.

REPLACE THE A/C HEATER CONTROL

Repair

Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 337

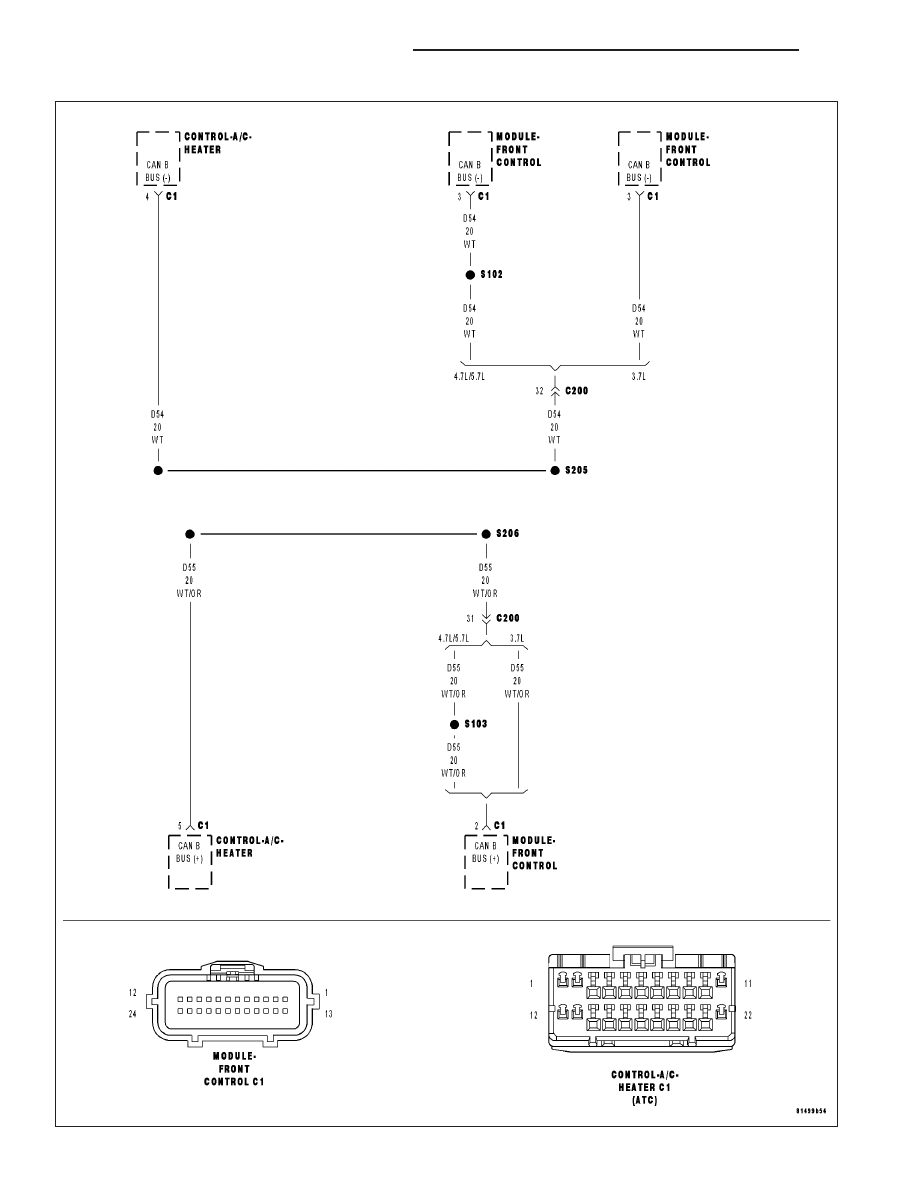

U0019–CAN B BUS (ATC)

24 - 338

HVAC - ELECTRICAL DIAGNOSTICS

WK

U0019–CAN B BUS (ATC) (CONTINUED)

For the Automatic Temperature Control (ATC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
If the CAN B Bus (+) or CAN B Bus (-) circuit is open, shorted to voltage, or shorted to ground.

Possible Causes

ACTIVE U0019 CAN B BUS DTC IN FRONT CONTROL MODULE

(D55) CAN B BUS (+) CIRCUIT OPEN

(D54) CAN B BUS (-) CIRCUIT OPEN

A/C HEATER CONTROL

Diagnostic Test

1.

VERIFY DTC U0019–CAN B BUS IS ACTIVE

Turn the ignition on.

With the scan tool, read HVAC DTCs.

Does the scan tool display active: U0019–CAN B BUS?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition by inspecting the related wiring harness for

chaffed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken,
bent, pushed out, spread, corroded, or contaminated terminals.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

2.

CHECK FOR ACTIVE CAN B BUS RELATED DTCS IN THE FRONT CONTROL MODULE (FCM)

With the scan tool, read Front Control Module (FCM) DTCs

Does the scan tool display any active CAN B BUS related DTCs?

Yes

>> Diagnose and repair the DTC(s). (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -

DIAGNOSIS AND TESTING).

No

>> Go To 3

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 339
