Jeep Grand Cherokee WK. Manual - part 1741





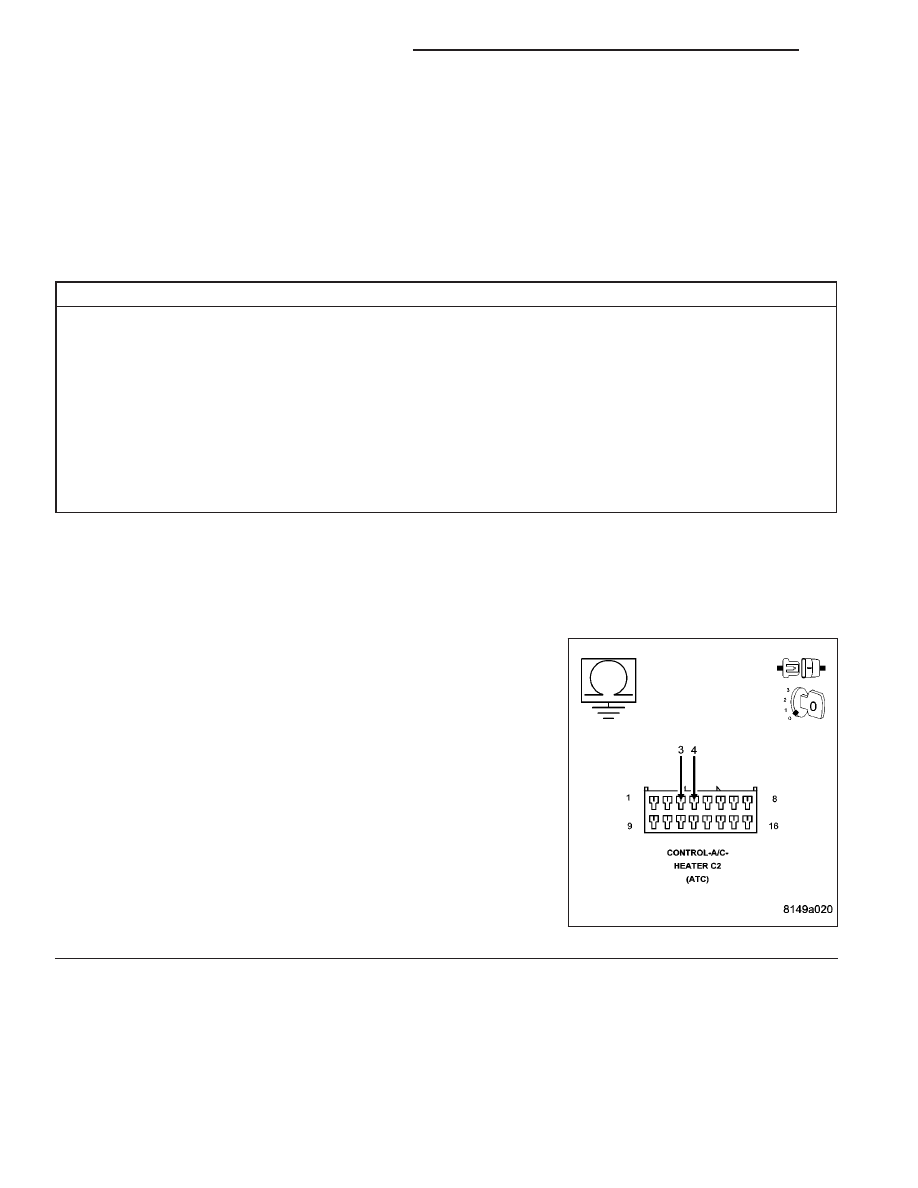

B1059–RECIRCULATION DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

For the Automatic Temperature Control (ATC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When the Actuator DTC Detection Test is executed.

Set Condition:
If the (C268) Recirculation Door Driver circuit or the (C68) Recirculation Door Common Driver circuit is shorted
to ground.

Possible Causes

(C268) RECIRCULATION DOOR DRIVER CIRCUIT SHORTED TO GROUND

(C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT SHORTED TO GROUND

(C268) RECIRCULATION DOOR DRIVER CIRCUIT SHORTED TO (C68) RECIRCULATION DOOR COMMON
DRIVER CIRCUIT

(C268) RECIRCULATION DOOR DRIVER CIRCUIT SHORTED TO OTHER DOOR DRIVER CIRCUIT(S)

(C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT SHORTED TO OTHER DOOR DRIVER
CIRCUIT(S)

RECIRCULATION DOOR ACTUATOR

A/C HEATER CONTROL

Diagnostic Test

1.

CHECK THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT & THE (C68) RECIRCULATION DOOR
COMMON DRIVER CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the A/C Heater Control C2 harness connector.

Measure the resistance of the (C268) Recirculation Door Driver circuit
between ground and the A/C Heater Control C2 harness connector.

Measure the resistance of the (C68) Recirculation Door Common
Driver circuit between ground and the A/C Heater Control C2 harness
connector.

Is the resistance below 10k ohms on either circuit?

Yes

>> Repair the circuit(s) with a resistance below 10k ohms for

a short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 2

24 - 312

HVAC - ELECTRICAL DIAGNOSTICS

WK

B1059–RECIRCULATION DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

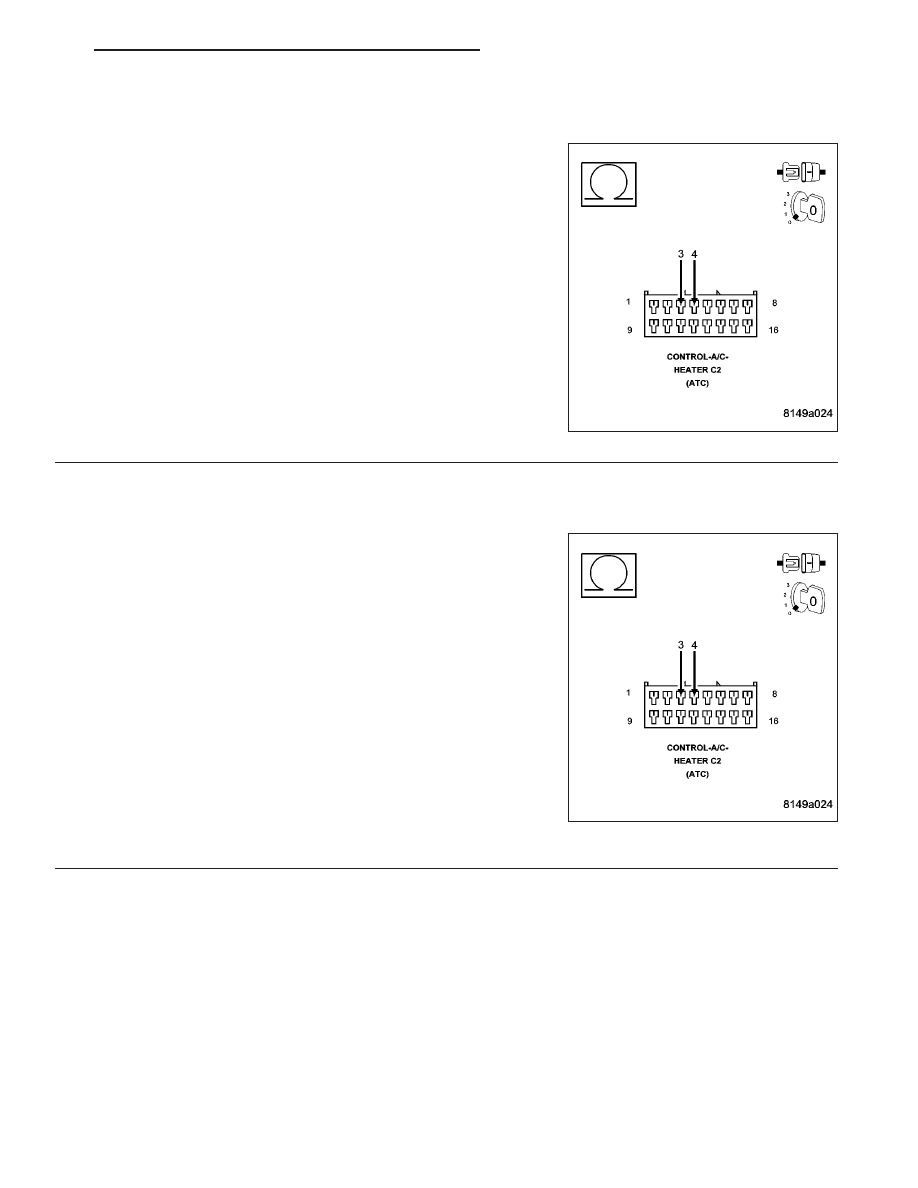

2.

CHECK THE RECIRCULATION DOOR ACTUATOR CIRCUIT RESISTANCE

Measure the resistance between the (C268) Recirculation Door Driver
circuit and the (C68) Recirculation Door Common Driver circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 30.0 ohms?

Yes

>> Go To 3

No

>> Go To 4

3.

CHECK THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C68)
RECIRCULATION DOOR COMMON DRIVER CIRCUIT

Disconnect the Recirculation Door Actuator harness connector.

Measure the resistance between the (C268) Recirculation Door Driver
circuit and the (C68) Recirculation Door Common Driver circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C268) Recirculation Door Driver circuit for a

short to the (C68) Recirculation Door Common Driver cir-
cuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Replace the Recirculation Door Actuator in accordance

with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 313

B1059–RECIRCULATION DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

4.

CHECK THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER
CIRCUITS

Measure the resistance between the (C268) Recirculation Door Driver
circuit and the (C266) Front Mode Door Driver circuit, (C66) Front
Mode Door Common Driver circuit, (C255) Left Blend Door Driver cir-
cuit, (C55) Left Blend Door Common Driver circuit, (C61) Right Blend
Door Driver circuit, (C161) Right Blend Door Common Driver circuit,
(C139) Rear Mode Door Driver circuit, and the (C939) Rear Mode
Door Common Driver circuit in the A/C Heater Control C2 harness
connector.

Is the resistance below 10k ohms between the (C268) Recircu-
lation Door Driver circuit and any of the other door driver cir-
cuits?

Yes

>> Repair the circuit(s) with a resistance below 10k ohms for

a short to the (C268) Recirculation Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 5

5.

CHECK THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR
DRIVER CIRCUITS

Measure the resistance between the (C68) Recirculation Door Com-
mon Driver circuit and the (C266) Front Mode Door Driver circuit,
(C66) Front Mode Door Common Driver circuit, (C255) Left Blend
Door Driver circuit, (C55) Left Blend Door Common Driver circuit,
(C61) Right Blend Door Driver circuit, (C161) Right Blend Door Com-
mon Driver circuit, (C139) Rear Mode Door Driver circuit, and the
(C939) Rear Mode Door Common Driver circuit in the A/C Heater Con-
trol C2 harness connector.

Is the resistance below 10k ohms between the (C68) Recircula-
tion Door Common Driver circuit and any of the other door
driver circuits?

Yes

>> Repair the circuit(s) with a resistance below 10k ohms for

a short to the (C68) Recirculation Door Common Driver
circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 6

24 - 314

HVAC - ELECTRICAL DIAGNOSTICS

WK

B1059–RECIRCULATION DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

6.

RUN THE ACTUATOR DTC DETECTION TEST

Reconnect the A/C Heater Control C2 harness connector.

Reconnect the Recirculation Door Actuator harness connector.

Turn the ignition on.

With the scan tool, erase HVAC DTCs.

Turn the ignition off, wait 10 seconds, and then turn the ignition on.

With the scan tool, select System Tests and then select Actuator DTC Detection. When the test is complete, select
View DTCs.

Does the scan tool only display: B1059–RECIRCULATION DOOR CONTROL CIRCUIT LOW?

Yes

>> Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No, Other DTC(s) Displayed

Diagnose and repair the other DTC(s). If multiple DTCs are present, diagnose and repair all short high
DTCs before diagnosing short low DTCs. Refer to the Table of Contents in this Section for a complete
list of all HVAC related symptoms.

No, And No Other DTCs Displayed

Using the wiring diagram as a guide, inspect the wiring and connectors for conditions causing an inter-
mittent short. Repair as necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 315
