B106B–REAR DEFROST CONTROL CIRCUIT LOW (ATC) (CONTINUED)

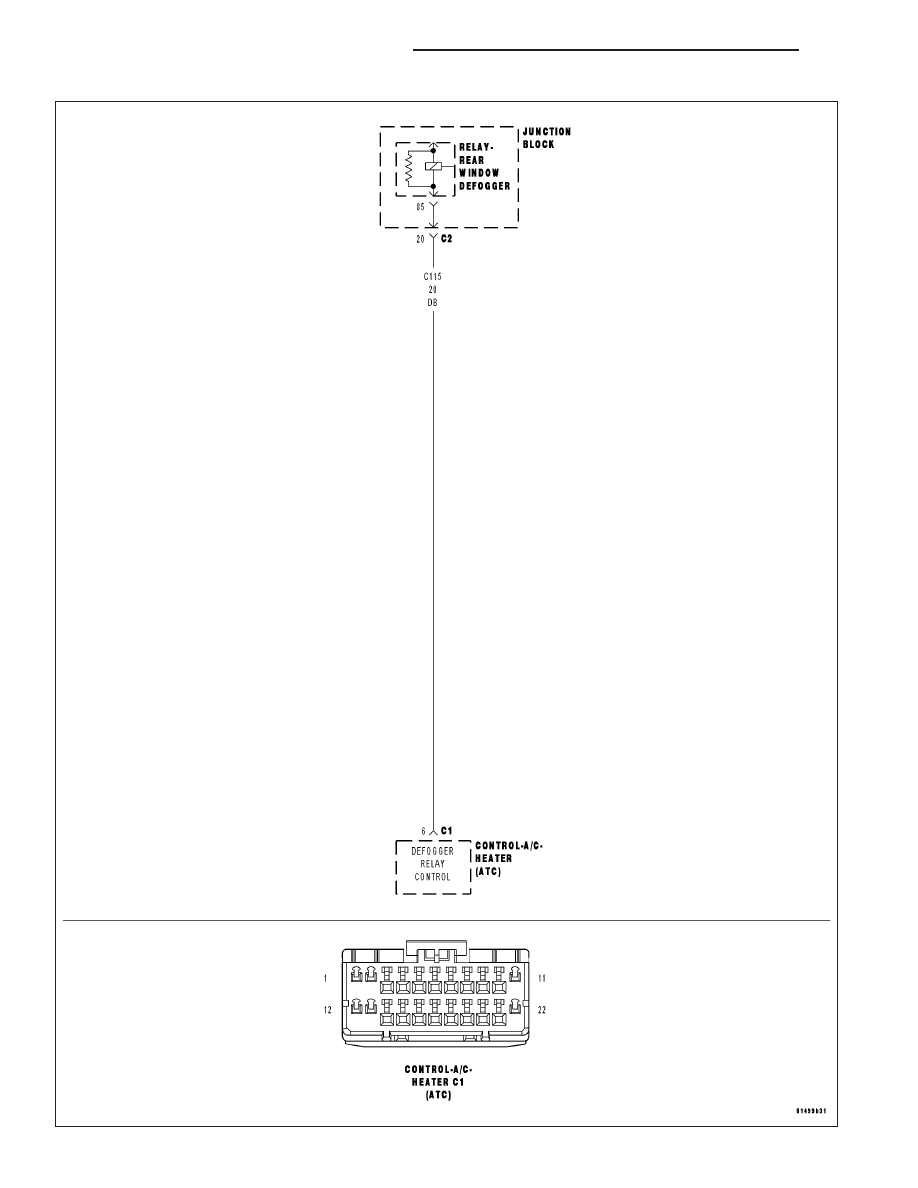

For the Automatic Temperature Control (ATC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With ignition on and the EBL output turned off.

Set Condition:
If the (C115) Rear Window Defogger Relay Control circuit is shorted to ground.

Possible Causes

(C115) REAR WINDOW DEFOGGER RELAY CONTROL CIRCUIT SHORTED TO GROUND

(C115) REAR WINDOW DEFOGGER RELAY CONTROL CIRCUIT OPEN

REAR WINDOW DEFOGGER RELAY

A/C HEATER CONTROL

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (ATC) for stored DTC test procedures.

Diagnostic Test

1.

INSTALL A SUBSTITUTE REAR WINDOW DEFOGGER RELAY & THEN CHECK FOR DTC B106B–REAR
DEFROST CONTROL CIRCUIT LOW

Turn the ignition on.

Verify that the EBL mode switch is off.

Turn the ignition off.

Install a substitute Rear Window Defogger Relay.

Turn the ignition on.

With the scan tool, erase HVAC DTCs.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

With the scan tool, read HVAC DTCs.

Does the scan tool display: B106B–REAR DEFROST CONTROL
CIRCUIT LOW?

Yes

>> Go To 2

No

>> Replace the original Rear Window Defogger Relay in

accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

24 - 260

HVAC - ELECTRICAL DIAGNOSTICS

WK

B106B–REAR DEFROST CONTROL CIRCUIT LOW (ATC) (CONTINUED)

2.

CHECK (C115) REAR WINDOW DEFOGGER RELAY CONTROL CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Remove the substitute Rear Window Defogger Relay.

Disconnect the A/C Heater Control C1 harness connector.

Measure the resistance of the (C115) Rear Window Defogger Relay
Control circuit between ground and the A/C Heater Control C1 harness
connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C115) Rear Window Defogger Relay Control

circuit for a short to ground. Reinstall the original Rear
Window Defogger Relay.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 3

3.

CHECK (C115) REAR WINDOW DEFOGGER RELAY CONTROL CIRCUIT FOR AN OPEN

Measure the resistance of the (C115) Rear Window Defogger Relay

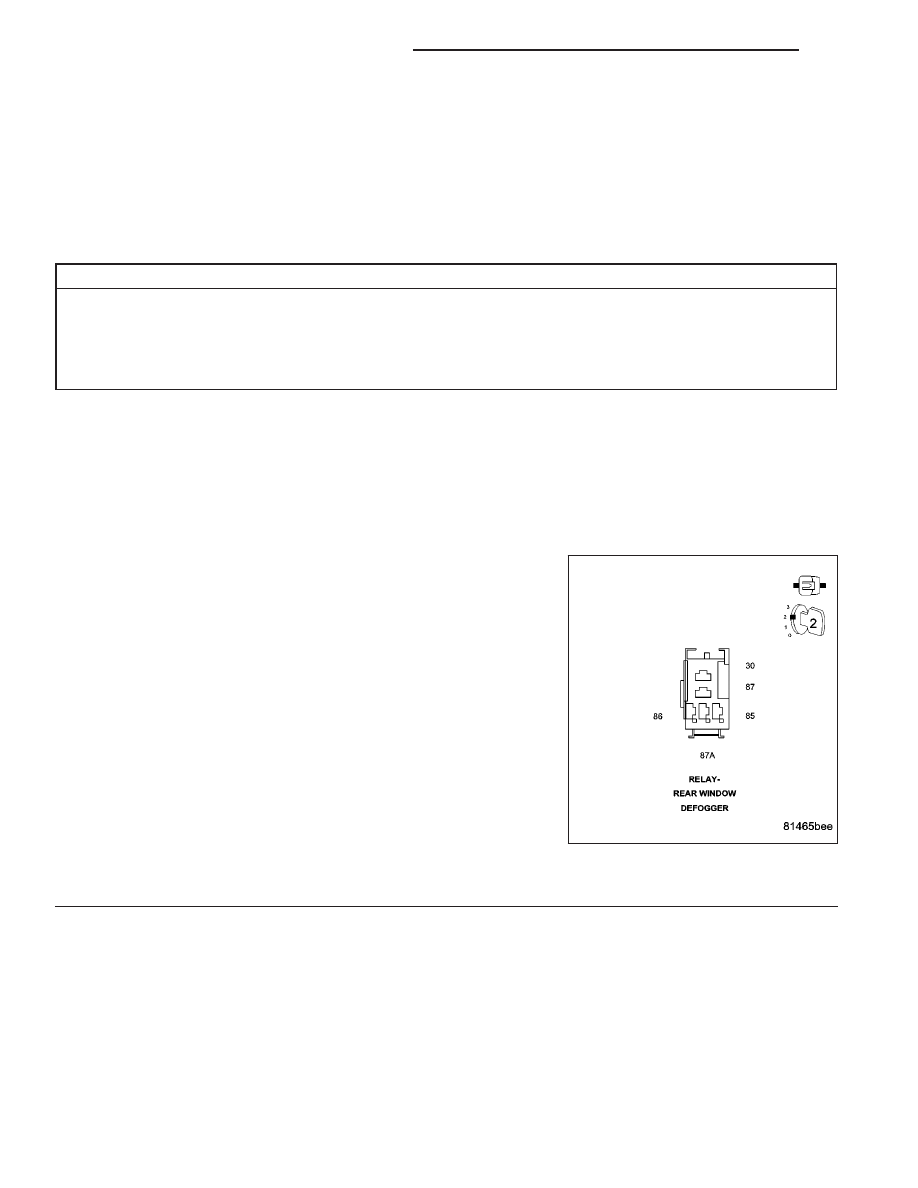

Control circuit between the Rear Window Defogger Relay connector
terminal 85 in the JB and the A/C Heater Control C1 harness connec-
tor.

Is the resistance below 5.0 ohms?

Yes

>> Replace the A/C Heater Control in accordance with the

Service Information. Reinstall the original Rear Window
Defogger Relay.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair the (C115) Rear Window Defogger Relay Control

circuit for an open. Reinstall the original Rear Window
Defogger Relay.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 261

B106C–REAR DEFROST CONTROL CIRCUIT HIGH (ATC)

24 - 262

HVAC - ELECTRICAL DIAGNOSTICS

WK

B106C–REAR DEFROST CONTROL CIRCUIT HIGH (ATC) (CONTINUED)

For the Automatic Temperature Control (ATC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With ignition on.

Set Condition:
If the EBL output is turned on and the (C115) Rear Window Defogger Relay Control circuit is either shorted to
voltage or open.

Possible Causes

(C115) REAR WINDOW DEFOGGER RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE

(C115) REAR WINDOW DEFOGGER RELAY CONTROL CIRCUIT OPEN

REAR WINDOW DEFOGGER RELAY

A/C HEATER CONTROL

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (ATC) for stored DTC test procedures.

Diagnostic Test

1.

INSTALL A SUBSTITUTE REAR WINDOW DEFOGGER RELAY & THEN CHECK FOR DTC B106C–REAR
DEFROST CONTROL CIRCUIT HIGH

Turn the ignition on.

Verify that the EBL mode switch is off.

Turn the ignition off.

Install a substitute Rear Window Defogger Relay.

Turn the ignition on.

With the scan tool, erase HVAC DTCs.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

Press the EBL mode switch is on.

With the scan tool, read HVAC DTCs.

Does the scan tool display: B106C–REAR DEFROST CONTROL
CIRCUIT HIGH?

Yes

>> Go To 2

No

>> Replace the original Rear Window Defogger Relay in

accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 263
