Jeep Grand Cherokee WK. Manual - part 1713





85–BLOWER NOT ON HIGH DURING COOLDOWN TEST (MTC)

24 - 200

HVAC - ELECTRICAL DIAGNOSTICS

WK

85–BLOWER NOT ON HIGH DURING COOLDOWN TEST (MTC) (CONTINUED)

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When executing the Cooldown Test.

Set Condition:
If the A/C Heater Control sensed that the blower was not operating at high speed while the Cooldown Test was
running.

Possible Causes

BLOWER CONTROL DID NOT REMAIN ON THE HIGH SPEED SETTING FOR THE ENTIRE COOLDOWN
TEST

BLOWER MOTOR / RELATED CIRCUITS

(C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT SHORTED TO (C121) SENSOR GROUND CIRCUIT

(C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT SHORTED TO GROUND

(C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT OPEN

A/C HEATER CONTROL

NOTE: This DTC will display as active if the ignition is not cycled after running the Cooldown Test. Other-
wise, it will display as stored until cleared.

Diagnostic Test

1.

CHECK THE BLOWER SPEED SETTING

Was the blower control set to high speed for the entire Cooldown Test?

Yes

>> Go To 2

No

>> Start the engine, set the blower control to high speed, and then run the Cooldown Test again.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

2.

CHECK THE (C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (C121)
SENSOR GROUND CIRCUIT

Turn the ignition off.

Disconnect the A/C Heater Control C2 harness connector.

Measure the resistance between the (C41) Blower Switch Position Sig-
nal circuit and the (C121) Sensor Ground circuit in the A/C Heater
Control C2 harness connector.

Is the resistance below 10K ohms?

Yes

>> Repair the (C41) Blower Switch Position Signal circuit for

a short to the (C121) Sensor Ground circuit. Run the
Cooldown Test again after the repair is complete.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 3

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 201

85–BLOWER NOT ON HIGH DURING COOLDOWN TEST (MTC) (CONTINUED)

3.

CHECK THE (C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT VOLTAGE

Reconnect the A/C Heater Control C2 harness connector.

Disconnect the A/C Heater Control C3 harness connector.

Turn the ignition on.

Measure the voltage of the (C41) Blower Switch Position Signal circuit.

Is the voltage above 4.8 volts?

Yes

>> Check the blower motor and related circuits for the cause

of blower operation problems and repair as necessary.
Run the Cooldown Test again after the repair is complete.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 4

4.

CHECK THE (C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the A/C Heater Control C2 harness connector.

Measure the resistance of the (C41) Blower Switch Position Signal cir-
cuit between ground and the A/C Heater Control C3 harness connec-
tor.

Is the resistance below 10K ohms?

Yes

>> Repair the (C41) Blower Switch Position Signal circuit for

a short to ground. Run the Cooldown Test again after the
repair is complete.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 5

24 - 202

HVAC - ELECTRICAL DIAGNOSTICS

WK

85–BLOWER NOT ON HIGH DURING COOLDOWN TEST (MTC) (CONTINUED)

5.

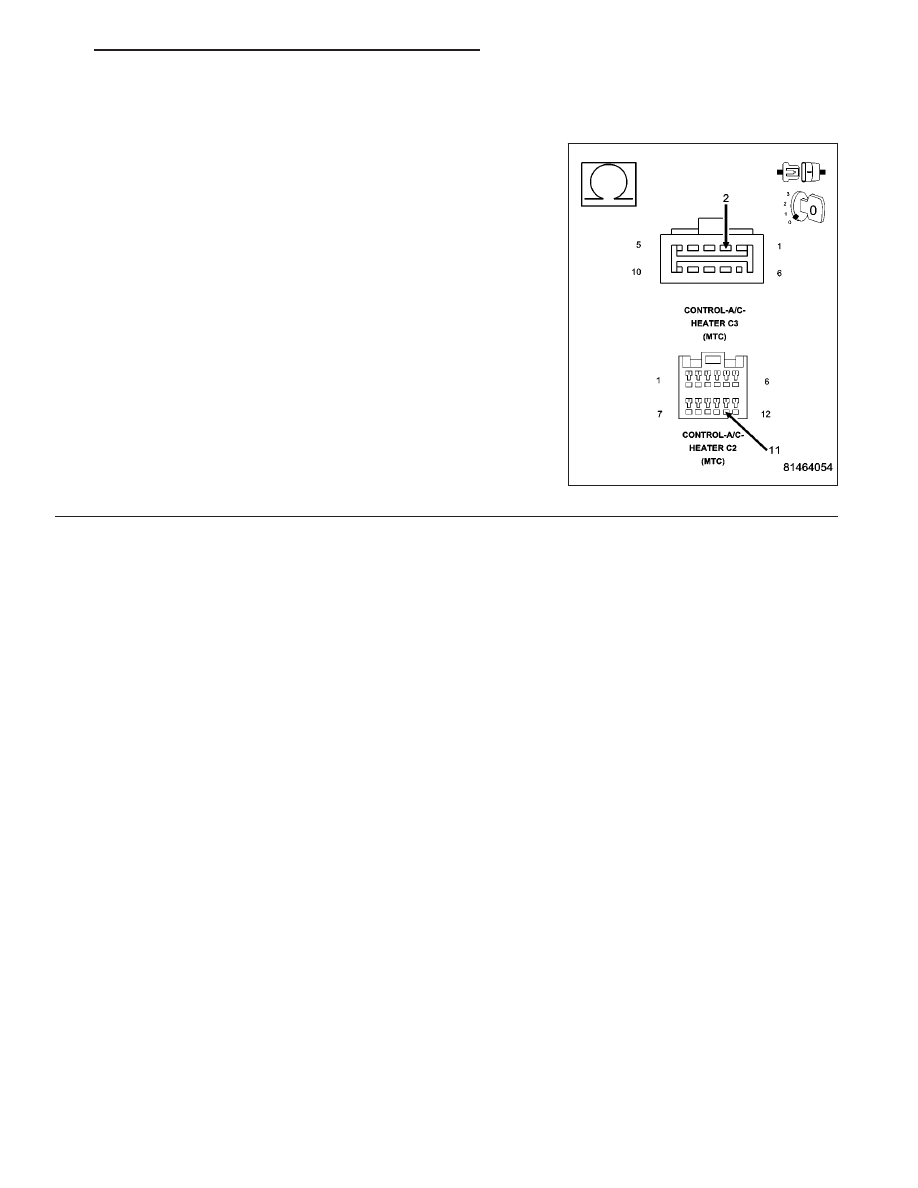

CHECK (C41) BLOWER SWITCH POSITION SIGNAL CIRCUIT FOR AN OPEN

Measure the resistance of the (C41) Blower Switch Position Signal cir-
cuit between the A/C Heater Control C2 harness connector and the
A/C Heater Control C3 harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the A/C Heater Control in accordance with the

Service Information. Run the Cooldown Test again after
the repair is complete.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair the (C41) Blower Switch Position Signal circuit for

an open. Run the Cooldown Test again after the repair is
complete.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 203
