71–RECIRC DOOR DRIVER CIRCUIT SHORTED TO IGNITION (MTC) (CONTINUED)
For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).
For a complete wiring diagram Refer to Section 8W.
Theory of Operation
NOTE: This DTC will display as active if the ignition is not cycled after running the Actuator Circuit Test /
Door Calibration Function. Otherwise, it will display as stored until cleared.By running the Actuator Circuit
Test / Door Calibration Function, the A/C Heater Control can identify up to three door driver circuits shorted
simultaneously. A DTC 72 will set if more than three door driver circuits are shorted in the same direction
(e.g. four door driver circuits all shorted to ground) or if two or more door driver circuits are shorted with
at least one door driver circuit shorted to ignition and one door driver circuit shorted to ground. To ensure
a proper diagnosis, diagnose and repair Actuator Circuit Test faults in the following order: If present, diag-
nose and repair DTC 72 first, then DTC 62, then DTC 61, then DTCs 64, 66, 68, or 71, and finally DTCs 63,
65, 67, or 69. In addition, always test the door driver circuits after each repair by clearing DTCs, and then
running the Actuator Circuit Test / Door Calibration Function, and then checking for DTCs.
•
When Monitored:
When running the Actuator Circuit Test / Door Calibration Function.
•
Set Condition:
If the A/C Heater Control detects a short to voltage on the (C268) Recirculation Door Driver circuit.
Possible Causes
(C268) RECIRCULATION DOOR DRIVER CIRCUIT SHORTED TO VOLTAGE
A/C HEATER CONTROL
Diagnostic Test
1.

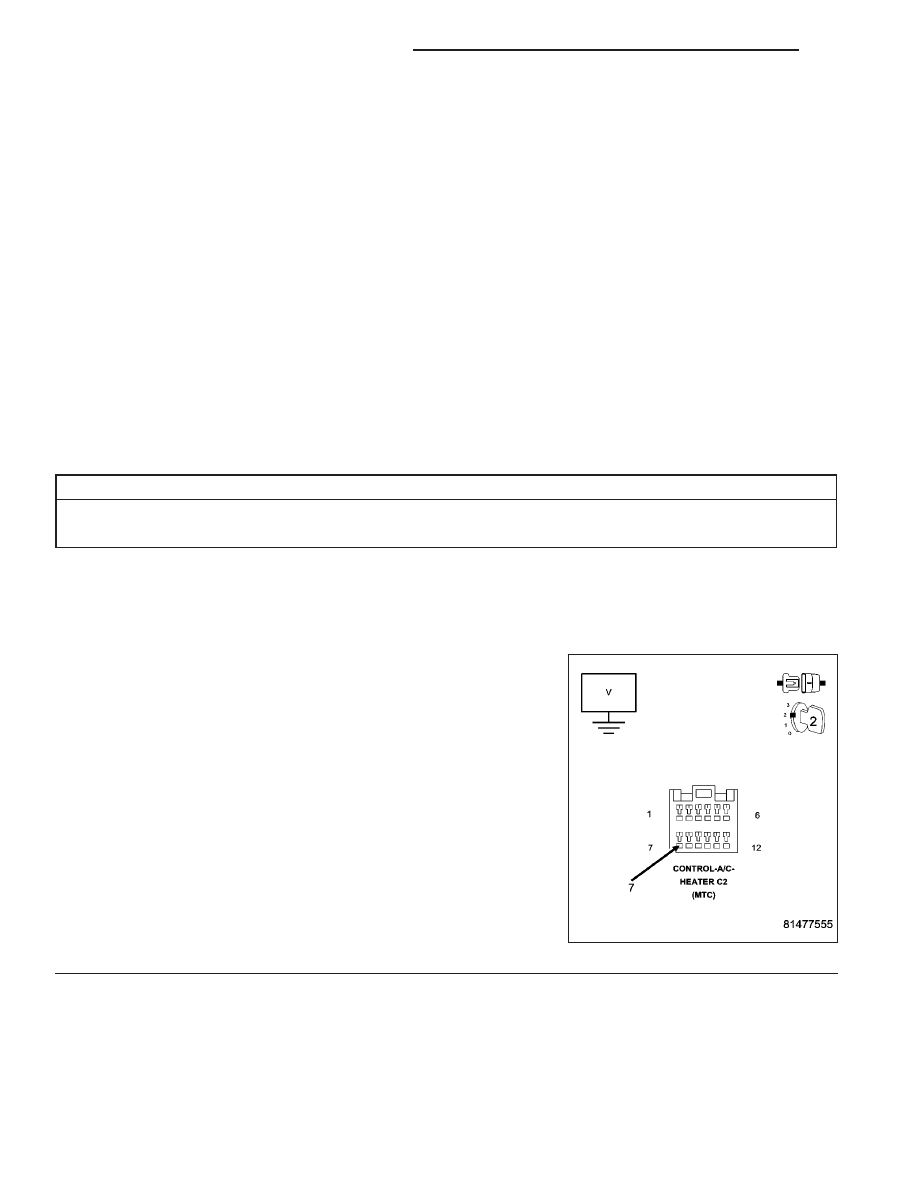

CHECK THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT FOR A SHORT TO VOLTAGE
Turn the ignition off.
Disconnect the A/C Heater Control C2 harness connector.
Turn the ignition on.
Measure the voltage of the (C268) Recirculation Door Driver circuit.
Is the voltage above 0.2 volts?
Yes
>> Repair the (C268) Recirculation Door Driver circuit for a
short to voltage.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).
No
>> Go To 2
