64–FRONT MODE DOOR DRIVER CIRCUIT SHORTED TO IGNITION (MTC) (CONTINUED)

2.

VERIFY THAT THE FAULT IS STILL PRESENT

Turn the ignition off.

Reconnect the A/C Heater Control C2 harness connector.

Turn the ignition on.

Actuate the Clear DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simulta-
neously press the A/C mode switch and the EBL mode switch down for 5 seconds and then release the mode
switches. Stored DTCs will clear from memory in approximately two seconds.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:

Turn the blower control off.

Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL
mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While
the test / function is running, the EBL status indicator will flash once per second. If the test / function passes,
the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash
alternately. Allow the test / function to run to completion before proceeding.

Actuate the Display DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

NOTE: The A/C status indicator displays active DTCs when the EBL status indictor is not illuminated and
stored DTCs when the EBL status indicator is illuminated.
Read DTCs from the A/C status indictor.

Does the A/C status indicator display DTC 64?

Yes

>> Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Using the wiring diagram as a guide, inspect the wiring and connectors for conditions causing an inter-

mittent short that set the original fault. Repair as necessary. Then, if present, diagnose and repair all
other DTCs. Refer to the Table of Contents in this Section for a complete list of HVAC related symp-
toms.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

24 - 148

HVAC - ELECTRICAL DIAGNOSTICS

WK

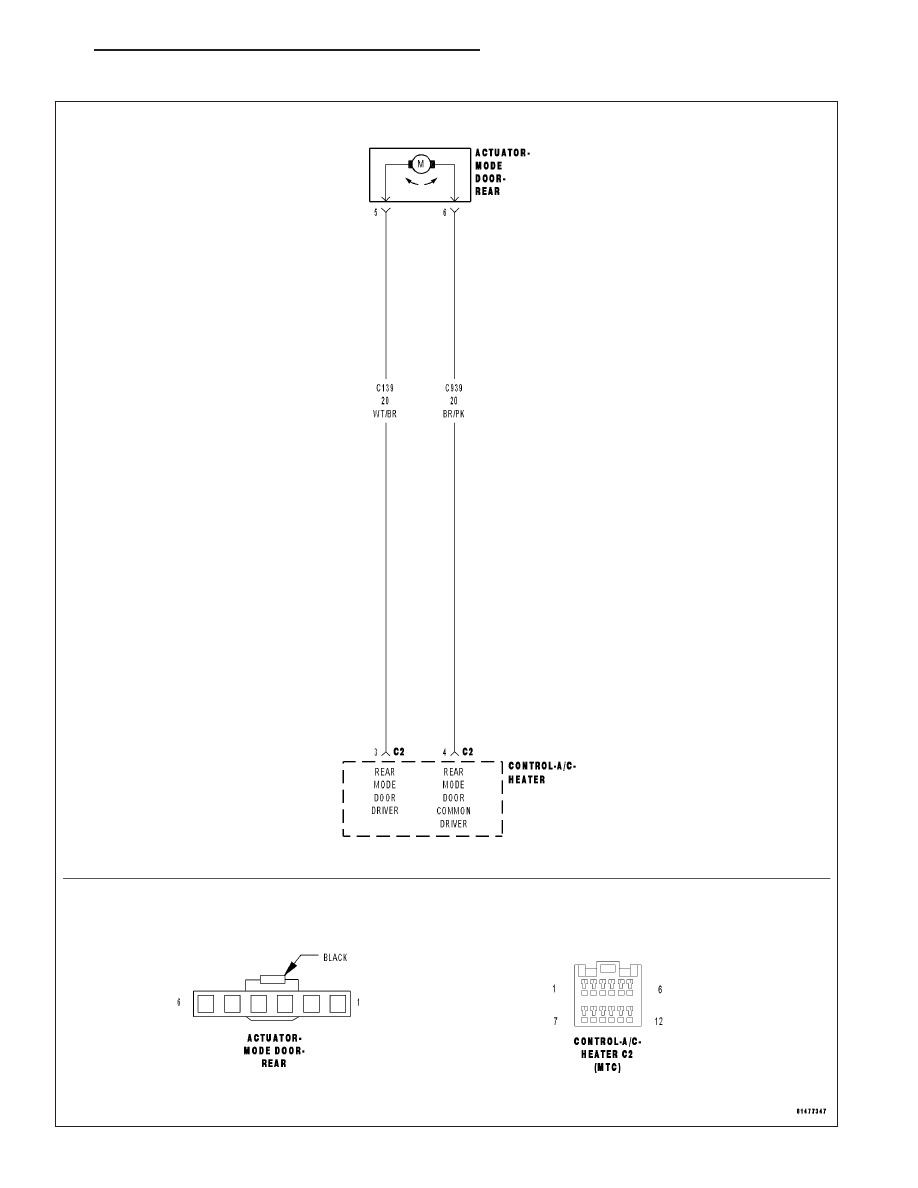

65–REAR MODE DOOR DRIVER CIRCUIT SHORTED TO GROUND (MTC)

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 149

65–REAR MODE DOOR DRIVER CIRCUIT SHORTED TO GROUND (MTC) (CONTINUED)

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

Theory of Operation

NOTE: This DTC will display as active if the ignition is not cycled after running the Actuator Circuit Test /
Door Calibration Function. Otherwise, it will display as stored until cleared.By running the Actuator Circuit
Test / Door Calibration Function, the A/C Heater Control can identify up to three door driver circuits shorted
simultaneously. A DTC 72 will set if more than three door driver circuits are shorted in the same direction
(e.g. four door driver circuits all shorted to ground) or if two or more door driver circuits are shorted with
at least one door driver circuit shorted to ignition and one door driver circuit shorted to ground. To ensure
a proper diagnosis, diagnose and repair Actuator Circuit Test faults in the following order: If present, diag-
nose and repair DTC 72 first, then DTC 62, then DTC 61, then DTCs 64, 66, 68, or 71, and finally DTCs 63,
65, 67, or 69. In addition, always test the door driver circuits after each repair by clearing DTCs, and then
running the Actuator Circuit Test / Door Calibration Function, and then checking for DTCs.

When Monitored:
When running the Actuator Circuit Test / Door Calibration Function.

Set Condition:
If the A/C Heater Control detects a short to ground on the (C139) Rear Mode Door Driver circuit.

Possible Causes

(C139) REAR MODE DOOR DRIVER CIRCUIT SHORTED TO GROUND

(C139) REAR MODE DOOR DRIVER CIRCUIT SHORTED TO (C939) REAR MODE DOOR COMMON DRIVER
CIRCUIT

REAR MODE DOOR ACTUATOR

A/C HEATER CONTROL

Diagnostic Test

1.

CHECK THE (C139) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the A/C Heater Control C2 harness connector.

Measure the resistance of the (C139) Rear Mode Door Driver circuit
between ground and the A/C Heater Control C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C139) Rear Mode Door Driver circuit for a

short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 2

24 - 150

HVAC - ELECTRICAL DIAGNOSTICS

WK

65–REAR MODE DOOR DRIVER CIRCUIT SHORTED TO GROUND (MTC) (CONTINUED)

2.

CHECK THE REAR MODE DOOR ACTUATOR CIRCUIT RESISTANCE

Measure the resistance between the (C139) Rear Mode Door Driver
circuit and the (C939) Rear Mode Door Common Driver circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 30.0 ohms?

Yes

>> Go To 3

No

>> Go To 4

3.

CHECK THE (C139) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C939) REAR MODE
DOOR COMMON DRIVER CIRCUIT

Disconnect the Rear Mode Door Actuator harness connector.

Measure the resistance between the (C139) Rear Mode Door Driver
circuit and the (C939) Rear Mode Door Common Driver Circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C139) Rear Mode Door Driver circuit for a

short to the (C939) Rear Mode Door Common Driver cir-
cuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Replace the Rear Mode Door Actuator in accordance with

the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 151
