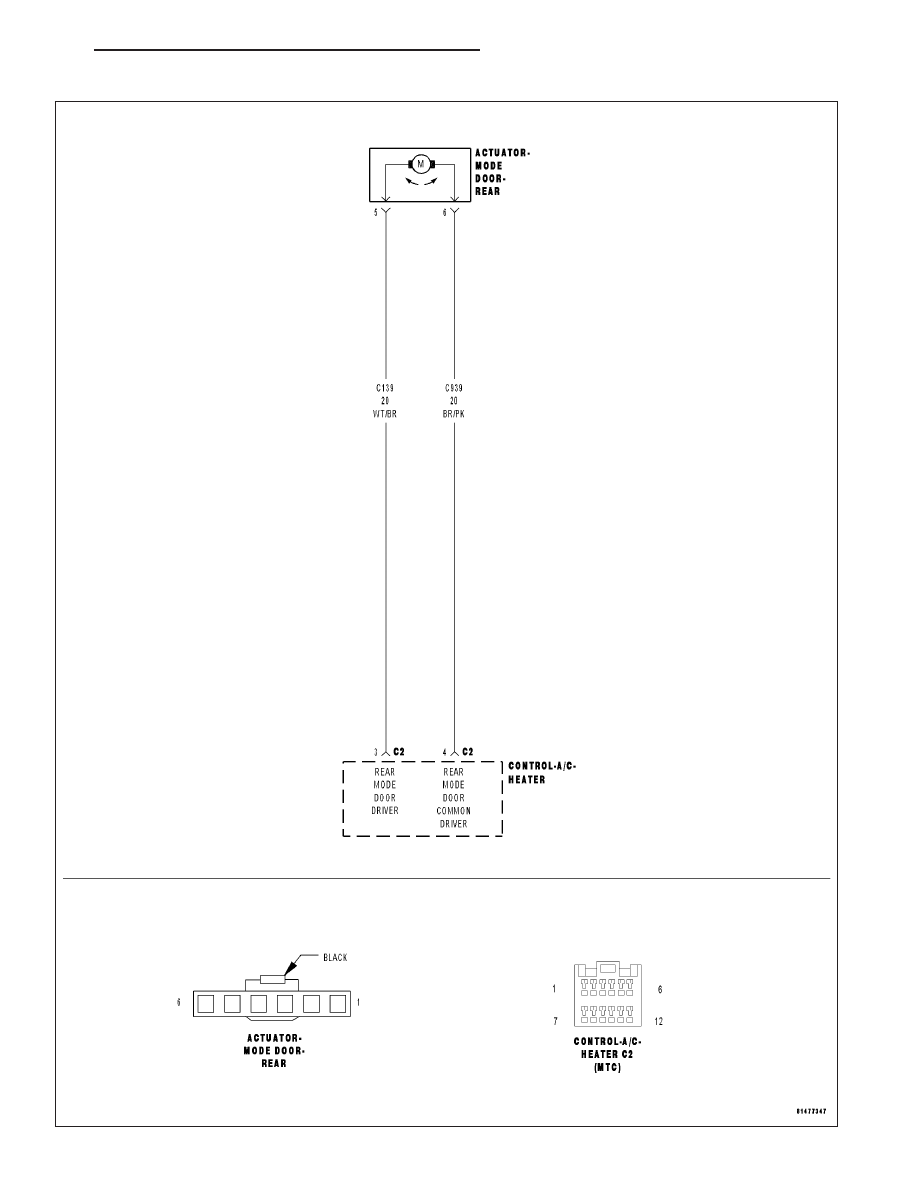

47–RECIRC DOOR BOUND (MTC) (CONTINUED) 7. VERIFY THAT FAULT IS STILL PRESENT Turn the ignition on. Actuate the Clear DTC function by performing the following: • Turn the blower control on. • Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode • When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simulta- Turn the ignition off, wait 10 seconds, and turn the ignition on. Actuate the Actuator Circuit Test / Door Calibration Function by performing the following: • Turn the blower control off. • Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL Actuate the Display DTC function by performing the following: • Turn the blower control on. • Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode NOTE: The A/C status indicator displays active DTCs when the EBL status indictor is not illuminated and Does the A/C status indicator display DTC 47? Yes >> Replace the A/C Heater Control in accordance with the Service Information. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL No >> Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE). 24 - 104 HVAC - ELECTRICAL DIAGNOSTICS WK |
