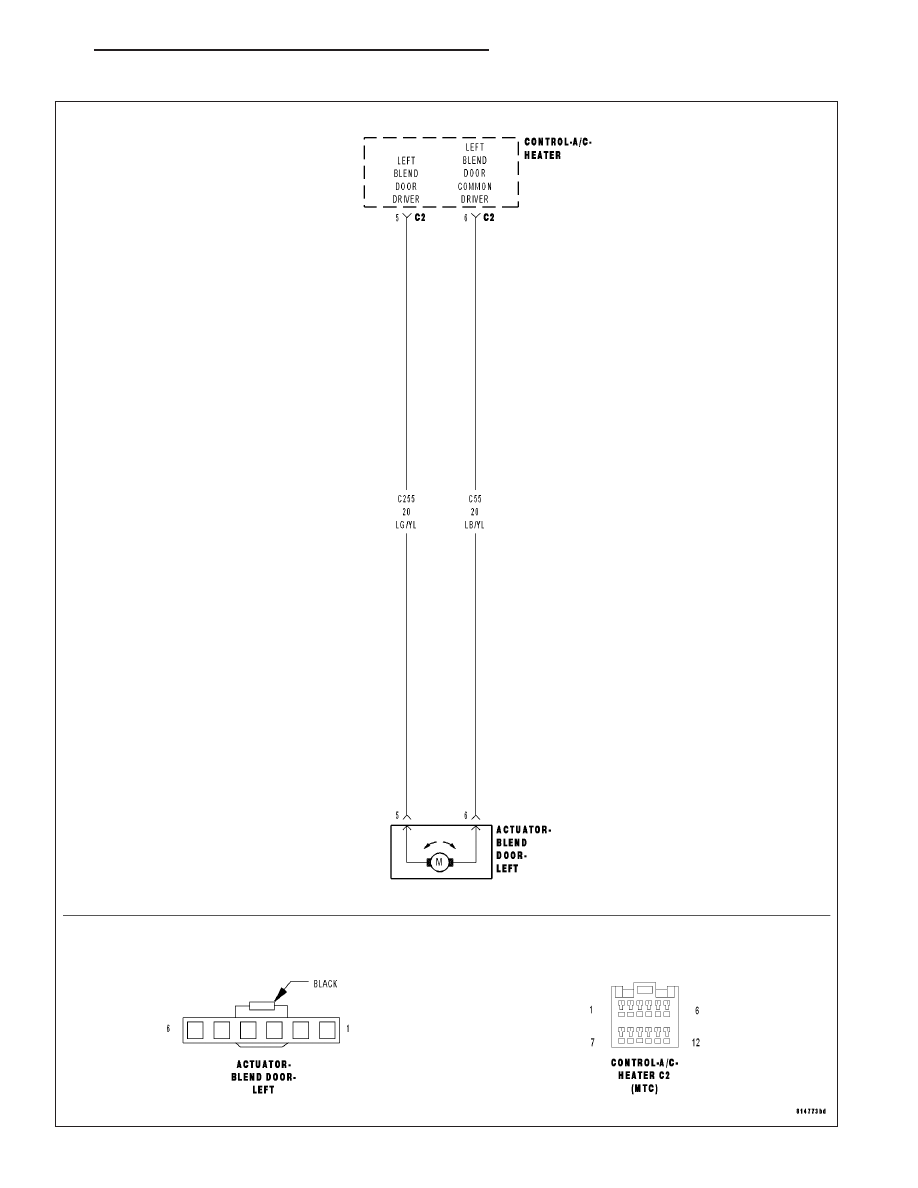

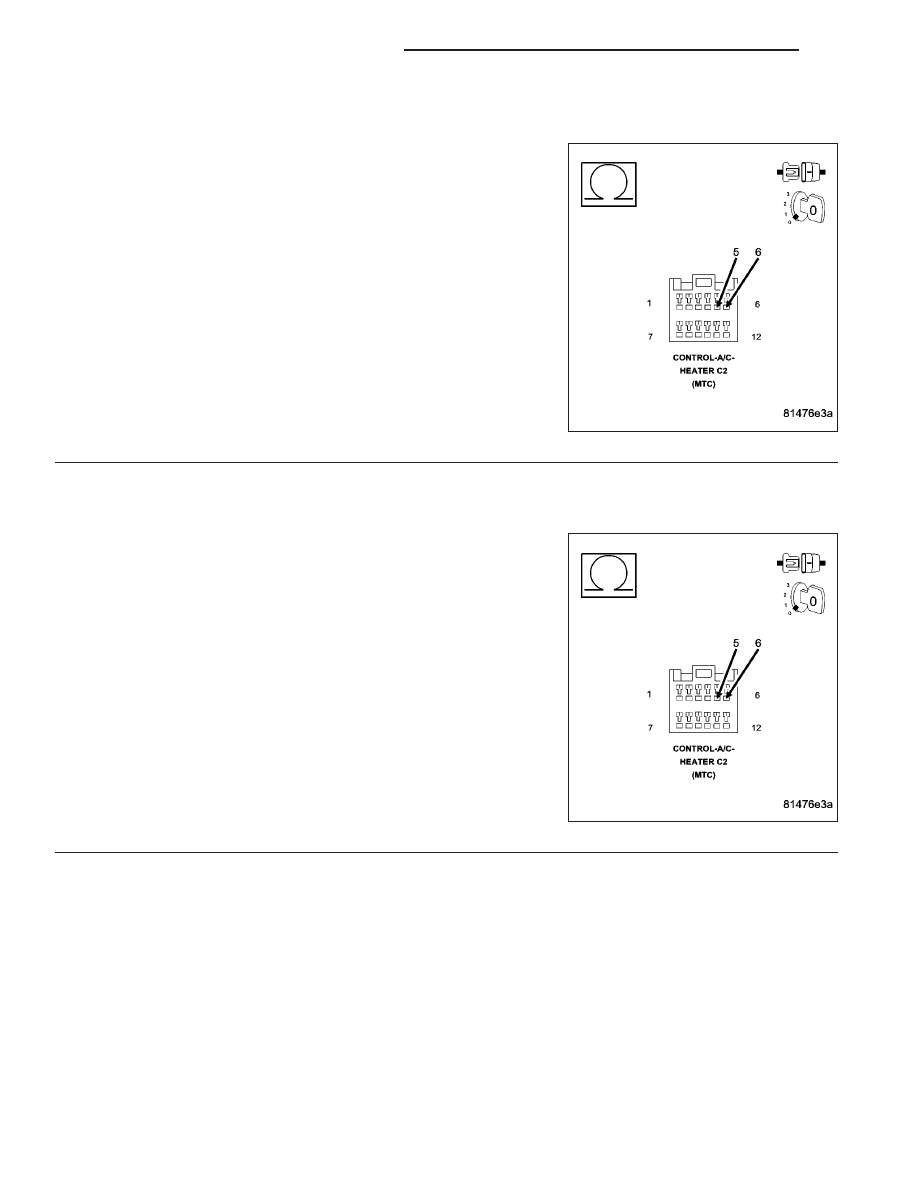

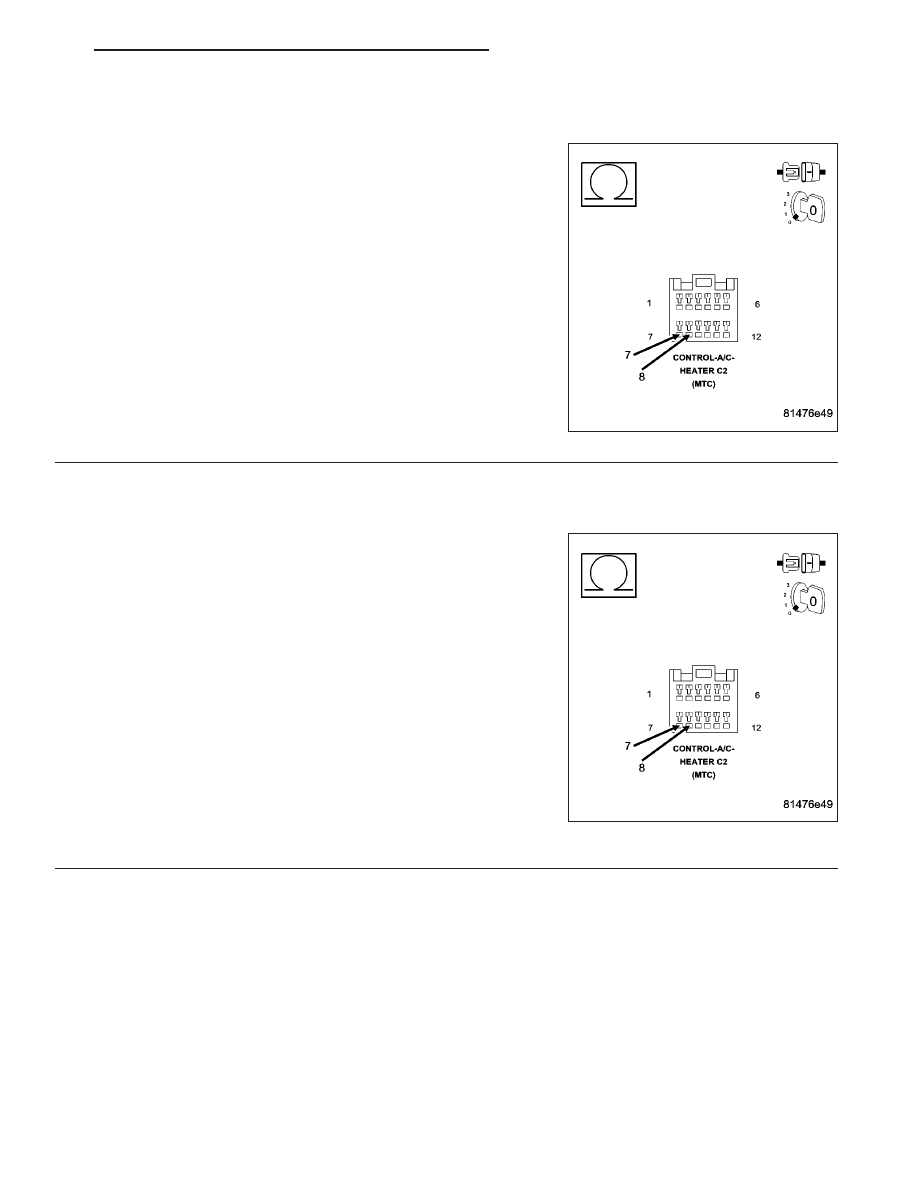

44–RECIRC OVERCURRENT (MTC) (CONTINUED) 12. CHECK THE LEFT BLEND DOOR ACTUATOR CIRCUIT RESISTANCE Measure the resistance between the (C55) Left Blend Door Common Is the resistance below 30.0 ohms? Yes >> Go To 13 No >> Go To 14 13. CHECK THE (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C255) Disconnect the Left Blend Door Actuator harness connector. Measure the resistance between the (C55) Left Blend Door Common Is the resistance below 10k ohms? Yes >> Repair the (C55) Left Blend Door Common Driver Circuit for a short to the (C255) Left Blend Door Driver circuit. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 No >> Replace the Left Blend Door Actuator in accordance with the Service Information. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 24 - 84 HVAC - ELECTRICAL DIAGNOSTICS WK |
