Jeep Grand Cherokee WK. Manual - part 1677





42–REAR MODE OVERCURRENT (MTC) (CONTINUED)

Diagnostic Test

1.

RUN THE ACTUATOR CIRCUIT TEST / DOOR CALIBRATION FUNCTION & THEN CHECK FOR
ACTUATOR CIRCUIT TEST FAULTS

NOTE: Diagnose and repair Actuator Circuit Test faults (DTC 61, 62, 63, 64, 65, 66, 67, 68, 69, 71, and 72)
before diagnosing Overcurrent faults (DTC 41, 42, 43, and 44).
Turn the ignition on.

Actuate the Clear DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simulta-
neously press the A/C mode switch and the EBL mode switch down for 5 seconds and then release the mode
switches. Stored DTCs will clear from memory in approximately two seconds.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:

Turn the blower control off.

Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL
mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While
the test / function is running, the EBL status indicator will flash once per second. If the test / function passes,
the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash
alternately. Allow the test / function to run to completion before proceeding.

Actuate the Display DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

NOTE: The A/C status indicator displays active DTCs when the EBL status indictor is not illuminated and
stored DTCs when the EBL status indicator is illuminated.
Read DTCs from the A/C status indictor.

Does the A/C status indicator display any of the following DTCs: 61, 62, 63, 64, 65, 66, 67, 68, 69, 71, or
72?

Yes

>> As present, diagnose and repair the Actuator Circuit Test faults in the following order: DTC 72 first, then

DTC 62, then DTC 61, then DTCs 64, 66, 68, or 71, and finally DTCs 63, 65, 67, or 69. Refer to the
Table Of Contents in this section for a complete list of HVAC related symptoms.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Go To 2

24 - 56

HVAC - ELECTRICAL DIAGNOSTICS

WK

42–REAR MODE OVERCURRENT (MTC) (CONTINUED)

2.

CHECK THE (C266) FRONT MODE DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C139) REAR MODE
DOOR DRIVER CIRCUIT, (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT, (C255) LEFT BLEND
DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268) RECIRCULATION
DOOR DRIVER CIRCUIT, & THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT

Turn the ignition off.

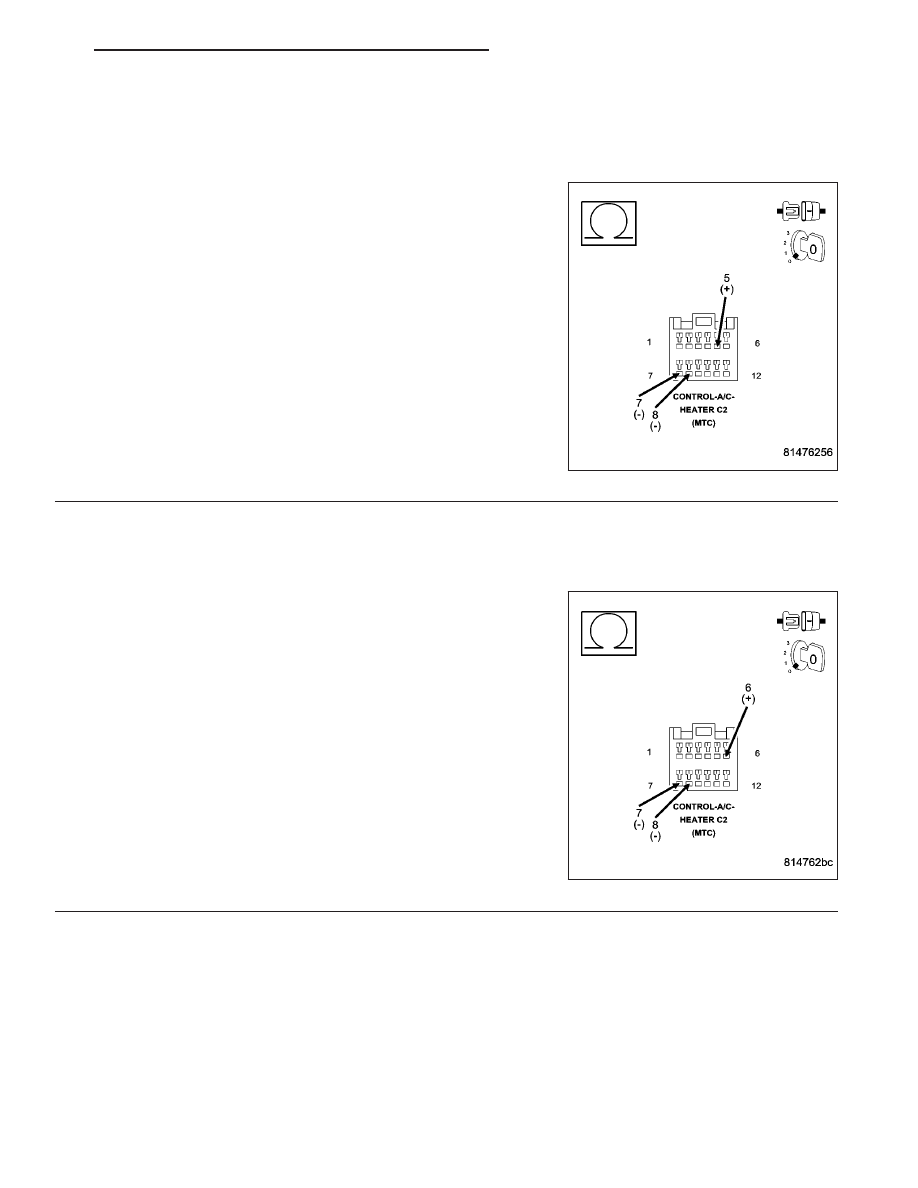

Measure the resistance between the (C266) Front Mode Door Driver
circuit and the (C139) Rear Mode Door Driver circuit, (C939) Rear
Mode Door Common Driver circuit, (C255) Left Blend Door Driver cir-
cuit, (C55) Left Blend Door Common Driver circuit, (C268) Recircula-
tion Door Driver circuit, and the (C68) Recirculation Door Common
Driver circuit in the A/C Heater Control C2 harness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C266) Front Mode Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 3

3.

CHECK THE (C66) FRONT MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C139)
REAR MODE DOOR DRIVER CIRCUIT, (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT, (C255)
LEFT BLEND DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268)
RECIRCULATION DOOR DRIVER CIRCUIT, & THE (C68) RECIRCULATION DOOR COMMON DRIVER
CIRCUIT

Measure the resistance between the (C66) Front Mode Door Common
Driver circuit and the (C139) Rear Mode Door Driver circuit, (C939)
Rear Mode Door Common Driver circuit, (C255) Left Blend Door
Driver circuit, (C55) Left Blend Door Common Driver circuit, (C268)
Recirculation Door Driver circuit, and the (C68) Recirculation Door
Common Driver circuit in the A/C Heater Control C2 harness connec-
tor.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C66) Front Mode Door Common Driver cir-
cuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 4

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 57

42–REAR MODE OVERCURRENT (MTC) (CONTINUED)

4.

CHECK THE (C139) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C255) LEFT BLEND
DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268) RECIRCULATION
DOOR DRIVER CIRCUIT, & THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT

Measure the resistance between the (C139) Rear Mode Door Driver
circuit and the (C255) Left Blend Door Driver circuit, (C55) Left Blend
Door Common Driver circuit, (C268) Recirculation Door Driver circuit,
and the (C68) Recirculation Door Common Driver circuit in the A/C
Heater Control C2 harness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C139) Rear Mode Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 5

5.

CHECK THE (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C255) LEFT
BLEND DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268)
RECIRCULATION DOOR DRIVER CIRCUIT, & THE (C68) RECIRCULATION DOOR COMMON DRIVER
CIRCUIT

Measure the resistance between the (C939) Rear Mode Door Com-
mon Driver circuit and (C255) Left Blend Door Driver circuit, (C55) Left
Blend Door Common Driver circuit, (C268) Recirculation Door Driver
circuit, and the (C68) Recirculation Door Common Driver circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C939) Rear Mode Door Common Driver cir-
cuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 6

24 - 58

HVAC - ELECTRICAL DIAGNOSTICS

WK

42–REAR MODE OVERCURRENT (MTC) (CONTINUED)

6.

CHECK THE (C255) LEFT BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C268)
RECIRCULATION DOOR DRIVER CIRCUIT & THE (C68) RECIRCULATION DOOR COMMON DRIVER
CIRCUIT

Measure the resistance between the (C255) Left Blend Door Driver cir-
cuit and the (C268) Recirculation Door Driver circuit and the (C68)
Recirculation Door Common Driver circuit in the A/C Heater Control
C2 harness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C255) Left Blend Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 7

7.

CHECK THE (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C268)
RECIRCULATION DOOR DRIVER CIRCUIT & THE (C68) RECIRCULATION DOOR COMMON DRIVER
CIRCUIT

Measure the resistance between the (C55) Left Blend Door Common
Driver circuit and the (C268) Recirculation Door Driver circuit and the
(C68) Recirculation Door Common Driver circuit in the A/C Heater
Control C2 harness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C55) Left Blend Door Common Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 8

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 59
