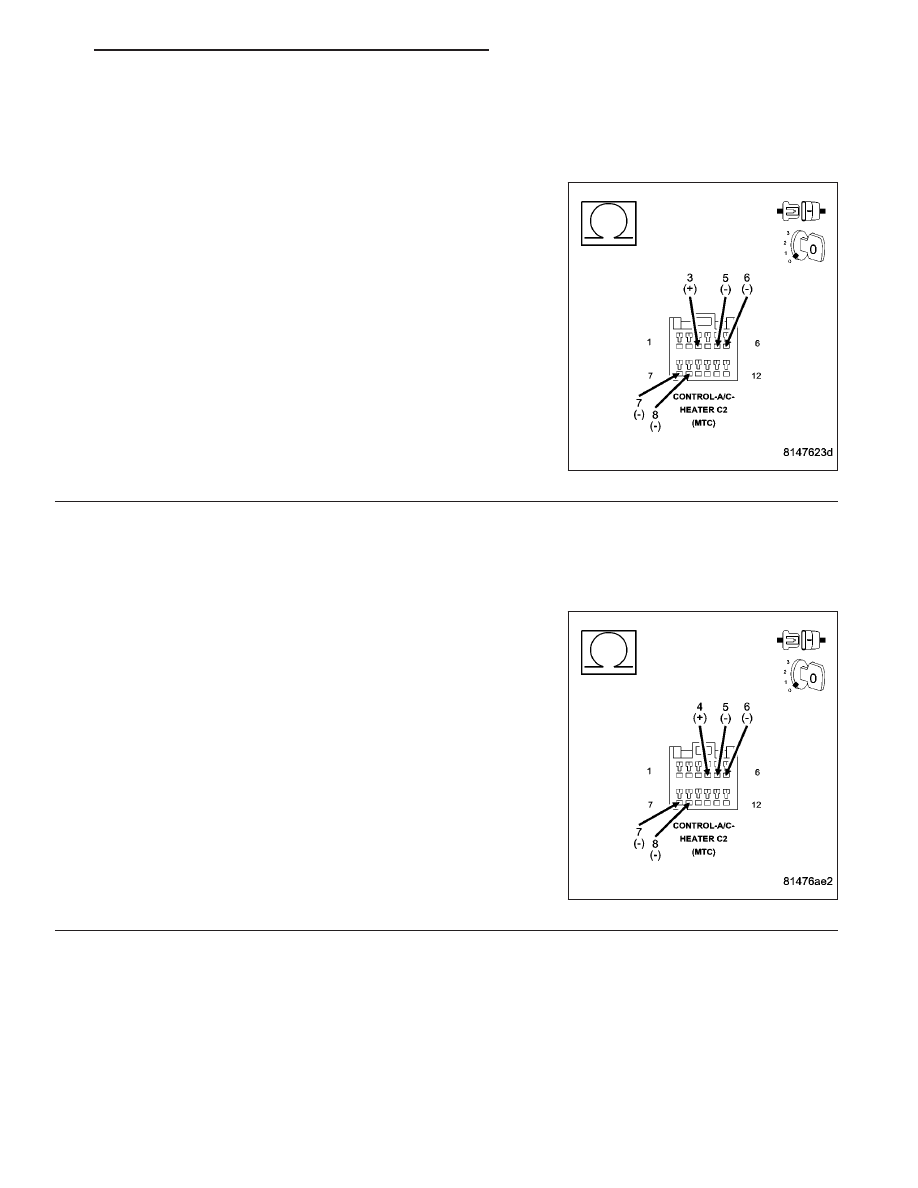

41–FRONT MODE OVERCURRENT (MTC) (CONTINUED) For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE- For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes DOOR DRIVER CIRCUIT(S) SHORTED TO VOLTAGE DOOR DRIVER CIRCUIT(S) SHORTED TO GROUND DOOR DRIVER CIRCUITS SHORTED TOGETHER FRONT MODE DOOR ACTUATOR REAR MODE DOOR ACTUATOR LEFT BLEND DOOR ACTUATOR RECIRCULATION DOOR ACTUATOR A/C HEATER CONTROL NOTE: This DTC must be active for the result of this test to be valid. Do not perform this test if this DTC is 24 - 44 HVAC - ELECTRICAL DIAGNOSTICS WK |
