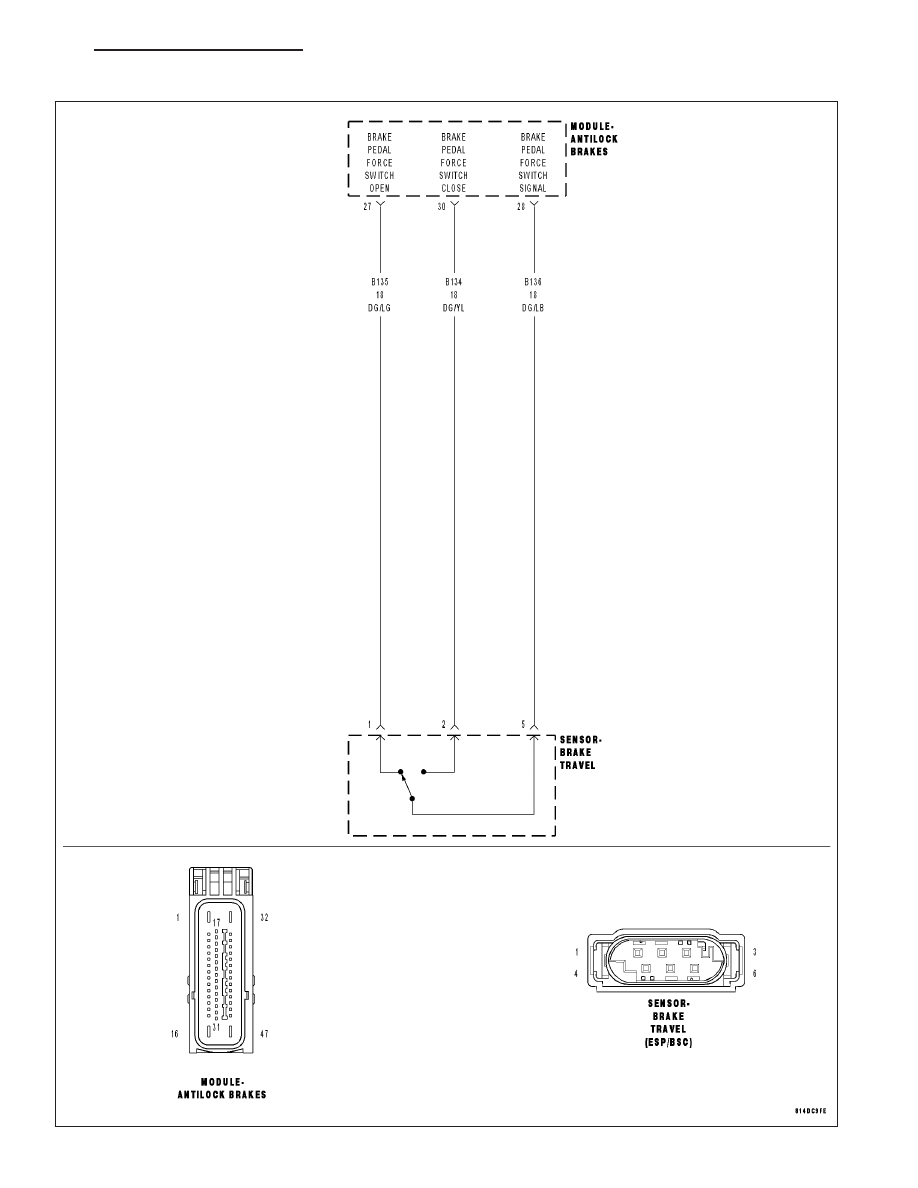

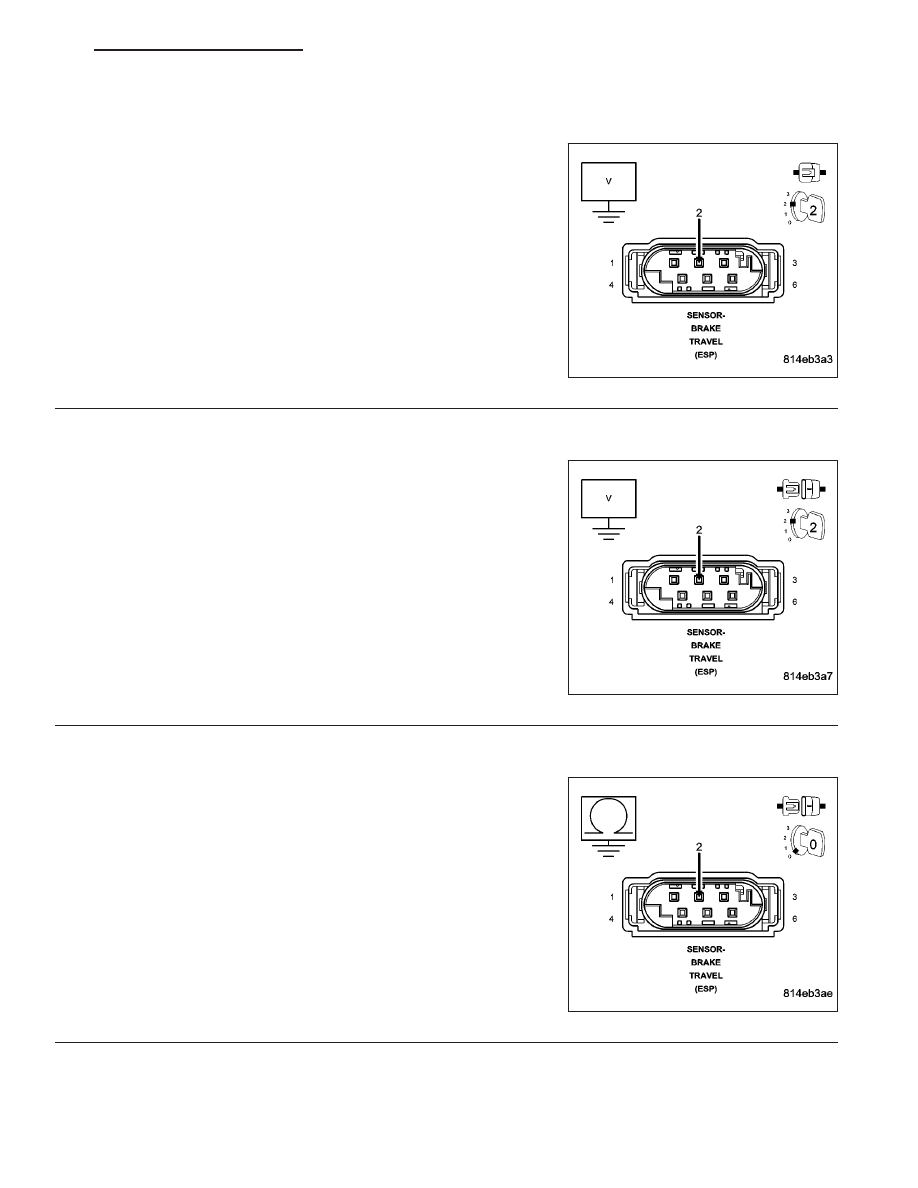

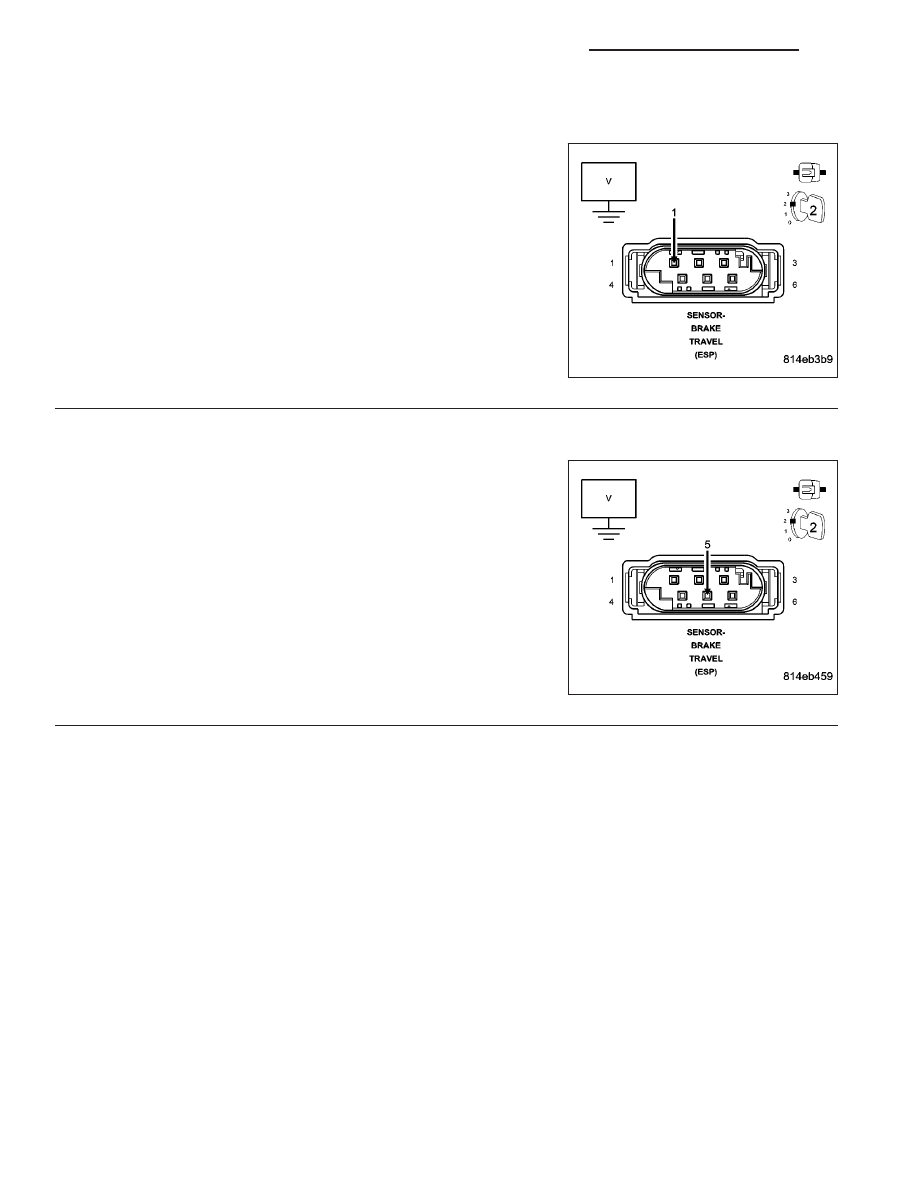

C122A-BRAKE BOOSTER PEDAL FORCE SWITCH CIRCUIT (CONTINUED) 16. CHECK THE VOLTAGE ON THE (B135) BRAKE PEDAL FORCE SWITCH OPEN CIRCUIT Measure the voltage of the (B135) Brake Pedal Force Switch Open Depress and hold the brake pedal. Is the voltage approximately 6 volts? Yes >> Go To 17 No >> Replace the Brake Travel Sensor in accordance with the Service Information. Perform ABS VERIFICATION TEST - VER 1. 17. CHECK THE VOLTAGE ON THE (B136) BRAKE PEDAL FORCE SWITCH SIGNAL CIRCUIT Measure the voltage of the (B136) Brake Pedal Force Switch Signal Depress and hold the brake pedal. Is the voltage approximately 6 volts? Yes >> Replace the Anti-Lock Brake Module in accordance with the Service Information. Perform ABS VERIFICATION TEST - VER 1. No >> Replace the Brake Travel Sensor in accordance with the Service Information. Perform ABS VERIFICATION TEST - VER 1. 5 - 290 BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS WK |
