SUNSHADE

REMOVAL

1. Remove the drain channel. (Refer to 23 - BODY/

SUNROOF/CHANNEL-DRAIN - REMOVAL)

2. Push up the front center of the sunshade (1) to pop

out the front two feet.

3. Rotate the sunshade (2) so that the other feet (1)

are removed from the guide track.

23 - 198

SUNROOF - SERVICE INFORMATION

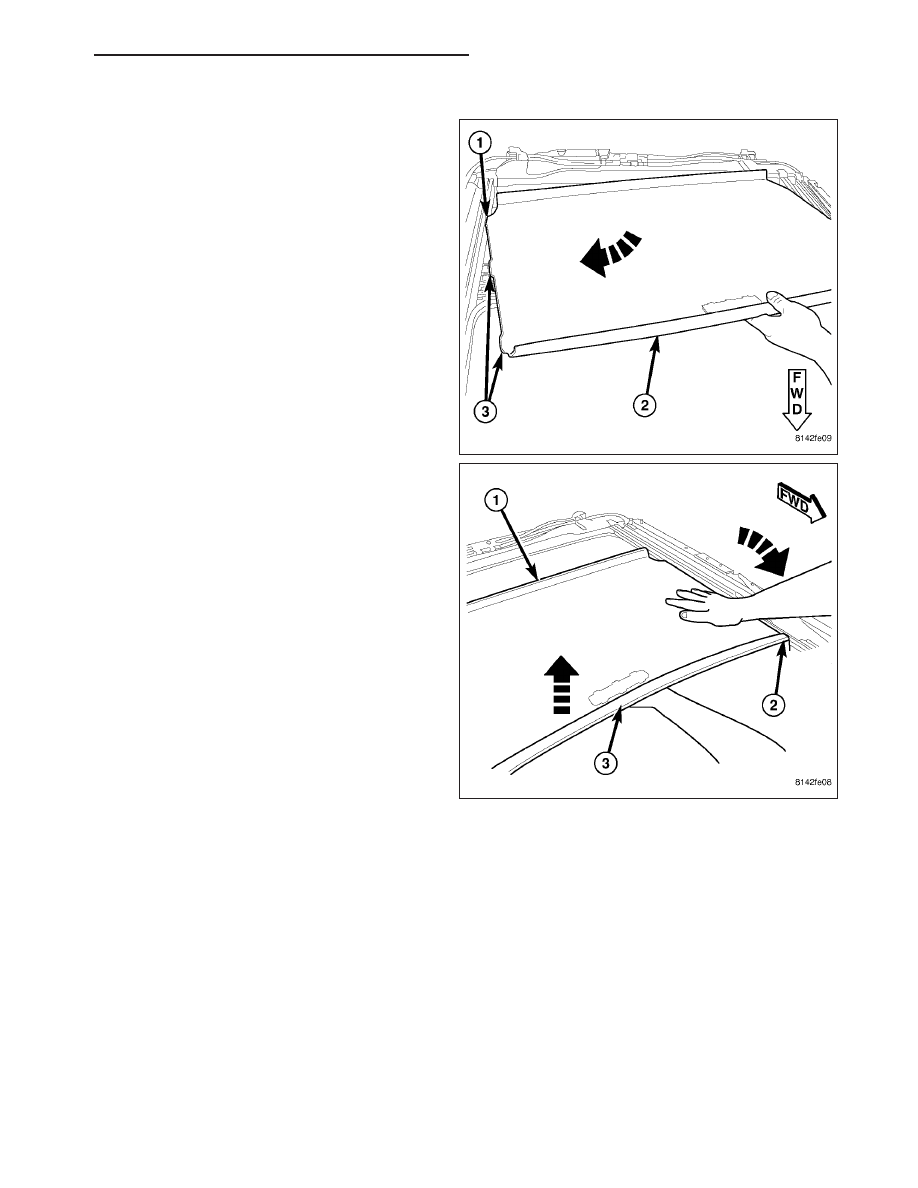

INSTALLATION

1. Verify the sunshade track is free of obstructions

like the trim lace/ring.

2. Start with sunshade (2) at an angle with one foot

(1) in the track.

3. Rotate the sunshade so the other rear foot is in the

track as well as the 2 other feet (3) on the same
side as the first foot.

4. To insert the remaining two feet (2) apply force to

the middle front of sunshade (3) and guide them
into the track.

5. Check that all the feet are in the right track and

verify sunshade operation.

6. Install the drain channel. (Refer to 23 - BODY/

SUNROOF/CHANNEL-DRAIN - INSTALLATION)

SWITCH-SUNROOF

DESCRIPTION

For service information refer to (Refer to 8 - ELECTRICAL/POWER TOP/SWITCH - DIAGNOSIS AND TESTING).

SUNROOF - SERVICE INFORMATION

23 - 199

TRIM LACE

REMOVAL

1. Remove trim lace (2) by holding one end of the

trim lace at the butt joint and pulling horizontally
into the opening until lace is completely loose from
the headliner/sunroof joint.

INSTALLATION

1. Place butt joint of trim lace into position starting at

the drivers side middle of the opening at the butt
joint notch in the u-frame.

2. Push lace into position.

3. Ensure that the corner radii is fully engage.

4. Once the trim lace is attached to sunroof module

using a trim stick C-4755 or equivalent, begin tuck-
ing the headliner under the lip on the trim lace
working all the way around the opening. When
installing a new trim lace, begin tucking the head-
liner under the lip as the tear cord (1) is removed
working all the way around the opening.

23 - 200

SUNROOF - SERVICE INFORMATION

BODY STRUCTURE

TABLE OF CONTENTS

page

GAP AND FLUSH

SPECIFICATIONS

GAP AND FLUSH SPECIFICATIONS

. . . . . . 202

OPENING DIMENSIONS

SPECIFICATIONS

OPENING DIMENSIONS
