9. push the drive cable and guide plate forward past

the hard stop screw location until the glass guide
comes loose.

10. Rotate the guide (1) up and out of the front beam

(3) and release the front foot (2) from the channel
guide.

INSTALLATION

1. With the drive cable plate aligned insert the front

foot (2) into the guide channel and engage the feet
with the front beam (3).

23 - 194

SUNROOF - SERVICE INFORMATION

WK

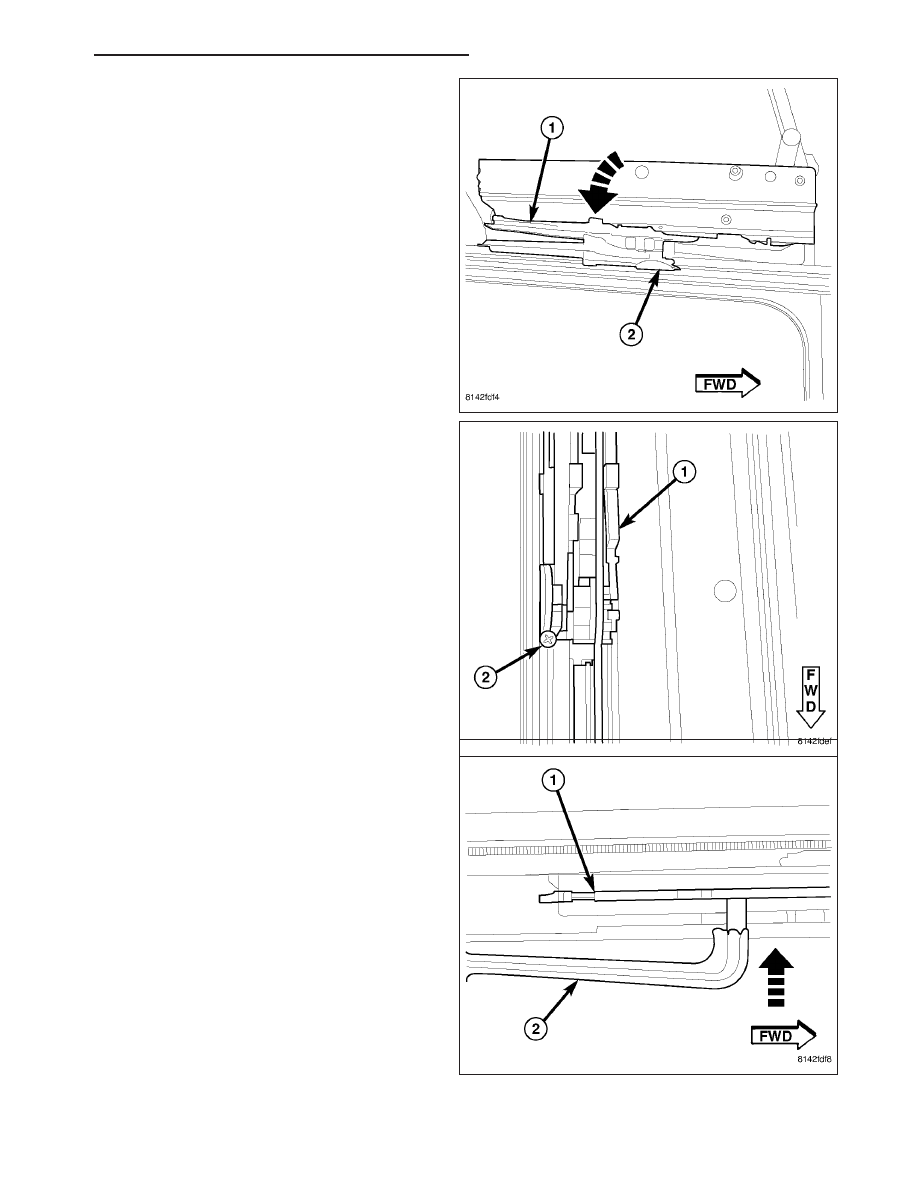

2. Rotate the guide plate (1) inboard until the feet of

the guide are engaged into the front beam (2).

3. Push the guide assembly (1) and drive cable rear-

ward past the hard stop location.

4. Install the hard stop screw (2) and push the drive

cable and guide assembly (1) up against the hard
stop screw (2).

5. Verify that the opposite guide assembly is also

positioned up against the hard stop screw.

6. Install the wind deflector as necessary. (Refer to 23

- BODY/SUNROOF/DEFLECTOR-WIND - INSTAL-
LATION)

7. Install the motor as necessary. (Refer to 8 - ELEC-

TRICAL/POWER

TOP

-

SUNROOF

SERVICE

INFO/MOTOR/MODULE-SUNROOF - INSTALLA-
TION)

8. Install the drain channel arms (2) into the mecha-

nism (1) holes one at a time with the reinforce-
ments on the inside of mechanism arms.

CAUTION: Do not pry the channel arms apart at
the same time or you could break the drain chan-
nel.

9. Install the sunroof assembly into the vehicle. (Refer

to 23 - BODY/SUNROOF/ASSEMBLY-MODULE -
INSTALLATION)

10. Perform the sunroof position calibration, (Refer to

8 - ELECTRICAL/POWER TOP/MOTOR - STAN-
DARD PROCEDURE - SUNROOF POSITION
CALIBRATION).

11. Perform the Excessive Force Limitation (EFL) cal-

ibration, (Refer to 8 - ELECTRICAL/POWER TOP/
MOTOR - STANDARD PROCEDURE - EXCESSIVE FORCE LIMITATION (EFL) CALIBRATION).

12. Install the glass as necessary. (Refer to 23 - BODY/SUNROOF/GLASS - INSTALLATION)

WK

SUNROOF - SERVICE INFORMATION

23 - 195

13. Adjust sunroof glass to fit flush with roof line (Refer to 23 - BODY/SUNROOF/GLASS PANEL - ADJUST-

MENTS).

14. Verify proper operation of the power sunroof system.

HOSE-DRAIN

REMOVAL

FRONT HOSES

1. Remove headliner (Refer to 23 - BODY/INTERIOR/

HEADLINER - REMOVAL).

2. Disconnect the drain hose from the sunroof hous-

ing (1).

3. Separate the lower tube from the grommet in the

body.

4. Drain any liquid from hose connection, if necessary.

5. Release the clips and remove the tube.

REAR HOUSING HOSE

1. Remove headliner (Refer to 23 - BODY/INTERIOR/

HEADLINER - REMOVAL).

2. Disconnect the drain hose from the sunroof hous-

ing (2).

3. Drain any liquid from hose connection, if necessary.

4. Release the push pin fasteners and separate the

lower tube from the grommet in the body.

23 - 196

SUNROOF - SERVICE INFORMATION

WK

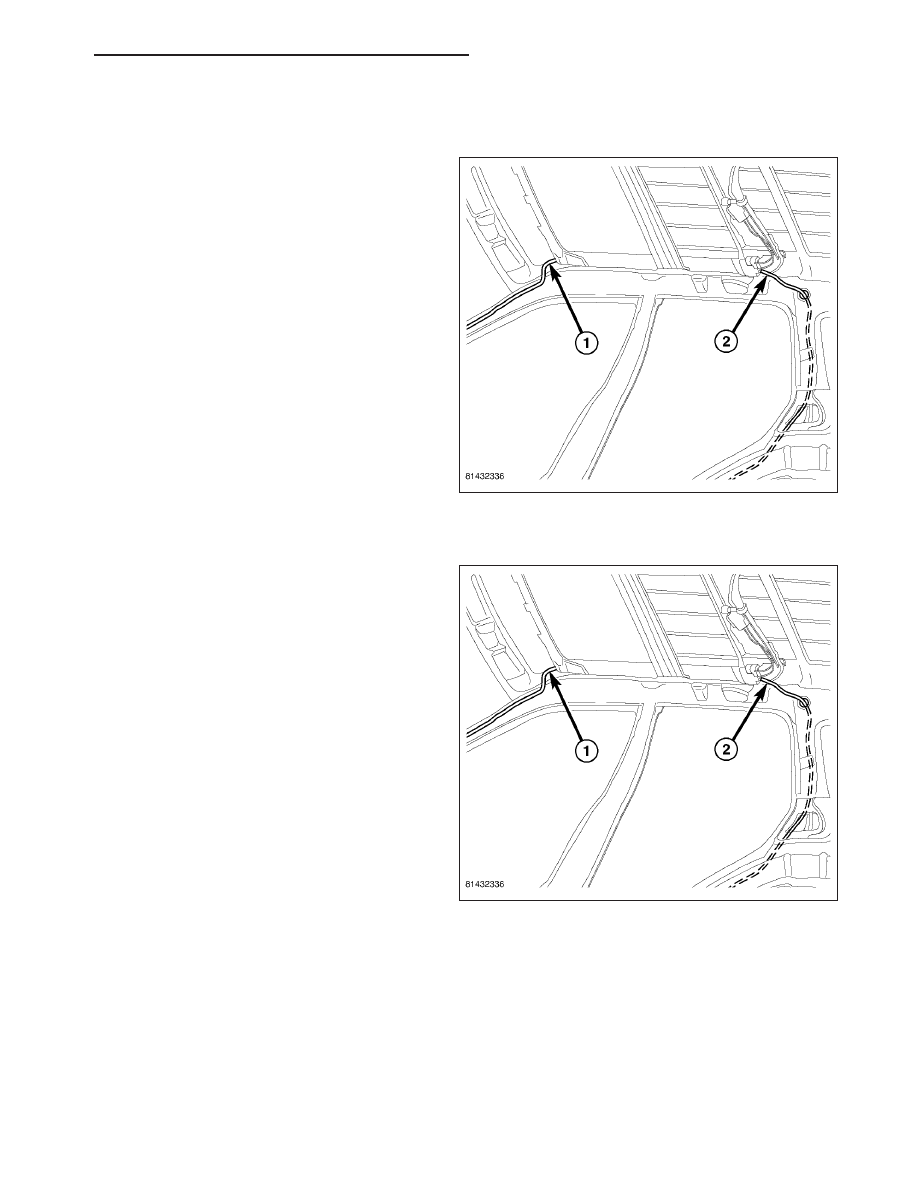

INSTALLATION

FRONT HOSES

1. Position the lower portion through the grommet in

the body.

2. Connect the new drain hose to the sunroof housing

(1) and test drainage.

3. Position the hose into the support clips.

4. Install headliner (Refer to 23 - BODY/INTERIOR/

HEADLINER - INSTALLATION).

REAR HOUSING HOSE

1. Install the rear hose and seat the push pin fasten-

ers fully.

2. Position the lower portion through the grommet in

the body.

3. Connect the new drain hose to the sunroof housing

(2) and test drainage.

4. Install headliner (Refer to 23 - BODY/INTERIOR/

HEADLINER - INSTALLATION).

MOTOR

DESCRIPTION

For service information refer to (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - DIAGNOSIS AND TESTING).

WK

SUNROOF - SERVICE INFORMATION

23 - 197
