INSTALLATION

1. Carefully position the drain channel (1) into the

notches (2) in the frame and slide rearward.

2. Install the drain channel arms (2) into the mecha-

nism (1) holes one at a time with the reinforce-
ments on the inside of mechanism arms.

CAUTION: Do not pry the channel arms apart at
the same time or you could break the drain chan-
nel.

3. Install the sunroof glass. (Refer to 23 - BODY/

SUNROOF/GLASS PANEL - INSTALLATION)

23 - 186

SUNROOF - SERVICE INFORMATION

WK

COVER-GUIDE MECHANISM

REMOVAL

1. Move the glass panel to the full closed position.

2. Slide sunshade rearward to the open position.

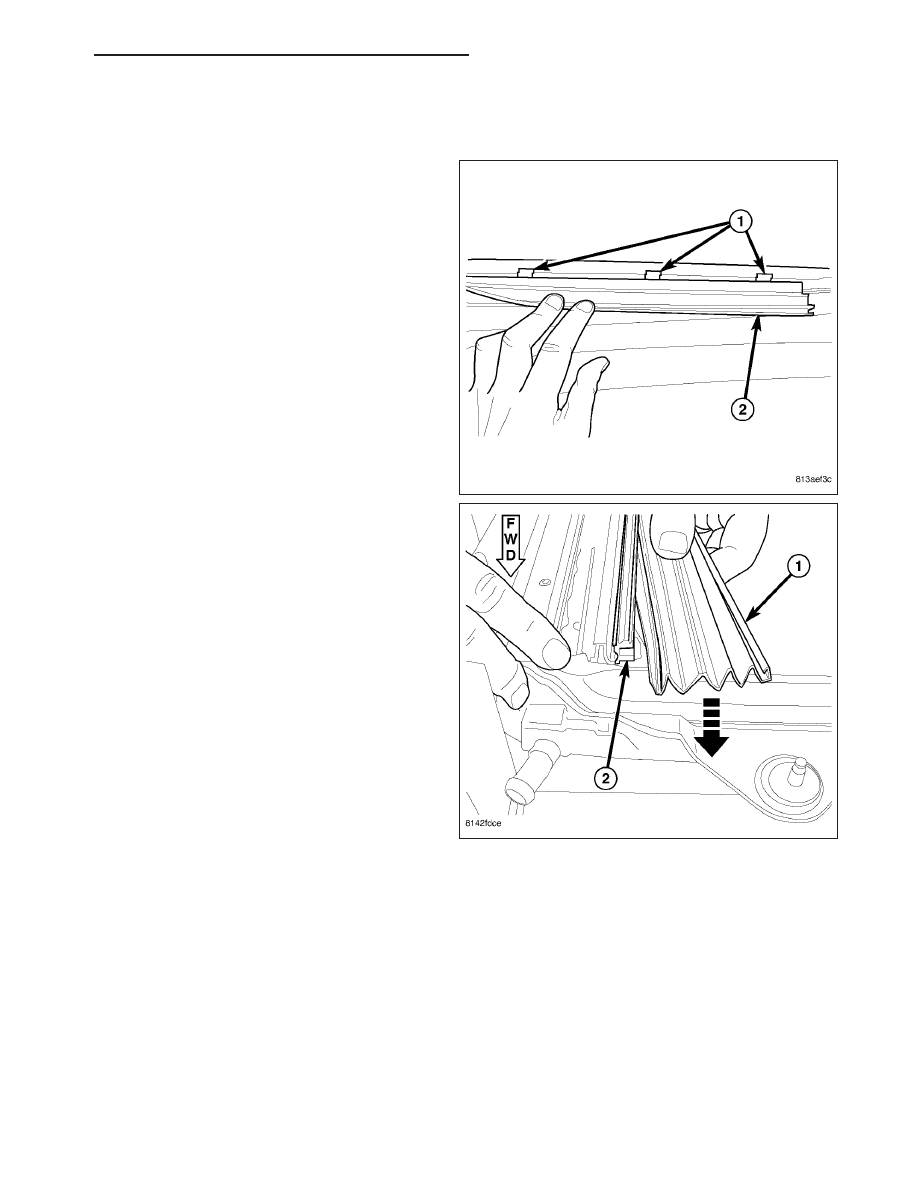

3. Separate the mechanism covers (2) from the tabs

(1) on the glass panel.

4. Hold both mechanism covers down and open the

sunroof fully.

5. Slide the mechanism covers (1) out the front of the

guide in the frame (2).

WK

SUNROOF - SERVICE INFORMATION

23 - 187

INSTALLATION

1. With the sunroof in the open position, snap the mechanism cover (2) into the lower guide channel.

2. Hold down each cover and close the sunroof.

3. Snap the upper portion of the cover into the retaining clips (1) on the glass panel between the locating features.

DEFLECTOR-WIND

REMOVAL

1. Open the sunroof fully.

2. Remove the strap screws (2) from the beam area

release the strap (3).

23 - 188

SUNROOF - SERVICE INFORMATION

WK

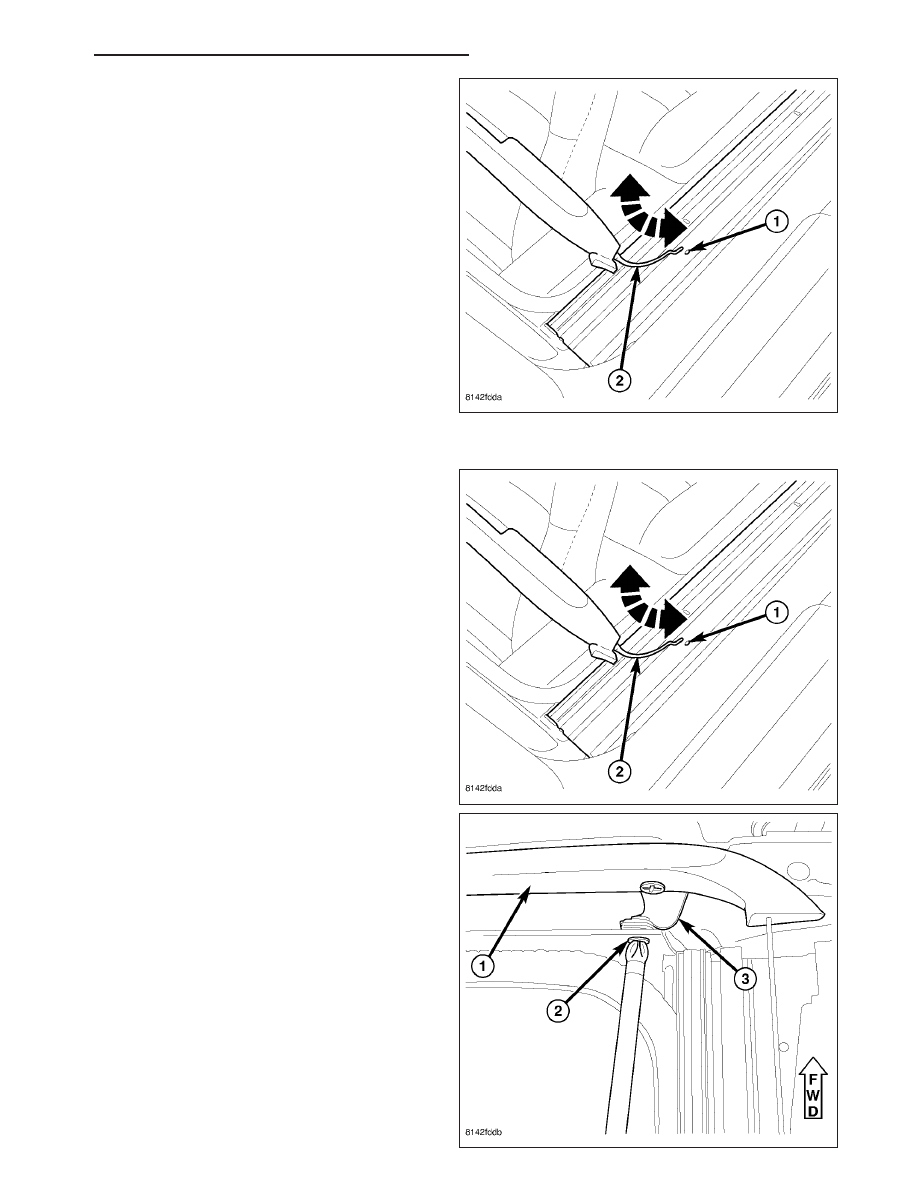

3. Rotate the deflector up and remove springs (2)

from the holes in the frame (1).

INSTALLATION

1. Position the deflector spring arms (2) into the holes

of the frame (1).

2. Rotate the deflector down, attach the straps (3)

and install the strap screws (2) into the front beam.

3. Verify sunroof operation and alignment.

WK

SUNROOF - SERVICE INFORMATION

23 - 189
