DOOR SILL SCUFF PLATE

REMOVAL

1. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the door sill scuff plate to the

retaining clips in the door sill and remove the scuff plate.

INSTALLATION

1. Align the retaining tabs on the door sill scuff plate with the retaining clips in the door sill and engage the retaining

tabs that secure the scuff plate to the door sill.

23 - 118

INTERIOR

WK

FLOOR CONSOLE

REMOVAL

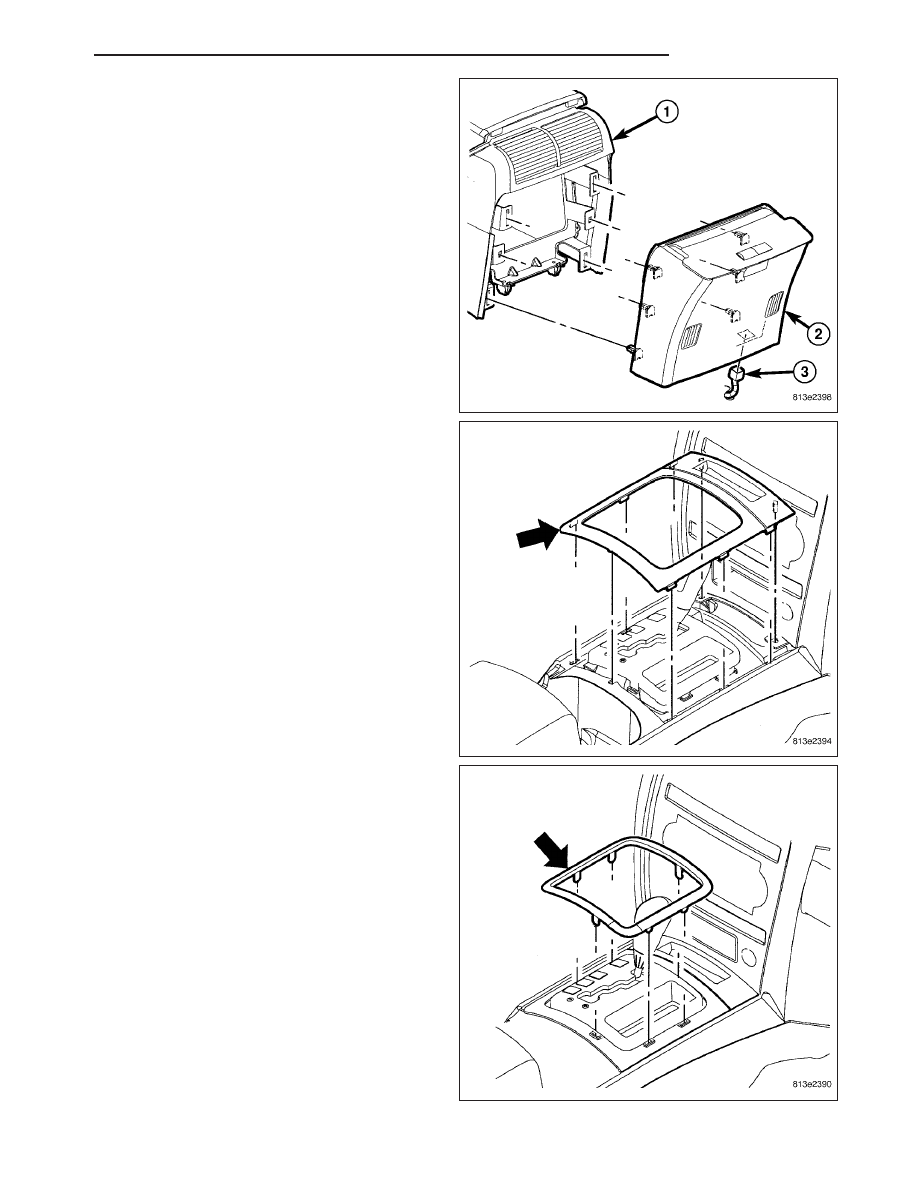

1. Using a trim stick C-4755 or equivalent, remove the

shifter bezel ring.

2. Using a trim stick C-4755 or equivalent, remove the

shifter bezel.

WK

INTERIOR

23 - 119

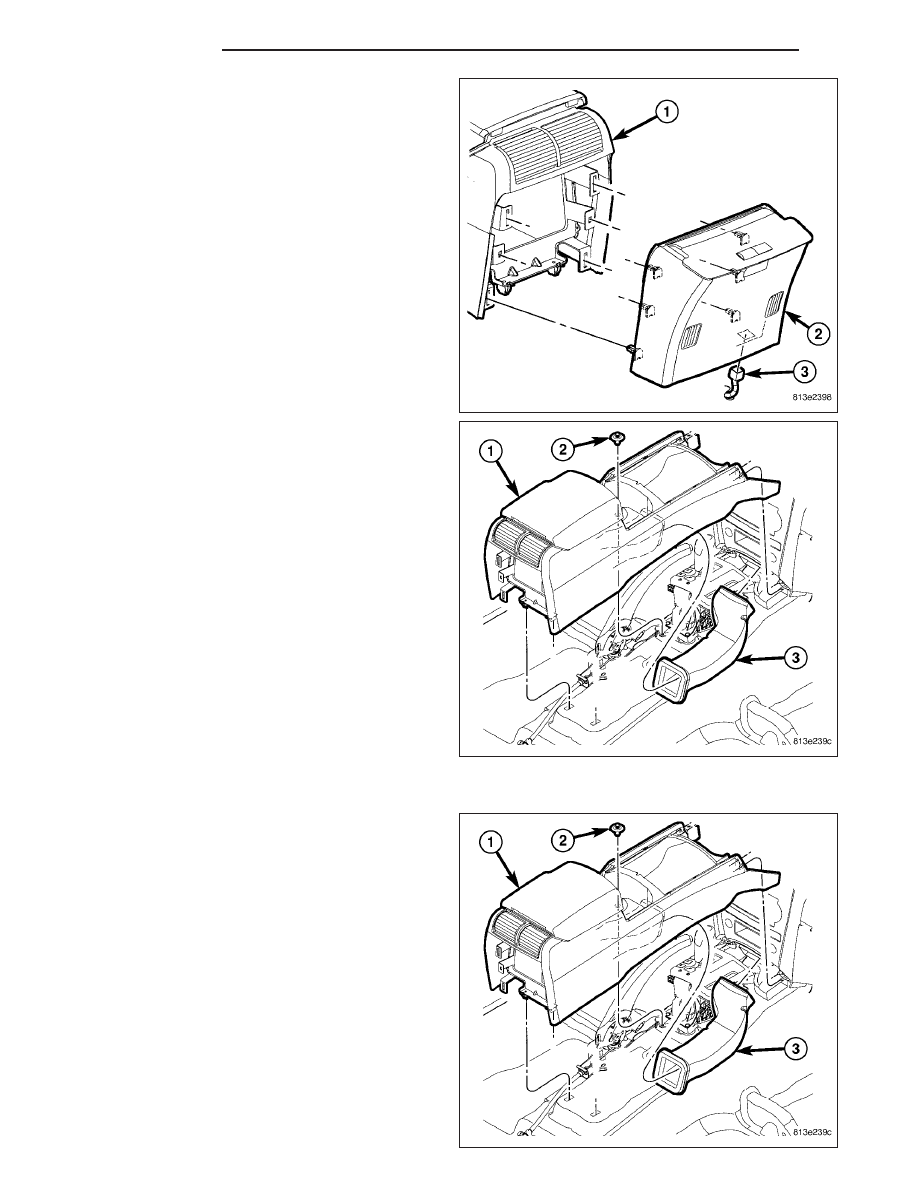

3. Remove the center console back cover (2) and dis-

connect the electrical connector (3).

4. Remove the screws (2) and remove the console

(1).

INSTALLATION

1. Position the console (1) into the vehicle and install

the screws (2).

23 - 120

INTERIOR

WK

2. Connect the electrical connector (3) and install the

rear cover (2) onto the console (1).

3. Position the shifter bezel and seat fully.

4. Position the shifter bezel trim ring and seat fully.

WK

INTERIOR

23 - 121
