41. Snap the steering column opening cover (2) lower

hinges onto the pins and roll cover up.

42. Seat the upper retaining clips fully.

43. Install the hush panel.

44. Connect the column electrical connectors.

45. Install the column covers.

23 - 102

INSTRUMENT PANEL

WK

46. Install the left a-pillar trim, the bolts and position

the door seal back.* Right a-piller trim shown, left
similar.

47. Position the left side end cap and seat fully.

48. Install the center support nut onto the stud.

WK

INSTRUMENT PANEL

23 - 103

49. Install the two HVAC bolts within the radio open-

ing.

50. Install the radio.

51. Install the radio bezel.

52. Install the left and right center support brackets

and nuts and tighten to 12 N·m (105 in. lbs.).* Left
side shown, right side similar.

53. Position the center wire harness and connect the

electrical connectors.

54. Install the center bezel.

55. Position the defroster vents (2) and seat fully.

23 - 104

INSTRUMENT PANEL

WK

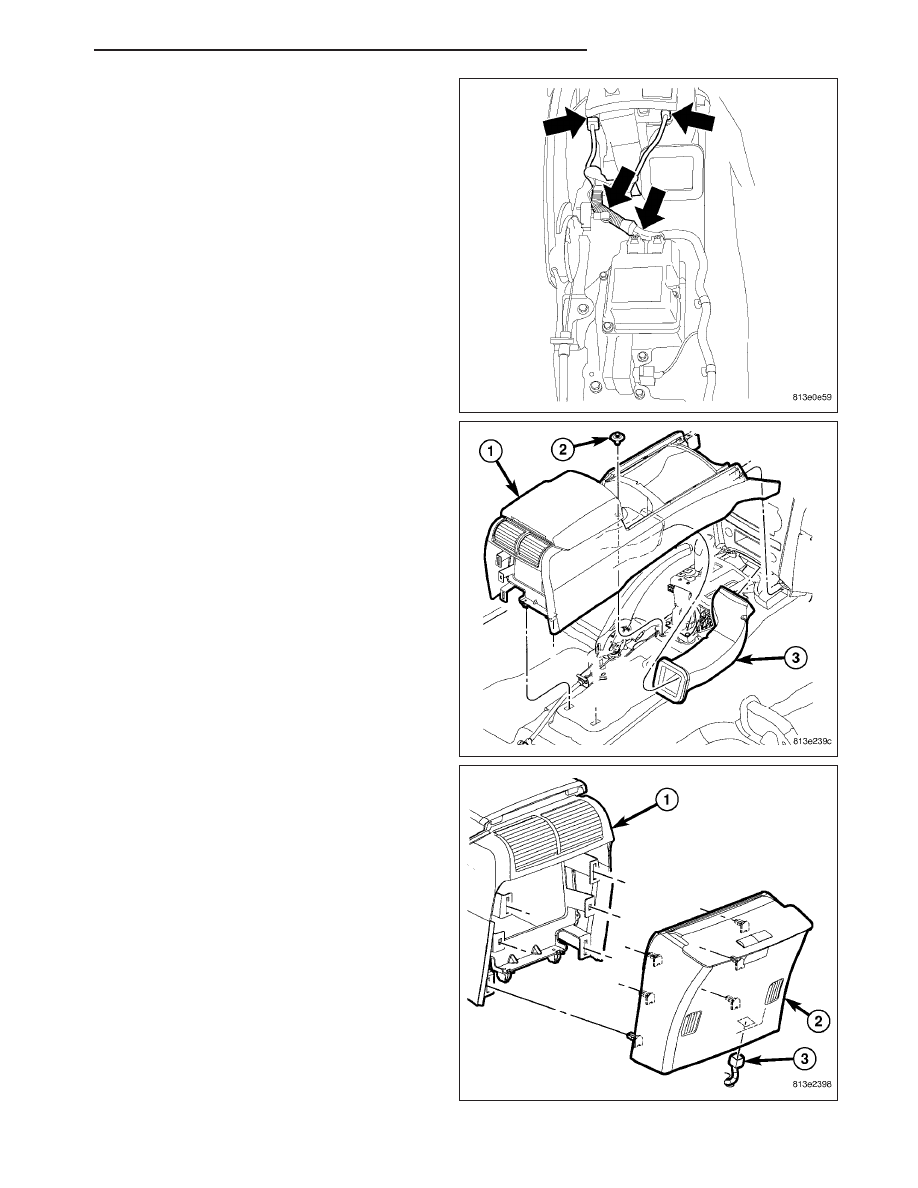

56. Connect the center harness electrical connectors

(ground, module, shifter, brake lever).

57. Install the center floor duct (3).

58. Position the console (1) into the vehicle and install

the screws (2).

59. Connect the electrical connector (3) and install the

rear cover (2) onto the console (1).

WK

INSTRUMENT PANEL

23 - 105
