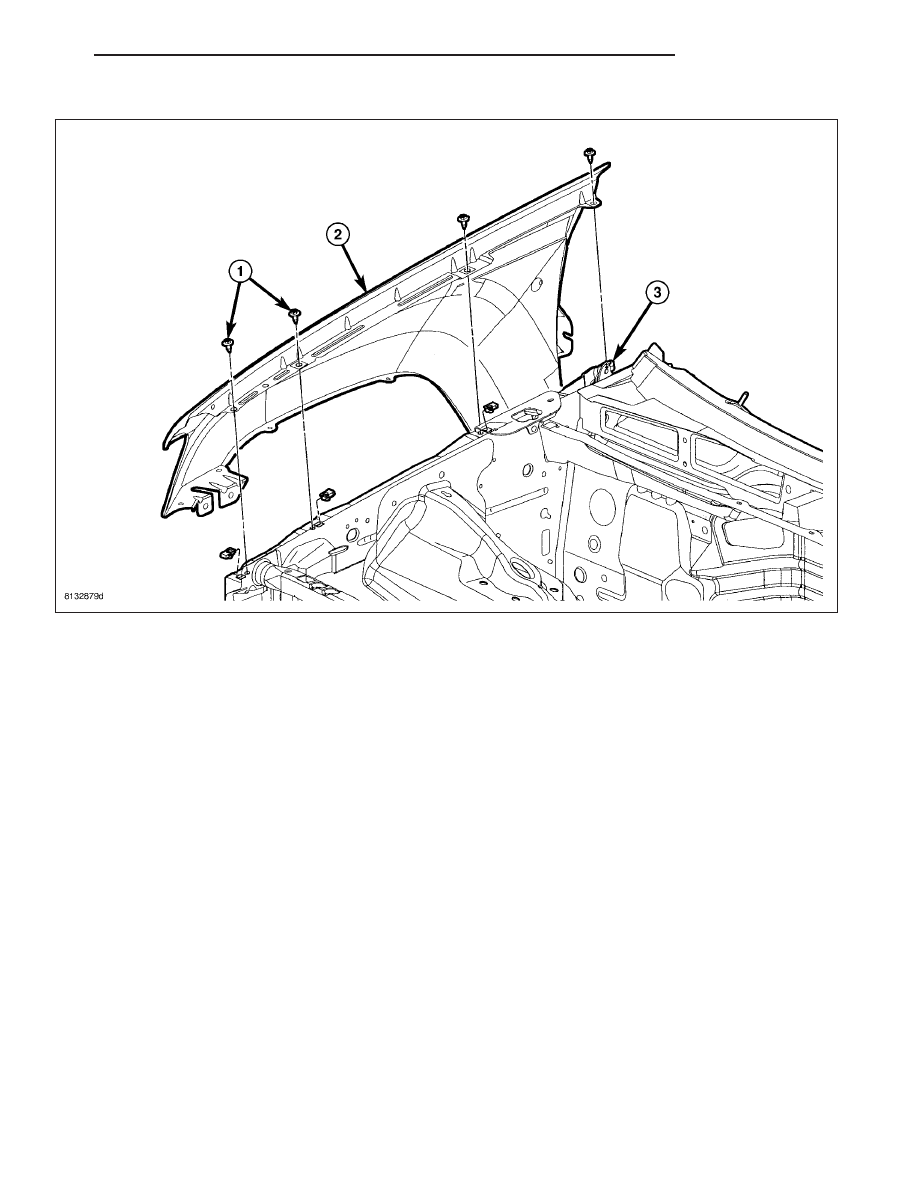

8. Remove upper fender mounting bolts.

9. Remove fender from vehicle.

23 - 58

EXTERIOR

WK

INSTALLATION

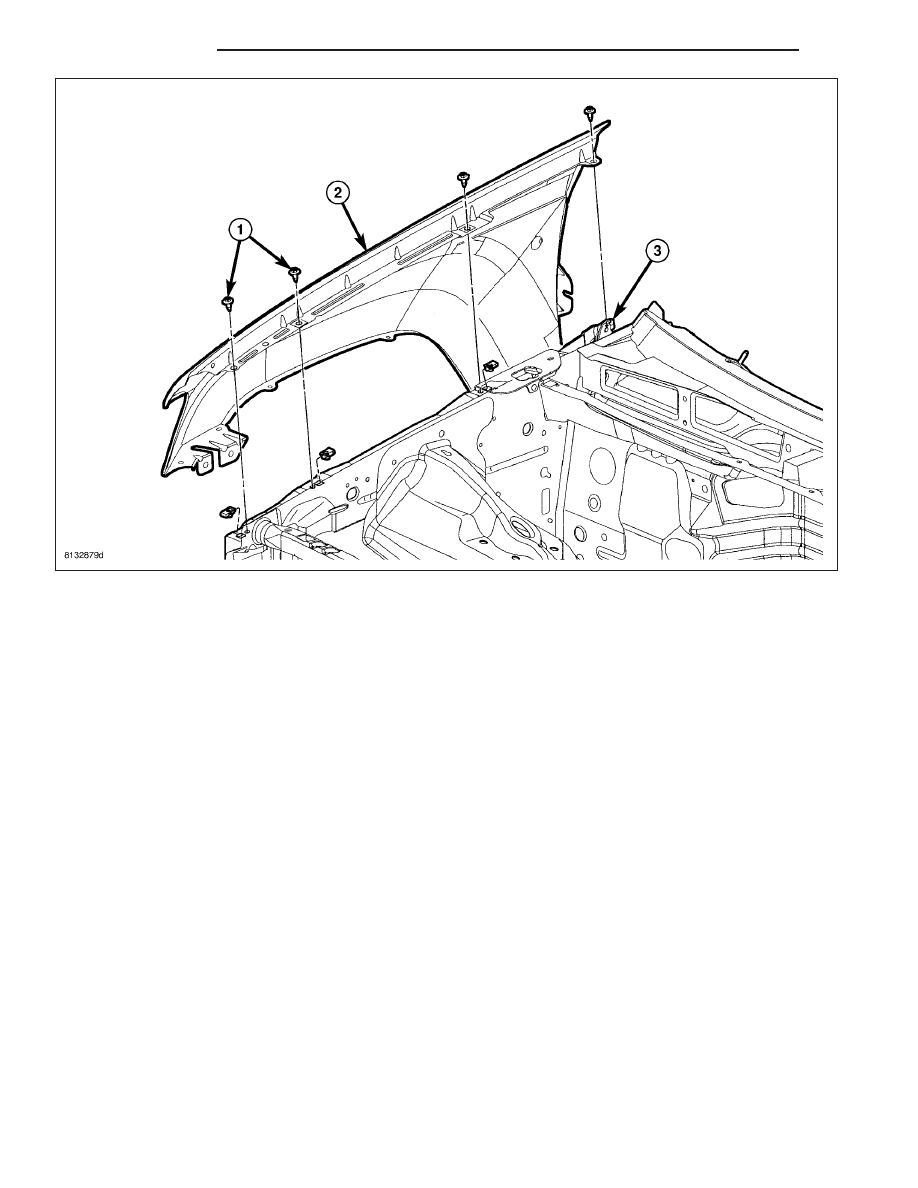

1. Position fender on body.

2. If equipped, install radio antenna. (Refer to 8 - ELECTRICAL/AUDIO/ANTENNA BODY & CABLE - INSTALLA-

TION)

3. Install all screws finger-tight.

WK

EXTERIOR

23 - 59

4. Align fender with adjacent body panels and reference marks. (Refer to 23 - BODY/BODY STRUCTURE/GAP

AND FLUSH - SPECIFICATIONS)

5. Tighten all screws to 12 N·m (9 ft. lbs.).

6. Install rocker panel cover as necessary.

23 - 60

EXTERIOR

WK

7. Install front fascia as necessary, (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLA-

TION).

8. Install wheel liner, (Refer to 23 - BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - INSTALLATION).

9. Install wheel if removed.

GRILLE

REMOVAL

1. Remove the 6 upper push pins (1).

2. Tip grill forward and remove grill (2).

WK

EXTERIOR

23 - 61
